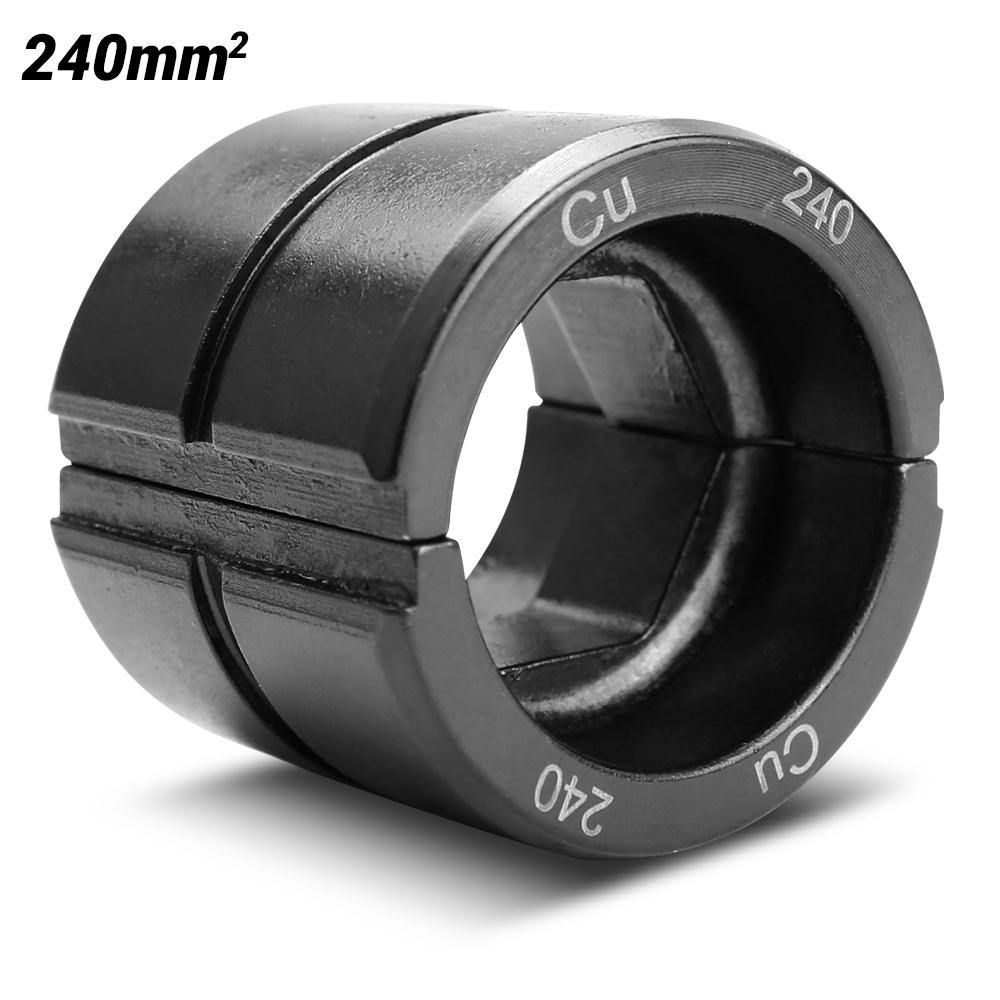

Bayer BCSD240 240mm Square² Crimper Die To Suit Cordless Crimping Tool B18CTK

Bayer BCSD240 240mm Square² Crimper Die To Suit Cordless Crimping Tool B18CTK

This Crimper Die is a replacement part to the Bayer B18CTK Crimping Tool and is suitable for crimping cables of 240mm².

Features:

• Hexagonal crimping of cable

Suitable for:

• Bayer B18CTK 18V 3.0Ah Li-ion Brushless Cordless Crimper Combo Kit
• Milwaukee M18HCCT120C 18V Li-ion FORCE Logic 120kN Utility Crimper - Skin Only
• Sparrow SCPLI400 12T 16mm x 400mm Hydraulic Crimping Pliers
• Cu/Al lugs

Specifications:

• Material: CR40
• Crimp Size: 240mm²
• Crimping Force: 120KN (12 MT)
• Dimentions (L x W x H): 40mm x 40mm x 35mm
• Weight: 0.19kg

Below is a conversion table from Wired Squared Millimeters to Diameter Millimeters:

• 0.75mm² - 1.0mm
• 1.0mm² - 1.1mm
• 1.5mm² - 1.4mm
• 2.0mm² - 1.5mm
• 2.5mm² - 1.8mm
• 4.0mm²- 2.3mm
• 6.0mm² - 2.8mm
• 10mm²- 3.6mm
• 16mm² - 4.5mm
• 25mm² - 5.6mm
• 35mm²- 6.7mm
• 50mm²- 8.0mm
• 70mm² - 9.5mm
• 95mm² - 11.0mm
• 120mm² - 12.4mm
• 150mm² - 13.8mm
• 185mm²- 15.4mm
• 240mm² - 17.5mm
• 300mm² - 19.5mm
• 400mm² - 22.6mm
• 500mm² - 25.2mm
• 630mm² - 28.3mm
• 800mm² - 31.9mm
• 1000mm² - 35.7mm
• 1200mm² - 39.1mm
• 2000mm² - 50.5mm
