Bayer B18CTK 18V 4.0Ah Li-ion Brushless Cordless Crimper Combo Kit

Bayer B18CTK 18V 4.0Ah Li-ion Brushless Cordless Crimper Combo Kit

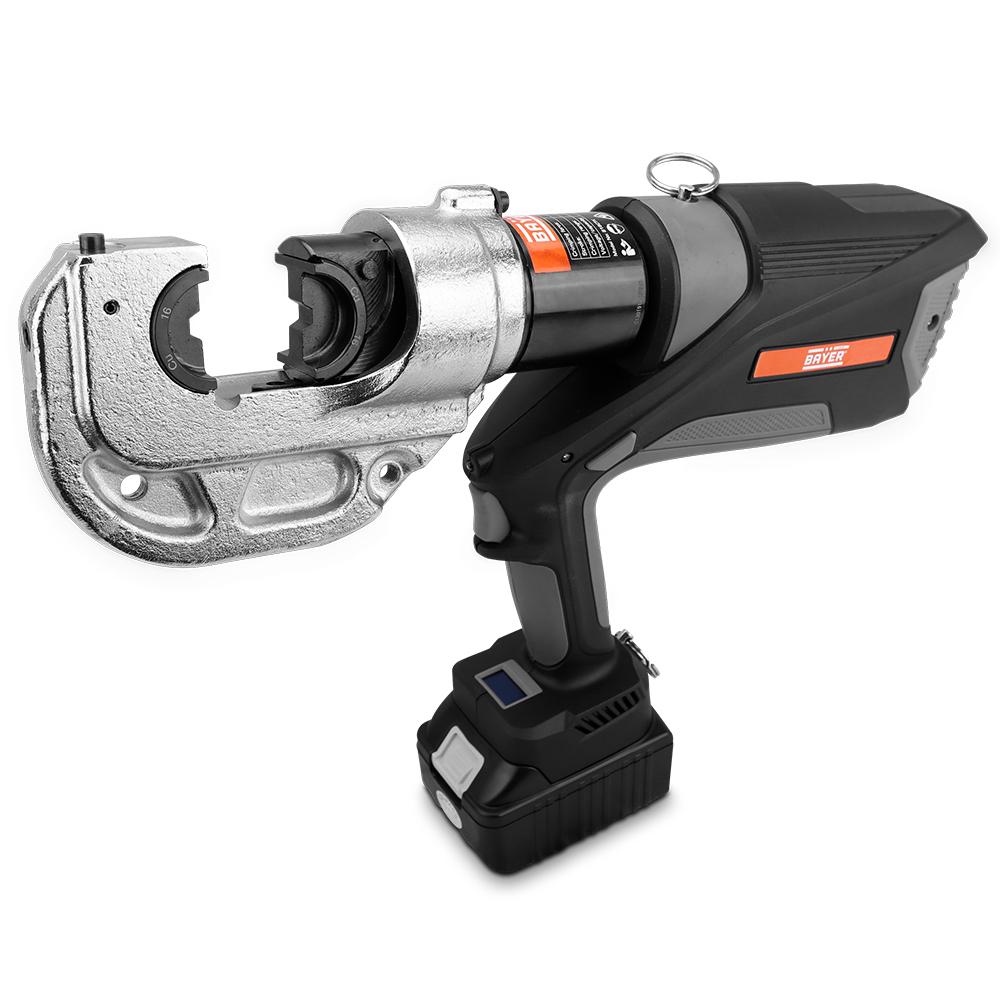

The Bayer B18CTK is a tool for crimping Cu/Al lugs with cables from 16-400mm². It is powered by Li-ion, actuated by brushless motor and controlled by MCU. With a high pressure hydraulic system and longer life, saving more power, it is a perfect tool to be used in electrical construction site.

Compatible with Makita 18V batteries.

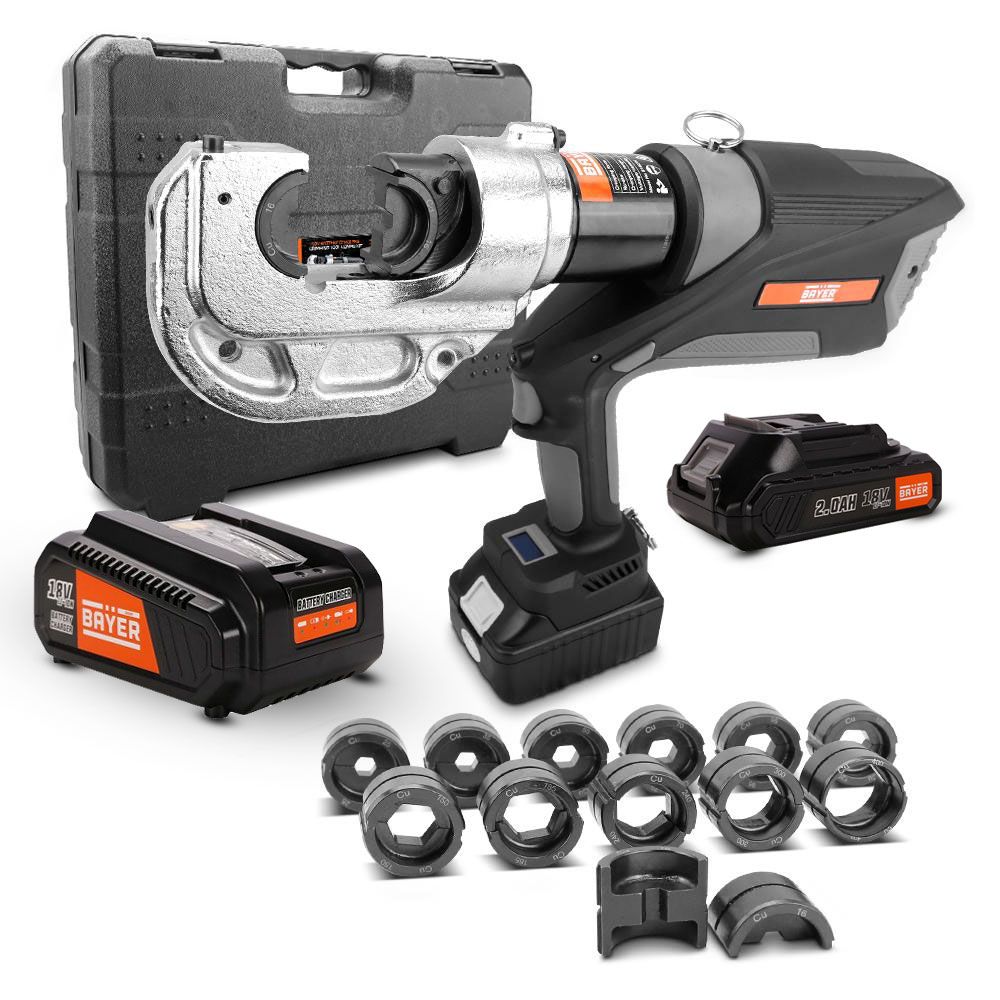

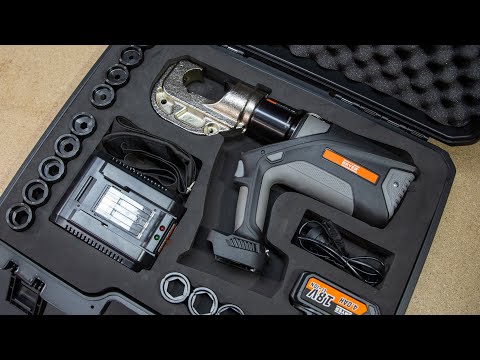

Includes:

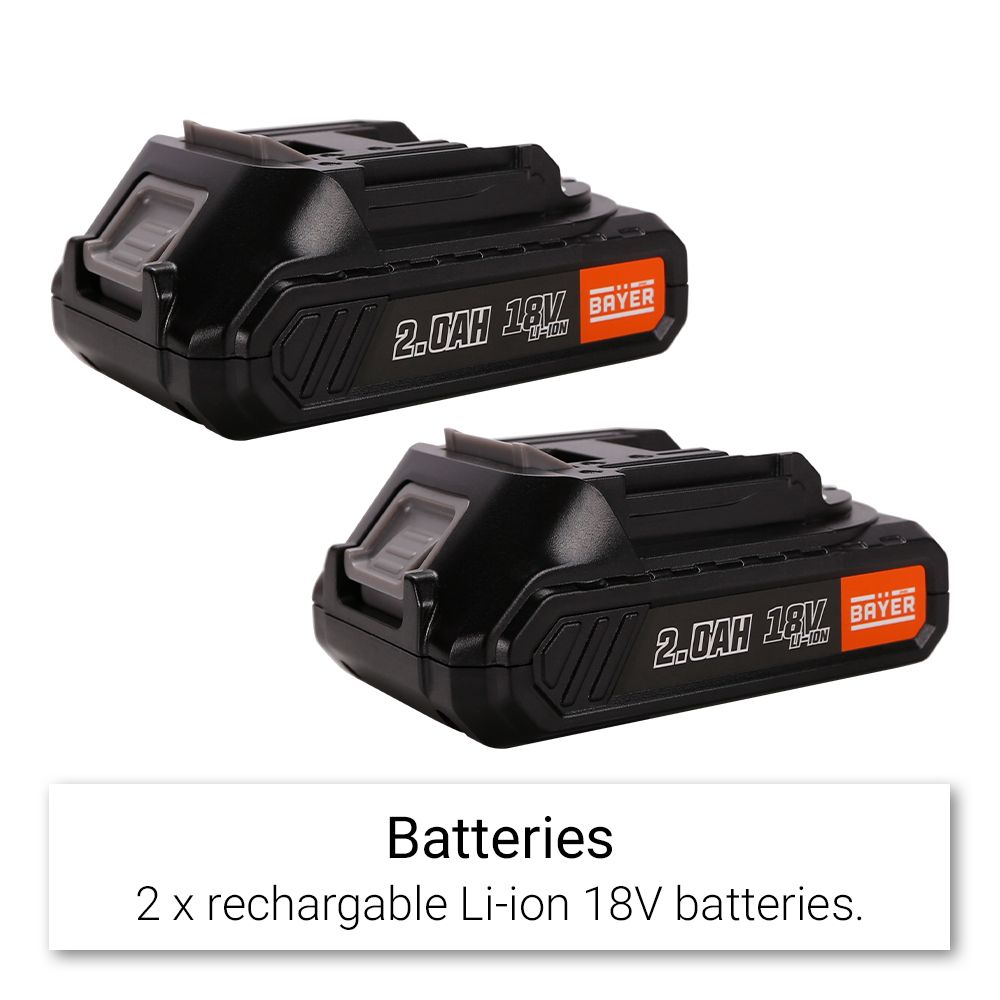

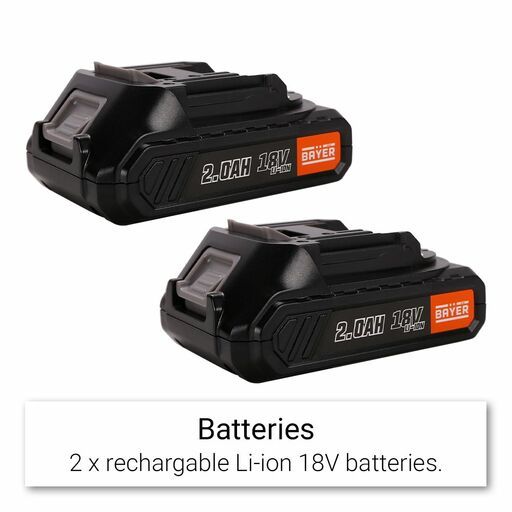

• 2 x 18v Batteries

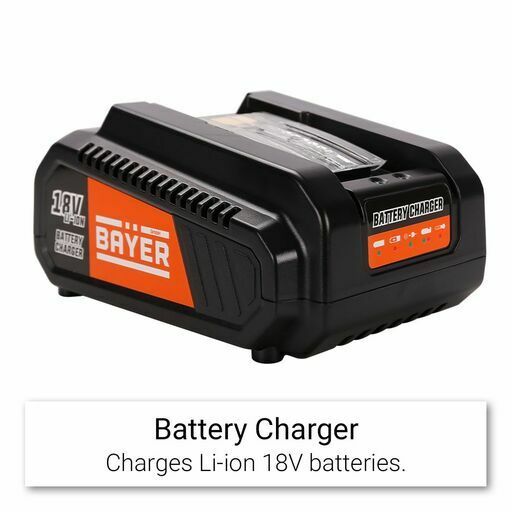

• 1 x 18v Charger
• 1 x Sealing ring of cylinder
• 1 x Sealing ring of safety valve

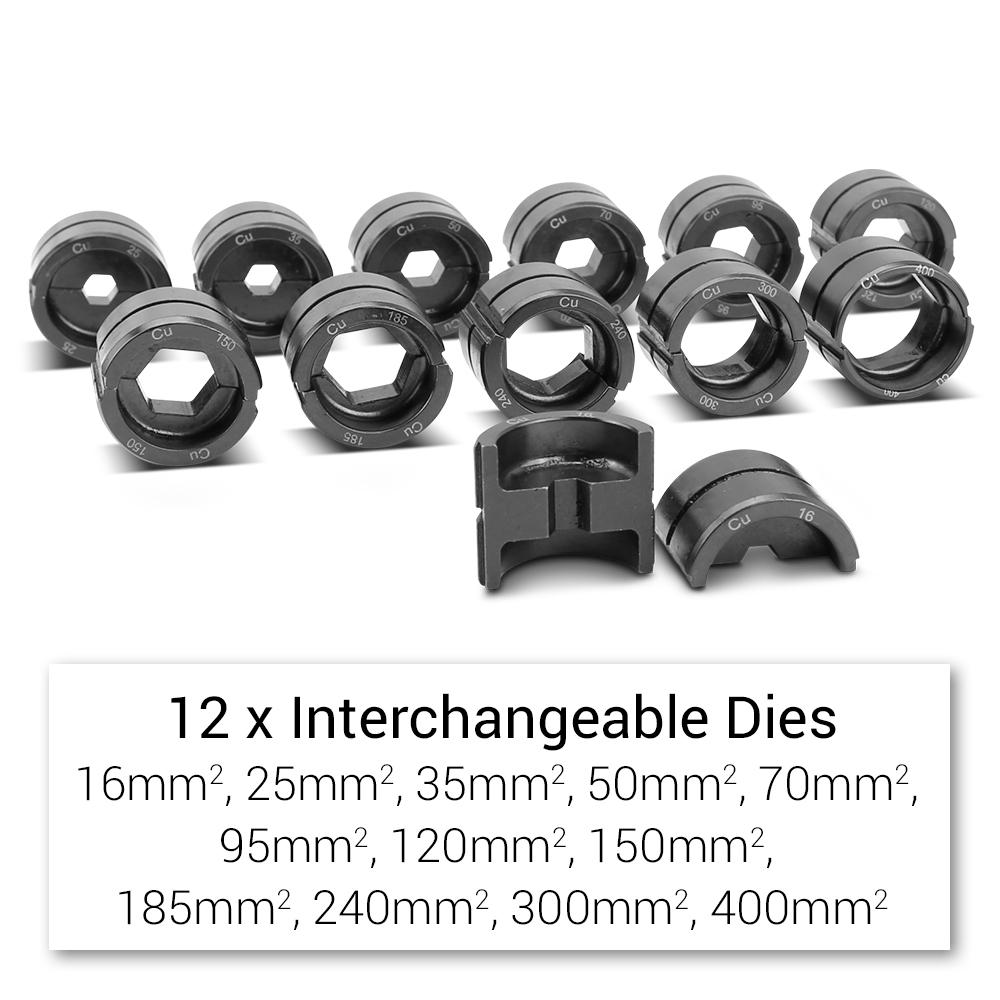

• 12 x Crimping dies:
  • 16mm²
  • 25mm²
  • 35mm²
  • 50mm²
  • 70mm²
  • 95mm²
  • 120mm²
  • 150mm²
  • 185mm²
  • 240mm²
  • 300mm²
  • 400mm²

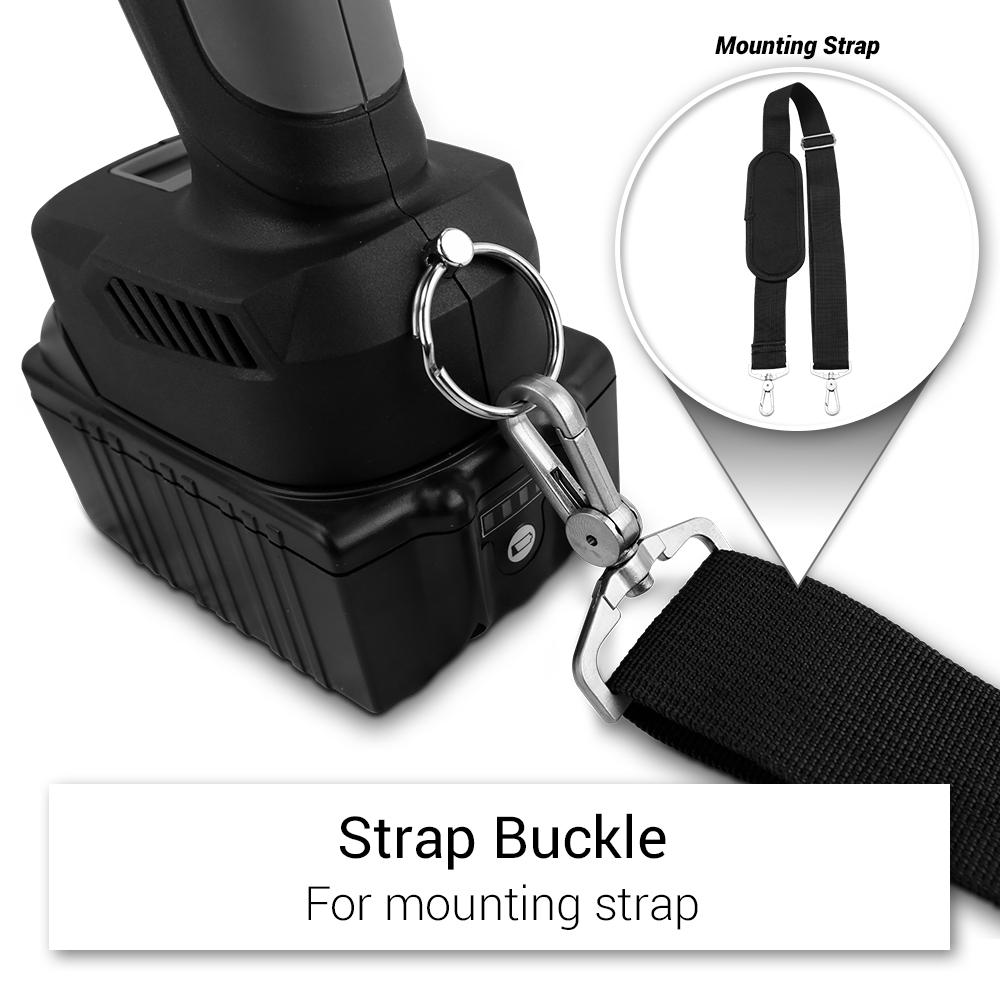

• 1 x Sholder Strap

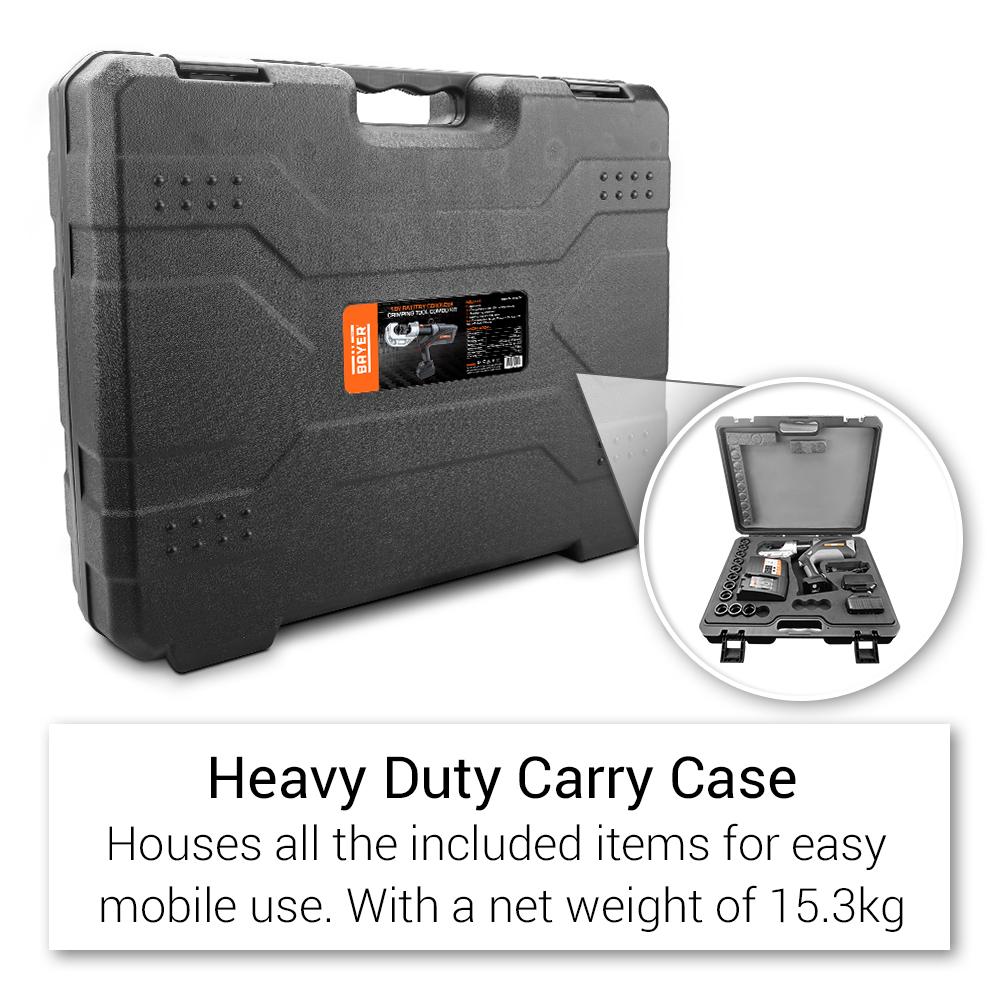

• 1 x Heavy Duty Carry Case

Features:

• Micro computer control system-automatically detects the pressure when in crimping with double safety protect.

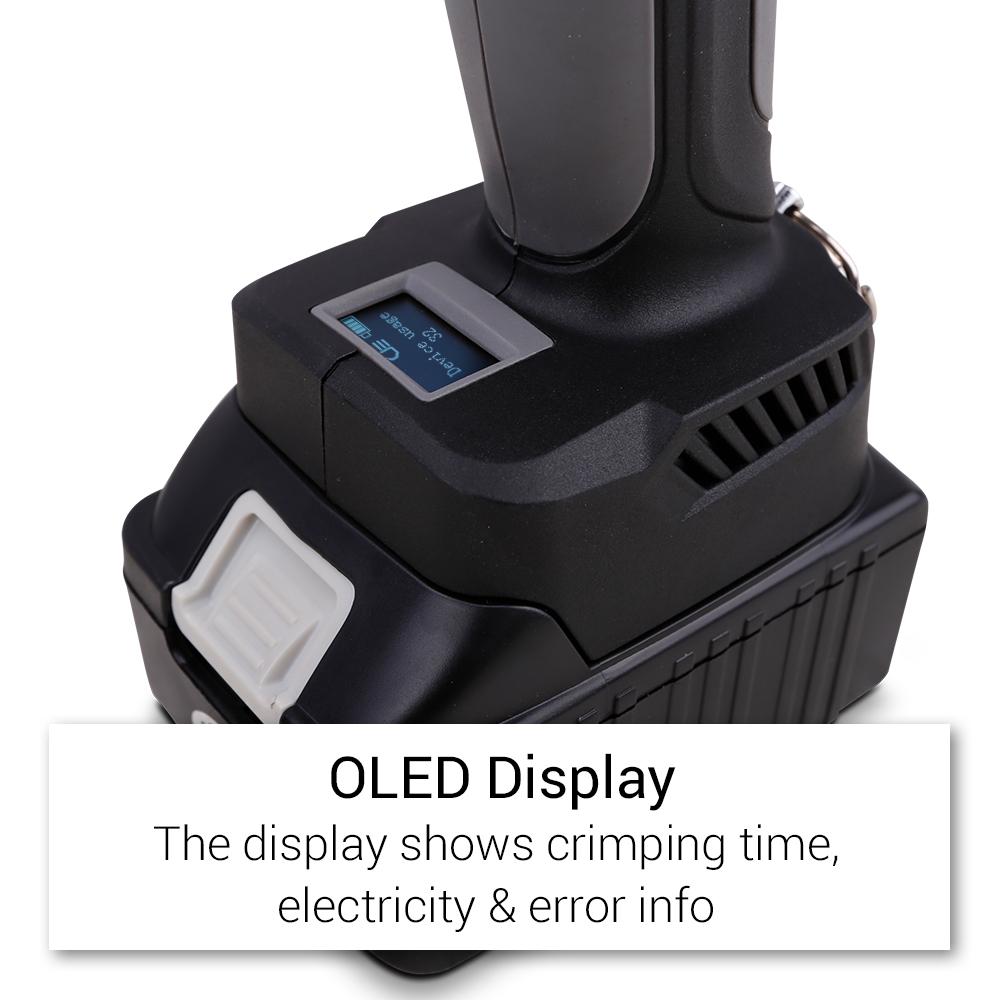

• The tool is equipped with a double piston pump which is characterised with a fast approach towards the connecting material and transfers to a higher pressure automatically by slowing the crimper. If there is a deviation from the set operation pressure or a batterys low on power, it is Identified by an acoustic sound and a red light flashing on the display.

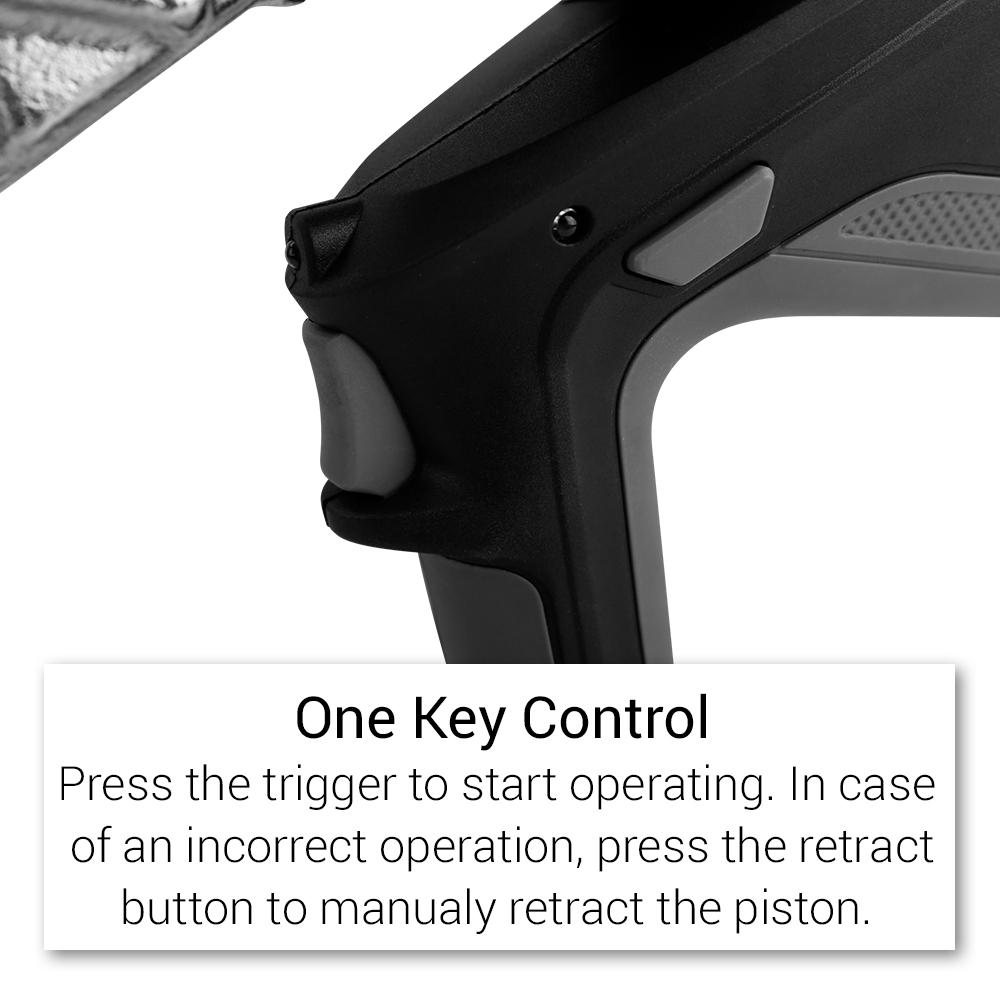

• One key control - press the trigger to start operating, half loosing the trigger will stop the forcing pressure, loosing it fully return the piston to the original position.
• A Temperature sensor makes the tool stop working automatically when the temperature reaches over 60°C after working for a long period of time. If the fault signal sounds, it means the tool can't continue to work until the temperature has reduced to the normal.

Specifications:

• Voltage: 18V
• Battey Capacity: 4.0Ah
• Crimping Force: 120KN (12 MT)
• Stroke: 42mm
• Ambient Temperature: -10-40℃
• Crimping Range:16-400mm²
• Crimp/Charge: 120 times (Cu150mm²)
• Crimping Cycle: 6s-18s (depends on the size of the cable)
• Charging Time: 1hr
• Hydraulic Oil: Shell Tellus T15#
• Oil Capacity: 160ml
• Dimentions (L x W x H): 418mm x 320mm x 83mm
• Crimper Weight: 6.53kg

Warranty:

• 1 year Warranty

Below is a conversion table from Wired Squared Millimeters to Diameter Millimeters:

• 0.75mm² - 1.0mm
• 1.0mm² - 1.1mm
• 1.5mm² - 1.4mm
• 2.0mm² - 1.5mm
• 2.5mm² - 1.8mm
• 4.0mm²- 2.3mm
• 6.0mm² - 2.8mm
• 10mm² - 3.6mm
• 16mm² - 4.5mm
• 25mm² - 5.6mm
• 35mm² - 6.7mm
• 50mm² - 8.0mm
• 70mm² - 9.5mm
• 95mm² - 11.0mm
• 120mm² - 12.4mm
• 150mm² - 13.8mm
• 185mm² - 15.4mm
• 240mm² - 17.5mm
• 300mm² - 19.5mm
• 400mm² - 22.6mm
• 500mm² - 25.2mm
• 630mm² - 28.3mm
• 800mm² - 31.9mm
• 1000mm² - 35.7mm
• 1200mm² - 39.1mm
• 2000mm² - 50.5mm
