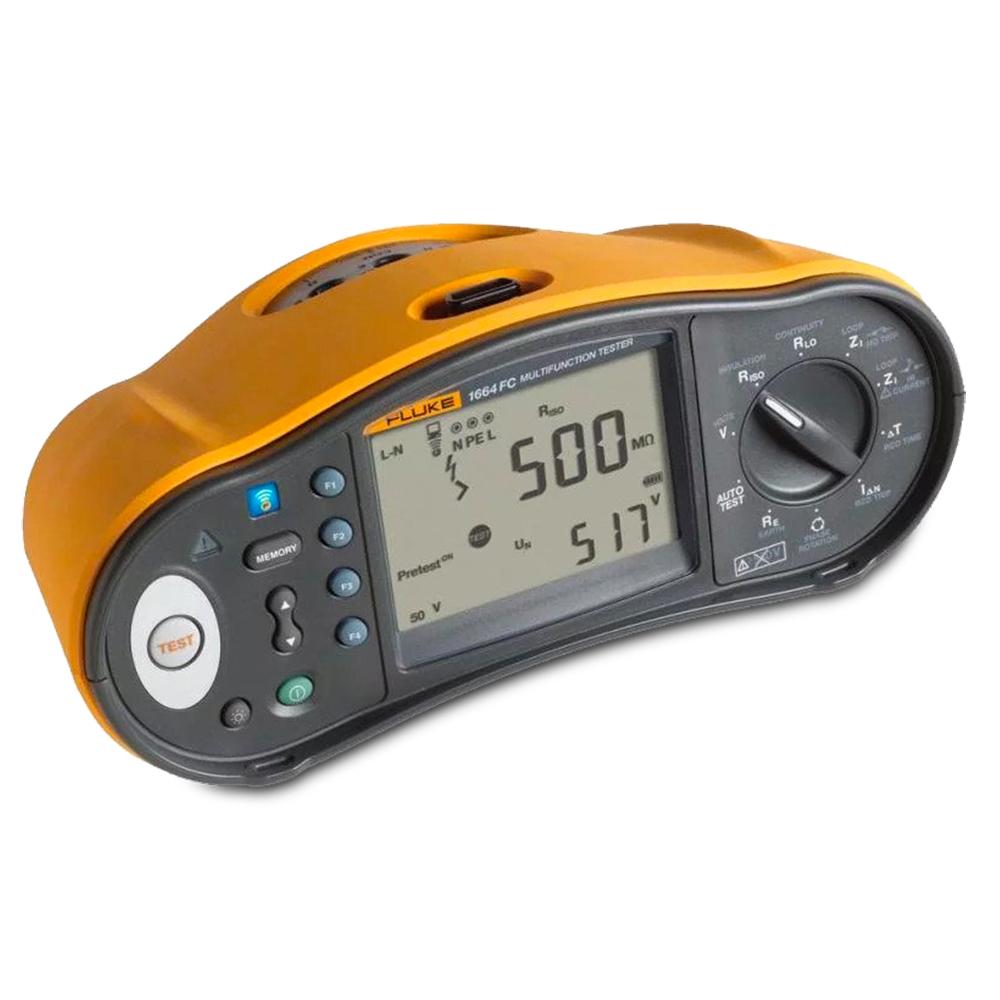

Fluke FLK-1664 FC/FVF AU (4547079) 1664 FC Installation Multifunction Testers

Fluke FLK-1664 FC/FVF AU (4547079) 1664 FC Installation Multifunction Testers

The 1664 FC puts a lot of testing power in your hands to quickly and efficiently test to all local regulations, protect appliances, and share test results in real time over your smartphone. It is the only tester with "Insulation PreTest" that stops the insulation test and provides a visual warning if it detects that an appliance is connected to the system under test. This helps you avoid potentially serious and costly mistakes that can cause damage to your customers’ peripheral equipment.

Features:

• Includes "Insulation Pre-test" that detects when appliances are connected to the system and stops the test
• Runs seven installation tests automatically in one sequence with a single connection through Auto Test
• Allows you to share test results in real time over your smartphone via Fluke Connect Measurements
• Rotary dial knob clearly indicates which function is selected, all in one spot with no complex multi-level menus.
• Offers additional high current loop mode for faster measurements than loop tests with non-trip mode for RCDs
• Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
• Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
• Performs fast voltage measurement between L-N, L-PE, and N-PE using the mains cord. No need to change measurement connections
• Measures RCD trip current and trip time in parallel (RCD type AC and A)
• Measures PEFC or PSC and loop impedance in parallel and displays them together on the dual display
• Offers ring testing so you can select the required input sockets with soft keys and not have to exchange test leads
• Uses continuity test currents to measure motor windings
• Detects raised earth voltages > 50 V with Earth Volt Touchpad, indicating potential dangerous situations
• Features large display with backlight, clear symbols, and exceptionally wide viewing angle for easy and safe readings
• Offers extended three-layer memory

Specifications:

• AC voltage measurement:
• Range:500 V
• Resolution:0.1 V
• Accuracy:45 Hz – 66 Hz 0.8% + 3
• Input impedance: 360 kΩ
• Overload protection: 660 V rms
• Continuity testing (RLO):
• Range (autoranging): 20 Ω / 200 Ω / 2000 Ω
• Resolution: 0.01 Ω / 0.1 Ω / 1 Ω
• Open Circuit Voltage: >4 V
• Insulation resistance measurement Test voltages: 50-100-250-500-1000 V
• Accuracy of Test voltage (at rated test current): +10%, -0%
• Test voltage:
• 50 V
• 100 V
• 250 V
• 500 V
• 1000 V
• Insulation resistance range:
• 20 MΩ /50 MΩ
• 20 MΩ / 100 MΩ
• 20 MΩ / 200 MΩ
• 20 MΩ / 200 MΩ / 500 MΩ
• 20 MΩ / 200 MΩ / 1000 MΩ
• Resolution:
• 0.01 MΩ / 0.1 MΩ
• 0.01 MΩ / 0.1 MΩ
• 0.01 MΩ / 0.1 MΩ
• 0.01 MΩ / 0.1 MΩ / 1 MΩ
• 0.01 MΩ / 0.1 MΩ / 1 MΩ
• Test current:
• 1 mA @ 50 kΩ
• 1 mA @ 100 kΩ
• 1 mA @ 250 kΩ
• 1 mA @ 500 kΩ
• 1 mA @ 1 MΩ
• Loop and line impedance (ZI) Range 10 Ω / 0.001 Ω / High current mΩ mode
• Loop and line impedance (ZI) Resolution 0.01 Ω / 0.1 Ω / 1 Ω
• Prospective earth fault current (PSC test) Range: 1000 A / 10 kA (50 kA)
• Prospective earth fault current (PSC test) Resolution: 1 A / 0.1 kA
• Prospective earth fault current (PSC test) Computation: Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.
• RCD testing, RCD types tested
• RCD Type: AC(Responds to AC), G(General, no delay) & S(Time delay)
• Model 1664: A, AC, B(Responds to smooth DC signal) & Sl
• Tripping speed test (ΔT)
• Tripping speed test (ΔT) Current settings:
• 10-30-100-300-500-1000 mA – VAR
• 10-30-100 mA
• Tripping speed test (ΔT)Multiplier: x ½, x 1, x 5
• Measurement range RCD Type G:
• 310 ms
• 50 ms
• Measurement range RCD Type S:
• 510 ms
• 160 ms
• RCD/FI-Tripping Current Measurement/Ramp Test (IΔN)
• Current range: 30% to 110% of RCD rated current¹
• Step size:10% of IΔN²
• Dwell time Type G: 300 ms/step
• Dwell time Type S: 500 ms/step
• Measurement accuracy: ±5%
• Specified trip current ranges (EN 61008-1):
• 50% to 100% for Type AC
• 35% to 140% for Type A (>10 mA)
• 35% to 200% for Type A (≤10 mA)
• 50% to 200% for Type B
• 5% for Type B
• Earth Resistance Test (RE) Range: 200 Ω / 2000 Ω
• Earth Resistance Test (RE) Resolution: 0.1 Ω / 1Ω
• Earth Resistance Test (RE) Frequency: 128 Hz
• Earth Resistance Test (RE) Output Voltage: 25 V
• Battery Type: 6 x Type AA (Not included)
• Sealing: IP-40
• Safety: Complies with EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition
• Overvoltage: CAT III / 500V; CAT IV 300V
• Performance: EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition
• Dimensions (L x W x H): 100mm x 250mm x 125mm
• Weight 1.3kg

Warranty:

• Three Years Warranty Covered By Fluke
