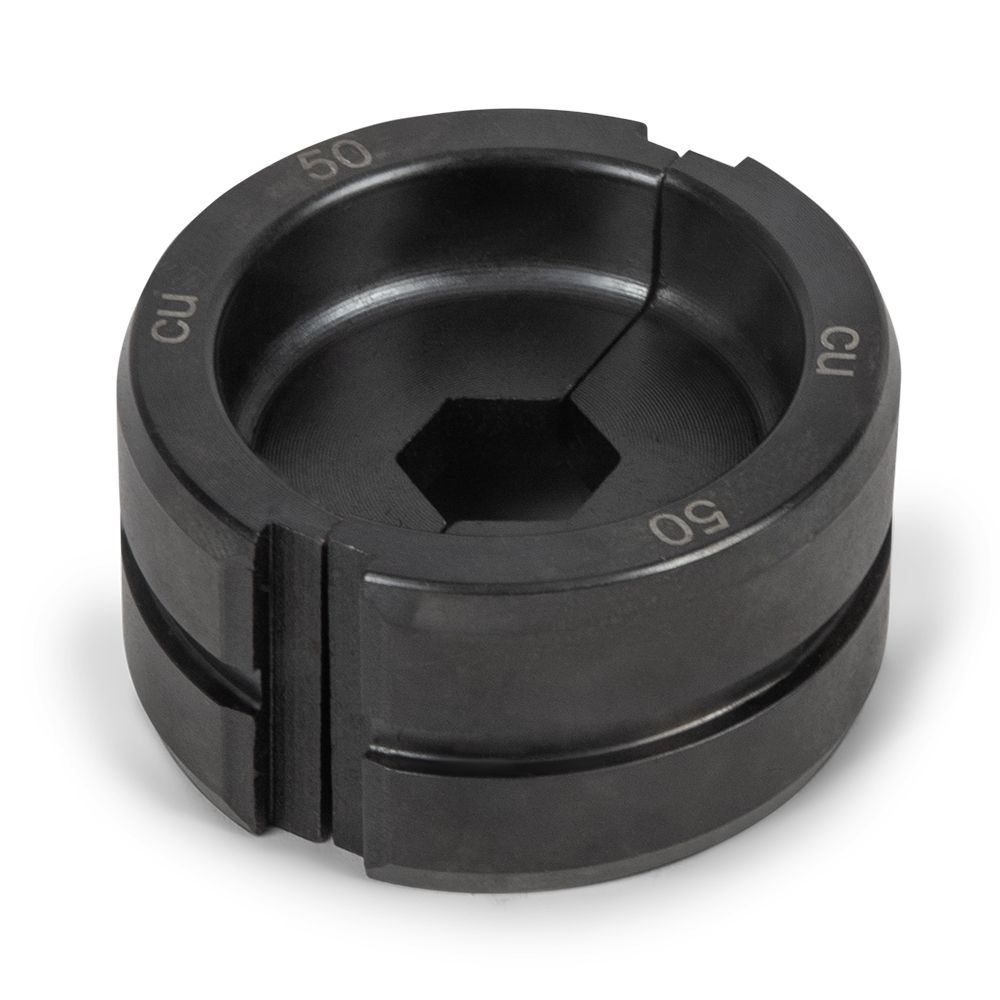

Bayer BCD6T50 50mm² Individual Crimper Die To Suit Crimping Tool B18CTK PZ300

This Crimper Die is a replacement part to the Bayer Crimping Tools B18CTK and PZ300 and is suitable for crimping cables of 50mm².

Features:

  • Hexagonal crimping of cable

Suitable for:

Specifications:

  • Material: CR40
  • Crimp Size: 50mm²
  • Crimping Force: 120KN (12 MT)
  • Dimentions (L x W x H): 40mm x 40mm x 35mm
  • Weight: 0.23kg
Below is a conversion table from Wired Squared Millimeters to Diameter Millimeters:
  • 0.75mm² - 1.0mm
  • 1.0mm² - 1.1mm
  • 1.5mm² - 1.4mm
  • 2.0mm² - 1.5mm
  • 2.5mm²- 1.8mm
  • 4.0mm²- 2.3mm
  • 6.0mm² - 2.8mm
  • 10mm² - 3.6mm
  • 16mm² - 4.5mm
  • 25mm² - 5.6mm
  • 35mm² - 6.7mm
  • 50mm² - 8.0mm
  • 70mm² - 9.5mm
  • 95mm² - 11.0mm
  • 120mm² - 12.4mm
  • 150mm² - 13.8mm
  • 185mm² - 15.4mm
  • 240mm² - 17.5mm
  • 300mm²- 19.5mm
  • 400mm² - 22.6mm
  • 500mm² - 25.2mm
  • 630mm² - 28.3mm
  • 800mm² - 31.9mm
  • 1000mm² - 35.7mm
  • 1200mm² - 39.1mm
  • 2000mm² - 50.5mm
