Bayer PZ300 18V 2.0Ah Li-ion Cordless Mini Crimping Tool Combo Kit

Bayer PZ300 18V 2.0Ah Li-ion Cordless Mini Crimping Tool Combo Kit

The Bayer PZ300 is a tool for crimping Cu/Al lugs with cables from 16-300mm². With a high pressure hydraulic system and longer life, saving more power, it is a perfect tool to be used in electrical construction site.

Includes:

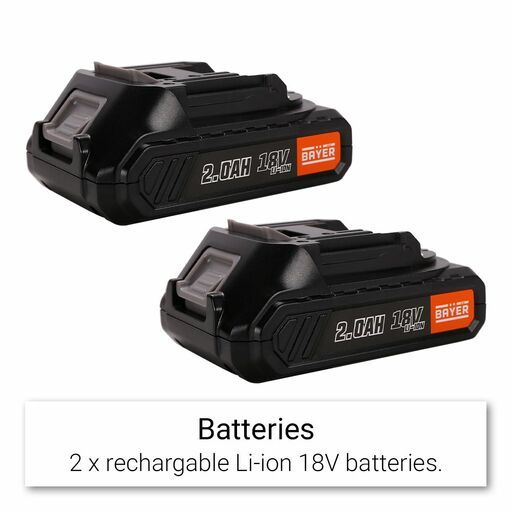

• 2 x 18V 2.0Ah Batteries

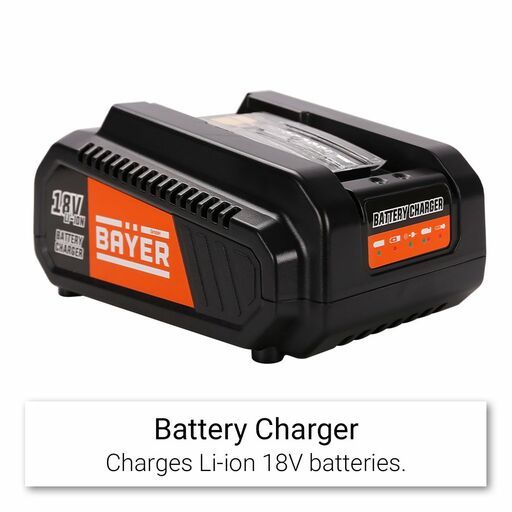

• 1 x 18V Charger
• 1 x Sealing ring cylinder
• 1 x Sealing ring of safety valve

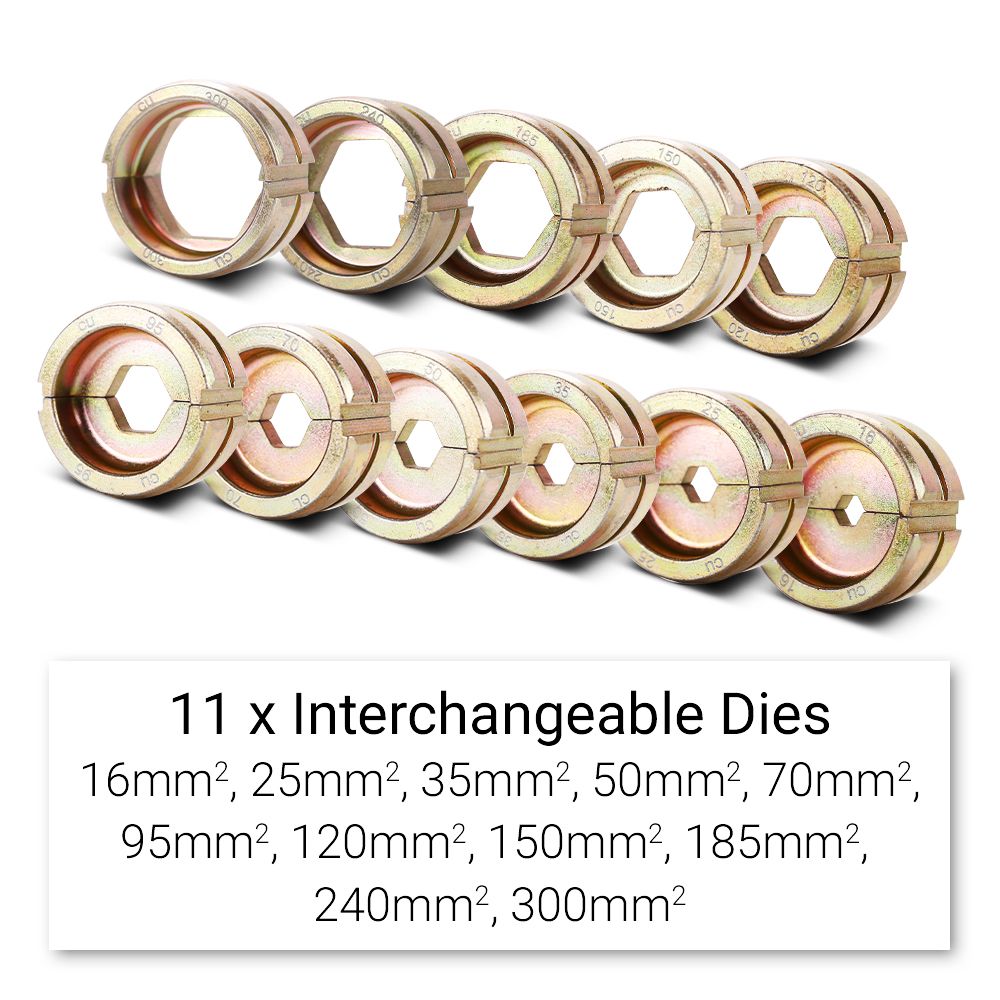

• 11 x Crimping dies:
  • 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm²

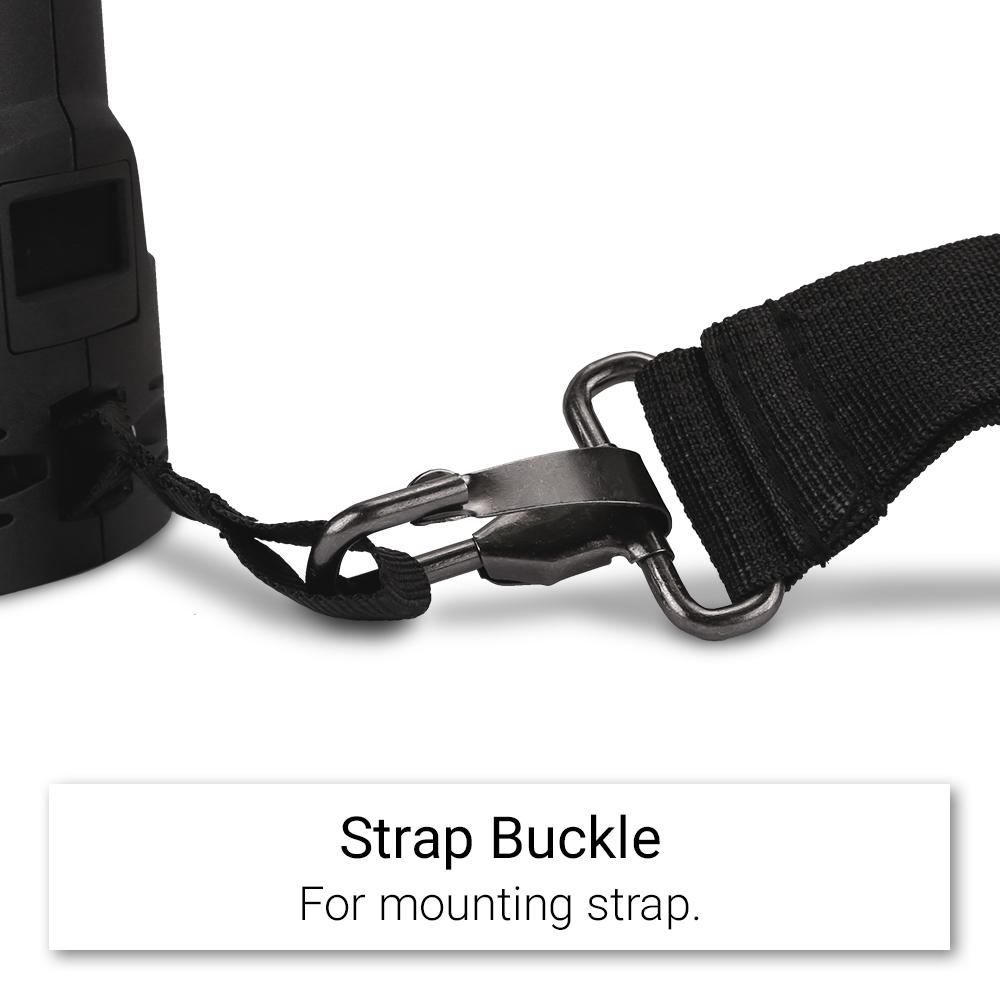

• 1 x Shoulder strap

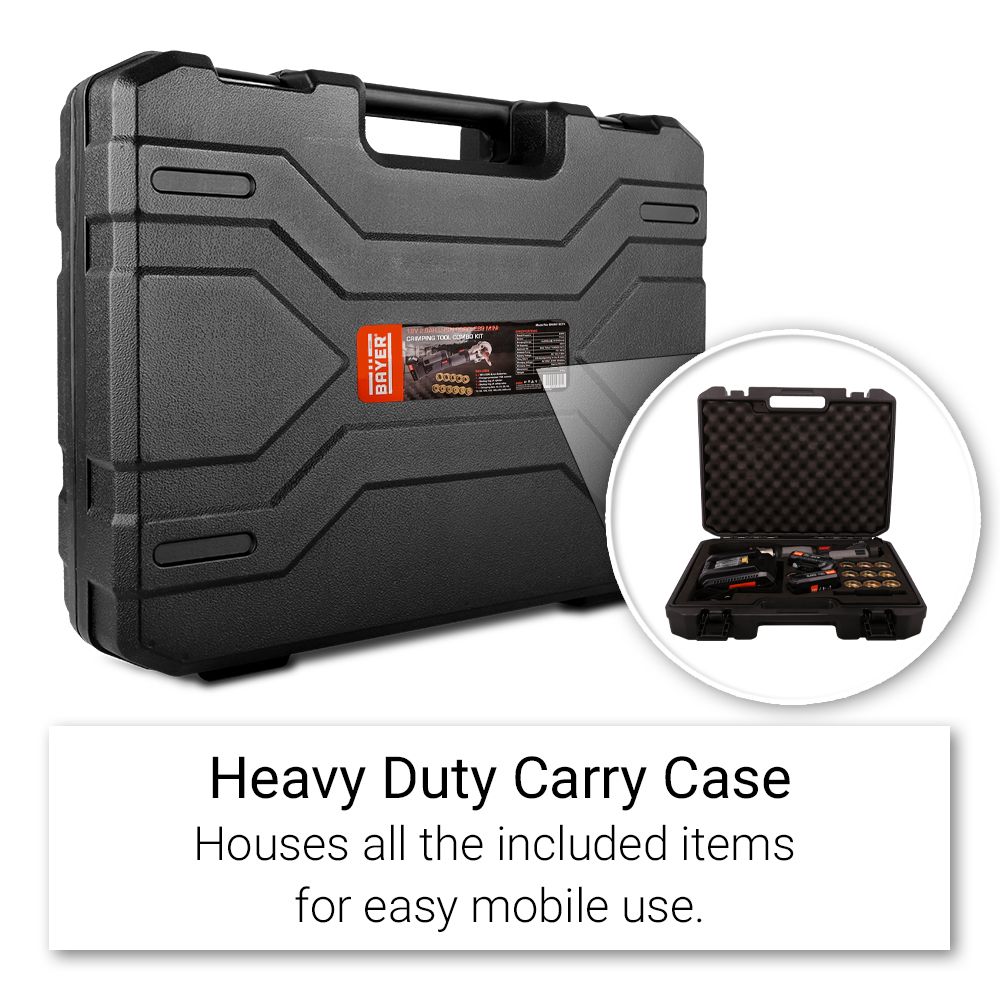

• 1 x Heavy duty carry case

Features:

• Micro computer control system-automatically detects the pressure when in crimping with double safety protect

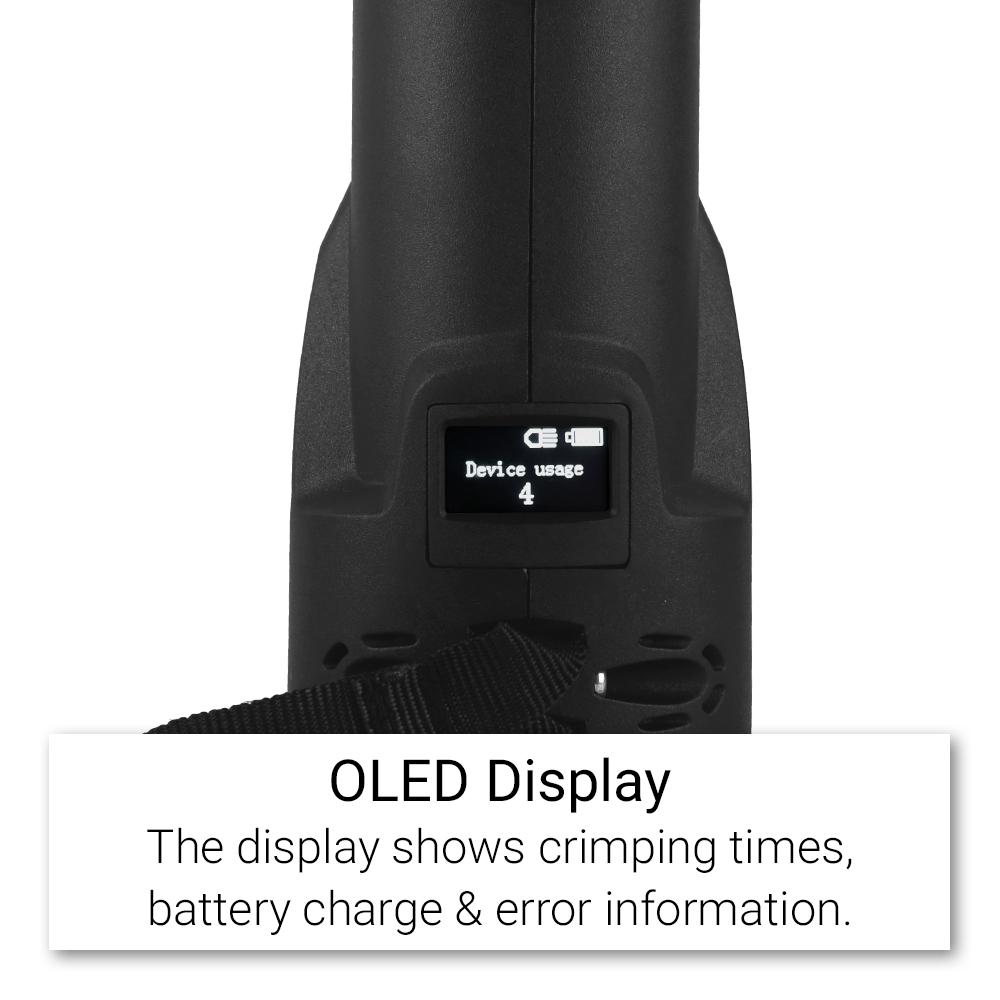

• The tool is equipped with a double piston pump which is characterised with a fast approach towards the connecting material and transfers to a higher pressure automatically by slowing the crimper. If there is a deviation from the set operation pressure or a battery’s low on power, it is Identified by an acoustic sound and a red light flashing on the display

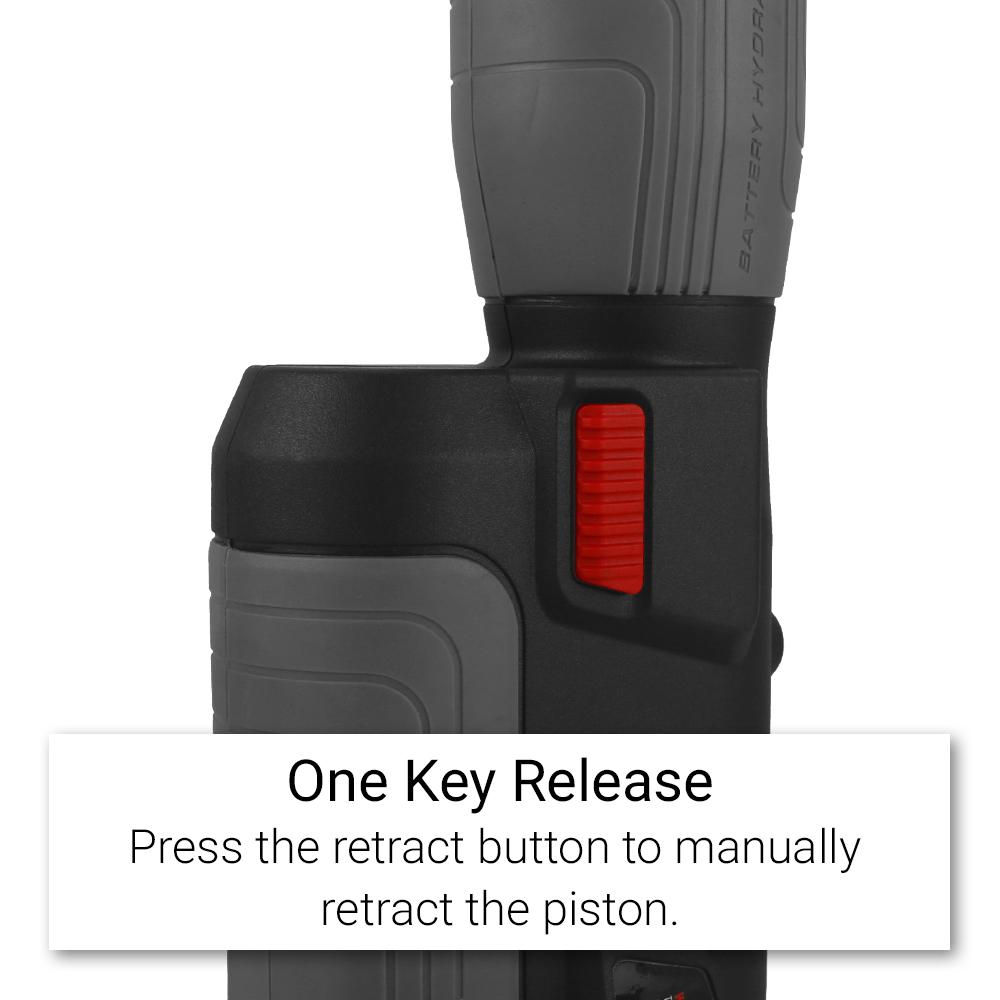

• One key control - press the trigger to start operating, half loosing the trigger will stop the forcing pressure, loosing it fully return the piston to the original position
• A Temperature sensor makes the tool stop working automatically when the temperature reaches over 60°C after working for a long period of time. If the fault signal sounds, it means the tool can't continue to work until the temperature has reduced to the normal
• 360º Rotatable head for easy use in different positions

Specifications:

• Votlage: 18V
• Battery amps: 1.5Ah
• Rated Pressure: 60KN
• Stroke: 17mm
• Crimping Range: Cu 300mm²/AL 240mm²
• Oil Capacity: 60mL
• Hydraulic Oil: Shell Tellus T15#S2V HV15
• Ambient Temp: -10 - 40ºC
• Battery Voltage: DC 18V/2.0Ah
• Charging Voltage: AC100V - 240V; 50-60Hz
• Charging Time: Approx. 40mins

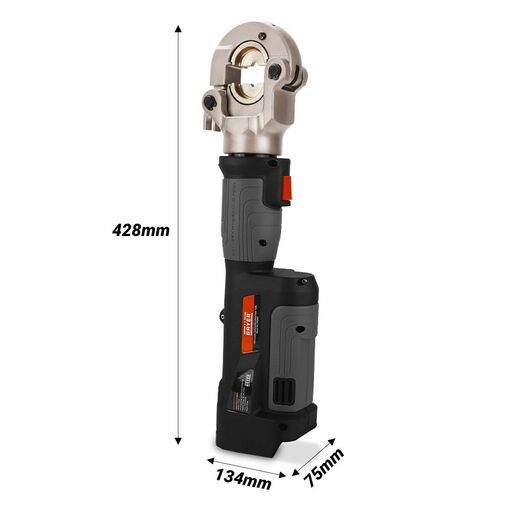

• Dimensions: 428mm x 134mm x 75mm
• Weight: 3.9kg

Below is a conversion table from Wired Squared Millimeters to Diameter Millimeters:

• 0.75mm² - 1.0mm
• 1.0mm² - 1.1mm
• 1.5mm² - 1.4mm
• 2.0mm² - 1.5mm
• 2.5mm² - 1.8mm
• 4.0mm²- 2.3mm
• 6.0mm² - 2.8mm
• 10mm² - 3.6mm
• 16mm² - 4.5mm
• 25mm² - 5.6mm
• 35mm² - 6.7mm
• 50mm² - 8.0mm
• 70mm² - 9.5mm
• 95mm² - 11.0mm
• 120mm² - 12.4mm
• 150mm² - 13.8mm
• 185mm² - 15.4mm
• 240mm² - 17.5mm
• 300mm² - 19.5mm
• 400mm² - 22.6mm
• 500mm² - 25.2mm
• 630mm² - 28.3mm
• 800mm² - 31.9mm
• 1000mm² - 35.7mm
• 1200mm² - 39.1mm
• 2000mm² - 50.5mm

Warranty:

• 2 Years Limited Warranty Covered by Bayer
• 12 Months on Battery & Charger
