Bayer B12CDK 11pce 6T Crimping Die Kit

Bayer B12CDK 11pce 6T Crimping Die Kit

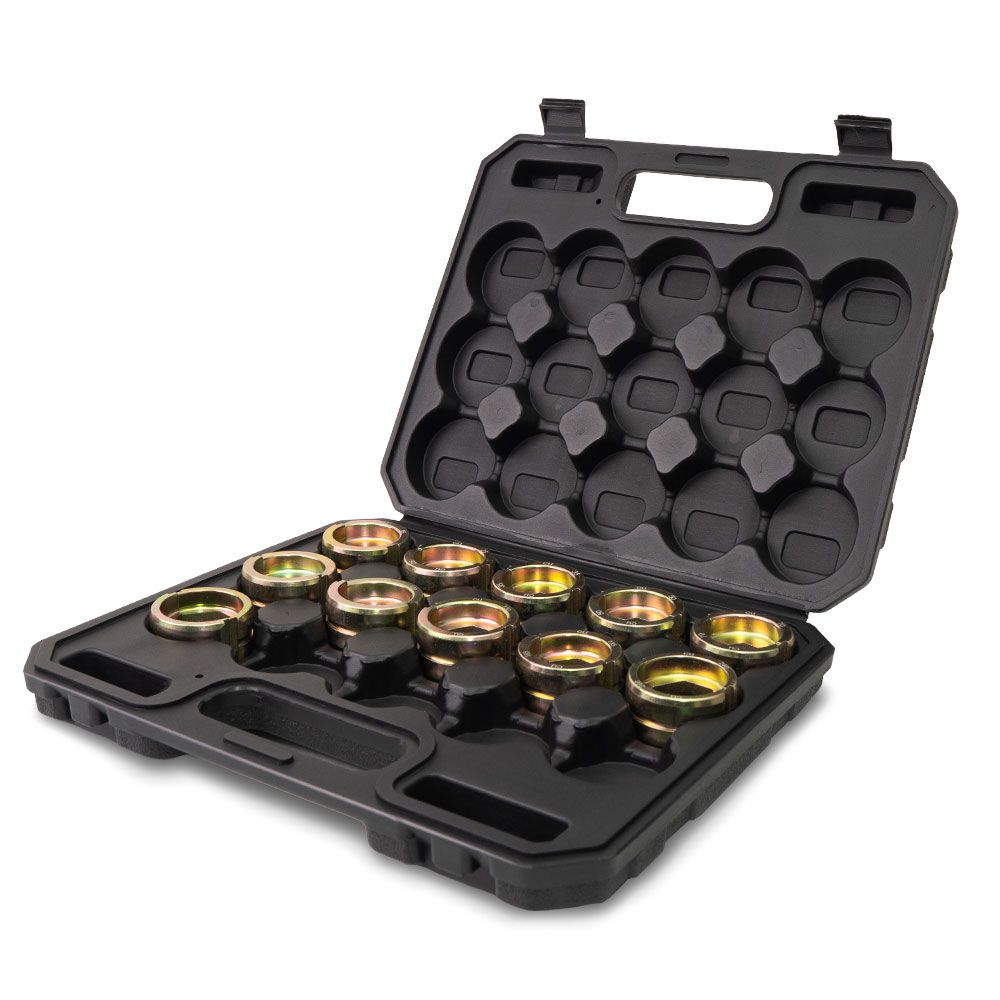

This 11pce 6T Crimping Die Kit is perfect for crimping from 16mm² up to 300mm² cables

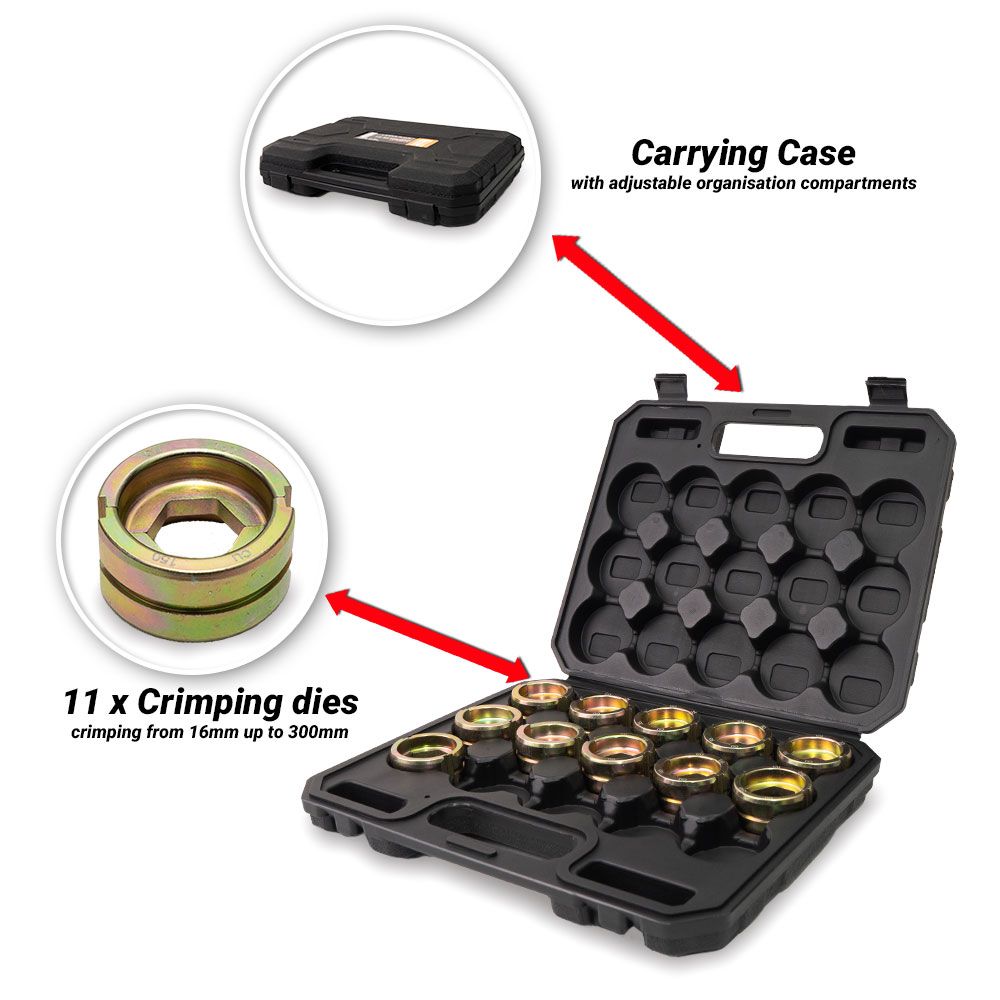

Includes:

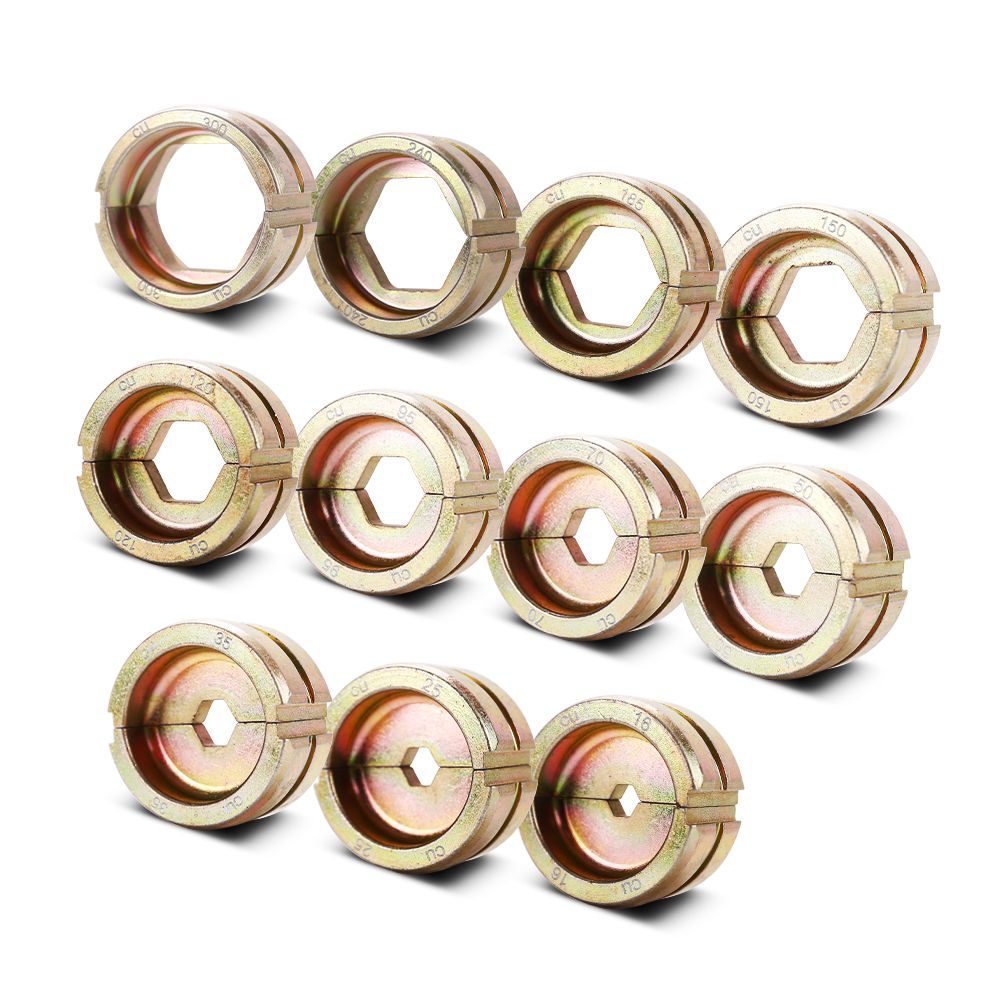

• 11 x Crimping dies:
  • 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²

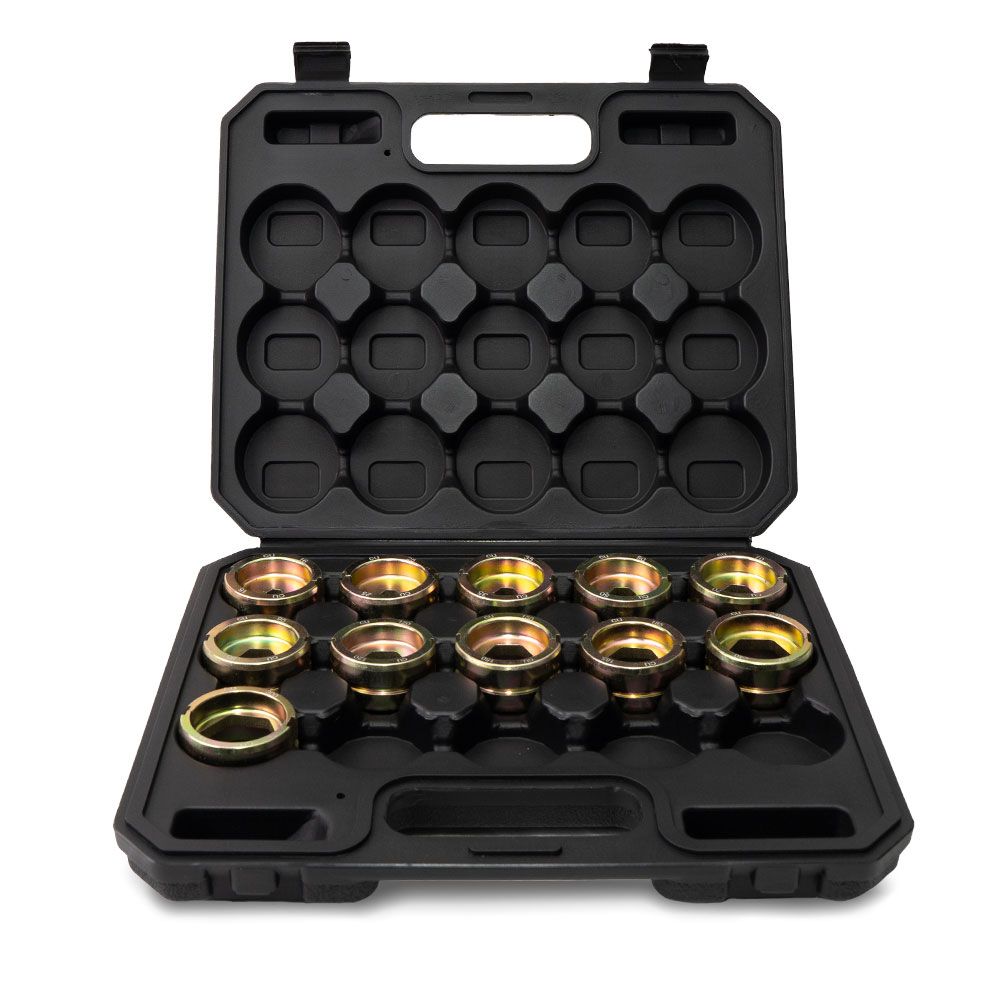

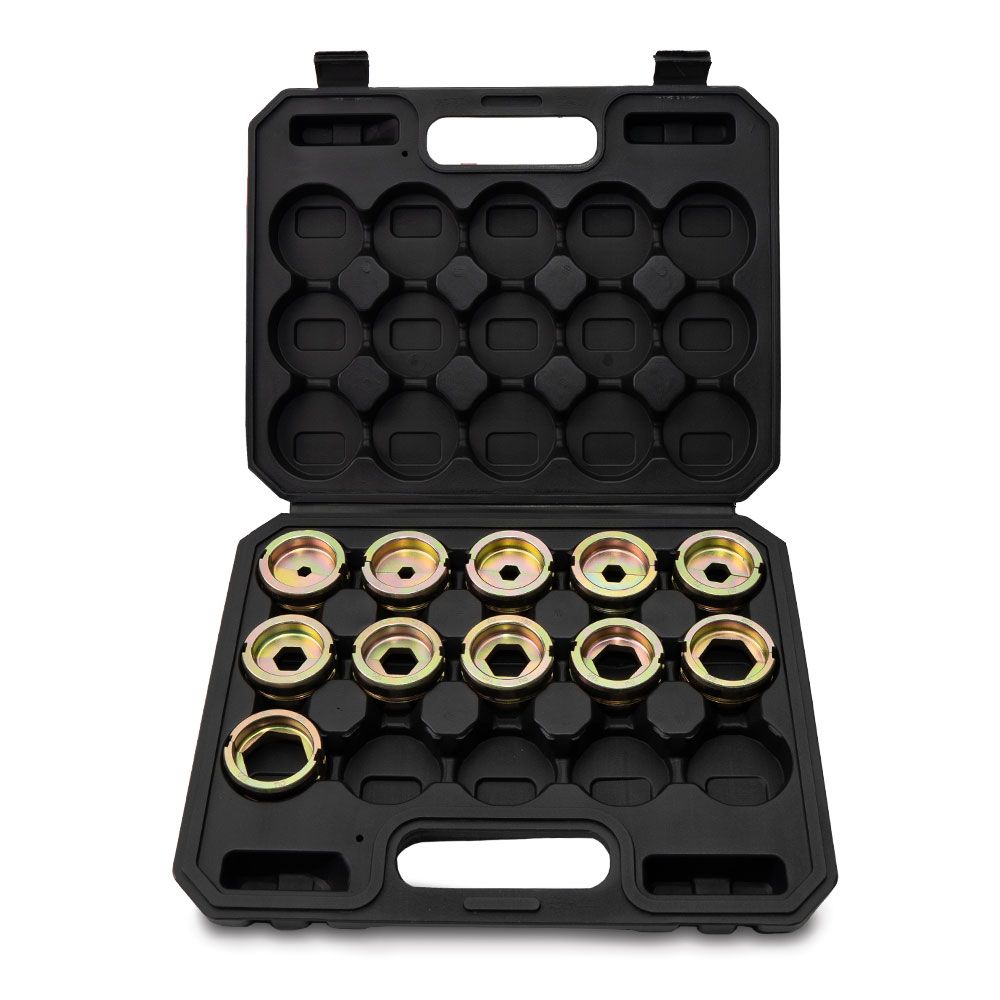

• Carrying case

Features:

• Hexagonal crimping of cable
• Stored in convenient case with adjustable organisation compartments
• Suitable for Cu/Al lugs

Compatible With:

• Milwaukee M18HCCT-0C 18V Li-ion Cordless FORCELOGIC ONE-KEY 300mm² Crimper - Skin Only
• Bayer PZ300 18V 2.0Ah Li-ion Cordless Mini Crimping Tool Combo Kit
• Bayer PZ300C 18V 2.0Ah Li-ion Cordless Crimping & Cutting Tool Combo Kit

Specifications:

• Crimping Force: 6 Ton

Below is a conversion table from Wired Squared Millimeters to Diameter Millimeters:

• 0.75mm² - 1.0mm
• 1.0mm² - 1.1mm
• 1.5mm² - 1.4mm
• 2.0mm² - 1.5mm
• 2.5mm² - 1.8mm
• 4.0mm²- 2.3mm
• 6.0mm² - 2.8mm
• 10mm² - 3.6mm
• 16mm² - 4.5mm
• 25mm² - 5.6mm
• 35mm² - 6.7mm
• 50mm² - 8.0mm
• 70mm² - 9.5mm
• 95mm² - 11.0mm
• 120mm² - 12.4mm
• 150mm² - 13.8mm
• 185mm² - 15.4mm
• 240mm² - 17.5mm
• 300mm² - 19.5mm
• 400mm² - 22.6mm
• 500mm² - 25.2mm
• 630mm² - 28.3mm
• 800mm² - 31.9mm
• 1000mm² - 35.7mm
• 1200mm² - 39.1mm
• 2000mm² - 50.5mm
