Bayer B13CDK12T 12pce 12T Gold Crimping Die Kit

Bayer B13CDK12T 12pce 12T Gold Crimping Die Kit

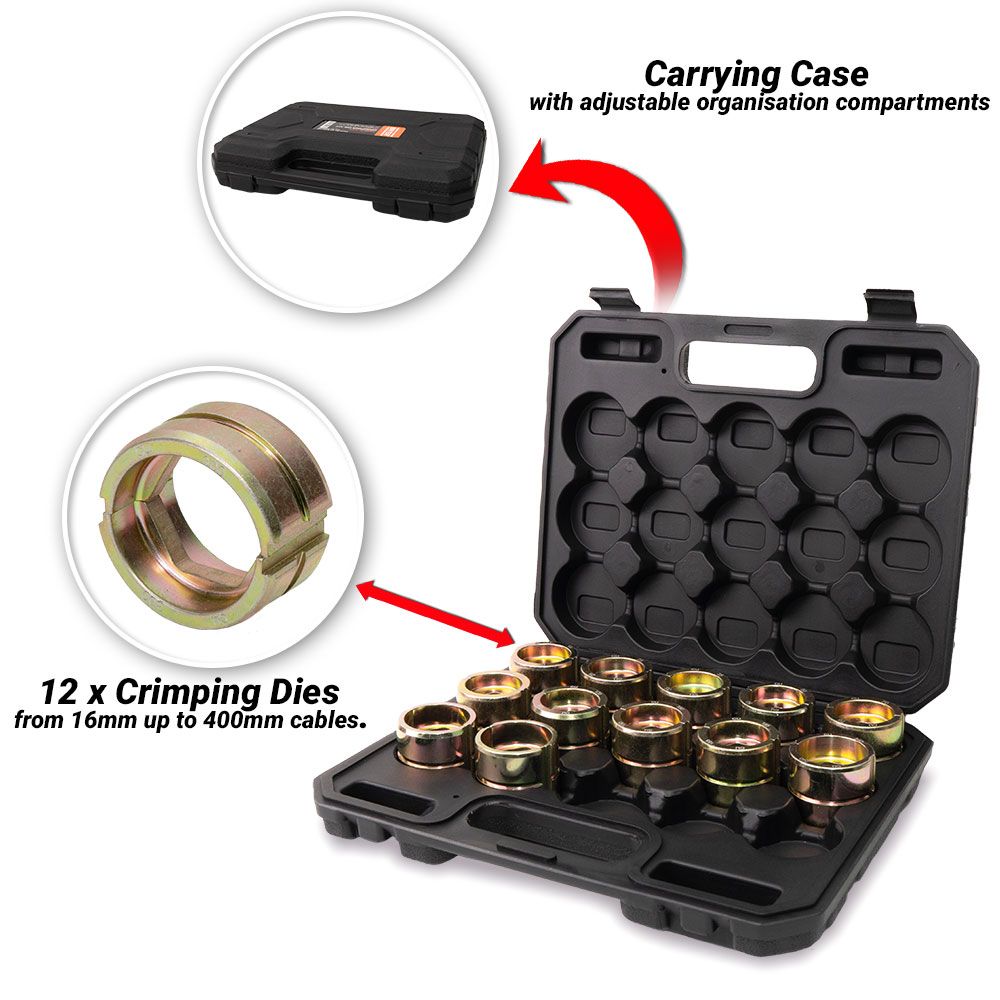

This 12pce 12T Crimping Die Kit is perfect for crimping from 16mm up to 400mm cables.

Includes:

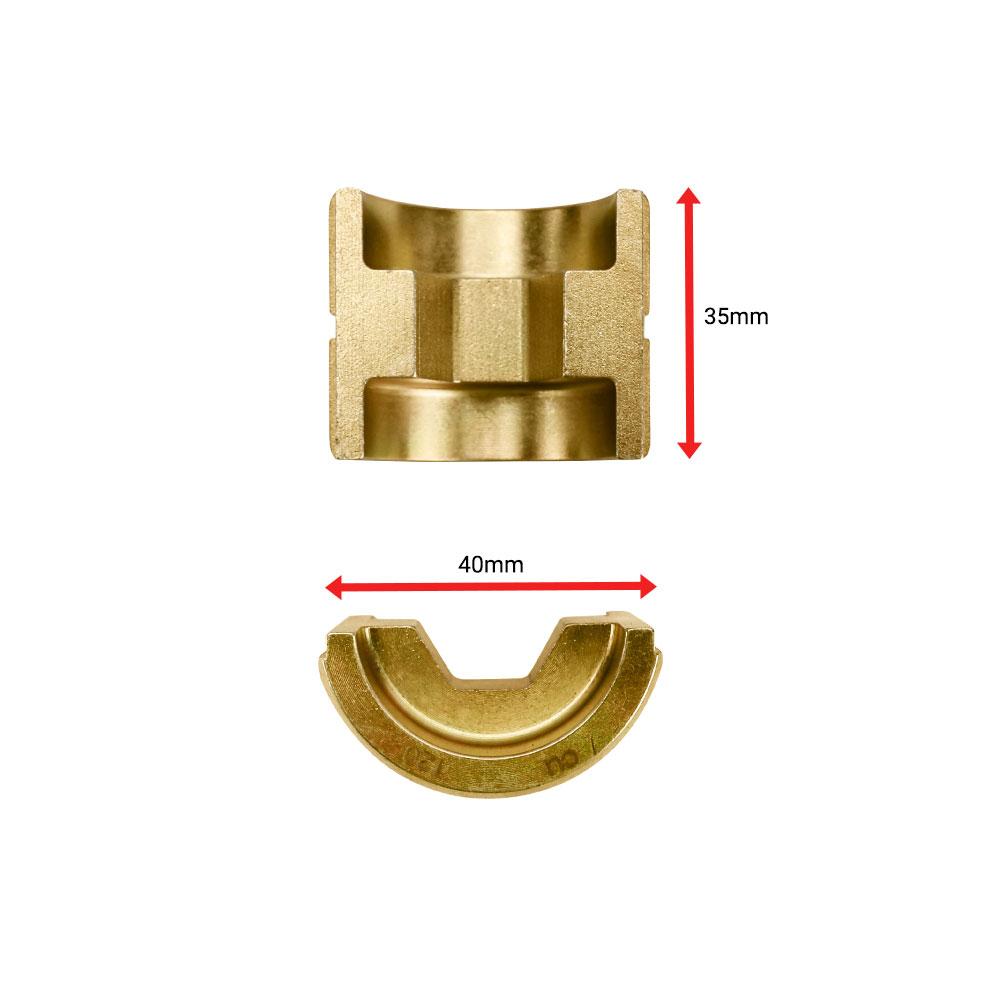

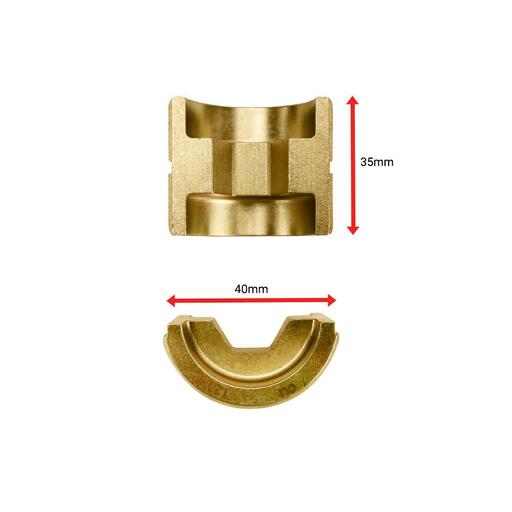

• 12 x Crimping Dies: 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²

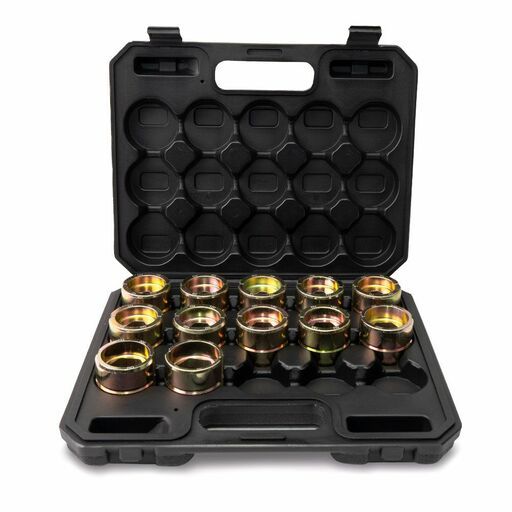

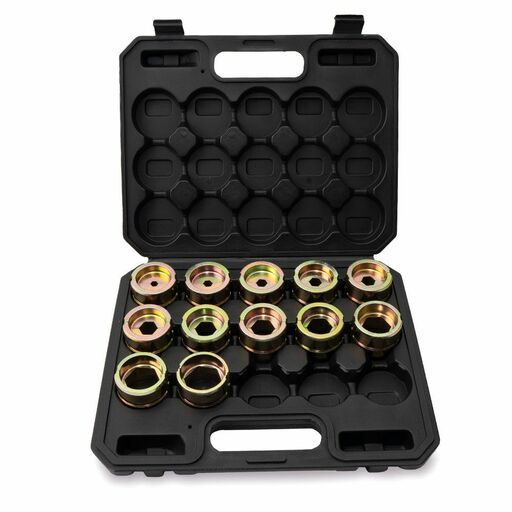

• 1 x Carrying Case

Features:

• Hexagonal crimping of cable
• Stored in convenient case with adjustable organisation compartments
• Suitable for Cu/Al lugs

Suitable for:

• Bayer B18CTK 18V 3.0Ah Li-ion Brushless Cordless Crimper Combo Kit
• Milwaukee M18HCCT109/42-0C 18V Li-Ion FORCELOGIC™ 400mm Utility Crimper - Skin Only

Specifications:

• Crimping Force: 12 Ton

Below is a conversion table from Wired Squared Millimeters to Diameter Millimeters:

• 0.75mm² - 1.0mm
• 1.0mm² - 1.1mm
• 1.5mm² - 1.4mm
• 2.0mm² - 1.5mm
• 2.5mm² - 1.8mm
• 4.0mm²- 2.3mm
• 6.0mm² - 2.8mm
• 10mm² - 3.6mm
• 16mm² - 4.5mm
• 25mm² - 5.6mm
• 35mm² - 6.7mm
• 50mm² - 8.0mm
• 70mm² - 9.5mm
• 95mm² - 11.0mm
• 120mm² - 12.4mm
• 150mm² - 13.8mm
• 185mm² - 15.4mm
• 240mm² - 17.5mm
• 300mm² - 19.5mm
• 400mm² - 22.6mm
• 500mm² - 25.2mm
• 630mm² - 28.3mm
• 800mm² - 31.9mm
• 1000mm² - 35.7mm
• 1200mm² - 39.1mm
• 2000mm² - 50.5mm
