UNIMIG WG-SCM80R-40 4m SC80 CNC Plasma Torch

UNIMIG WG-SCM80R-40 4m SC80 CNC Plasma Torch

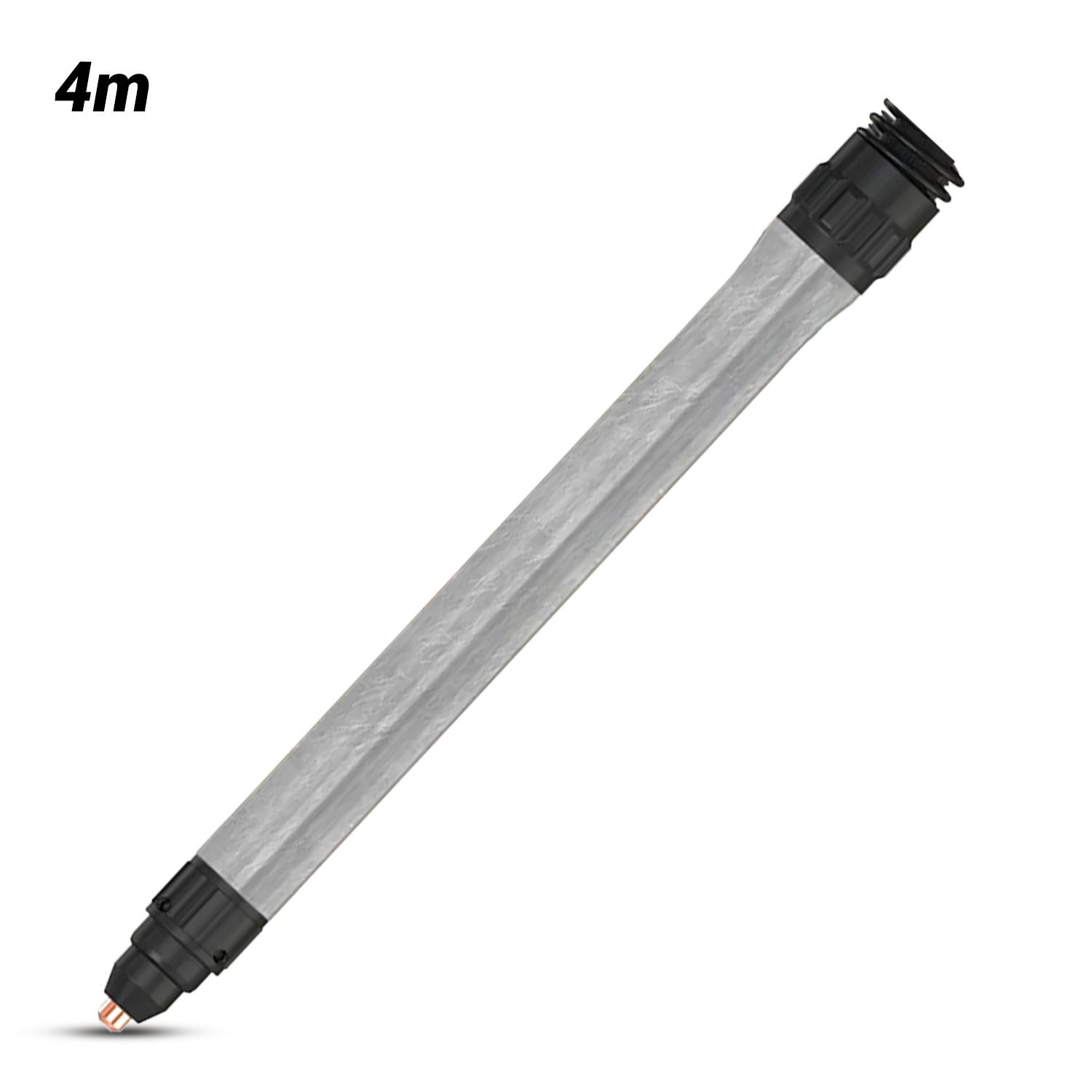

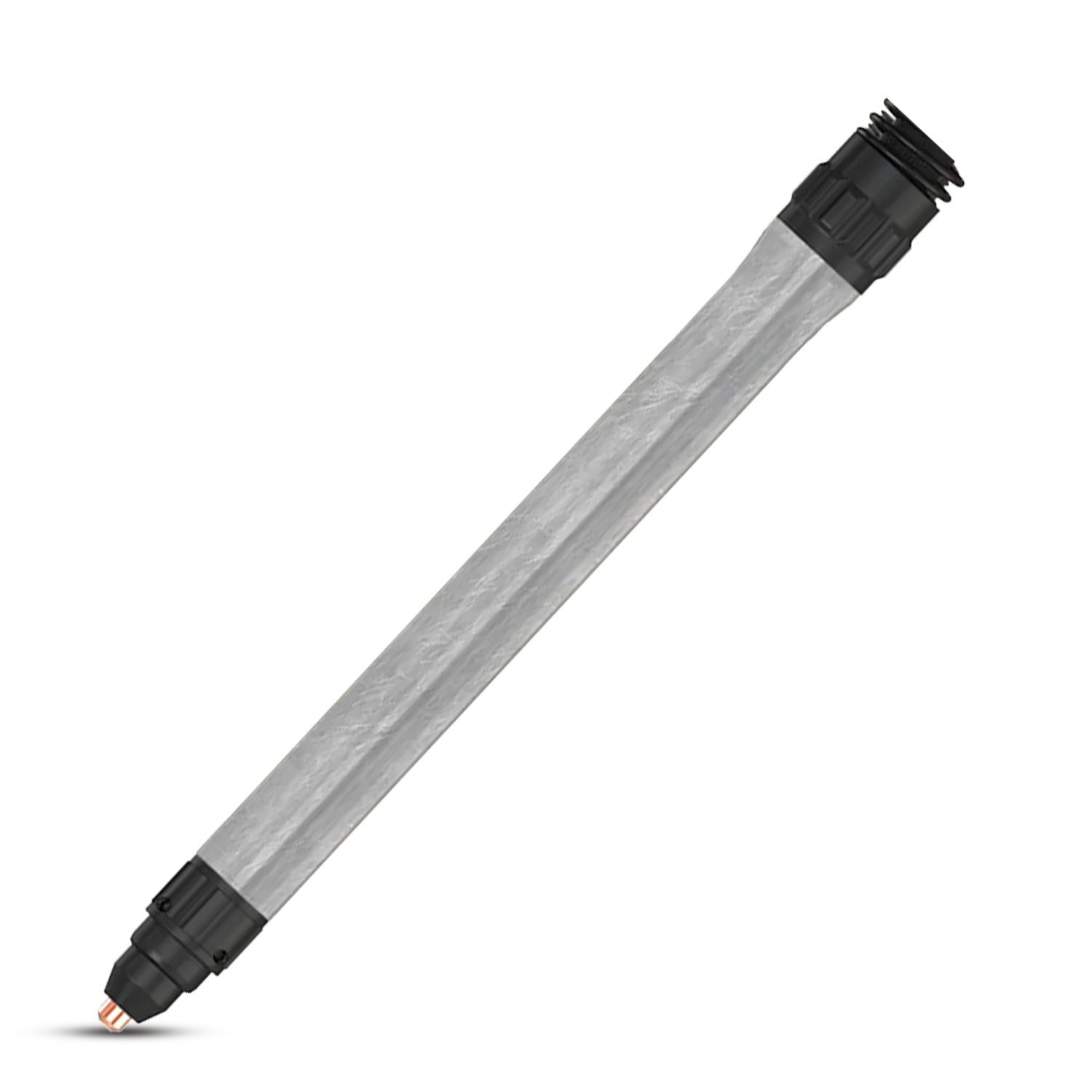

The UNIMIG SC80 CNC Plasma Torch is a professional machine torch designed for automated CNC plasma cutting applications. Compatible with the RAZOR CUT 45 and RAZOR CUT 80, it features patented arc-striking technology for reliable pilot arc ignition without high-frequency starting, helping deliver consistent cuts while extending consumable life. The straight machine-torch design provides easier CNC mounting and lead management, helping improve cutting repeatability. The 4m lead is well suited to CNC cutting tables where a compact torch setup is preferred.

Features:

• Pilot Arc Start Strike the arc without touching the workpiece. Pilot arc start lets you cut through paint, rust or scale with ease and gives you better control on uneven surfaces. Because the tip does not need to drag, your consumables last longer and your starts stay consistent
• High-Strength Torch Body: Built to last a lifetime. Machined from precision tolerance parts and aerospace polymers, the torch body will last even longer
• Ergonomic Design: Stay comfortable no matter how long the cut is. The large, ergonomic grip and cable supports are designed to offer the greatest manoeuvrability and flexibility
• Arc Initiated Systems: Get the best (and safest) start on every cut. With patented arc strike technology, you get a high-frequency free arc ignition every time
• Safety Systems: Keep you and your torch in one piece. The twin ‘fail-safe’ system located beneath the shield cap stops the torch from being activated when no cap is detected

Specifications:

• Lengths: 4m
• Cooling Method: Air-Cooled
• Maximum Output: 80A
• Duty Cycle @ 40°C: 60% @ 80A
• Ignition: Pilot Arc
• Gas: Air
