UNIMIG U11097 STEALTH 1200 CNC Plasma Cutting Table

UNIMIG U11097 STEALTH 1200 CNC Plasma Cutting Table

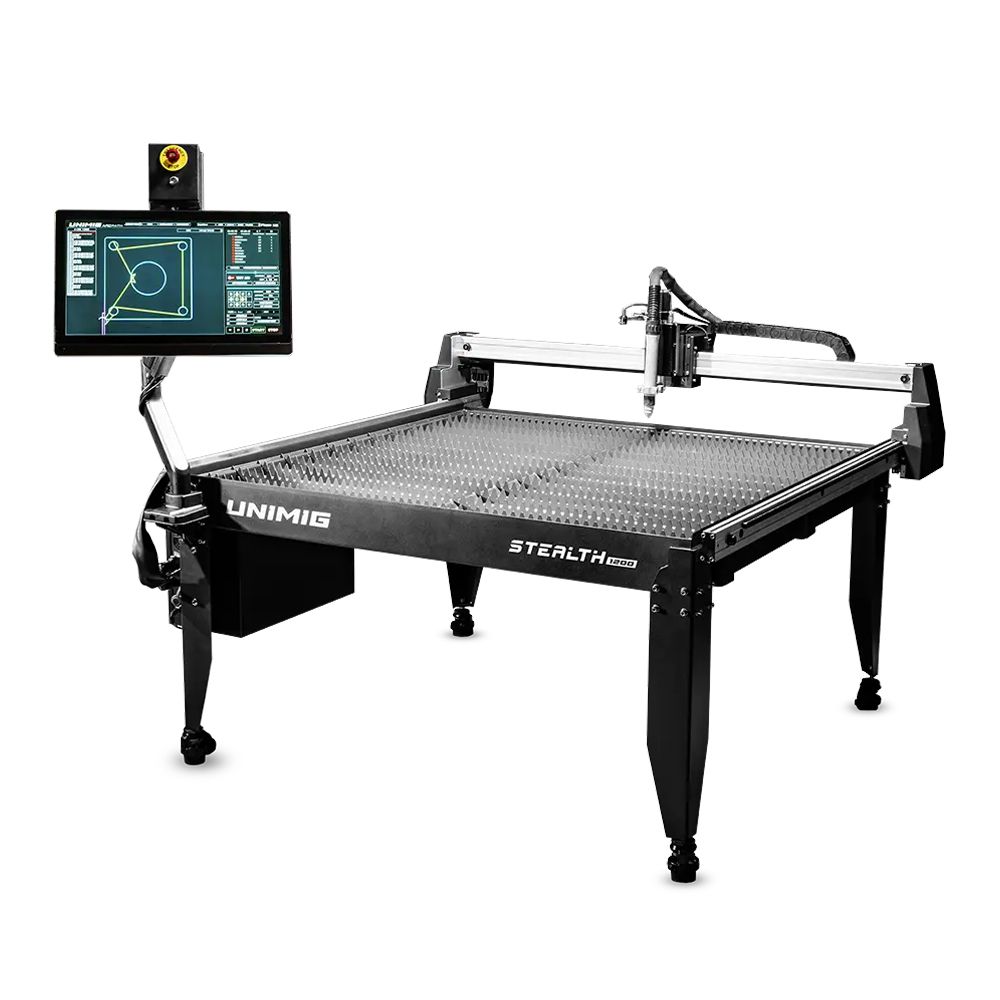

The UNIMIG Stealth 1200 CNC Plasma Cutting Table is a professional-grade CNC system built for precision metal fabrication. Designed for 1.2m x 1.2m sheet cutting, it features automatic torch height control, a built-in water bed, and a 21" touchscreen interface for complete cutting management. Perfect for workshops, fabrication shops, and production environments requiring high accuracy and efficiency.

Includes:

• 1 x CNC Table Base
• 1 x Pre-installed Gantry and Legs
• 1 x Z-Axis and Torch Mount
• 1 x Prewired Control Box
• 1 x 21" Touchscreen PC (unmounted)
• 1 x PC Arm (unmounted)
• 1 x Automatic Height Controller
• 1 x Drag Chains (installed)
• 1 x Caster Feet (unmounted)
• 1 x Material Slats (unmounted)
• 1 x Lift Hooks

Features:

• True cut size of approximately 1.23m x 1.22m for full-sheet use

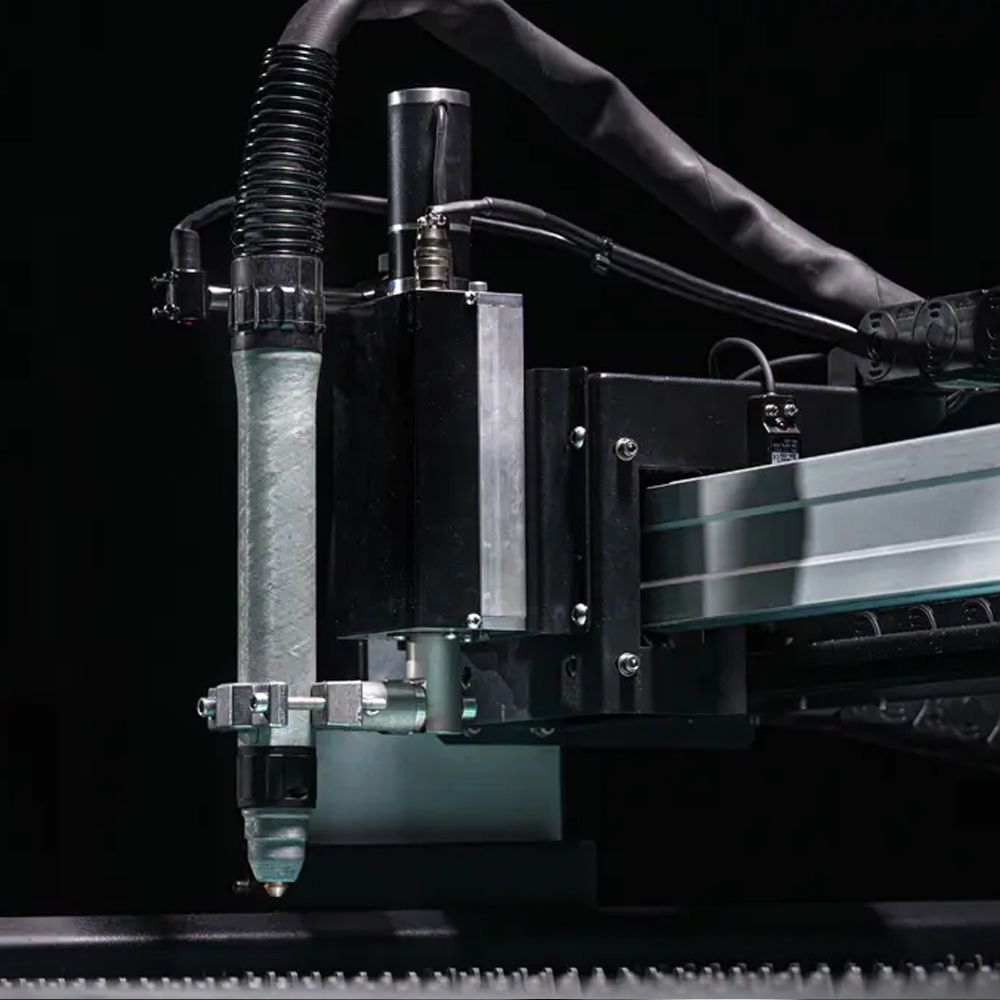

• Automatic Torch Height Control (THC) maintains optimal cutting distance for consistency and consumable life
• Integrated water bed absorbs sparks, minimises dross, and controls fumes

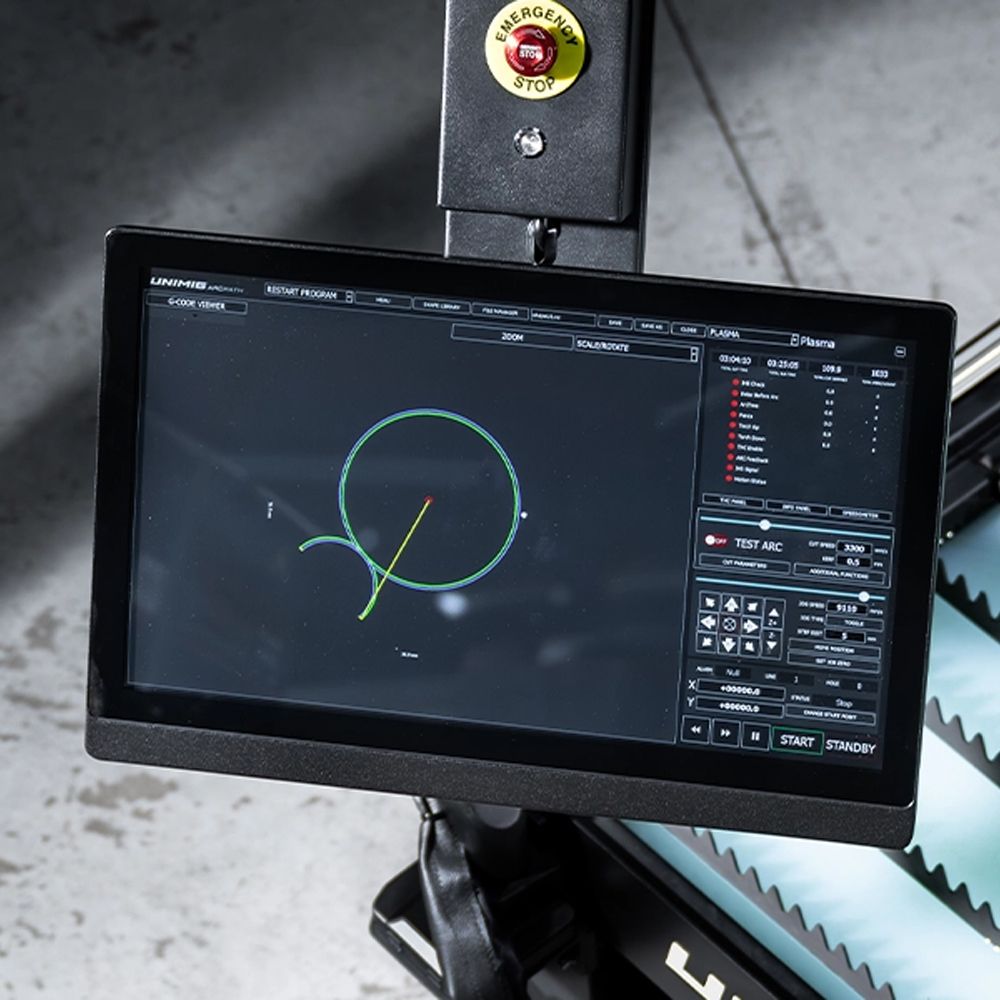

• 21" touchscreen PC with Arc Path CNC control software
• Supports G-code and DXF file input via USB or network

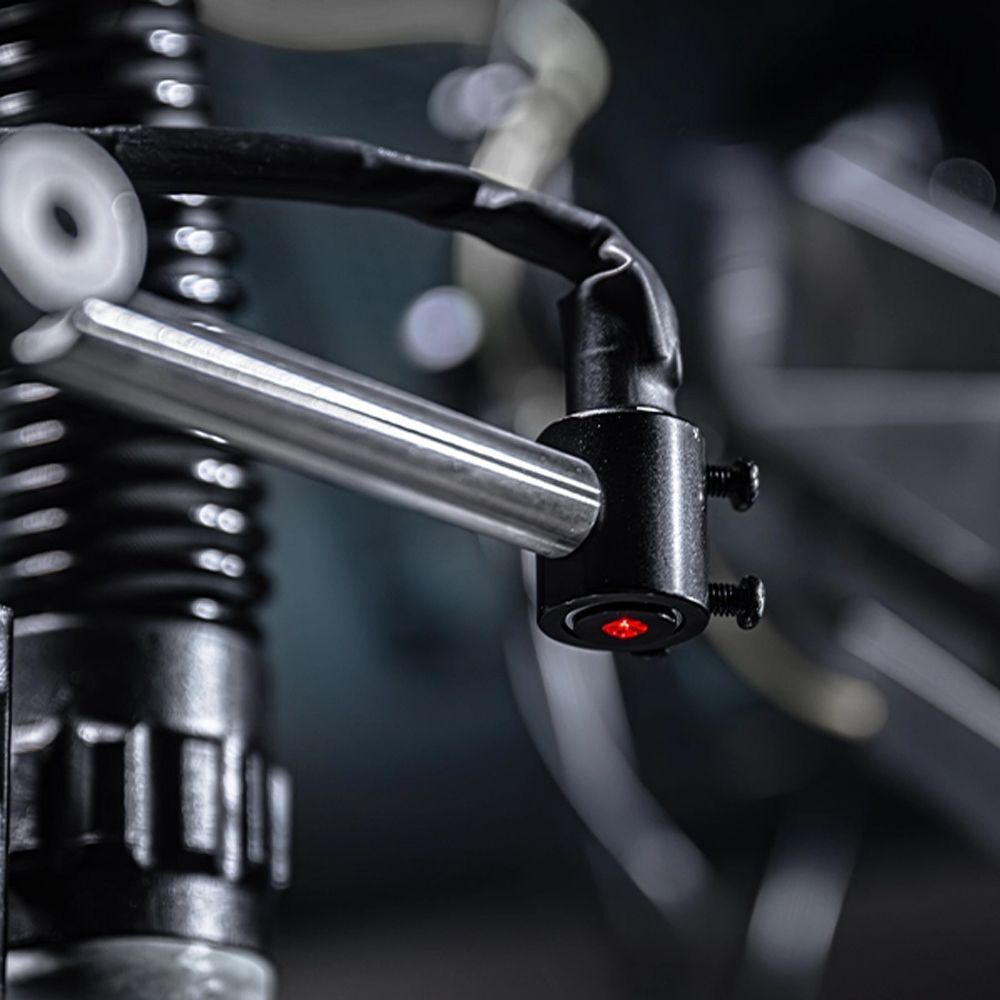

• Adjustable sighting laser for precise material alignment
• Heavy-duty rack and pinion drive system on X/Y axes with ball-screw Z-axis drive
• Inverted rail system protects against dust and debris
• Axis limit switches and collision detection sensors for added safety
• Delivered pre-assembled for fast installation and setup

Specifications:

• Model Code: U11097
• Cut Area: 1.23m (X) x 1.22m (Y)
• Maximum Table Load: 135kg
• Water Bed Capacity: 170L
• Axis Type: 3 (X, Y, Z)
• Input Voltage: 240V Single Phase (10A)
• Dimensions: 1700mm (W) x 1800mm (L) x 1150mm (H)
• Weight: Approx. 200–270kg

Note:

• Freight Charges Will Apply

Warranty:

• 2 Years Warranty Covered by UNIMIG
