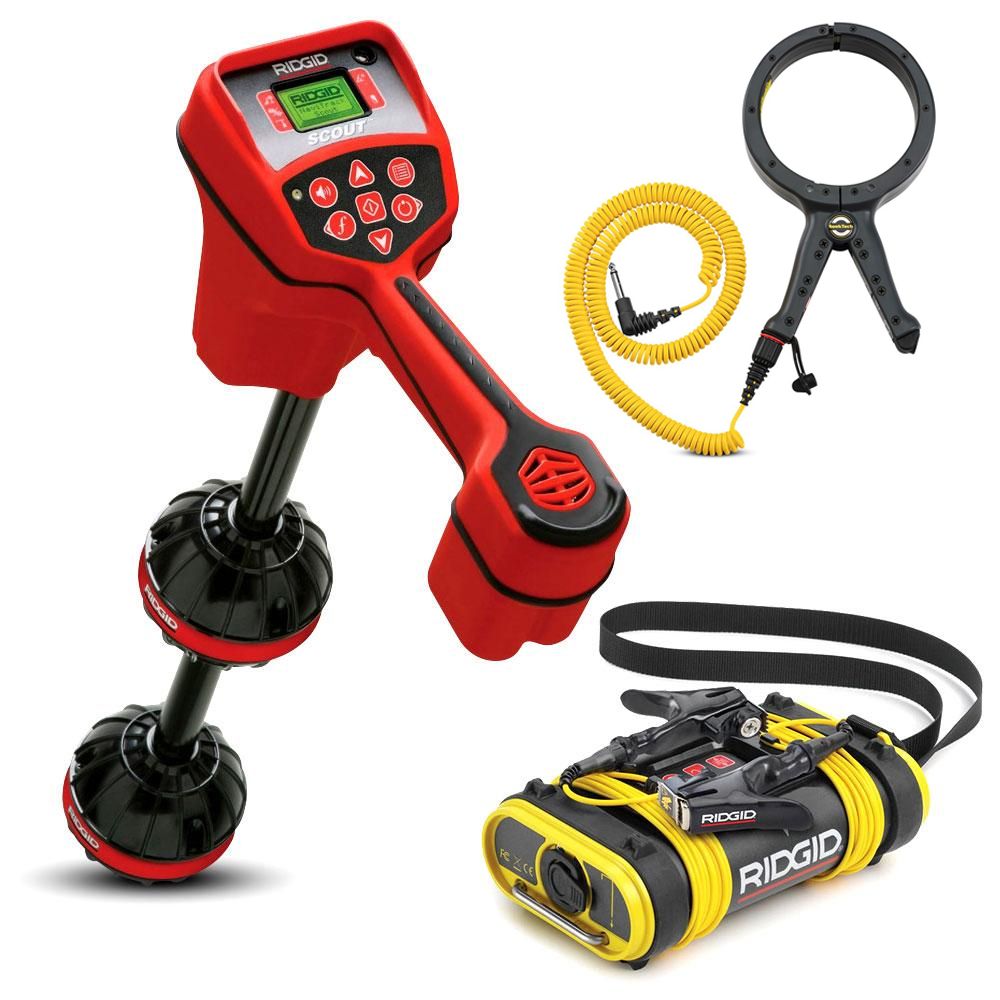

Ridgid RID-SET Transmitter & Inductive Signal Clamp Set

The RIDGID SeekTech Inductive Signal Clamp Accessory provides a traceable/charged signal to a cable or pipe through induction. Ideal for situations when it is not possible to connect transmitter leads directly to the target conductor. When the jaws of the clamp are closed around a cable or pipe, the clamp sends the transmitted signal onto the conductor through induction. Once the signal is applied to a conductor, it can be traced using a compatible receiver, such as the SeekTech SR-20 & SR-24 (Sold Separately)

Suitable For Use:

• Ridgid ST-305 (21898) SeekTech ST-305 5 Watt Line Transmitter
• Ridgid ST-305R (50793R) 5 Watt SeekTech Line Transmitter
• Ridgid ST-510 (21903) SeekTech ST-510 10 Watt Line Transmitter

Features:

• Induces a signal onto a cable or pipe less than 119mm (4.7 in) when a direct connection is not possible
• Removable and easy to store coiled cord
• Convenient pull ring for opening and closing in tight spaces
• Compatible with all RIDGID SeekTech line transmitters, including the ST-305, ST-305R, ST-33Q+ and ST-510
• Additionally compatible with any comparable line transmitter which has < 10 watt maximum output power if frequency is under 45 kHz, and 1 watt maximum if above 45 kHz
• Can be used with frequencies from 8 kHz to 262 kHz

Specifications:

• Inside Diameter: 119mm
• Cord Length: 0.75m
• Frequencies: 8KHz to 262KHz
• Dimensions (L x W x H): 264mm x 148mm x 37mm
• Weight: 0.5kg

The 5 watt SeekTech ST-305 Line Transmitter lets you energize metallic lines for tracing.

Features:

• Lightweight and compact transmitter that delivers up to 5 watts of power.
• Can transmit two frequencies simultaneously.
• Audio feedback confirms a good circuit before beginning a trace.

Specifications:

• Frequencies:
• Direct Connect: 1 kHz, 8 kHz, 33 kHz, 262 kHz.
• Induction: 1 kHz, 8 kHz, 33 kHz, 262 kHz.

Please note: Clamps are not included and sold separately.

The NaviTrack Scout Locator is designed to solve the most demanding remote transmitter (sonde) locates using multi-directional locating technology.

The NaviTrack Scout multi-directional antenna technology sees the entire signal all of the time. Simply maximize the signal strength and you have found the target. No nulls or false peaks to complicate the locate.

This locator verifies the locate position using a micro-mapping display to mark distinctive poles in front of and behind the target, insuring an accurate locate. Depth is automatically calculated and displayed when over the target.

Features:

• Ideal for users locating SeeSnake and other sondes who occasionally need to locate energized lines
• Distinctive on-screen markers guide you to the target
• Displays real-time signal strength with no need to adjust gain
• Calculates depth over the target
• Provides a map to trace energized lines at 4 different frequencies as well as passive AC

Specifications:

• Standard Frequencies:
• Sonde: 16 Hz, 512 Hz, 640 Hz, 874 kHz and 33 kHz
• Line Trace: 128 Hz, 1 kHz, 8 kHz and 33 kHz
• Passive AC Line Trace: 60 Hz, 50 Hz
• Power source: 4 x C-Cell batteries
• Battery life: Approx 24 hours
• Weight: 1.4kg
