Ridgid 72963 SeeTech Inductive Signal Clamp

Ridgid 72963 SeeTech Inductive Signal Clamp

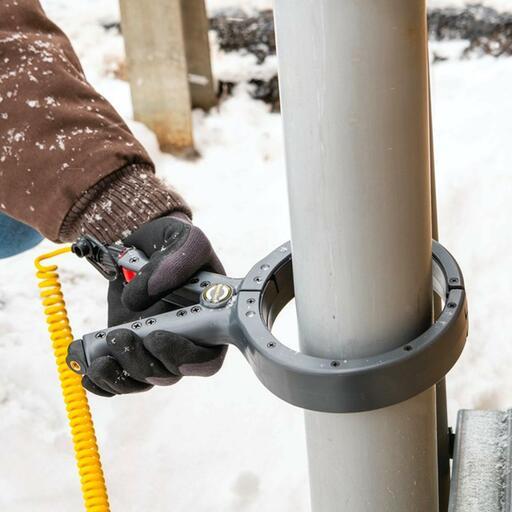

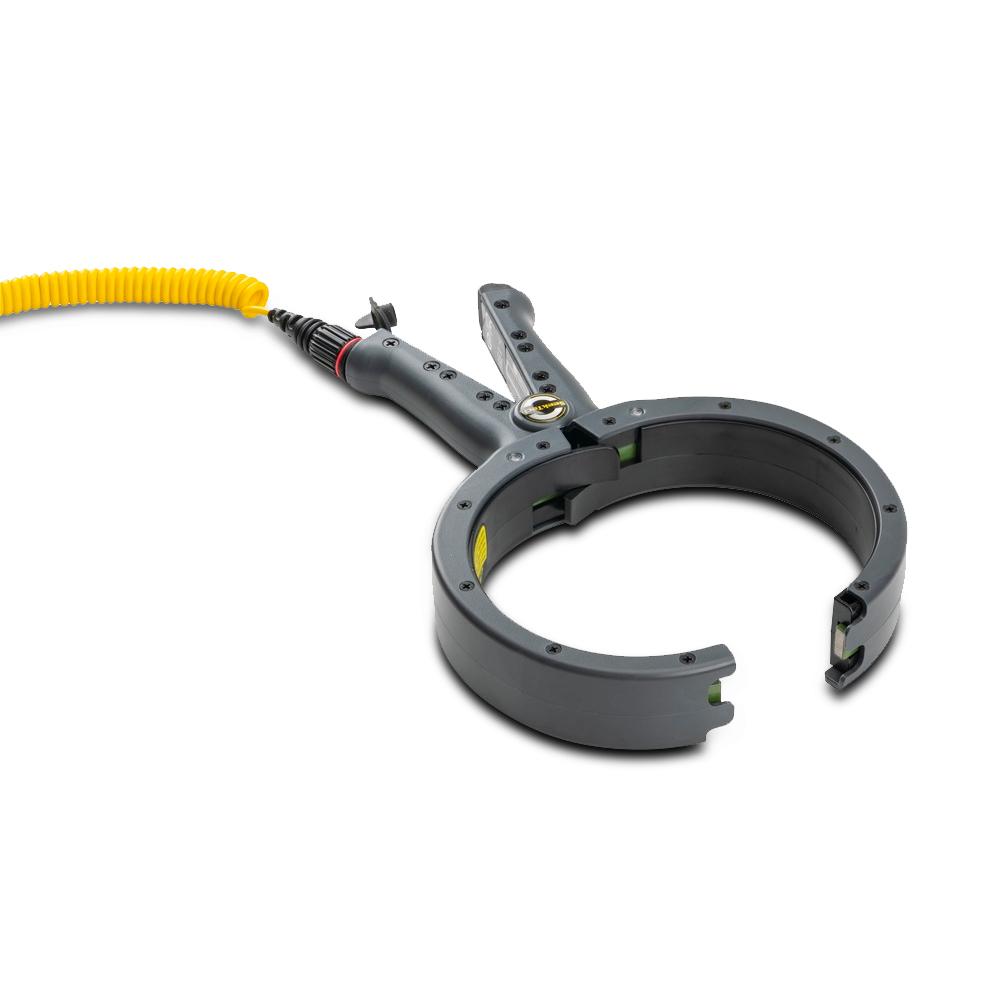

The RIDGID SeekTech Inductive Signal Clamp Accessory provides a traceable/charged signal to a cable or pipe through induction. Ideal for situations when it is not possible to connect transmitter leads directly to the target conductor. When the jaws of the clamp are closed around a cable or pipe, the clamp sends the transmitted signal onto the conductor through induction. Once the signal is applied to a conductor, it can be traced using a compatible receiver, such as the SeekTech SR-20 & SR-24 (Sold Separately)

Suitable For Use:

• Ridgid ST-305 (21898) SeekTech ST-305 5 Watt Line Transmitter
• Ridgid ST-305R (50793R) 5 Watt SeekTech Line Transmitter
• Ridgid ST-510 (21903) SeekTech ST-510 10 Watt Line Transmitter

Features:

• Induces a signal onto a cable or pipe less than 119mm (4.7 in) when a direct connection is not possible
• Removable and easy to store coiled cord
• Convenient pull ring for opening and closing in tight spaces
• Compatible with all RIDGID SeekTech line transmitters, including the ST-305, ST-305R, ST-33Q+ and ST-510
• Additionally compatible with any comparable line transmitter which has < 10 watt maximum output power if frequency is under 45 kHz, and 1 watt maximum if above 45 kHz
• Can be used with frequencies from 8 kHz to 262 kHz

Specifications:

• Inside Diameter: 119mm
• Cord Length: 0.75m
• Frequencies: 8KHz to 262KHz
• Dimensions (L x W x H): 264mm x 148mm x 37mm
• Weight: 0.5kg
