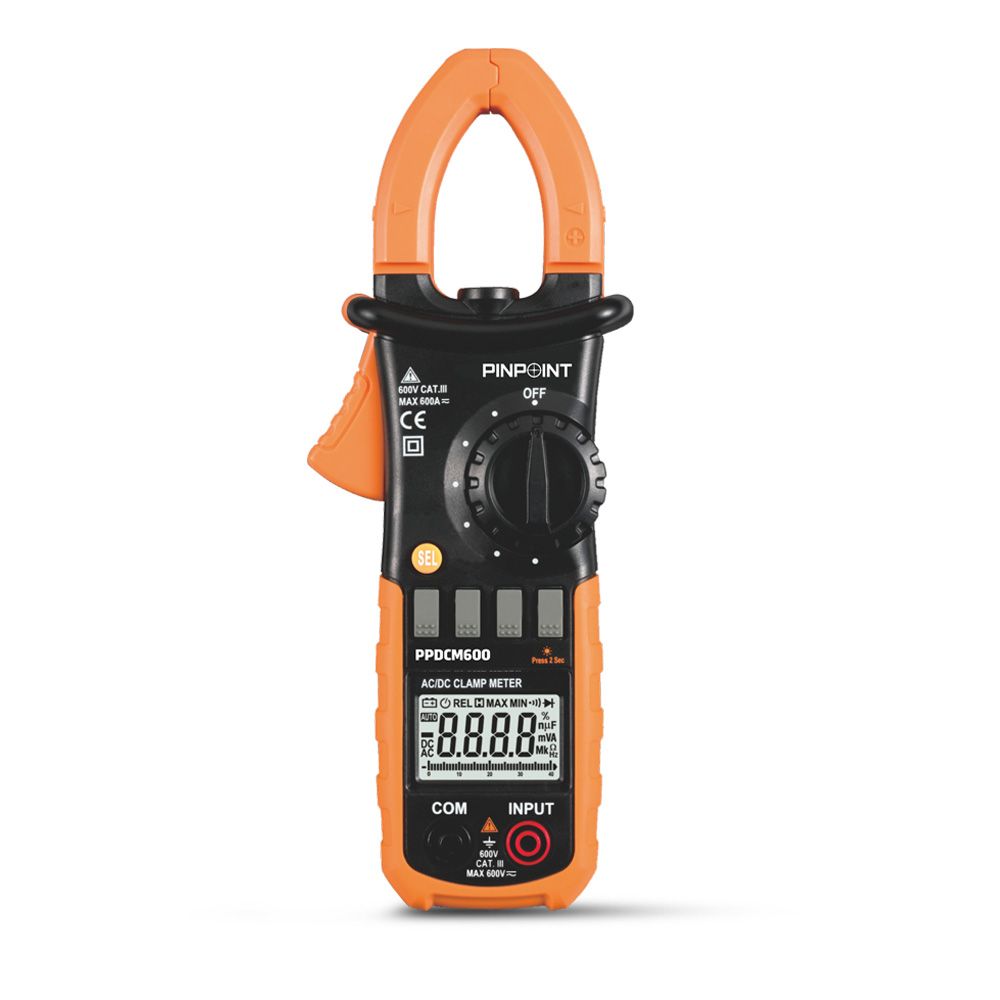

Pinpoint PPDCM600 Digital Clamp Meter AC/DC With In-Rush Current

Pinpoint PPDCM600 Digital Clamp Meter AC/DC With In-Rush Current

The Pinpoint PPDCM600 Digital Clamp Meter AC/DC With In-Rush Current has True RMS measurement ensures accurate readings on non-linear loads, while in-rush current measurement captures motor start-up or surge currents. It provides reliable VFD measurement for variable-frequency drives and LoZ voltage measurement to eliminate ghost voltages. Additional features include Data Hold, Max/Min, and Relative functions for easy analysis, all supported by an IEC1010-1 CAT III 600V safety rating suitable for industrial use.

Features:

• True RMS measurement for accurate readings on non-linear loads
• In-rush current measurement captures motor start-up or surge currents
• VFD measurement for reliable readings on variable-frequency drives
• LoZ voltage measurement eliminates ghost voltages
• Data hold, Max/Min, and Relative functions for easy analysis
• IEC1010-1 CAT III 600V safety rating for industrial use

Specification:

• DCV: 6/60/600/1000V, ±0.5%
• ACV: 6/60/600/1000V, ±0.8% (40~400Hz)
• DCA/ACA: 60/600A, ±3.0%/±2.5% Inrush (100ms): 60A/600A, ±10% (40~1kHz)
• OHM: 600/6k/60k/600k/6M/60MΩ, ±1.0%
• CAP: 10n/100n/1μ/10μ/100μ/1m/10m/100mF, ±3.0%

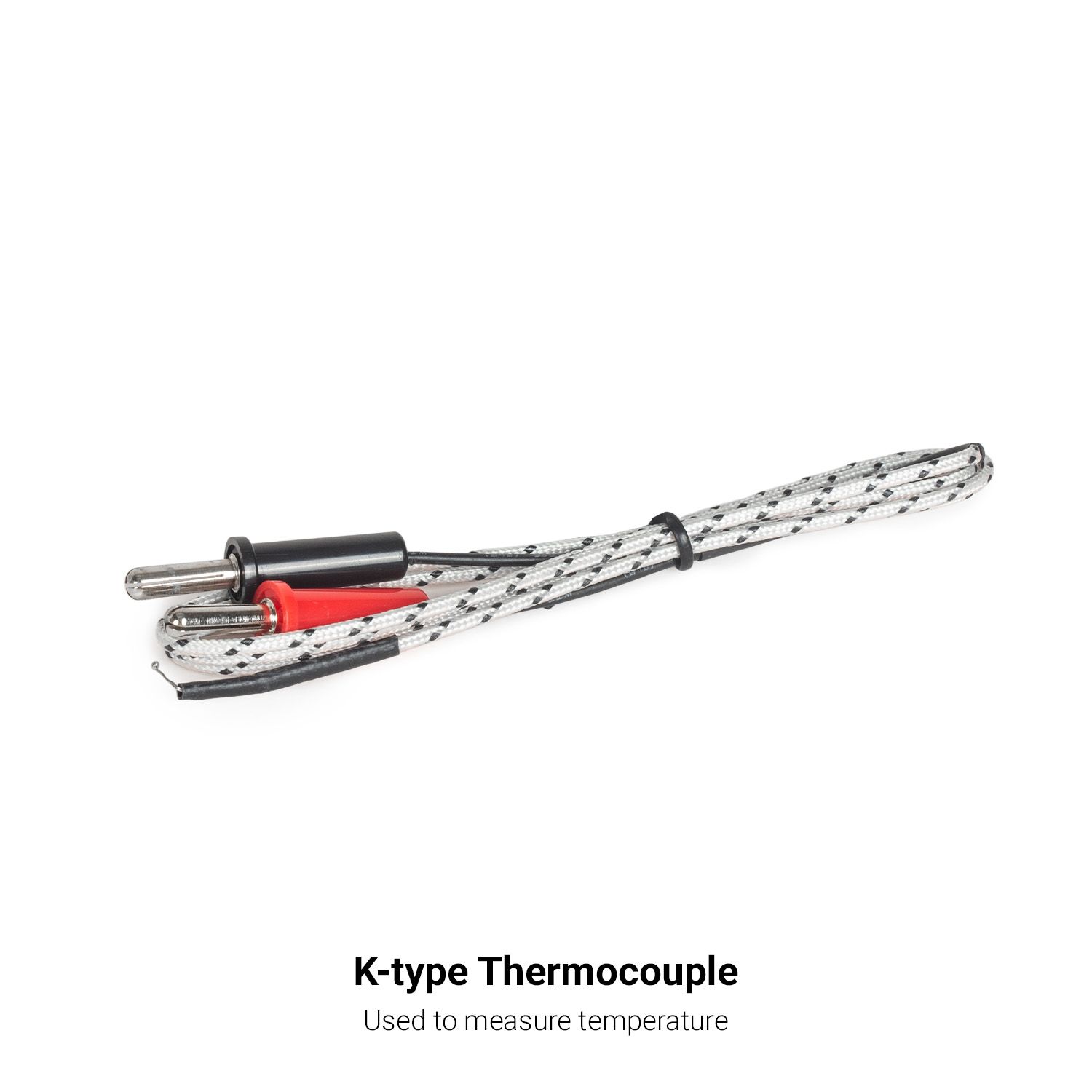

• TEMP: -20Cº~1000Cº, ±1.0%
• FREQ: 10/100/1k/10k/100k/1M/10MHz, ±0.5%
• FREQ: 10/100/1kHz, ±1.5% (ACA range, by clamp)
• 10/1k/10kHz, ±1.5% (ACV range)
• Duty cycle: 1% ~ 99%, ±3.0%
• Audible continuity (<30Ω) & diode test

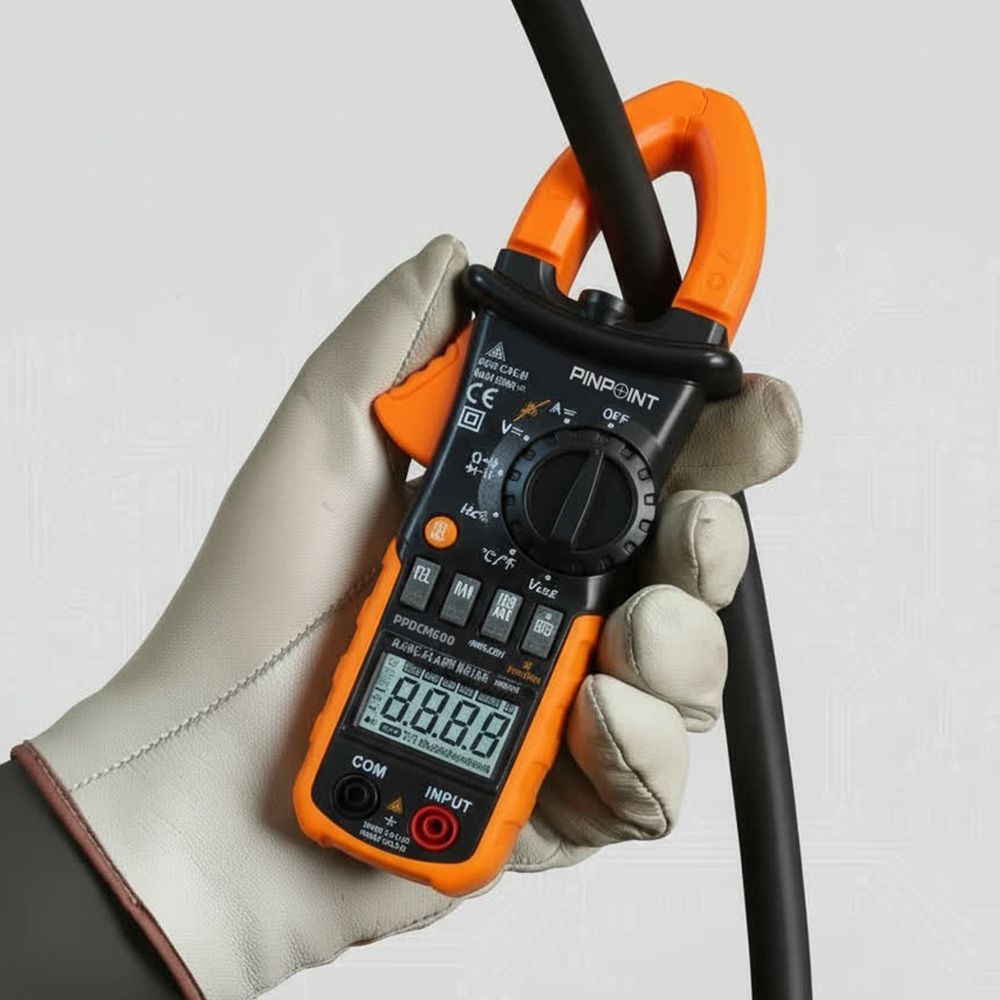

• Clamp size: Φ26mm (max.)
• Battery: 1.5Vx3, AAA size
• Dimensions (L x W x H): 208mm x 78mm x35mm
• Weight: 0.34kg

Warranty:

• 12 months warranty coverd by Pinpoint
