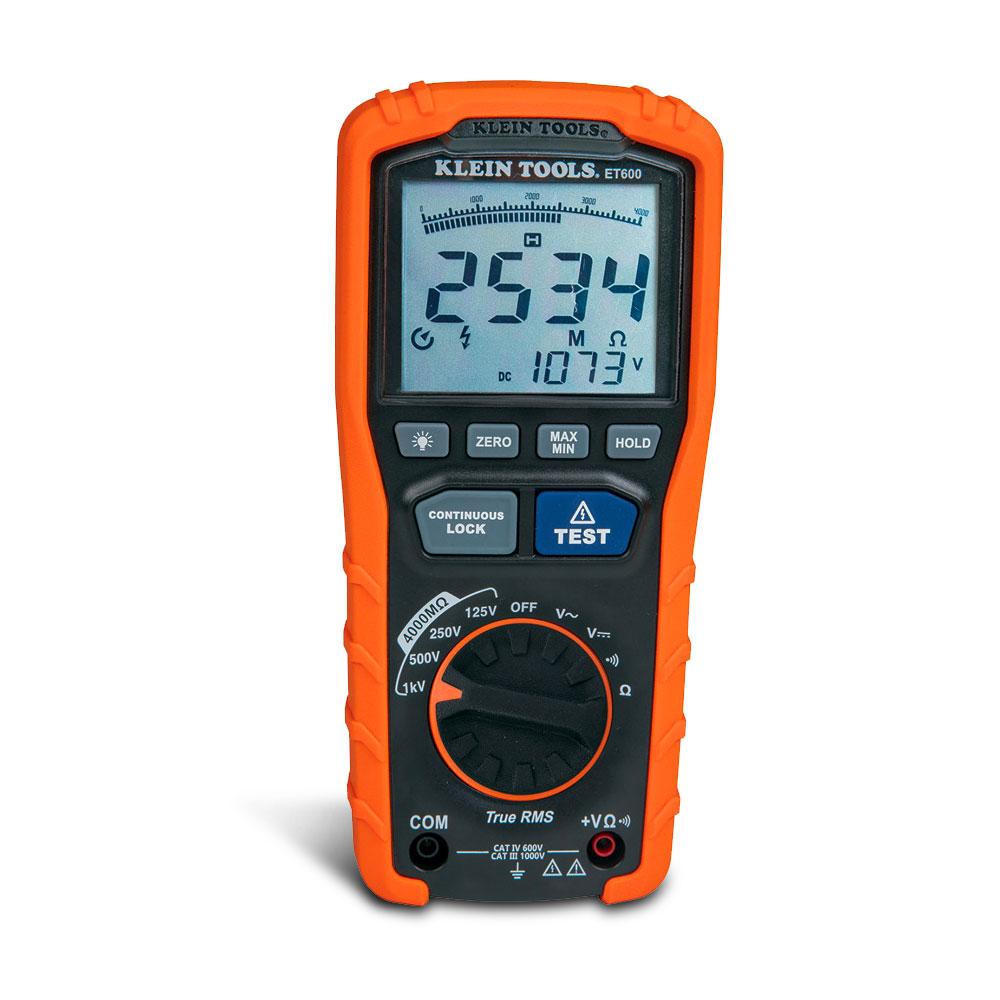

Klein A-ET600 Insulation Resistance Tester

Klein A-ET600 Insulation Resistance Tester

The Klein Insulation Resistance Tester is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. It also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

Includes:

• 1 x Insulation Resistance Tester
• 1 x Carrying Case
• 1 x Right Angle Test Leads
• 1 x Heavy-Duty Alligator Test Leads
• 6 x AA Batteries

Features:

• Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
• Megohmmeter with test and lock buttons for simple insulation testing
• Warning alarm and high voltage icon for detection of voltage
• Measures up to 1000V AC/DC, resistance, and continuity
• Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
• Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
• Low battery indicator with easily replaceable battery and fuse

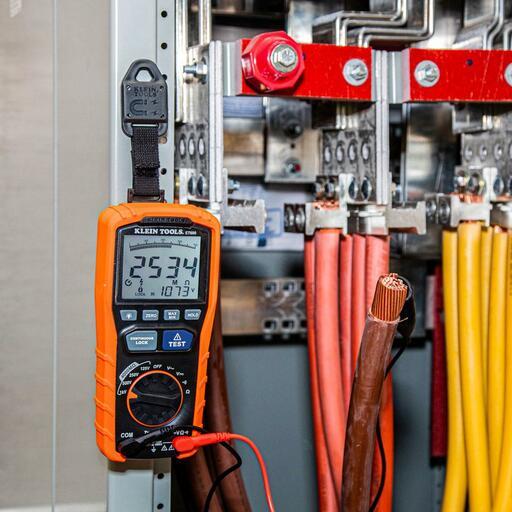

• Built-in stand and optional magnetic hanger for hands free operation
• Test verification of conformity to EN61557-1,-2,-4
• CAT IV 600V and CAT III 1000V safety rating

Specifications:

• Voltage:
  • 125V
  • 250V
  • 500V
  • 1000V DC; 1000V AC/DC
• Material:
  • ABS
  • Polycarbonate
  • Electrical Components
• Batteries: 6 x AA
• Display: 4000 Count LCD
• Ohms (Resistance): 4000MΩ
• Dimensions (L x W x H): 202mm x 59mm x 91mm
• Weight: 0.6kg
