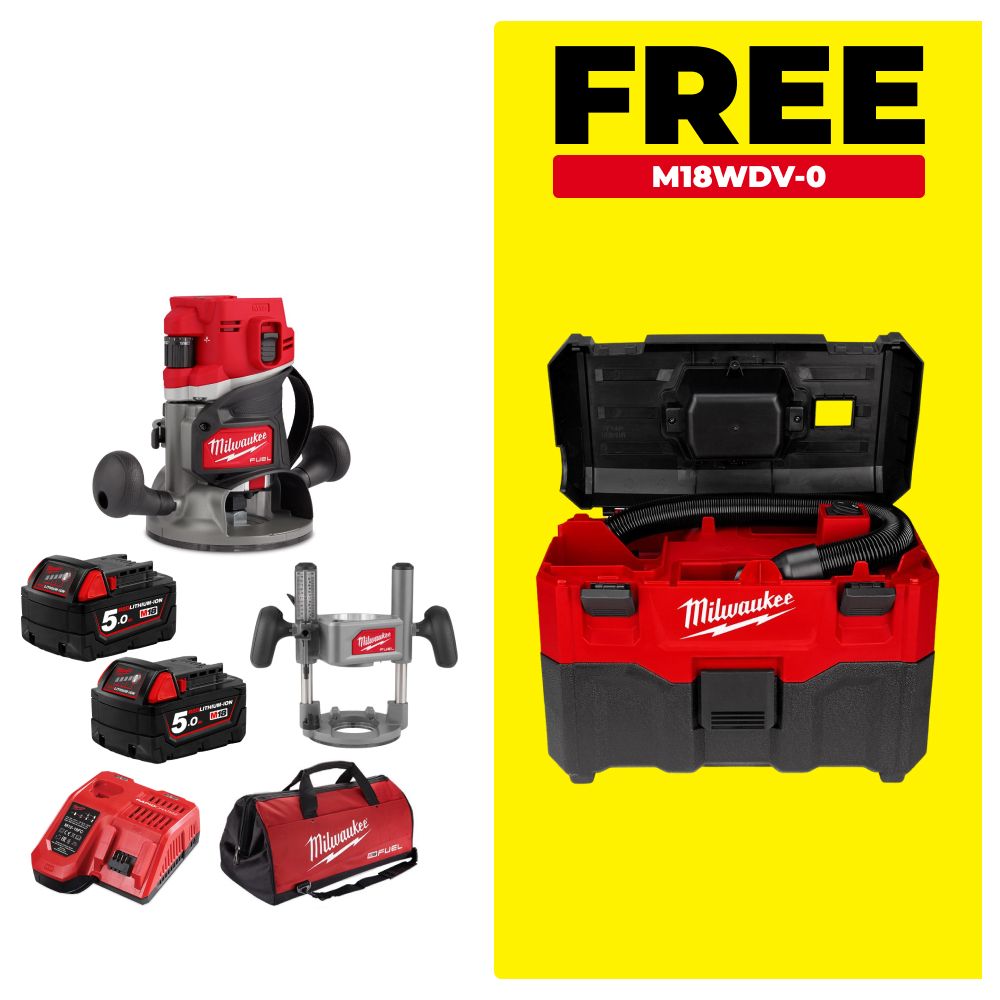

Milwaukee M18FR12502B 18V 5.0Ah Li-ion Cordless Fuel 1/2" Router Combo Kit

Designed for the professional carpenter and remodeler, the MILWAUKEE® M18 FUEL™ 1/2" Router delivers best-in-class cordless performance with 2.25 peak horsepower, control and comfort in application, and 68 linear metres of runtime per charge. The POWERSTATE™ Brushless Motor delivers less bog down under load for clean, precise cuts and increased productivity. REDLINK PLUS™ intelligence ensures maximum performance and protection from overload, overheating, and over-discharge. The ergonomic BODYGRIP® and overmould pommels provide control and comfort in application to enhance precision and reduce fatigue. The M18™ REDLITHIUM-ION HIGH OUTPUT 6.0Ah Battery (not included) provides 68 linear metres per charge of 15.88mm roundover in pine and the power to tackle the toughest applications found on the jobsite. The variable speed dial has an adjustment range from 12,000 to 25,000 RPM to optimise cuts across a wide range of bits and materials. The router is equipped with a micro-adjust knob and macro-adjust button with over 50.8mm (2”) of travel to provide users with fast and accurate depth adjustments. The cordless router features dual-LED lights to illuminate the work surface, a spindle lock for quick one-wrench bit changes, and a modular console design for compatibility with the Milwaukee® 1/2" Router Plunge Base (RBA1) (not included).

Includes:

• 1 x 13 mm (1/2") Collet
• 1 x 6.35 mm (1/4") Collet
• 1 x 6 mm Collet
• 1 x 8 mm Collet
• 1 x 12 mm Collet
• 1 x Dust Shroud
• 1 x Universal Hose Adapter
• 1 x U-Rod
• 1 x Thumb Screws
• 2 x Wrenches
• 1 x Edge Guide
• 1 x Template Base
• 1 x Contractor Bag

Features:

• POWERSTATE™ Brushless Motor: Generates the power and torque of 2.25 peak HP corded routers for clean cuts in hardwood
• REDLINK PLUS™ intelligence ensures maximum performance and protects from overloads, overheating, and over-discharge
• Variable speed dial provides precise RPM adjustments from 12,000 to 25,000 to optimise bit speed to the application
• Included 13mm (1/2”), 6.35mm (1/4"), 6mm, 8mm and 12mm collets for compatibility across common router bit shanks
• Tool-free spindle lock provides easy bit changes with one 27mm (1-1/16") collet wrench
• Dual-LED lights illuminate the workpiece for greater application visibility in low light conditions
• Included edge guide with micro and macro adjustments expand the versatility on the jobsite Included templating 152.4mm sub-base plate accepts 30mm guide bushings
• Included universal hose adapter provides compatibility with a wide range of vacuum sizes
• Compatible with the Milwaukee® 1/2" Router Plunge Base (Not Included) and Milwaukee® 1/2" Router Track Adapter (Not Included)

Specifications:

• Voltage: 18V
• Collect Size: 1/2”, 1/4”, 6mm, 8mm, 12mm
• RPM: 12,000 - 25,000
• Variable Speed: Yes
• Dual LED Light: Yes
• Base Diameter: 152.4mm
• Fixed Base Travel: 50.8mm
• Dimensions (with Fixed Base) (L x W x H): 278mm x 152.4mm x 211mm
• Weight: 2.8kg

Warranty:

• 5 Years Warranty Covered by Milwaukee

The MILWAUKEE® 1/2" Router Plunge Base expands the versatility and functionality of the MILWAUKEE® M18 FUEL™ 1/2“ Router (sold separately). The plunge base delivers smooth plunges at precise depths for accurate cuts in a wide variety of applications. The 1/2” Router Plunge Base features 63.5mm (2-1/2") of total plunge capacity, a 6-step depth turret at 3.18mm (1/8") increments, and a depth rod with micro-adjustment to provide quick, repeatable cuts. A cam lock securely holds the tool and allows for base changes with the modular console, while the depth scale contains measurement markings in both inches and millimetres for increased ease of use. The plunge base is compatible with the 1/2” Router Template Base, 1/2" Router Track Adapter (RBA2), dust shroud and edge guide (all sold separately).

Features:

• Sturdy machined aluminium body for stable plunges
• Maximum depth capacity of 63.5mm (2-1/2")
• 6-step depth stop turret with 3.18mm (1/8") step increments
• Depth scale markings in inches and millimetres
• Depth rod with micro-adjustment knob for quick and accurate depth adjustments
• Compatible with Milwaukee® 1/2” Router Template Base, 1/2" Router Track Adapter (RBA2), dust shroud and edge guide (all sold separately)

Suitable for:

• Milwaukee M18FR120B 18V Li-ion Cordless Fuel 1/2" Router - Skin Only
• Milwaukee M18FR12502B 18V 5.0Ah Li-ion Cordless Fuel 1/2" Router Combo Kit

Specifications:

• Plunge Depth: 63.5mm (2-1/2”)
• Base Diameter: 152.4mm (6”)
• Length: 325mm (12-3/4”)
• Width: 152.4mm (6”)
• Min Height: 211mm (8-1/4”)
• Max Height: 275mm (10-7/8”)
• Weight: 2.3kg

Warranty:

• 5 Years Warranty Covered By Milwaukee

The M18 5.0Ah REDLITHIUM-ION BATTERY features superior pack construction, electronics, and performance to deliver more work per charge and more work over the life of the pack than any battery on the market. M18 5.0Ah REDLITHIUM-ION BATTERY features an advanced design, protecting the pack against harsh jobsite environments. This protection routes water away from the electronics and out of the battery pack, extends run-time and life by minimizing heat, and prevents pack failures from vibration or drops.

This unique to Milwaukee design also allows the battery to operate in extreme cold weather conditions (below -180C). Managed by Milwaukee’s exclusive REDLINK Intelligence, the battery features overload protection to prevent you from damaging your cordless power tools in heavy-duty situations, while the discharge protection prevents cell damage.

Features:

• Powers more than 100 Milwaukee M18 cordless power tools
• REDLINK intelligence provides optimised performance and over load protection
• Best in class construction - offers long lasting performance and durability
• Fuel gauge on board displays remaining run time for less down time on the job
• All weather performance, delivers fade free power in extreme jobsite conditions

Specifications:

• Voltage: 18V
• Capacity: 5.0Ah
• Charge time:
• M12-18FC: 60 mins
• M12-18C: 105 mins
• Weight: 0.72kg

Warranty:

• 2 Years Warranty Covered By Milwaukee

Once again, Milwaukee is on the ball for providing the fastest charging solutions for tradies. With the ever-growing demand to charge batteries in both voltages, the new and improved multi voltage charger, M12-18FC, can sequencial charge a 12V or 18V battery up to 40% faster, increasing your productivity on the worksite.

Features:

• Charges all Milwaukee batteries up to 40% faster
• Charges all M12 and M18 batteries
• Sequencial charging
• REDLINK intelligence communicates directly with the battery
• REDLINK monitors cell voltage and temperature
• REDLINK charges to optimise the performance, protect and extend the life of the battery

Specifications:

• Voltage: 12V & 18V
• Battery type: Li-ion
• Charge Time:
• 2.0Ah: 26 minutes
• 4.0Ah: 47 minutes
• 5.0Ah: 59 minutes
• 6.0Ah: 75 minutes
• 9.0Ah: 90 minutes
• Weight: 0.77kg

Warranty:

• 2 Years Warranty Covered By Milwaukee
