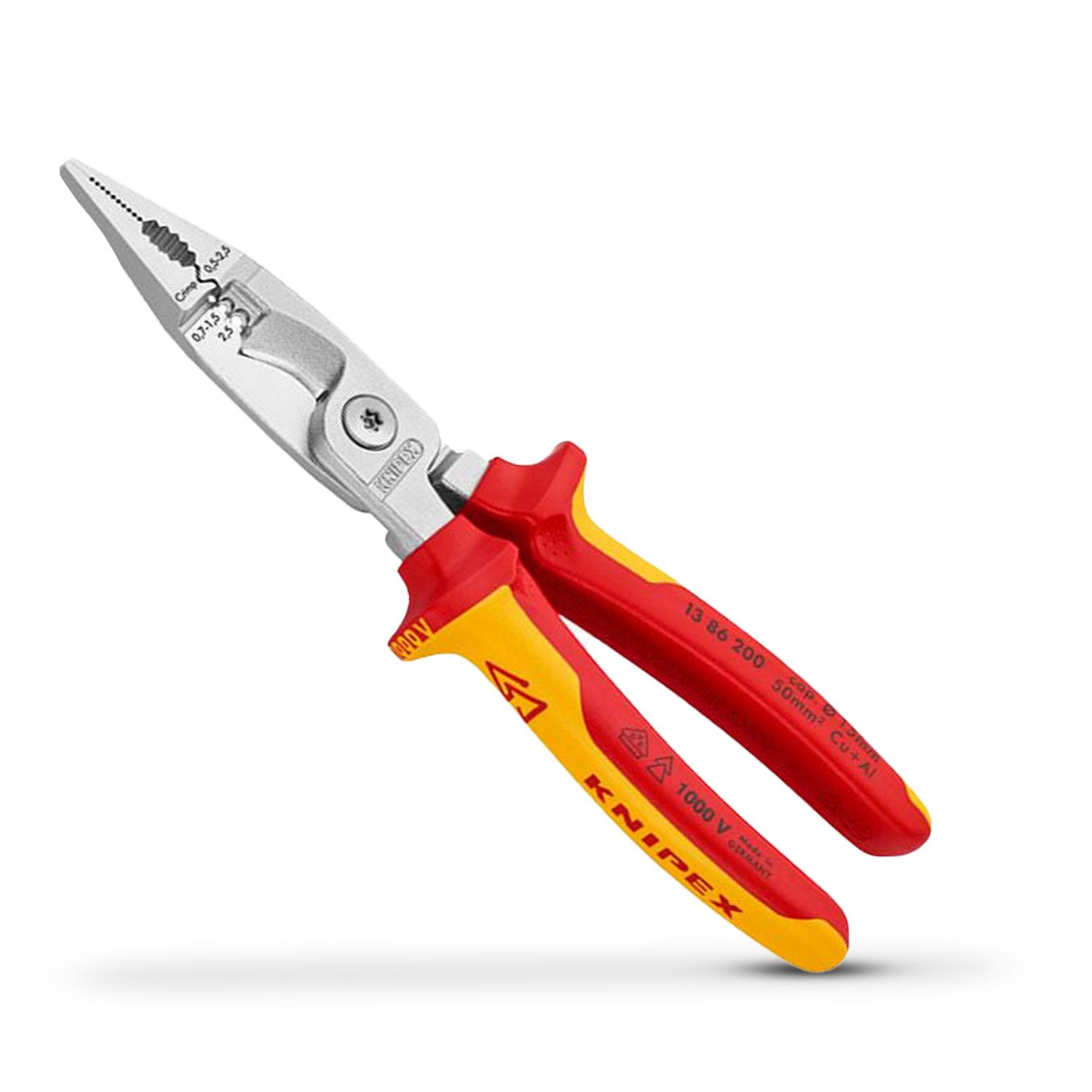

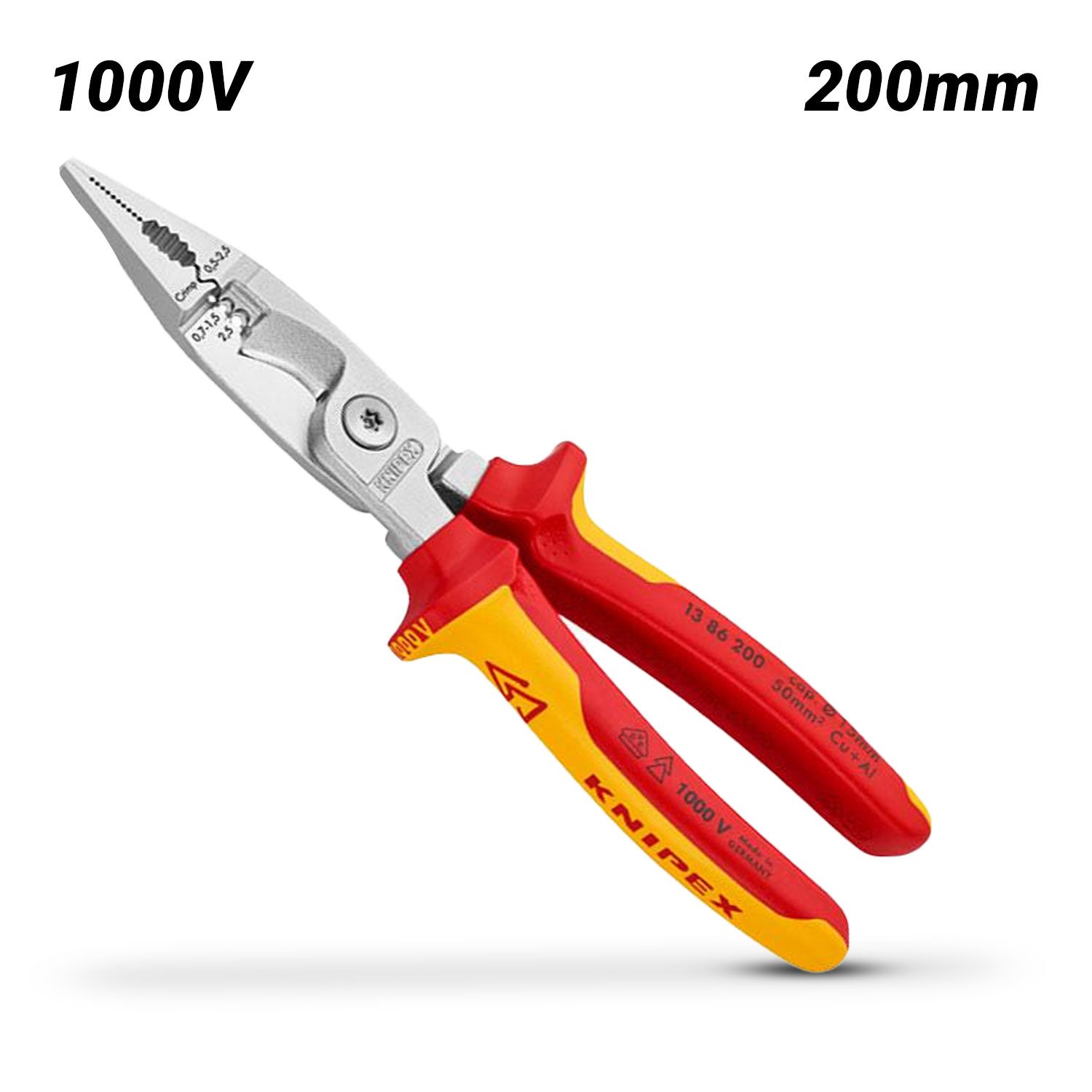

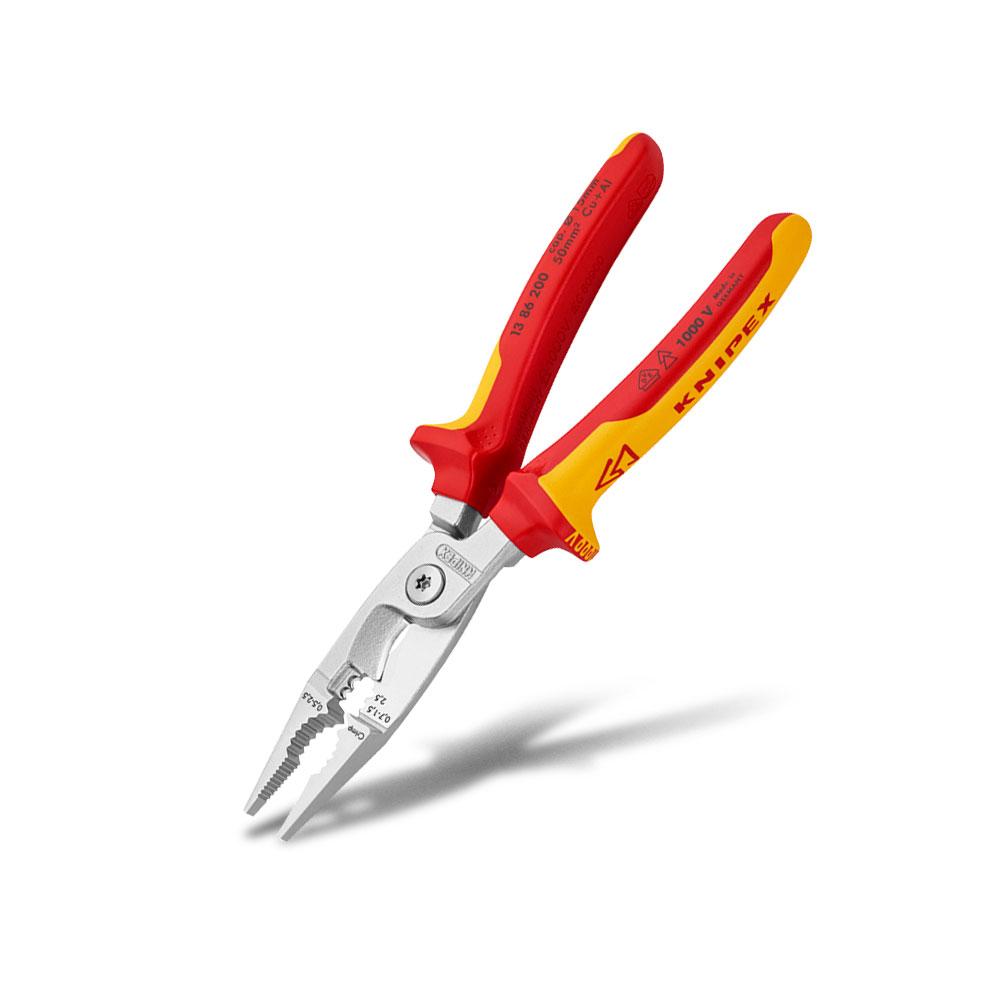

Knipex 1386200SB 200mm 1000V Electrical Installation Pliers

Knipex 1386200SB 200mm 1000V Electrical Installation Pliers

Features:

• Multifunctional pliers for electrical installations; for clamping flat and rounded materials, for bending, deburring, cutting, stripping of cables and crimping of ferrules
• Fine surfaces at the top of the jaws catch the threads without damaging them; chamfered gripping surfaces and rounded grip for retaining flat and round materials
• Extreme margin for deburring the cable through the dose
• Desoldering holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²

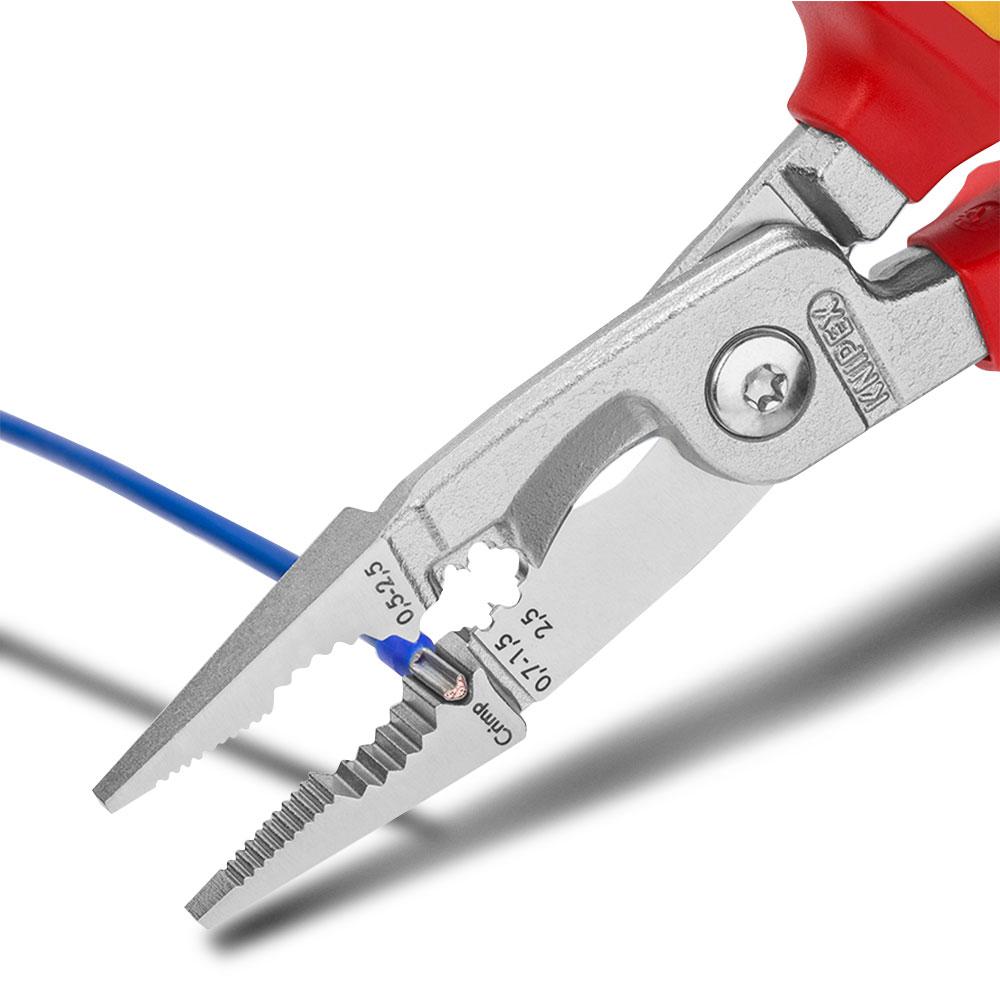

• Crimping bin for ferrules 0.5 - 2.5 mm²
• Cable shear with precision cutting jaws for copper and aluminum cables up to 5 x 2.5 mm² / dia. 5 mm
• Grip without opening full clamps (intelligent lock mechanism in spring version). The scissors remain closed and protected
• Small dimensions for easy access
• Inserted joint: precise grip of the pliers without play

Specifications:

• Insulation Standard: IEC 60900 DIN EN 60900

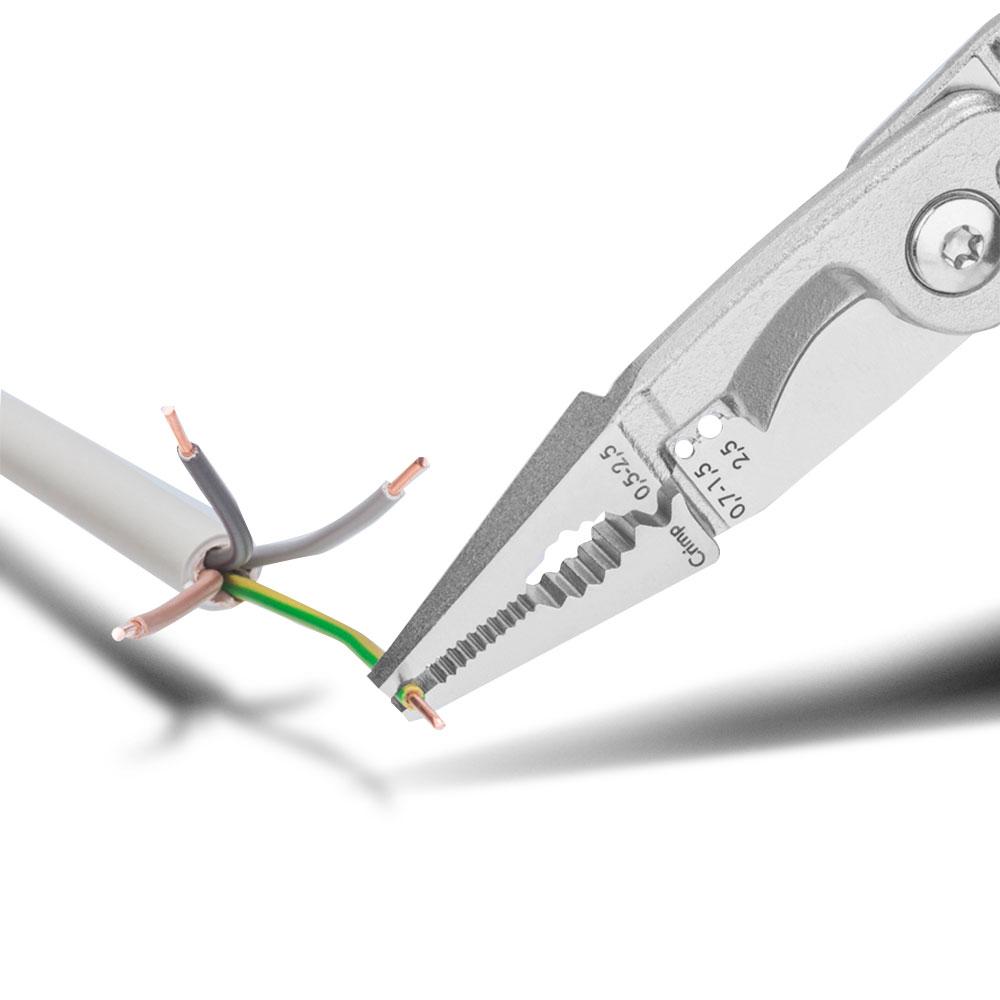

•  Stripping values ​​for individual strands: 0.75 - 1.5 + 2.5 mm²
•  Capacity square millimeters: 0.5 - 2.5 mm²
•  AWG: 1/0
• Length: 200 mm
• Weight: 0.28Kg
