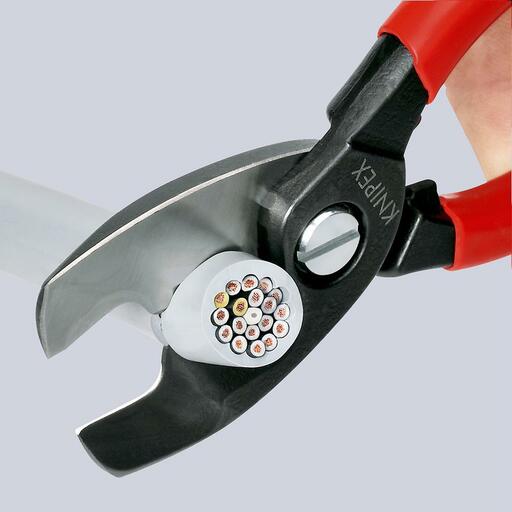

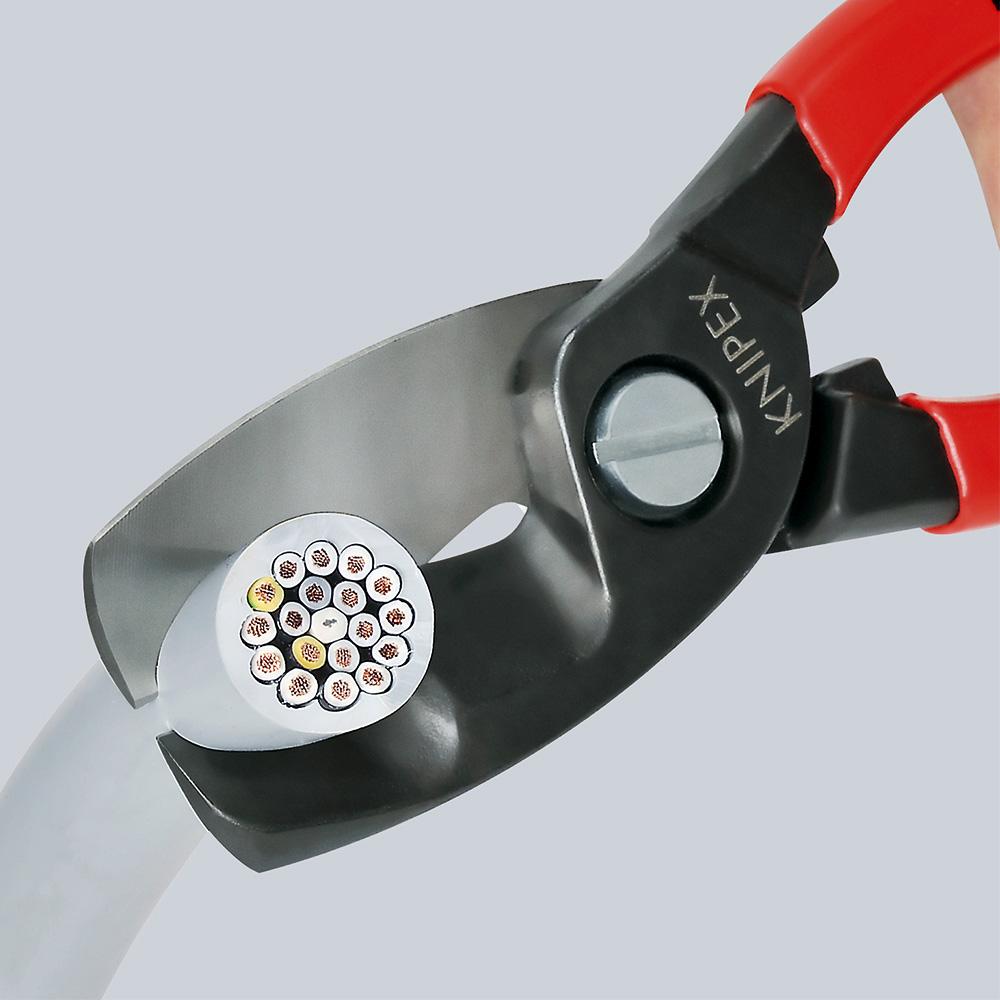

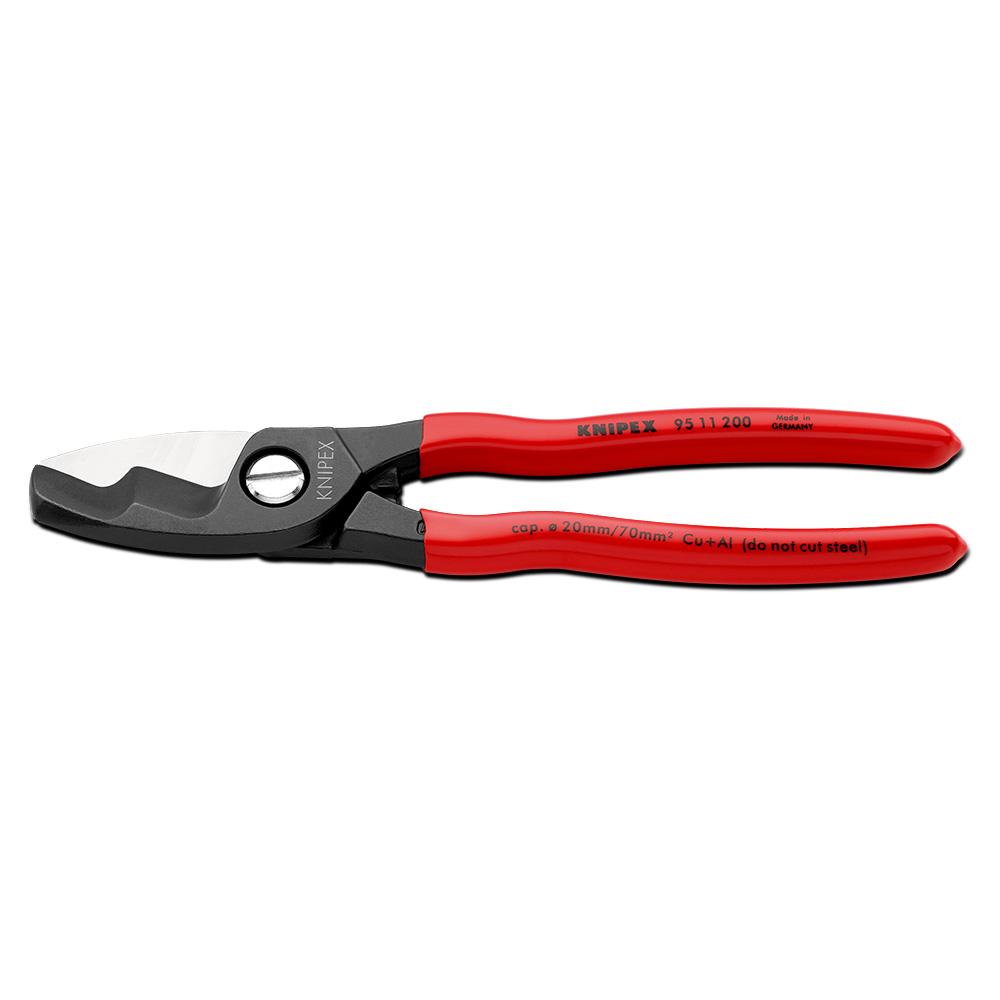

Knipex 9511200SB 200mm Cable Cutter Shears

Knipex 9511200SB 200mm Cable Cutter Shears

The Knipex 9511200SB 200mm Cable Cutter Shears are precision-engineered for clean, effortless cutting of copper and aluminum cables up to 20mm in diameter. Designed with hardened, precision-ground blades, they deliver smooth cuts without crushing or deforming the cable. The tool features a two-stage cutting process for efficient one-handed operation, along with a favorable lever ratio and special blade geometry to minimize hand force. Additional safety and durability features include a pinch guard, adjustable bolted joint, and self-retaining screw, all packaged in a convenient self-service blister card.

Features:

• Cable Shears For cutting copper and aluminium cables
• Not suitable for steel wire and hard drawn copper conductors. Precision-ground, hardened blades
• Clean and smooth cut without crushing and deformation
• By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to 20 mm can be cut in one-hand operation.
• Low handforce required due to favourable lever ratio and special blade geometry
• Pinch guard prevents operators' fingers being pinched
• Adjustable bolted joint, self-retaining screw

Specifications:

• Cutting capacity copper cable, multiple-stranded (diameter): 20 Ø mm
• Cutting capacity copper cable, multiple-stranded: 70 mm²
• AWG: 2/0
• Length: 200mm
• Dimensions (L x W x H): 225mm x 84mm x 23mm
• Weight: 0.283kg
