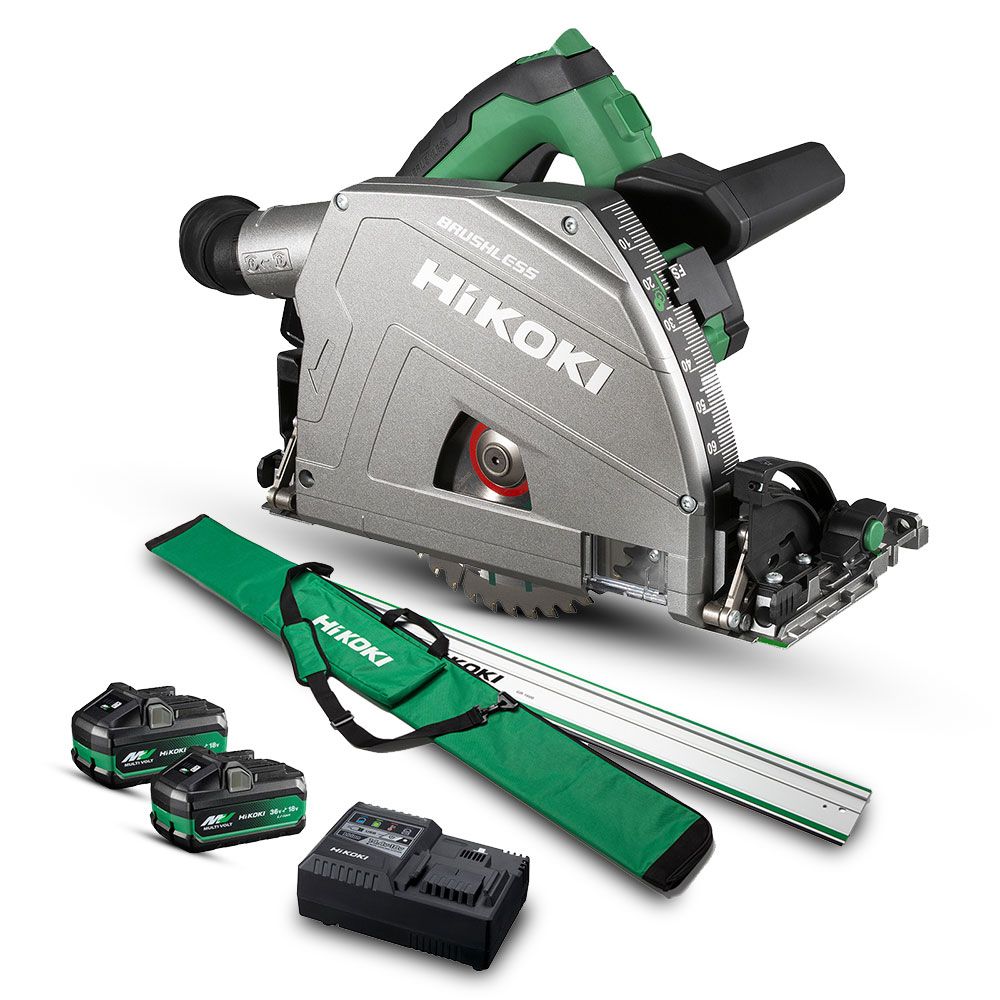

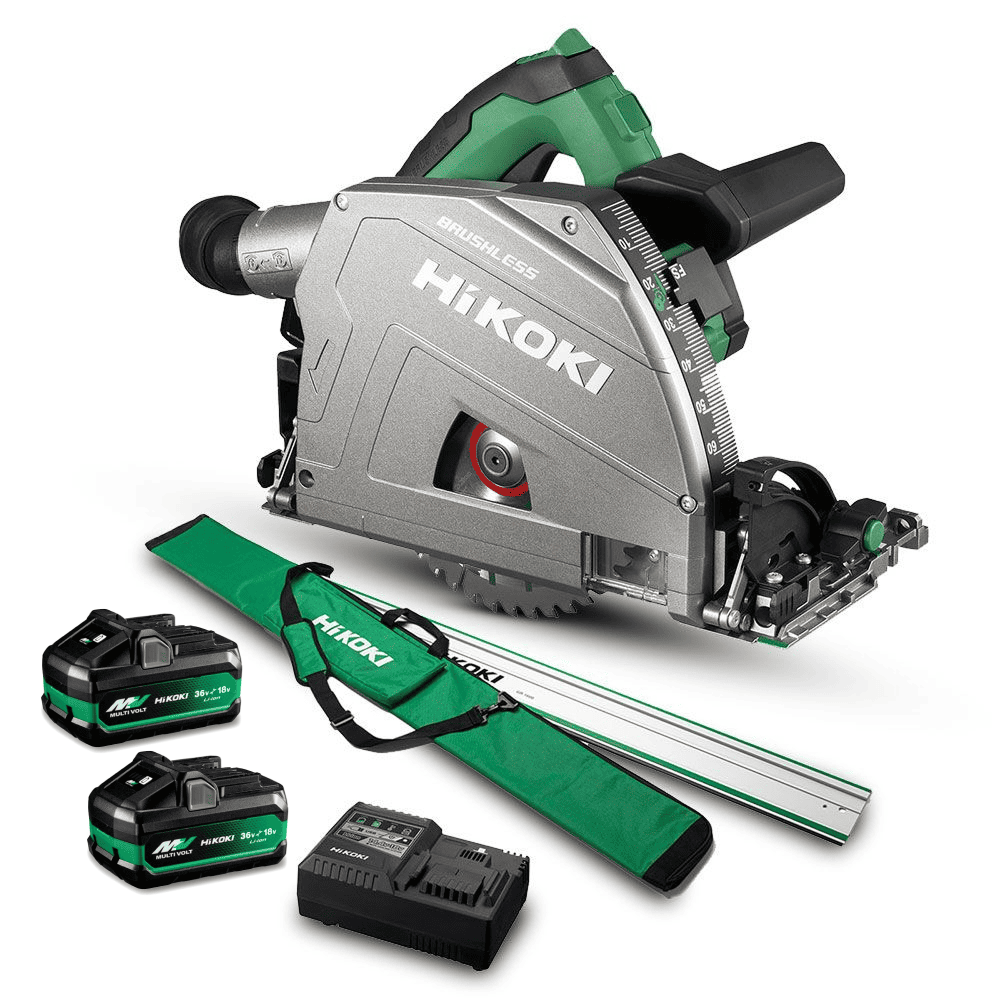

HiKOKI C3606DPA(HRZ) 36V 2.5Ah Li-ion Cordless Brushless 165mm (6-1/2") Plunge Cut Saw Combo Kit with Guide Rail

1 x HiKOKI C3606DPA(H4Z) 36V Li-ion Cordless Brushless 165mm (6-1/2") Plunge Cut Saw - Skin Only

HiKOKI 36V Brushless 165mm Plunge Cut Saw brings premium high-powered cutting to site. Featuring a ‘Deep Cut’ configuration with a max cut of 66mm and also features soft-start for smooth start-ups, accurate precision cutting when fitted to a guide rail, and a variable speed function for greater control. The C3606DPA innovative double guide is designed for precise and accurate setting of the cutting depth and features a fast brake function for added safety.

Features:

• Rotatable dust extractor nozzle for variable working positions
• Plunge cuts and precise cuts up to a depth of 66mm
• Versatile application thanks to variable speed for different materials
• Easy to read scales for accurate angle and depth adjustment
• Soft start feature for smooth start-ups & fast brake function for improved safety
• Accurate precision cutting when fitted to a guide rail (compatible with various rails)

Specifications:

• Voltage: 36V
• Switch type: Trigger
• Blade diameter: 165mm
• Bore: 20mm
• No load speed: 2500 - 5200rpm
• Bevel capacity: -1° to 46°
• Max cutting depth:
  • 0°: 66mm
  • 45°: 43mm
• Dimensions (L x W x H): 391mm x 206mm x 269mm
• Weight: 4.9kg

Warranty:

• 3 Years Standard Warranty Covered By HiKOKI
• 6 Years Extended Warranty if registered through HiKOKI website

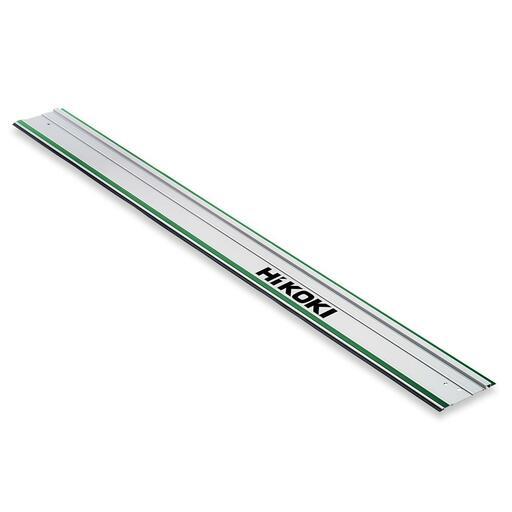

1 x HiKOKI 4100072 1600mm Guide Rail

The HiKOKI 1600mm Guide Rail is made to provide straight and secure guidance when using a plunge saw. These guide rails perfectly suit the C3606DPA Plunge Saw. Splinter protection reduces breakout when sawing. The rail has adhesive coating for safe, non-slip surface contact as well as protection of the workpiece surface. Also features holes to fix the rail to the workpiece and for hanging storage. These rails can be extended in length with a second guide rail and FSV connector (sold separately).

Features:

• For straight and secure guidance
• Splinter protection reduces breakout when sawing
• Adhesive coating for safe, non-slip surface contact as well as protection of the workpiece surface
• With holes to fix the rail to the workpiece and for hanging storage
• Can be extended in length with the second guide rail and FSV connector (sold separately)
• Suits C3606DPA Plunge Saw

Suitable For:

• HiKOKI C3606DPA(HRZ) 36V 2.5Ah Li-ion Cordless Brushless 165mm (6-1/2") Plunge Cut Saw Combo Kit with Guide Rail
• HiKOKI C3606DPA(H4Z) 36V Li-ion Cordless Brushless 165mm (6-1/2") Plunge Cut Saw - Skin Only

Warranty:

• 3 Years Standard Warranty Covered By HiKOKI
• 6 Years Extended Warranty if registered through HiKOKI website

2 x HiKOKI BSL36A18 18V - 36V 5.0Ah - 2.5Ah MultiVolt Battery Pack

HiKOKI MultiVolt gives its user AC Power with DC freedom, now made even better by a level of convenience and superior technology you won't get from other tools. HiKOKI MultiVolt gives double voltage supply in one battery meaning you simply snap it into place and power on, regardless of whether you're using 36V or 18V tools.

Features:

• 1080W Power and compact & lightweight (almost the same size and weight as an 18V BSL1850 or 60 battery) with 18,650 cells
• Automatic voltage change between 36V and 18V
• Remaining battery indicators displays the charging state in 4 stages

Specifications:

• Voltage: 18V - 36V
• Capacity:
• 18V: 5.0Ah
• 36V: 2.5Ah
• Charge time: Approx 32 mins
• Dimensions (L x W x H): 116mm x 69mm x 76mm

Warranty:

• 3 Years Standard Warranty Covered By HiKOKI

1 x HiKOKI UC18YSL3(H0Z) 14.4V - 18V Li-ion Rapid Battery Charger with Cooling & USB Port

HiKOKI's Rapid Charger charges 14.4V and 18V slide batteries in record time.

Features:

• Cooling feature helps cool battery during charging or before charging commences to prevent battery overheating ensuring extended battery life
• Preventative mechanism against charging a hot battery to extend battery life
• 3 way overcharge protection system to ensure battery is not overcharged
• Two colour indicator light to indicate what stage of charging the battery is in
• USB port for charging mobile devices

Specifications:

• Voltage: 14.4V - 18V
• USB ports: 1
• Battery type: Li-ion Slide
• Charge times:
• 1.5Ah: 15 mins approx
• 2.0Ah: 20 mins approx
• 2.5Ah: 25 mins approx
• 3.0Ah: 20 mins approx
• 4.0Ah: 26 mins approx
• 5.0Ah: 32 mins approx
• 6.0Ah: 38 mins approx

Warranty:

• 3 Years Standard Warranty Covered By HiKOKI
