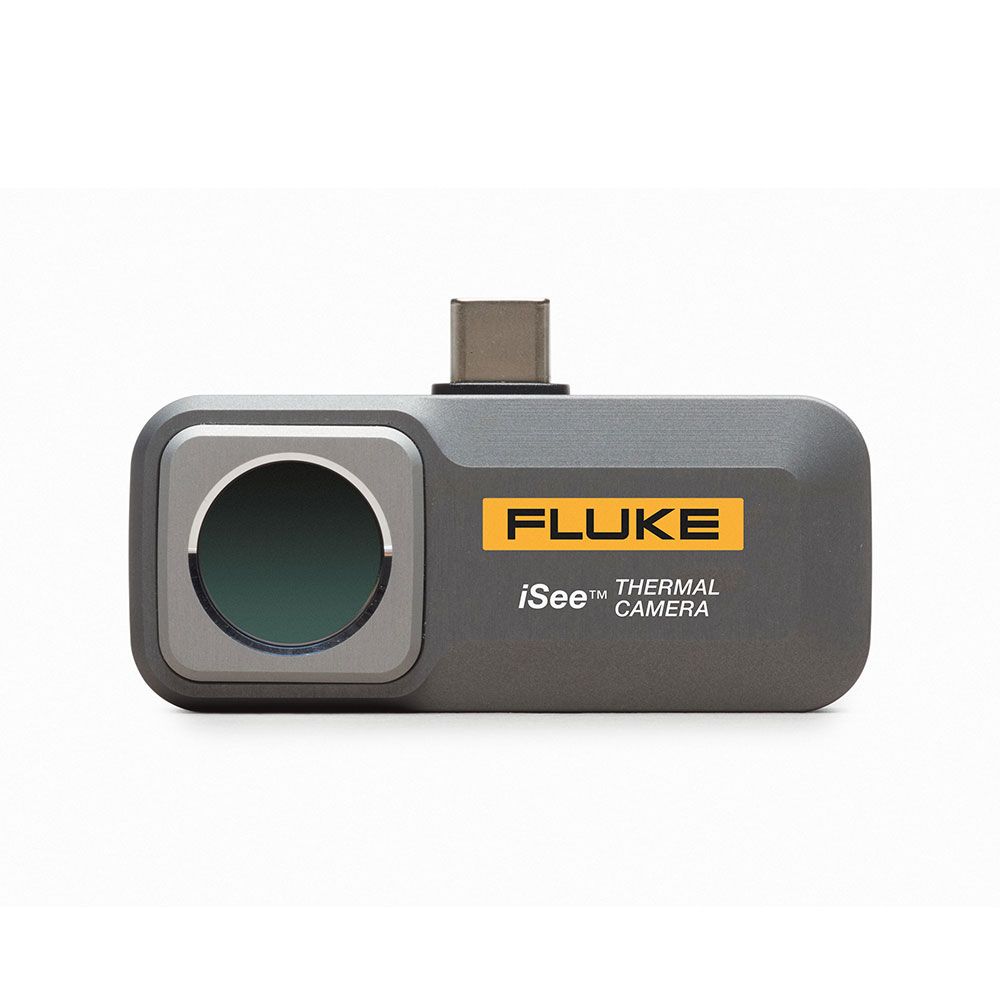

Fluke TC01C (6107233) iSee Thermal Camera 256 x 192 IR Resolution suits IOS iPhone

Fluke TC01C (6107233) iSee Thermal Camera 256 x 192 IR Resolution suits IOS iPhone

The Fluke iSee™ Mobile Thermal Camera brings professional-grade thermal imaging to your pocket. With a compact and lightweight design, it delivers high-resolution images and accurate temperature measurements for a wide range of applications. Whether you need real-time temperature monitoring, infrared inspections, or detailed analysis, the iSee™ ensures reliable results with powerful software support and intuitive controls. Built with rugged durability, it can withstand demanding environments while providing high-quality thermal imaging on the go.

Features:

• Provides detailed thermal images at 256 × 192 pixels for professional-quality results
• Measures temperatures up to 550 °C, suitable for a variety of industrial and commercial applications
• Detects fine temperature differences with 50 mK (0.05 °C) thermal sensitivity
• Ensures reliable readings with ±2% or ±2 °C accuracy
• Smooth video recording at 25 Hz frame rate for live thermal monitoring
• Customizable image views with over 10 standard or user-defined color palettes
• Real-time capture of high and low temperatures with automatic image and video recording when limits are exceeded
• Adjustable emissivity to measure temperatures accurately across different materials
• Comprehensive analysis for 5 spots, 5 lines, and 5 areas using the Fluke iSee™ app
• Real-time temperature alarms provide immediate alerts for abnormal conditions
• Automatic time-lapse capture mode enables unattended thermal monitoring
• Combines infrared and visible image comparison for precise inspection and documentation
• Supports real-time image sharing and annotations for fast communication and reporting
• Compact and portable at just 22g, with robust aluminium body and laser-etched surface
• Built to withstand drops up to 1 meter and meets IP56 (TC01B/TC01C) or IP54 (TC01A) ingress protection standards

Specifications:

• Infrared / Optical
  • IR Resolution: 256 × 192 pixels
  • Pixel Size: 12μm
  • Temperature Range: -20℃ to 550℃
  • Accuracy: ±2% of reading or ±2 °C (@23 °C ±5 °C)
  • Measurement Distance: 0.25 m – 5 m (*-20 ℃ to 10 ℃: 0.25m – 3m)
  • Frame Rate: 25Hz
  • Focal Length: Fixed, 3.2mm
  • Thermal Sensitivity (NETD): 50mK
  • Spectral Range: 8 – 14μm
  • Field of View (H × V): 56° × 42°
  • Spatial Resolution: 3.81 mrad
  • Shutter: Internal auto
• Connectivity / Compatibility
  • USB Interface: Type C
  • Lightning: Type C
  • Compatible Systems: iOS
• Environment / Durability
  • Operating Temperature: 0 ℃ to 40 ℃
  • Storage Temperature: -30 ℃ to 60 ℃
  • Operating Humidity: 10% – 90% RH, non-condensing
  • Drop Test: 1m
  • Ingress Protection: IEC 60529: IP56 (with the protective cover for Type C
  • Operating Altitude: 2000m
  • Storage Altitude: 12,000m
• Power Consumption: 200mW (Typical)
• Dimensions (L × W × H): 60mm × 33.5mm × 11.2 mm
• Weight: 22g

Warranty:

• 2 Years Warranty Covered by Fluke
