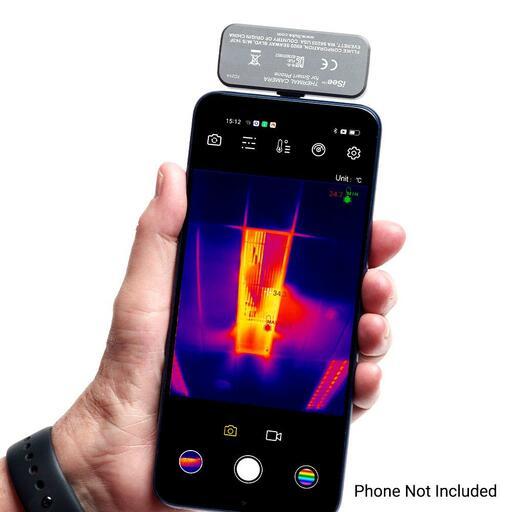

Fluke FLUKE-TC01A (5518338) iSEE Mobile Thermal Camera for Android Smartphones

Fluke FLUKE-TC01A (5518338) iSEE Mobile Thermal Camera for Android Smartphones

Explore the real world for visible details with the Fluke iSee Mobile Thermal Camera - TC01A for Android Smartphones, temperature can be measured and thermal imaging detection can be carried out anytime and anywhere just through the Type C interface of smart phone. It is widely used in the electrical and mechanical equipment inspection, outdoor detection service, household HVAC inspection, field observation, and even children education, which uncovers the invisible world of temperature.

Features:

• 256 x 192 pixels, detailed image quality
• -10 to 550 ℃ range, covering wide applications
• ±2% or ±2 ℃ accuracy, reliable and stable
• 25 Hz frame rate, smooth video without lag
• More than 10 standard and custom colour palettes to achieve a variety of personalised images
• Real-time high and low temperature capture, without missing any details
• Adjustable emissivity to cope with different materials
• Comprehensive temperature analysis for spot, line and area, professional-grade thermal imaging software
• Real-time temperature alarm, timely response and handling
• Unattended automatic time-lapse photography
• Real-time image and video sharing and management, fast and efficient communication
• 1 meter drop, IP54 ingress protection, Fluke durability

Specifications:

• Performance:
• IR Resolution: 256 x 192
• Pixel Size: 12 μm
• Temperature Range: -10°C to 150°C, 100°C to 550 °C
• Temperature Accuracy: ± 2% of rdg or ± 2 °C, whichever is greater (@ 25 °C ± 5 °C ambient temperature)
• Temperature Measurement Distance: 0.25 m to 5 m ^[1]
• Frame Rate: 25 Hz
• Warm-Up Time: 1 minute
• Focal Length: Fixed focal length: 3.2 m
• Shutter Mode: Built-in automatic shutter
• Thermal Sensitivity (NETD): 50 mK
• Spectral Range: 8 to 14 μm
• Field of View (H x V): 56° x 42°
• Spatial Resolution: 3.81 mrad
• General:
• USB Interface: Type-C
• Operating Temperature: 0 °C to 40 °C
• Storage Temperature: -30 °C to 60 °C
• Operating humidity: 10% to 90% RH, non-condensing
• Power consumption: 350 mW (Typical)
• Drop Test: 1m
• Ingress protection: IEC 60529: IP54
• Operating altitude: 2000m
• Storage altitude: 12,000m
• Dimensions (L x W x H): 25mm x 32mm x 10mm
• Weight: 22g

Warranty:

• 2 Years Warranty Covered by Fluke
