Fluke FLUKE-179-2/IMSK (4370598) Industrial Multimeter Service Kit

Fluke FLUKE-179-2/IMSK (4370598) Industrial Multimeter Service Kit

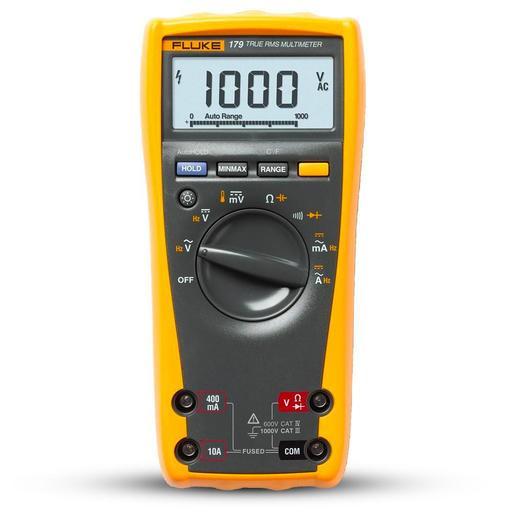

Fluke FLUKE-179 ESFP 179 True-RMS Digital Multimeter

With its precision, reliability, and ease of use, the Fluke 179 is the preferred solution for professional technicians around the world. It includes the features you need to troubleshoot and repair electrical and electronic systems, plus a backlit digital display, analog bar graph, and built-in temperature measurements.

Features:

• A full-featured, precision multimeter for troubleshooting electrical and electronic systems
• Delivers accurate true-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
• Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording
• Includes a built-in thermometer to measure temperature without having to carry a separate instrument
• Safety rated CAT III 1000 V, CAT IV 600 V
• Allows closed-case calibration through front panel

Specifications

• Voltage DC:
• Accuracy: ±(0.09% + 2)
• Max. resolution: 0.1 mV
• Maximum: 1000 V
• Voltage AC:
• Accuracy: ±(1.0% + 3)
• Max. resolution: 0.1 mV
• Maximum: 1000 V
• Current DC:
• Accuracy: ±(1.0% + 3)
• Max. resolution: 0.01 mA
• Maximum: 10 A
• Current AC:
• Accuracy: ±(1.5% + 3)
• Max. resolution: 0.01 mA
• Maximum: 10 A
• Resistance:
• Accuracy: ±(0.9% + 1)
• Max. resolution: 0.1 Ω
• Maximum: 50 MΩ
• Capacitance:
• Accuracy: ±(1.2% + 2)
• Max. resolution: 1 nF
• Maximum: 10,000 µF
• Frequency:
• Accuracy: ±(0.1% + 1)
• Max. resolution: 0.01 Hz
• Maximum: 100 kHz
• Temperature:
• Accuracy: ±(1.0% + 10)
• Max. resolution: 0.1°C
• Range: -40°C / 400°C
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +60°C
• Humidity (without condensation):
• 0% – 90% (0°C – 35°C)
• 0% – 70% (35°C – 50°C)
• Overvoltage category:
• EN 61010–1 to 1000 V CAT III
• EN 61010–1 to 600 V CAT IV
• Agency approvals: UL, CSA, TÜV listed and VDE Pending
• Battery life: ~200 hours typical, without backlight
• Dimensions (L x W x H): 185mm x 90mm x 43mm
• Weight 0.420kg

Warranty:

• Limited Lifetime Warranty Covered By Fluke

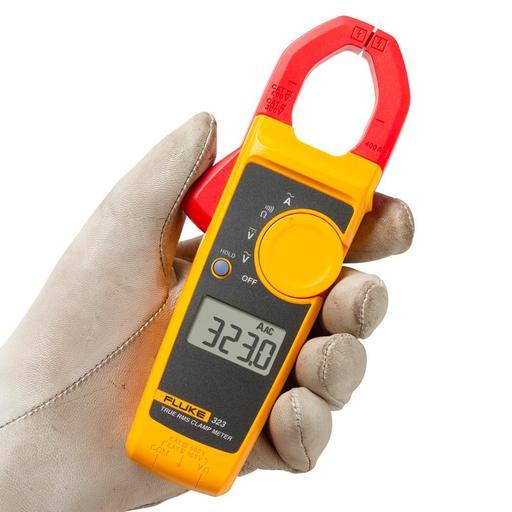

Fluke FLUKE-323 400A True RMS Clamp Meter

Fluke Clamp Meters are designed to perform in the toughest environments and provide noise-free, reliable results users can trust to confidently diagnose problems. True-rms measurements and optimised ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.

Model Comparison:

• Fluke 324 324 RMS Clamp Meter - Clamp Meter measures temperature and capacitance
• Fluke FLUKE-325 400A AC/DC True RMS Clamp Meter - Clamp Meter measures DC current and frequency

Features:

• Slim ergonomic design
• CAT IV 300 V/CAT III 600 V safety rating
• Hold button
• Rugged, reliable basic True-RMS clamp meter for measuring current up to 400 A
• Measures AC current to 400 A
• Measures AC voltage and DC voltage to 600 V
• Provides True RMS AC voltage and current for accurate measurements on non-linear signals
• Measures resistance to 4 kΩ with continuity detection

Specifications:

• AC Current:
• Range: 400.0A
• Accuracy: 2 % ± 5 digits (45 Hz to 65 Hz), 2.5 % ± 5 digits (65 Hz to 400 Hz)
• AC voltage:
• Range: 600.0 V
• Accuracy: 1.5 % ± 5 digits
• DC voltage:
• Range: 600.0 V
• Accuracy: 1.0 % ± 5 digits
• Resistance:
• Range: 400.0 Ω/4000 Ω
• Accuracy: 1 % ± 5 digits
• Continuity: ≤ 70 Ω
• AC response: True-rms
• Data hold: Yes
• Dimensions (L x W x H): 207mm x 75mm x 34mm
• Max wire diameter: 30 mm (600 MCM)
• Weight 0.265kg

• Warranty:

  • 2 year Warranty Covered By Fluke
