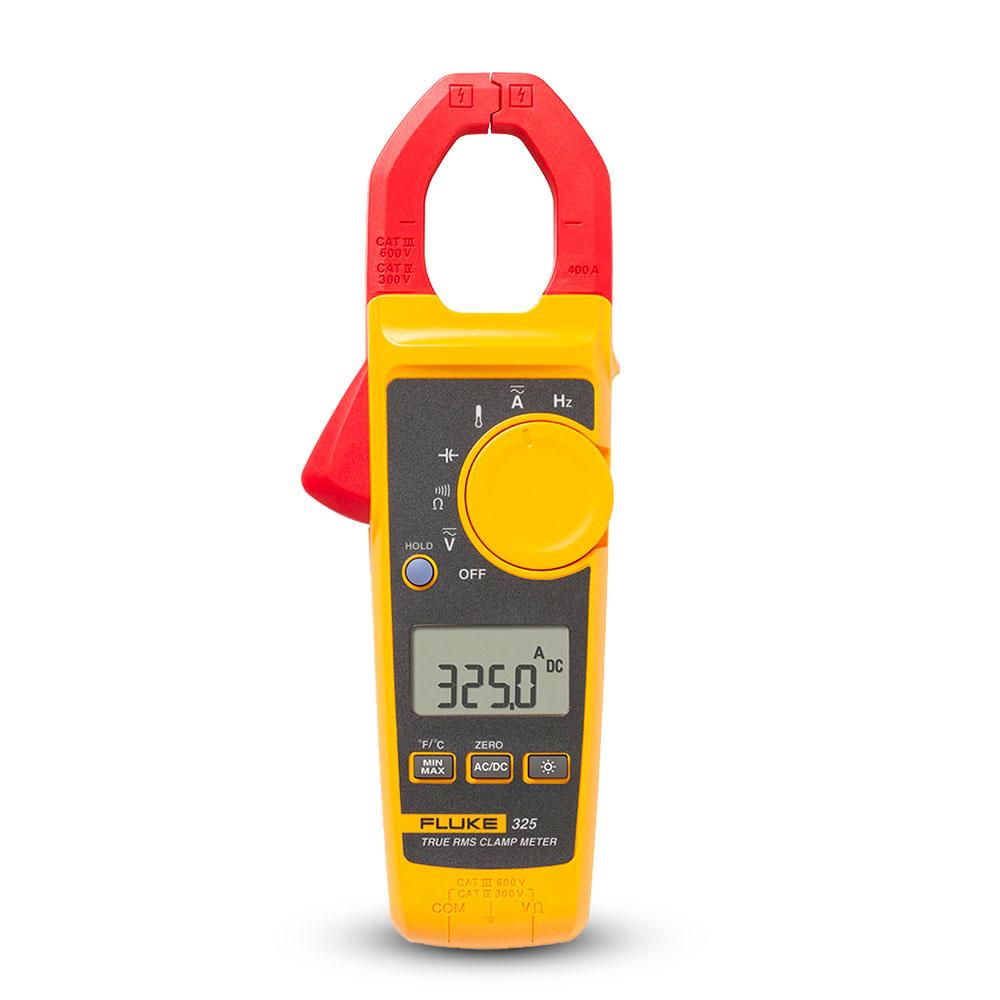

Fluke FLUKE-325 (4152643) 400A AC/DC True RMS Clamp Meter

Fluke FLUKE-325 (4152643) 400A AC/DC True RMS Clamp Meter

Fluke Clamp Meters are designed to perform in the toughest environments and provide noise-free, reliable results users can trust to confidently diagnose problems.

True-rms measurements and optimised ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.

Features:

• Slim ergonomic design
• CAT IV 300 V/CAT III 600 V safety rating
• Hold button
• Rugged, reliable basic True-RMS clamp meter with jaws for measuring AC/DC current up to 400 A
• Measures AC voltage and DC voltage to 600 V with included test leads
• Provides True RMS AC voltage and current for accurate measurements on non-linear signals
• Measures resistance to 4 kΩ with continuity detection
• Measures temperature from -10 °C to 400 °C with included K-type thermocouple

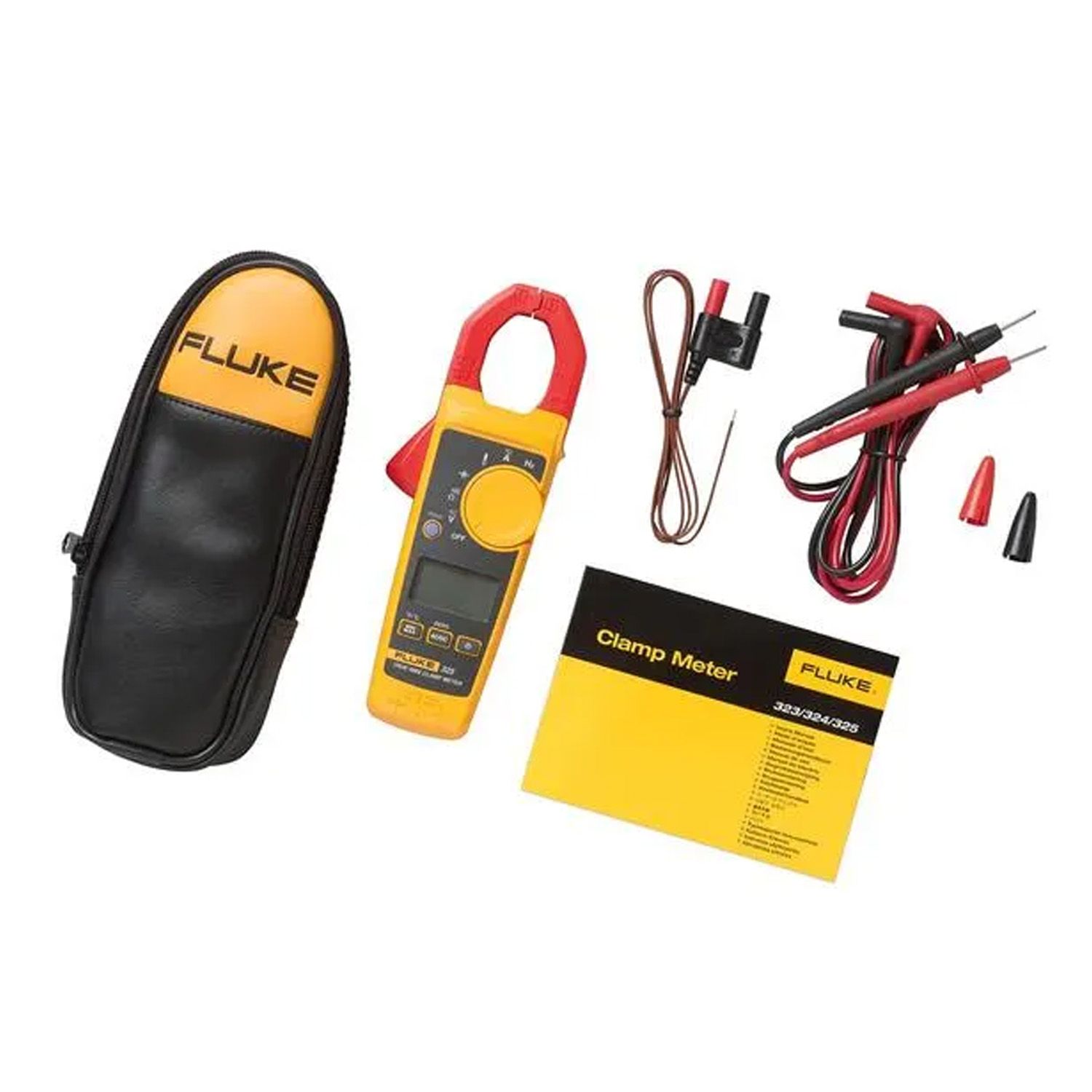

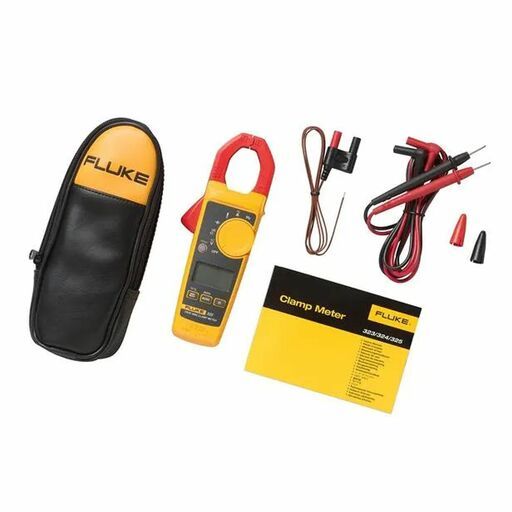

What is included:

• Fluke 325 True-RMS Clamp Meter
• TL75 Test Leads
• Type K Thermocouple
• Two AAA Batteries (Installed)
• Soft Case

Specifications:

• AC Current:
• Range: 400.0A
• Accuracy: 2 % ± 5 digits (45 Hz to 65 Hz), 2.5 % ± 5 digits (65 Hz to 400 Hz)
• DC current:
• Range: 40.00 A / 400.0 A
• Accuracy: 2% ± 5 digits
• AC voltage:
• Range: 600.0 V
• Accuracy: 1.5 % ± 5 digits
• DC voltage:
• Range: 600.0 V
• Accuracy: 1.0 % ± 5 digits
• Resistance:
• Range: 400.0 Ω/4000 Ω
• Accuracy: 1 % ± 5 digits
• Continuity: ≤ 30 Ω
• Capacitance: 0 to 100.0 μF / 100μF to 1000 μF
• Frequency: 5.0 Hz to 500.0 Hz
• AC response: True-RMS
• Backlight: Yes
• Data hold: Yes
• Dimensions (L x W x H): 207mm x 75mm x 34mm
• Max wire diameter: 30 mm (600 MCM)
• Category rating:
• CAT III 600 V
• CAT IV 300 V
• Weight 0.265kg
