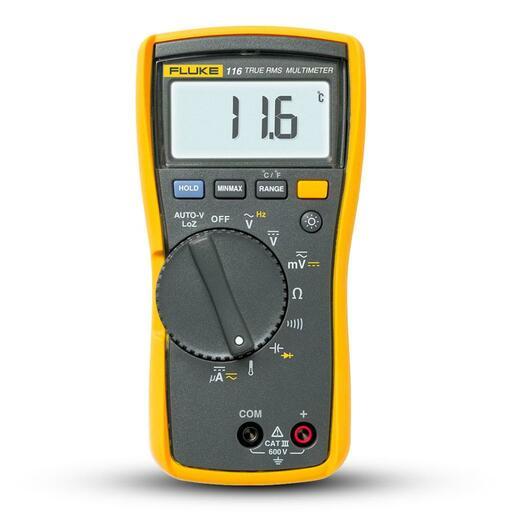

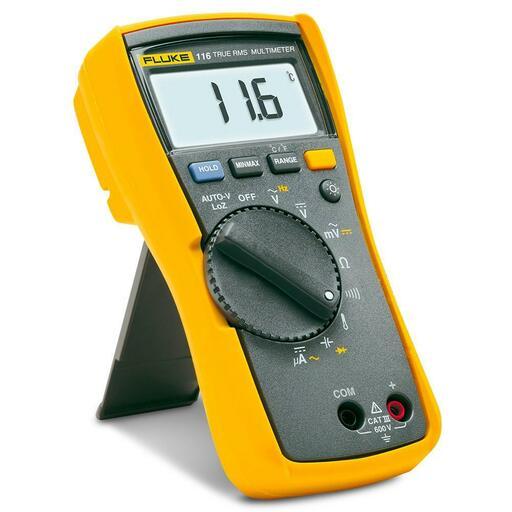

Fluke FLUKE-116/APAC (5294030) Digital HVAC Multimeter

Fluke FLUKE-116/APAC (5294030) Digital HVAC Multimeter

The Fluke 116 was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas.

Fluke 116 multimeters are independently tested for safe use in CAT III 600 V environments.

Features:

• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average to record signal fluctuations
• Comes with a holster with probe holders for easy storage
• Features a compact ergonomic design for one-handed operation
• Fits into optional ToolPak magnetic hanger for hands-free operation
• CAT III 600 V safety rated

Specifications:

• Max Voltage: 600V
• Surge protection: 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
• DisplayDigital: 6,000 counts, updates 4 per second
• Bar graph: 33 segments, updates 32 per second
• Operating temperature: -10°C to + 50°C
• Storage temperature: -40°C to + 60°C
• Battery type: 9 volt Alkaline, NEDA 1604A / IEC 6LR61
• Battery life: 400 hours typical, without backlight
• DC millivolts:
• Range/resolution: 600.0 mV / 0.1 mV
• Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
• DC volts:
• Range/resolution: 6.000 V / 0.001, V 60.00 V / 0.01, V 600.00 V / 0.1 V
• Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
• Auto volts:
• Range/resolution: 600.0 V / 0.1 V
• Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz), 4.0% + 3 (500 Hz to 1 kHz)
• AC millivolts1 True RMS:
• Range/resolution: 600.0 mV / 0.1 mV
• Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
• AC volts1 True RMS:
• Range/resolution: 6.000 V / 0.001, V60.00 V / 0.01, V600.0 V / 0.1 V
• Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
• Continuity:
• Range/resolution: 600 Ω / 1 Ω
• Accuracy: Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
• Ohms:
• Range/resolution: 600.0 Ω / 0.1 Ω, 6.000 kΩ / 0.001 kΩ, 60.00 kΩ / 0.01 kΩ, 600.0 kΩ / 0.1 kΩ, 6.000 MΩ / 0.001 MΩ
• Accuracy: 0.9% + 1
• Range/resolution: 40.00 MΩ / 0.01 MΩ
• Accuracy: 5% + 2
• Diode test:
• Range/resolution: 2.00 V / 0.001 V
• Accuracy: 0.9% + 2
• Capacitance:
• Range/resolution: 1000 nF / 1 nF, 10.00 μF / 0.01 μF, 100.0 μF / 0.1 μF, 9999 μF / 1 μF, 100 μF to 1000 μF
• Accuracy: 1.9% + 2
• Range/resolution: > 1000 μF
• Accuracy: 5% + 20%
• Lo-Z capacitance:
• Range: 1 nF to 500 μF
• Accuracy: 10% + 2 typical

Lo-Z Capacitance

• Range: 1 nF to 500 μF
• Accuracy: 10% + 2 typical
• Temperature² (Type-K thermocouple)
• Range/resolution: -40°C to 400°C / 0.1°C
• Accuracy: 1% + 10²
• Range/resolution: -40°F to 752°F / 0.2°F
• Accuracy: 1% + 18²
• AC μA true-rms (45 Hz to 500 Hz):
• Range/resolution: 600.0 μA / 0.1 μA
• Accuracy:1.5% + 3
• DC μamps:
• Range/resolution: 600.0 μA / 0.1 μA
• Accuracy: 1.0% + 2
• Hz (V or A input)2
• Range/resolution: 99.99 Hz / 0.01 Hz, 999.9 Hz / 0.01 Hz, 9.999 kHz / 0.001 kHz, 50 kHz / 0.01 kHzAccuracy0.1% + 2
• Dimensions (W x D x H): 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
• Weight: 0.55kg

Warranty:

• 3 Year Warranty Covered By Fluke
