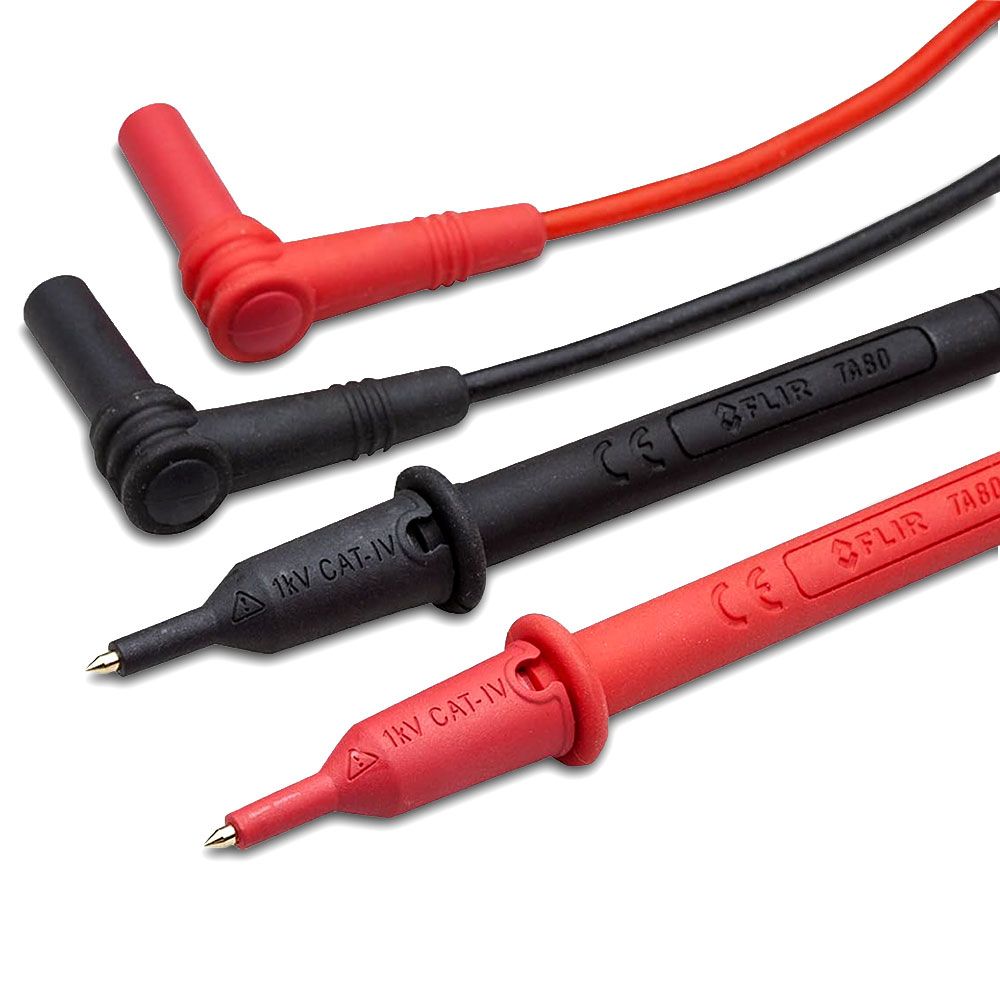

FLIR TA80 CAT IV Silicone Test Leads

FLIR TA80 CAT IV Silicone Test Leads

The FLIR TA80 test leads are premium CAT IV silicone leads designed for professional use with Flir meters and virtually any test instrument accepting standard right-angle shrouded banana plugs. Rated for 1000 V and 10 A, they feature gold-plated tips for precision, double-extruded silicone insulation with wear indication, and high-strength stress relief for durability and safety. Removable protective caps safeguard the 4 mm tips when not in use.

Features:

• Rated 1000 V, 10 A, UL certified to CAT IV–1000 V
• Gold-plated tips for professional precision
• Double-extruded multi-color silicone leads with wear indication
• High-strength integrated stress relief at the probe
• Lead length: 41″ (1,041 mm) with total length 46″ (1,168 mm) including probe
• Removable probe protection caps
• Compatible with Flir meters and instruments with standard right-angle shrouded banana plugs
• Temperature range: –4 °F to 140 °F (–20 °C to 60 °C)

Specifications:

• Wire Gauge: 18 AWG
• Plug & Connector: Right-angle shrouded banana plugs
• Material: Silicone insulated leads, gold-plated tips
• Standards: UL certified, CAT IV 1000V
• Dimensions (L × W × H): 1,170.9mm × 15.2mm × 15.2mm
• Weight: 63.5g
