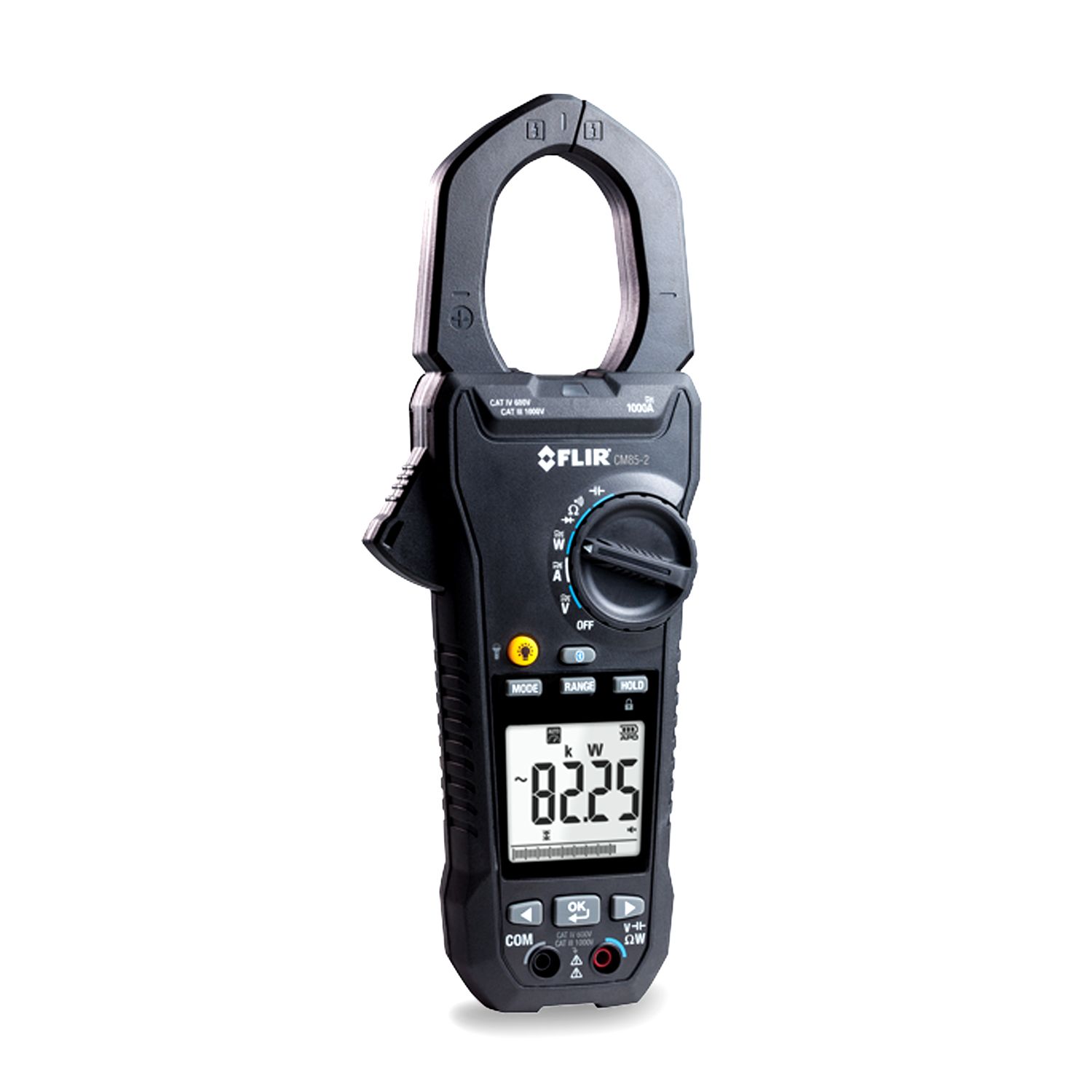

FLIR CM85-2 1000 A True RMS Power Clamp Meter with Wireless METERLiNK

FLIR CM85-2 1000 A True RMS Power Clamp Meter with Wireless METERLiNK

The FLIR CM85-2 is an industrial power clamp meter with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters for full-scale equipment. Accurately analyze voltage in complex machinery by including harmonics, inrush, current, and phase rotation testing with a wide AC/DC voltage range and base accuracy of ±1%. Stream live data in real time from the CM85-2 to your mobile device over Bluetooth®. Using the METERLiNK® app, you can compare log files, create alarm thresholds, visualize trends, and create reports to share with team members.

Features:

• VFD Mode for superior accuracy on VFD-controlled equipment
• Inrush mode to capture AC Current spikes during start-up
• Bluetooth® connectivity up to 10 m (32 ft)

Applications:

• Advanced power analysis and variable frequency drive (VFD) filtering functions
• Accurately analyze voltage in complex machinery
• Harmonics, inrush, current, and phase rotation testing

Specifications:

• Jaw Opening: 45mm
• Worklights: Yes
• Safety Category: CAT IV-600 V, CAT III-1000 V
• Bluetooth range max: 10m (32 ft)
• Auto Power Off: Approximately 30 minutes
• Battery Life: 50 hours with alkaline batteries (backlight, work light, and Bluetooth are off)
• Power Requirements: 6 × 1.5 V AAA alkaline batteries
• Measurement & Analysis:
• AC Current:
  • 99.99 A, 50-60 Hz ± (2% + 5 digits); >60–400 Hz ± (2.5% + 5 digits)
  • 999.9 A, 50-60 Hz ± (2% + 5 digits); >60–400 Hz ± (2.5% + 5 digits)
• AC Voltage:
  • 99.99 V, 50–500 Hz ±(1.0% + 5 digits)
  • 999.9 V, 50–500 Hz ±(1.0% + 5 digits)
• Capacitance:
  • 3.999 μF, ±(1.9% + 8 digits)
  • 39.99 μF, ±(1.9% + 8 digits)
  • 399.9 μF, ±(1.9% + 8 digits)
  • 3.999 mF, ±(1.9% + 8 digits)
• Continuity: 999.9 Ω, ±(1.0% + 5 digits)
• DC Current:
  • 99.99 A, ±(2% + 0.5 A)
  • 999.9 A, ±(2% + 5 digits)
• DC Voltage:
  • 99.99 V, ±(0.7% + 2 digits)
  • 999.9 V, ±(0.7% + 2 digits)
• Diode: 0.40 to 0.80 V, ±0.1 V
• Frequency:
  • 20.00 to 99.99 Hz, ±(0.5% + 3 digits)
  • 20.0 to 999.9 Hz, ±(0.5% + 3 digits)
  • 0.020 to 9.999 kHz, ±(0.5% + 3 digits)
• Harmonics:
  • Total harmonic distortion ACA/ACV: 99.9%, ±(3.0% + 10 digits)
  • Harmonic distortion: H01–H12 99.9%, ±(5% + 10 digits)
  • Harmonic distortion: H13–H25 99.9%, ±(10% + 10 digits)
• Inrush Current:
  • ACA:

    • 99.99 A, ±(3% + 0.3 A)
    • 999.9 A, ±(3% + 5 digits)
• Measuring Rate: 3 times per second
• Power Factor: -1.00 to 0.00 to +1.00, ±3° ±1 digit
• Recording: Data recording available via METERLiNK App
• Dimensions (L x W x H): 276mm x 101mm x 50mm
• Weight: 0.65kg
