Cigweld XF200P3 (800200) Weldskill PowerPack 6pce Welder Combo Kit

Cigweld XF200P3 (800200) Weldskill PowerPack 6pce Welder Combo Kit

The BlueVenom XF200P3 PowerPack brings together a high-performance 3-in-1 pulse inverter and a comprehensive set of accessories to create a complete welding setup from day one. With advanced MIG pulse modes, Synergic QuickSet technology, Opti-Start and a 3.5” colour display, the pack also includes a helmet, gloves, gasless wire, pliers and consumables, giving tradespeople and professionals everything required for MIG, TIG and Stick welding in a single, fully loaded package.

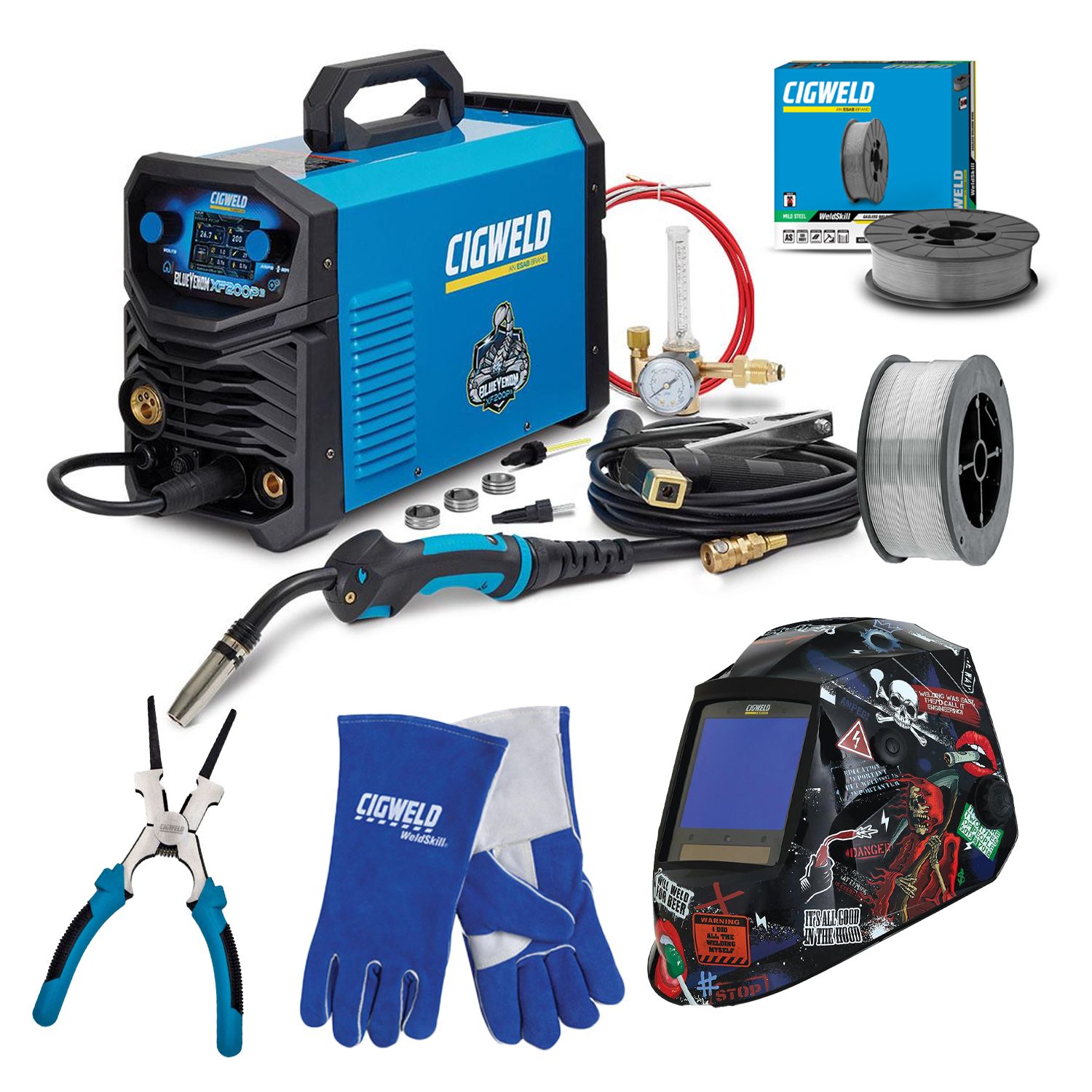

Includes:

• 1 x BlueVenom XF200P3 Power Source
• 1 x ARCMASTER XC70 Welding Helmet
• 1 x MIG Gun with Euro Style (3m Lead)
• 1 x Twist Lock Electrode Holder (3m Lead)
• 1 x Gas regulator/Flowmeter
• 2 x Feed Rolls

The BlueVENOM XF200P3 PULSE MIG is the machine for the serious welding enthusiast, tradesperson or professional who need to fabricate and weld light structures that require TIG-Like welds on Aluminium, Stainless Steel, Bronze or Steel projects, but need the welding speed and ease-of-use of the MIG Process. Suitable for use at maintenance departments, farm/home workshops, jobsites and marine repair/service centers without compromising on price for excellent results! With the avid welder in mind, CIGWELD have introduced “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.

Includes:

• 1 x Power Source
• 1 x CMGBZ24E3 MIG Gun 3m Euro quick connector set up with an Aluminium Liner, plus a spare Steel liner is supplied for hard wires
• 1 x Work clamp with 3m lead
• 1 x TwistLock Electrode Holder with 3m Lead
• 3 x Feed Rolls: 0.8/0.9mm Gasless, 0.9/1.0mm U-Groove for Soft Wires(Fitted), 0.8/0.9mm Solid Wires
• 1 x 2m Argon Gas Hose and Gas Regulator/Flowmeter
• 1 x Yellow Nylon Inlet Guide for use on Soft Alloy Wires
• 1 x Spring Steel Inlet Guide for Hard Wires

Features:

• 3 x Pulse modes: Single & Double Pulse MIG, STICK Pulse and TIG Pulse
• Welding performance made easy to suit the serious welding enthusiast to the welding pro
• Produce terrific welding results from 230V/240V x 15A upgraded power
• Weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze
• The XF200P3 comes packed with the right liner, inlet guide and feed rollers for hard (steel and stainless) wires as well
• Pre-installed Synergic Quickset MIG (Single & Double Pulse) programs! Simply choose your material and gas combination (unless you’re using gasless), wire diameter and dial up the plate thickness you’re welding and you’re ready to go
• Intuitive 3.5” full colour display to custom set values to get the most out of your welds

Specifications:

• Power Supply: Single-Phase 230V/240V +/- 10%
• Nominal Supply Frequency: 50/60Hz
• Supply Lead and Plug Supplied: 15 Amp
• Minimum Generator Recommendation: 12kVA (at 0.8 Power Factor_ at Max Amps
• Amperage Range (MIG): 30-200A
• Voltage Range (MIG): 15.5-24V
• MIG (GMAW) Duty Cycle @ 40°C, 10 minutes:
  • 200 Amps @ 15%
  • 100 Amps @ 60%
  • 77 Amps @100%
• STICK (MMAW) Duty Cycle @ 40°C, 10 minutes:
  • 195 Amps @ 10%
  • 80 Amps @ 60%
  • 62 Amps @ 100%
• TIG (GTAW) Duty Cycle @ 40°C, 10 minutes:
  • 200 Amps @ 15%
  • 100 Amps @ 60%
  • 77 Amps @ 100%
• Nominal DC Open Circuit Voltage in MIG Mode: 67V
• Open Circuit Voltage (VRD On) STICK Mode: <35V
• Australian Standard: AS 60974.1:2020
• Protection Class: IP 21S
• Dimensions (L x W x H): 495mm x 220mm x 335mm
• Weight: 13.4kg

Warranty:

• 2 Years Warranty Covered by Cigweld (Machine)

Features:

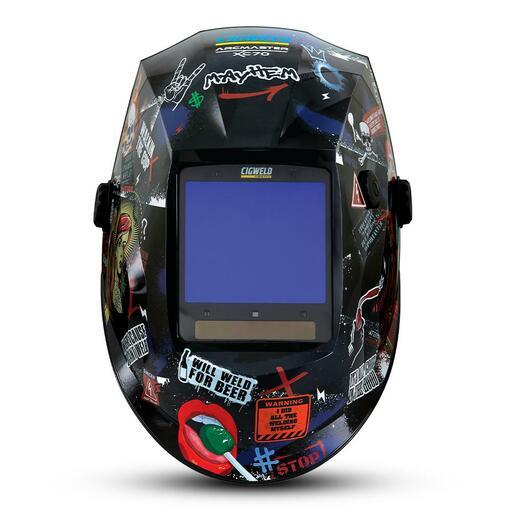

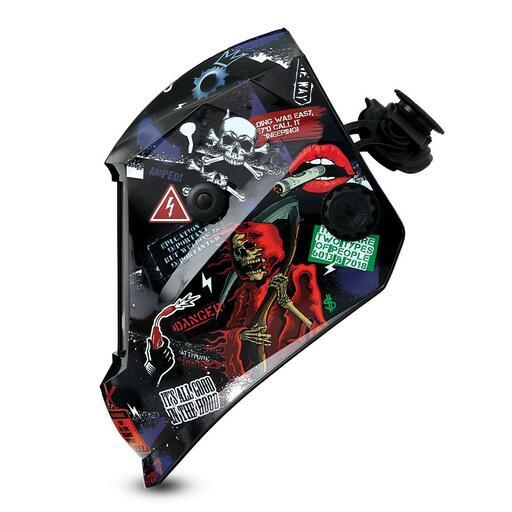

• Supreme level welding helmet
• Quad-1, high definition optical viewing rating (EN379-1/1/1/1) approved to AS/NZS:1338.1
• 5 arc sensors, excellent for all welding processes including TIG down to 2 Amps, including pulse TIG
• Variable shade range 3/4-8/9-14 with optishade
• Ultra view lens with true colour view
• 5-point comfort harness
• High impact rating for grinding to AS/NZS:1337.1

Specifications:

• Viewing Area: 98mm x 87mm = 92.3mm²
• Arc Sensors: 5 (4+1)
• DIN Rating: Quad-1 (1/1/1/1)
• Shade Range: 4-8 / 9-14
• Switching Speed: 0.1ms
• Harness Points: 5
• Analogue Controls: Yes
• Ultra View: Yes
• OptiShade Technology: Yes
• OptiShade Sensors: User adjustable +/- 2 shades
• Impact Rating: High Impact
• Grinding Shade: 3
• Gradual Mode: Yes (Dark to Clear)
• Memory Mode: Yes x 10
• Power Up: Solar Assist 2 x CR2032
• Weight: 0.62kg

Warranty:

• 3 Years Warranty Covered by Cigweld

With a full sock lining for maximum comfort, and the highest of quality leather, the Weldskill Heavy Duty Welding Gloves will protect you from high heat output applications and keep you welding longer than with standard, lightweight alternatives. You can expect superior heat and abrasion resistance from this Heavy Duty option!

Features:

• Heavy Duty welding gloves suitable for a wide range of welding applications
• Manufactured from high quality leather for superior heat and abrasion resistance
• Kevlar stitching for increased durability
• Full sock lining for maximum comfort

Specifications:

• Size: L
• Dimensions (L x W x H): 300mm x 120mm x 20mm
• Weight: 0.8kg

Autocraft AL5356 is a premium quality, Aluminium – nominal 5% Magnesium alloy suitable for the Gas Metal Arc Welding (GMAW) of a wide range of cast and wrought Aluminium alloys.

Features:

• 5% Magnesium
• DNV Shipping Approvals
• Tight Wire Diameter Control for Smooth, Consistant Arc Performance
• Patented Lubrication Process For Superior Wire Feedability
• Suitable For GMAW Welding Cast Aluminium Alloys

Applications:

• Autocraft AL5356 produces intermediate deposit strength and good ductility and corrosion resistance for the GMA welding of a wide range of 3XXX, 5XXX, 6XXX and 5XX Aluminium alloys

Specifications:

• Size: 1mm
• Pack Type: Spool
• Pack Weight: 2kg
• Processes: GMAW

The CIGWELD WeldSkill WG4509 Gasless Welding Wire is a self-shielded E71T-11 flux-cored wire designed for MIG welding without the need for external shielding gas. Ideal for outdoor welding, maintenance and fabrication, it delivers excellent penetration, smooth arc characteristics and reliable all-position welding on mild and galvanised steels.

Features:

• Self-shielded flux-cored wire requires no external shielding gas
• AWS E71T-11 classification for single and multi-pass welding
• Suitable for welding mild and galvanised steels
• All-position welding capability
• Excellent tolerance to joint misalignment and poor joint fit-up
• Produces smooth rippled fillet welds with excellent edge wetting
• High penetration with stable arc performance
• Full slag coverage with easy slag removal
• Ideal for outdoor welding and windy conditions
• Perfect for fabrication, repairs and maintenance applications

Specifications:

• Wire Classification: AWS A5.20 E71T-11
• Wire Type: Self-Shielded Flux-Cored Welding Wire
• Wire Diameter: 0.9mm
• Voltage Range: 15V – 17V
• Current Range: 80A – 150A
• Electrode Stickout (ESO): 12–15mm
• Pack Type: Handispool
• Spool Weight: 4.5kg
• Suitable Materials: Mild Steel and Galvanised Steel
• Welding Process: Gasless MIG (FCAW)
• Shielding Gas: Not Required
• Welding Positions: All Positions
• Dimensions (L x W x H): 200mm x 200mm x 65mm
• Weight: 4.5kg

Specifically designed with the avid welder in mind, these 8 function pliers are the perfect tool for any welder. Constructed from high grade drop forged carbon steel, these new pliers feature a redesigned spring-loaded handle for better grip and easy operation.

Features:

• The 8 functions include:
  • Cutting wire
  • Nozzle cleaning
  • Contact tip removal and tightening
  • Hot nozzle removal
  • Lifting and maneuvering hot welded pieces
  • Cutting/trimming spring steel liner
  • Long nose pliers
  • Mini hammers for tapping out spatter in the nozzle
