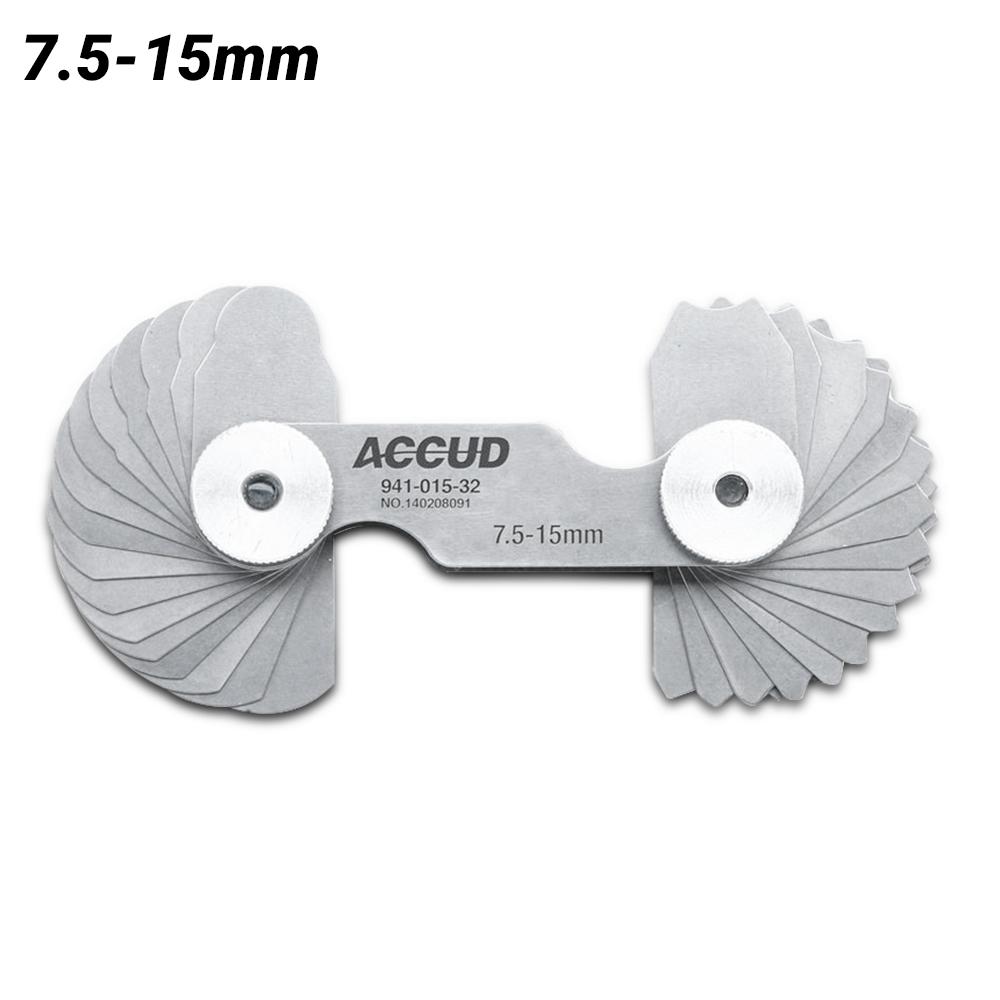

Accud AC-941-015-32 7.5-15mm Radius Gauge

Accud AC-941-015-32 7.5-15mm Radius Gauge

The Accud Radius Gauge is a convenient and time saving tool for inspectors and toolmakers alike. The 32 leave sizes give you the ability to check the concave and convex radius of objects.

Features:

• Light and compact design
• 32 different sized gauges held securely together within the handle.

Specifications:

• Range: 7.5-15mm
• Number of Leaves: 32
  • 16 Concave
  • 16 Convex
• Leave Radius (mm): 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15
• Accuracy: +/- 0.035mm
• Weight: 0.13kg
