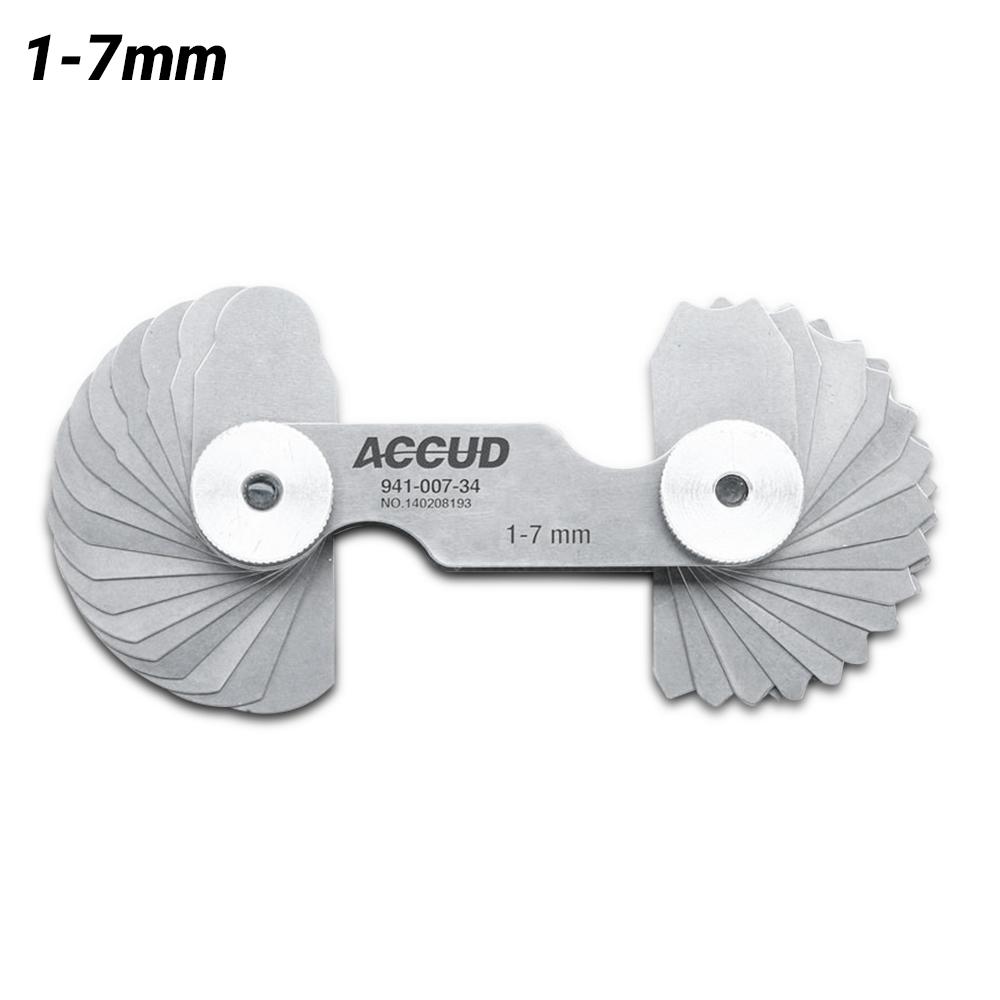

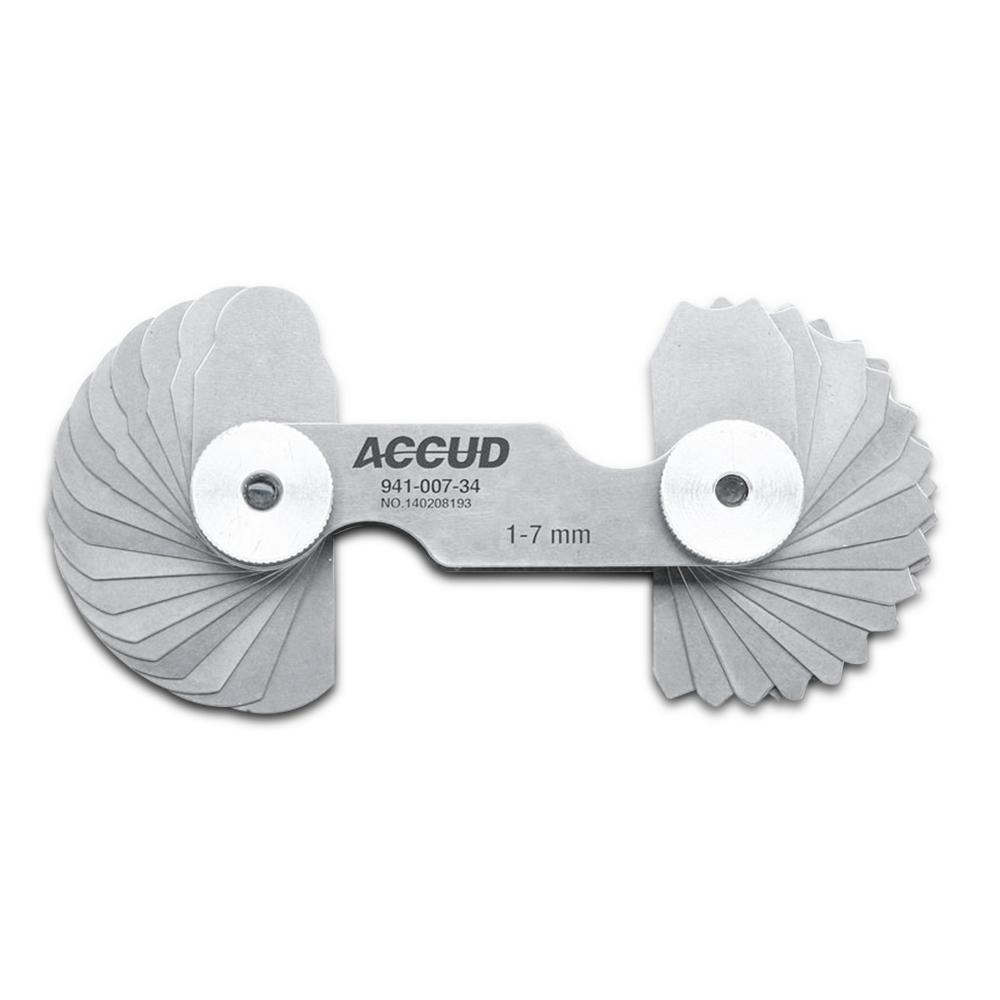

Accud AC-941-007-34 1-7mm Radius Gauge

Accud AC-941-007-34 1-7mm Radius Gauge

The Accud Radius Gauge is a convenient and time saving tool for inspectors and toolmakers alike. The 34 leave sizes give you the ability to check the concave and convex radius of objects.

Features:

• Light and compact design
• 34 different sized gauges held securely together within the handle.

Specifications:

• Range: 1-7mm
• Number of Leaves: 34
  • 17 Concave
  • 17 Convex
• Leave Radius (mm): 1, 1.25, 1.5, 1.75, 2, 2.25, 2.5, 2.75, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7
• Accuracy: +/- 0.03mm
• Weight: 0.08kg
