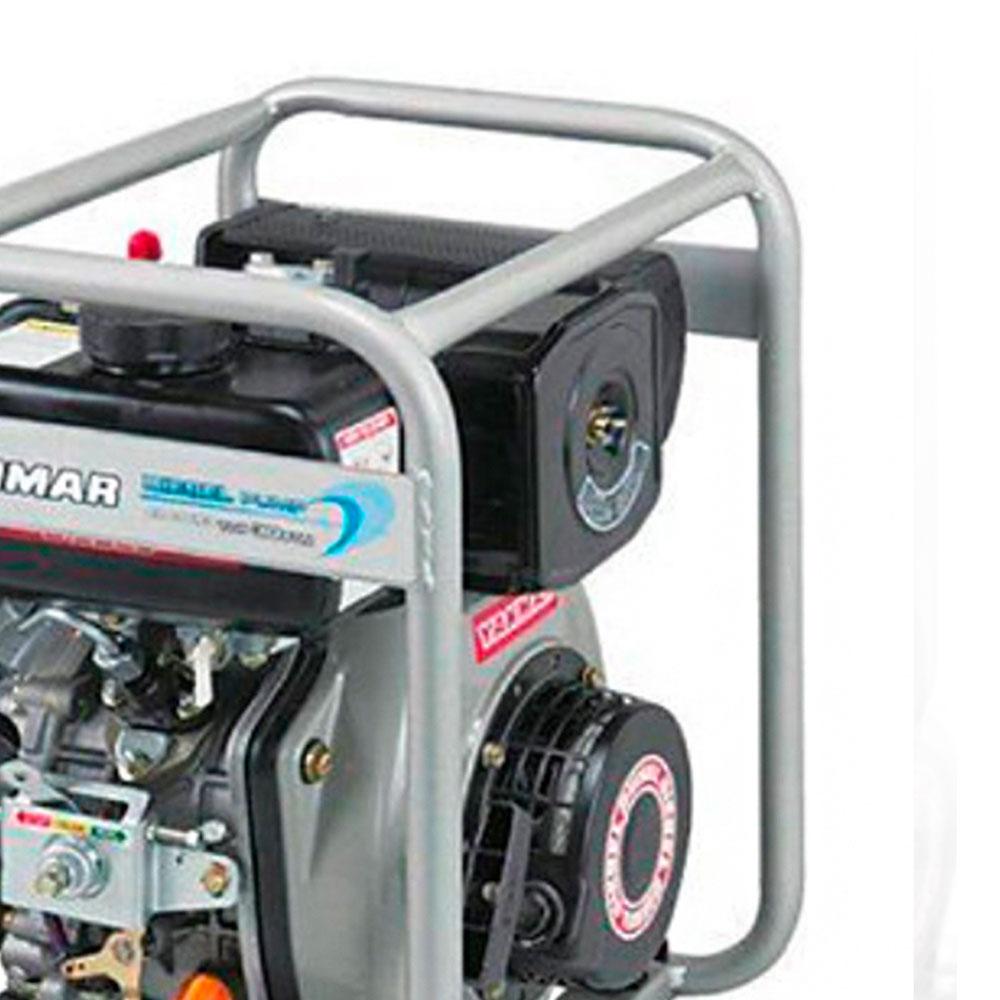

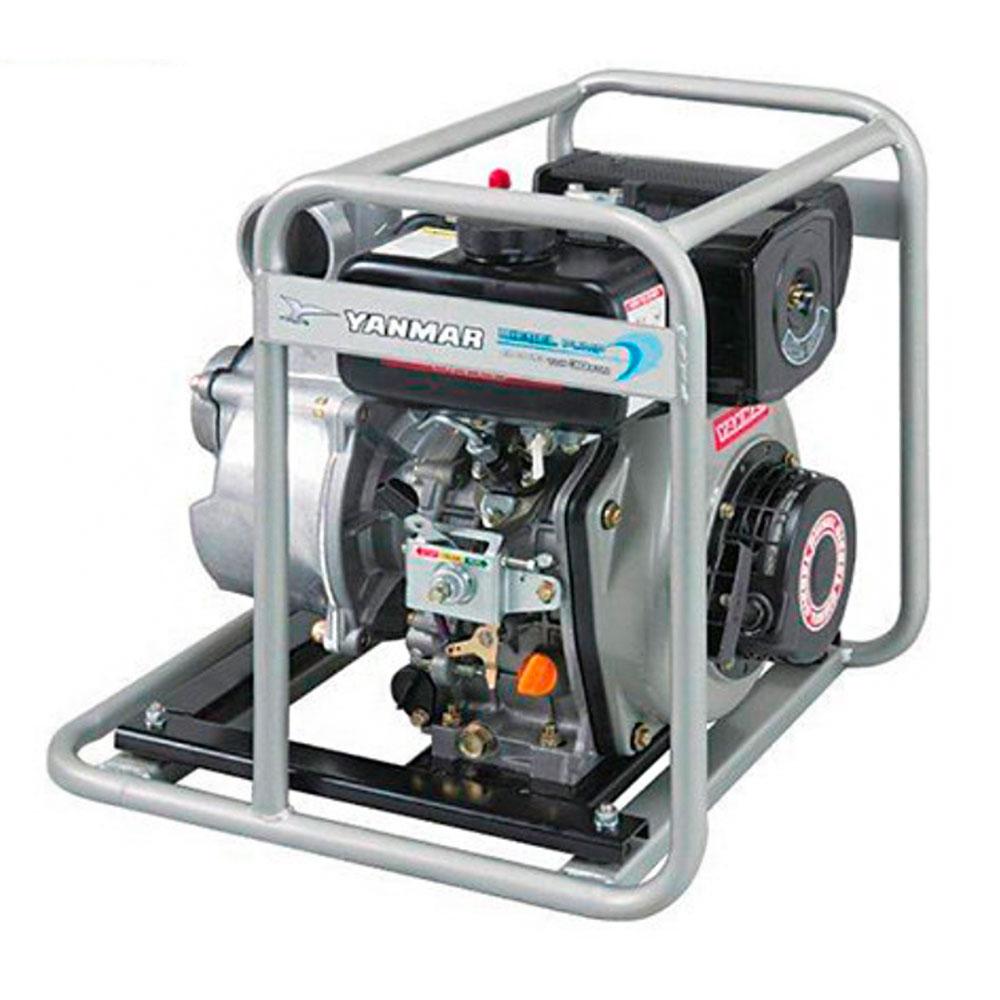

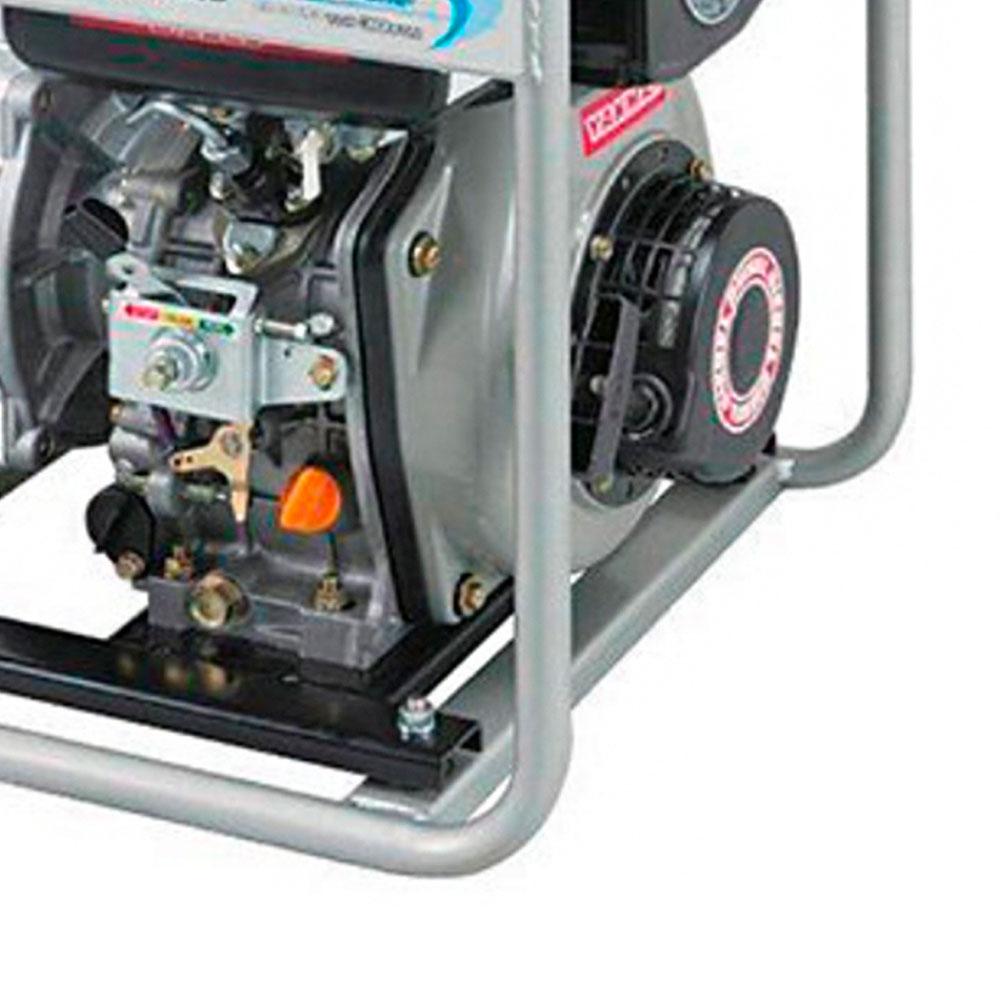

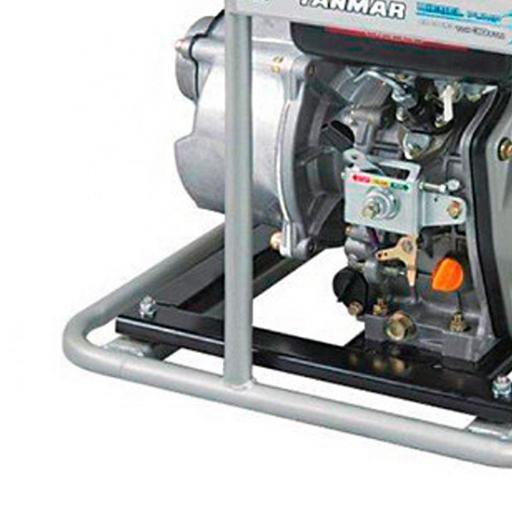

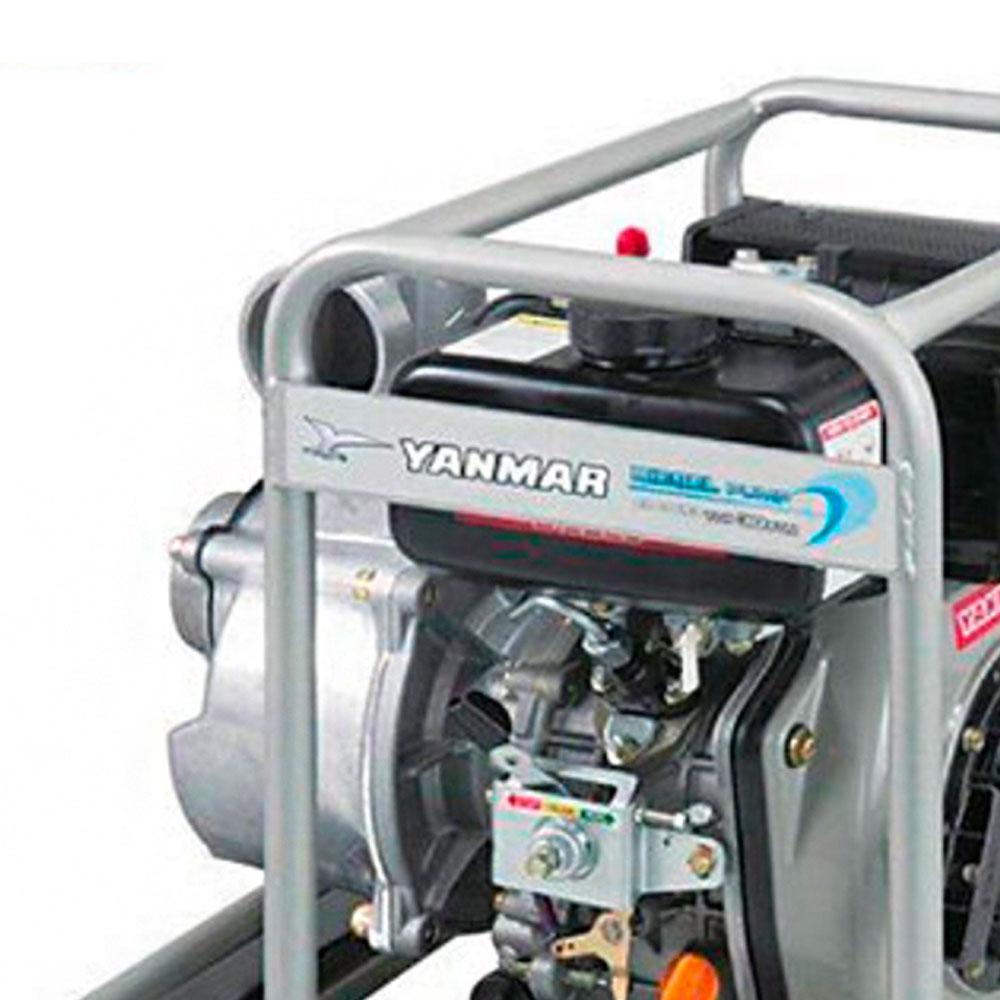

Yanmar YDP40STN-E Electric Start Air cooled Diesel Semi-Trash Pump

Yanmar YDP40STN-E Electric Start Air cooled Diesel Semi-Trash Pump

SEMI - TRASH PUMP

• Higher performance over standard fresh water pumps, unique to Yanmar.
• Handles gravel and trash below ? 20mm.
• Easy maintenance: just remove the four bolts to clean the inside of the casing.

Uses: Agriculture, home, civil engineering, fishing.

A wide option:
Yanmar's pump series range in bore size from 2 ? to 4 ? for fresh water, semi-trash, trash, and diaphragm models. The series can handle all types of water, from fresh to muddy sludge

Long running, fuel-thrifty diesels:
Fuel-efficient diesel pumps can be operated1.5-4 times longer than gasoline pumps. This advantage trulyshows in night time and other continuous pumping operationat sites where no commercial power is available.

Durable construction:
The principal parts of each pump are reinforced for superior wear resistance. The trash pumps are further strengthened by adding liners to the inner casings.

Easy maintenance:
Cleaning the inside of the casing can be done simply by just removing a few bolts. With trash pumps, the casing cover and the inner casing come in one block, so separation and fitting is very easy.

Specifications:

Yanmar YDP40STN Fresh Water Pump
Number of bolts
4 Bolt Type
Hexagon bolt
Tool
Standard accessory (hexagon wrench)
Pump Type
Self- priming pump
Suc. & discharge diameter100mm Max. total head
25m
Suction lift
7m
Max. Capacity
1300 lit./ min
Engine Model
L70NE Type 4-stroke, air cooled diesel engine
Displacement320 cc Max. output 4.9 / 3600 kw/min-1 ?rpm ?
Cont. output 4.4 / 3600 kw/min-1 ?rpm ? Starting system
Recoil/ Electric
Fuel oil tank capacity3.3
OthersFluid Capability
Gravel & Trash below 20mm diameter
Pump Casing
Aluminium Diecast
Casing Cover
Aluminium DiecastImpellerCast Iron
Inner Casing
Cast Iron
Mechanical Seal
Sic Ceramic
Fuel oil tank capacity2.4
UnitDimensions L x W x H
678 x 530 x 600mm
Dry weight
56kg
