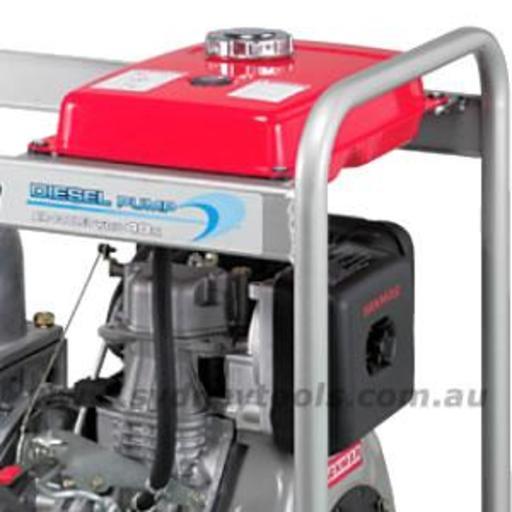

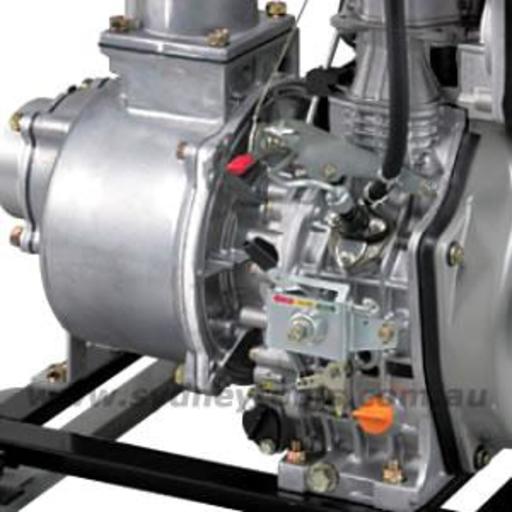

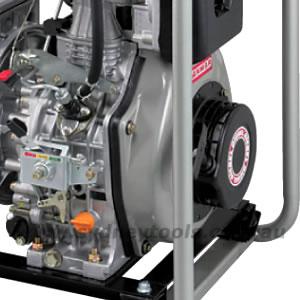

Yanmar YDP30N-3 3" Recoil Start Air cooled Diesel Fresh Water Pump

Yanmar YDP30N-3 3" Recoil Start Air cooled Diesel Fresh Water Pump

Features:

• Light weight and compact design
• Easy maintenance: just remove the four bolts to clean the inside of the casing.
• Meets a wide range of applications coupled with air-cooled diesel engines.

Uses:

• Agriculture and home
• A wide option:
• Yanmar's pump series range in bore size from 2 to 4 for fresh water, semi-trash, trash, and diaphragm models. The series can handle all types of water, from fresh to muddy sludge
• Long running, fuel-thrifty diesels:
• Fuel-efficient diesel pumps can be operated1.5-4 times longer than gasoline pumps. This advantage trulyshows in night time and other continuous pumping operationat sites where no commercial power is available.
• Durable construction:
• The principal parts of each pump are reinforced for superior wear resistance. The trash pumps are further strengthened by adding liners to the inner casings.
• Easy maintenance:
• Cleaning the inside of the casing can be done simply by just removing a few bolts. With trash pumps, the casing cover and the inner casing come in one block, so separation and fitting is very easy.

Specifications:

• Number of bolts: 8 Bolt Type
• Self- priming pump
• Suc. & discharge diameter: 80mm Max.
• Total head: 28m
• Suction lift: 7m
• Max. Capacity: 900 lit./ min
• Engine Model: L48NE Type 4-stroke, air cooled diesel engine
• Displacement: 320cc
• Max. output: 4.9 / 3600 kw/min-1
• Cont. output: 4.4 / 3600 kw/min-1
• Fuel oil tank capacity: 5.5
• Fresh water
• Pump Casing
• Aluminium Diecast
• Casing Cover
• Unit Dimensions L x W x H<: 530 x 435 x 637mm
• Dry weight: 42kg
