Xtorque XMWP6 6m Magnetic Wire Puller

Xtorque XMWP6 6m Magnetic Wire Puller

Includes:

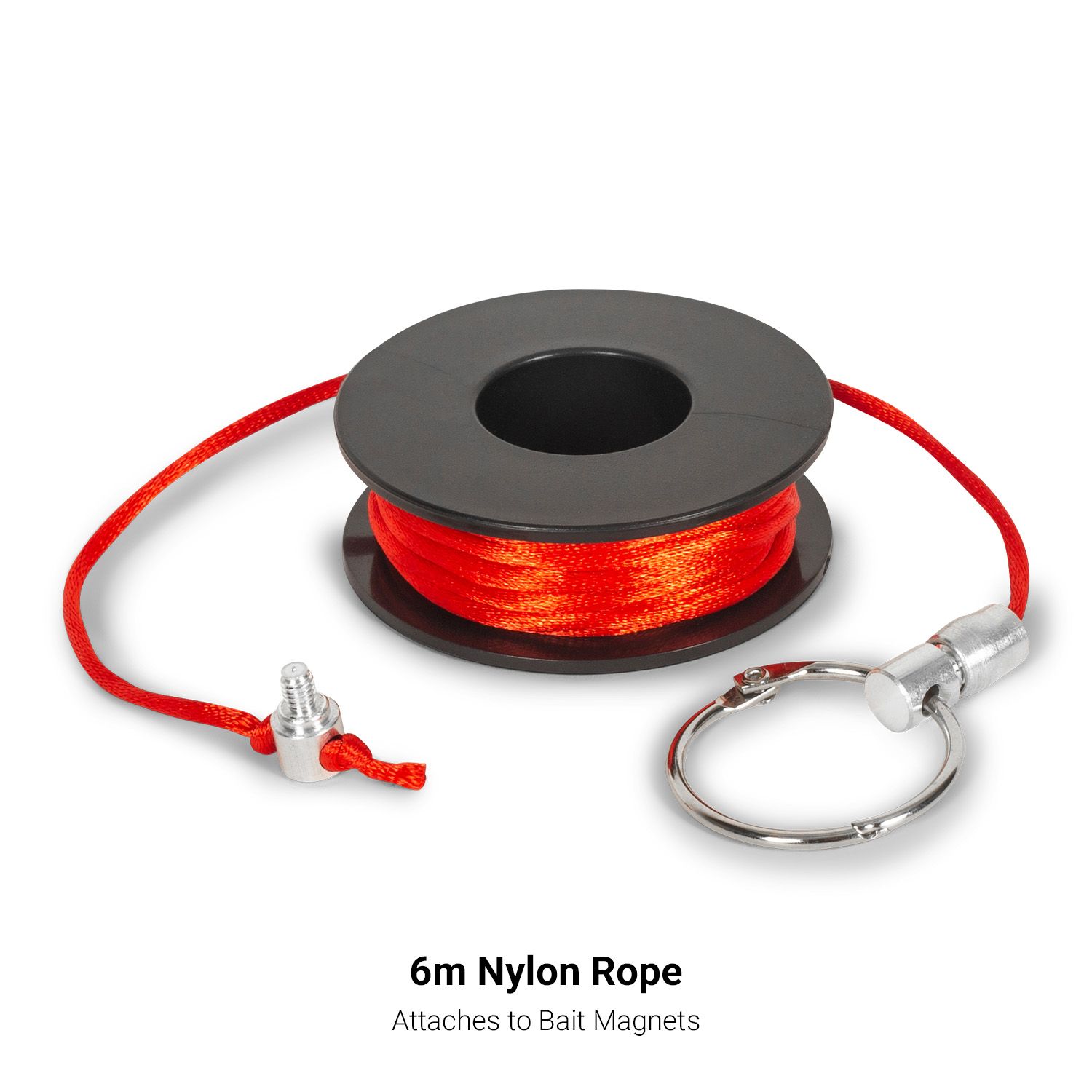

• 1 x 6m Nylon Rope

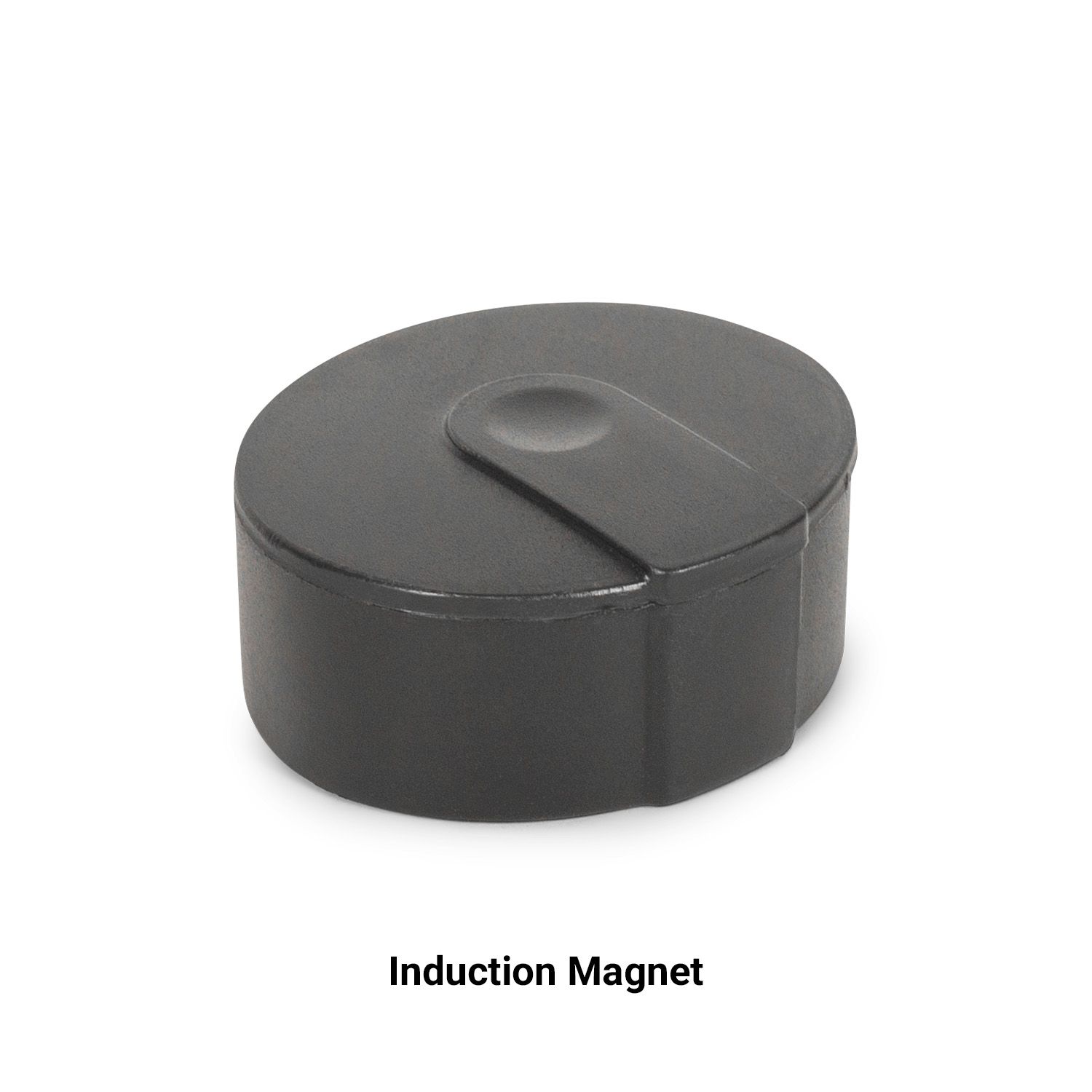

• 1 x Induction Magnet

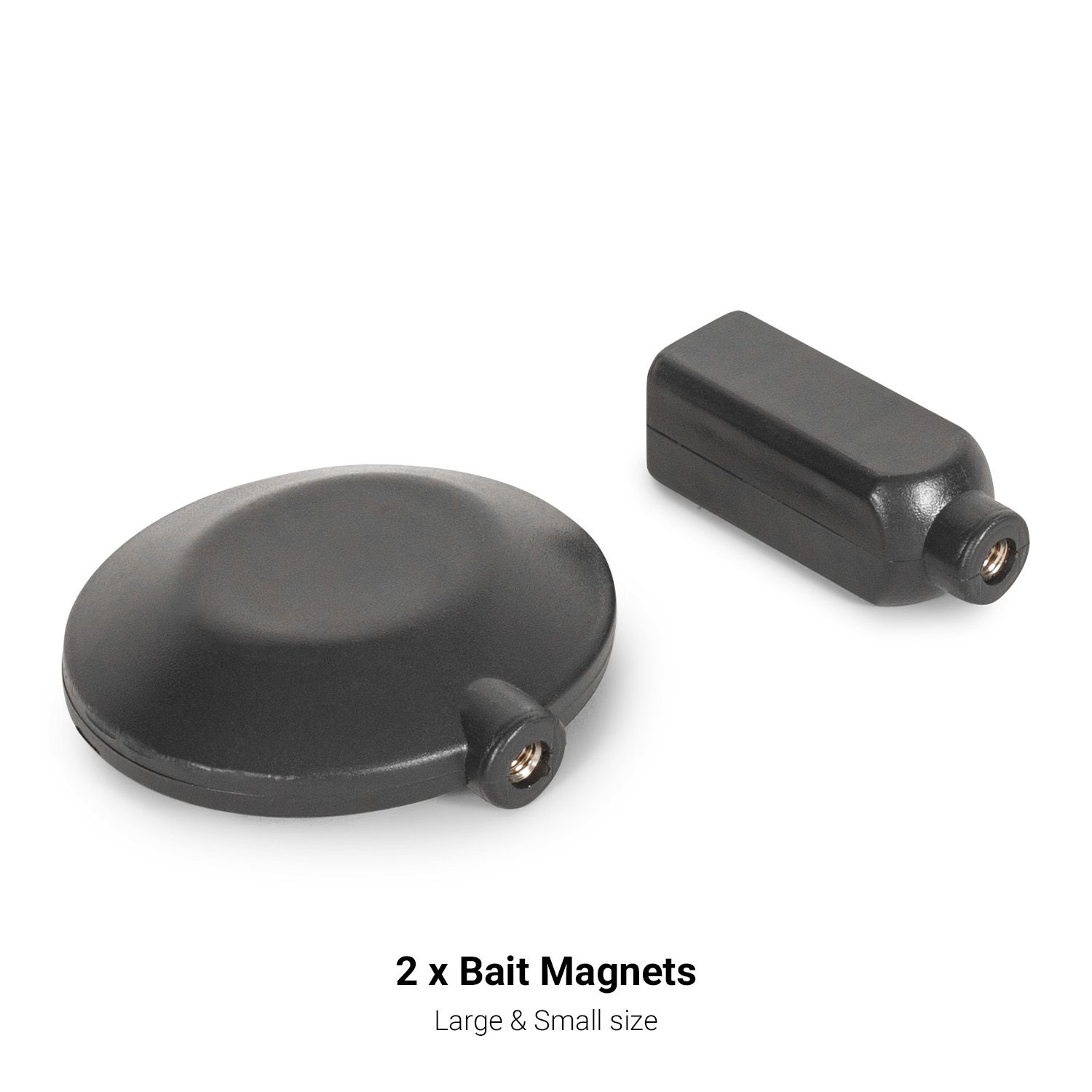

• 1 x Large Bait Magnet
• 1 x Small Bait Magnet

Features:

• Uses N35 magent strength

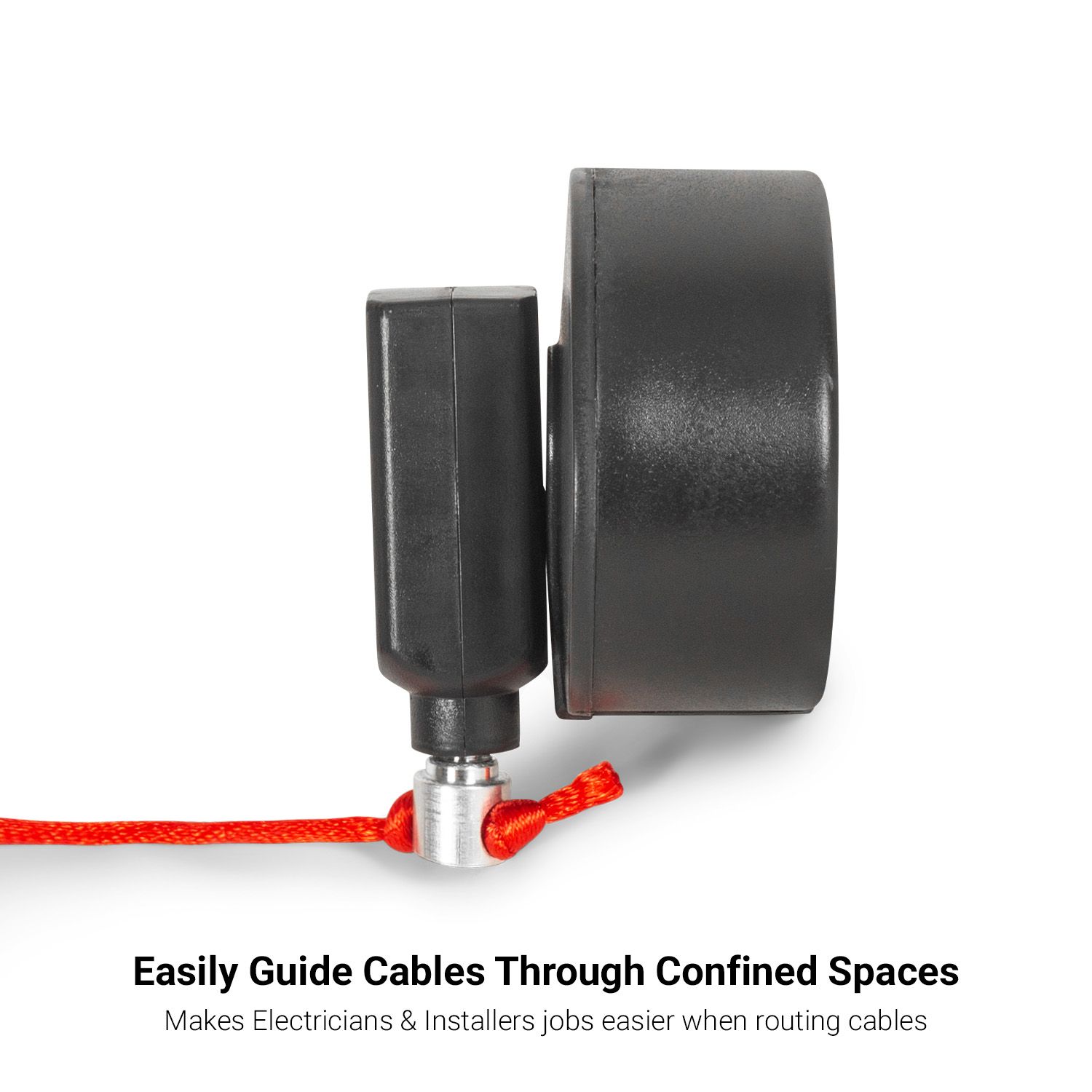

• Easily guide cables up to 6m smoothly and safely through confined spaces such as walls, floors and ceilings
• Designed for wall thicknesses ≤25mm (0.98in) making it versatile and adjustable for various setups
• Makes electricians and installers job easier when routing cables through difficult to reach areas
• Improving efficiency and productivity by removing cable fishing time by up to 50%
• Firmly attaches to most wires for fast secure setup and smooth pulling
• Complete jobs neatly without drilling or cutting into finished surfaces

Directions:

1. Uncoil the cord from the spool and connect it securely to the bait magnet.
2. Fasten the wire (up to 8mm in diameter) to the eyelet attachment on the cord.
3. Feed the bait magnet into the desired space or opening where the wire needs to pass through.
4. Using the magnet, guide the bait magnet through until you reach the end location or opening.
5. Carefully join the bait magnet to the induction magnet using the thumb grip and gently pull the cord throughthe void until the wire and eyelet pass through completely.

Specifications:

• Rope Material: Nylon
• Magnet Strength: N35
• Magnet Dimensions (L x W x H):
  • Small Bait Magnet: 37mm x 14mm x 14mm
  • Large Bait Magnet: 50mm x 46mm x 13mm
  • Induction Magnet: 50mm x 44mm x 22mm
• Weight: 75g

Warranty:

• 12 Month Warranty Covered By XTorque
