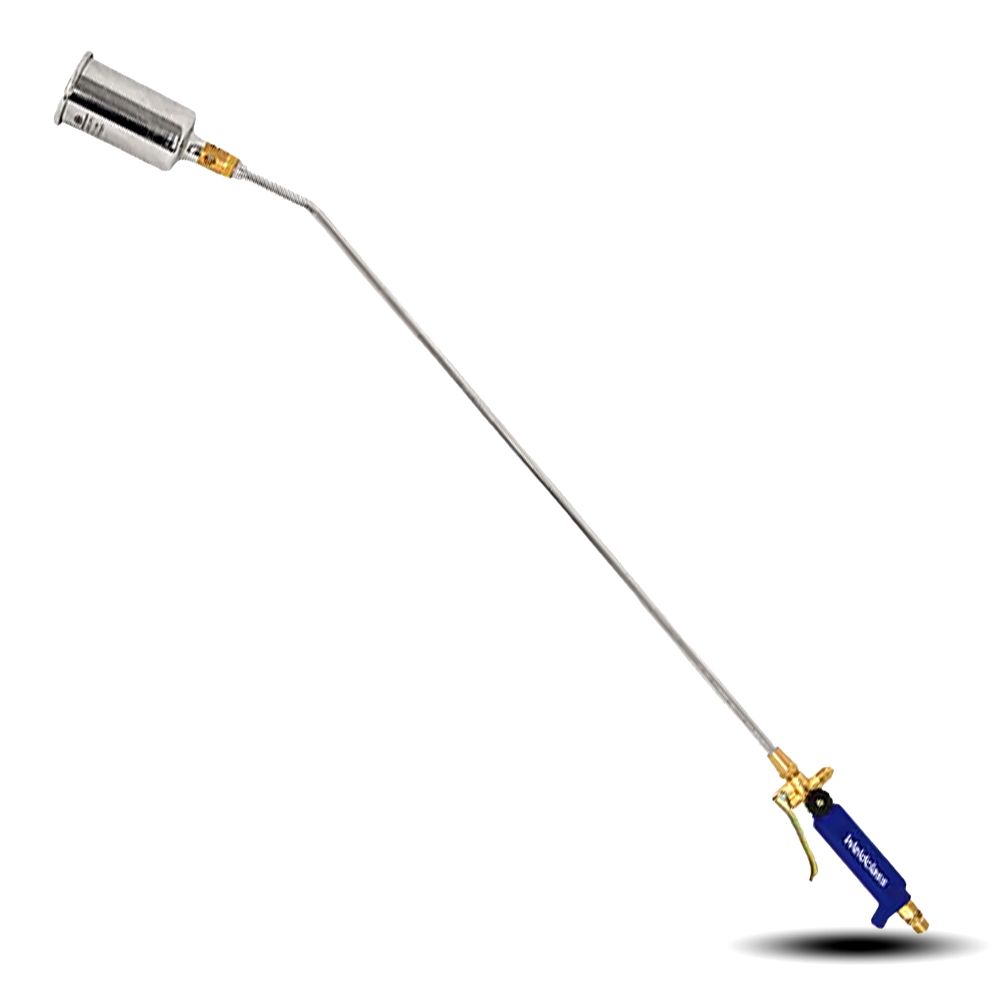

Weldclass WC-02989 750mm Platinum LT40 LPG Burner Torch Max Flame Kit

Weldclass WC-02989 750mm Platinum LT40 LPG Burner Torch Max Flame Kit

Industrial quality, European-made propane torch for heating and burning almost anything. Use with 4/9/45kg LPG bottles with standard "POL" fitting. Heavy-duty handle with unique swivel connection eliminates hose torsion. Common 5/8" UNF hose connections for ease of repair. Used for; weed burning, metal & weld pre-heating, bitumen/concrete heating, linemarking, roofing,
water-proofing, heat shrinking & much more.

Includes:

• 1 x Cylinder adaptor with safety valve
• 1 x 3m hose with fittings
• 1 x Torch handle with lever valve
• 1 x 750mm tube (total torch length 1,000mm)
• 1 x 65mm tip - closed-bell style for resistance to flame-out, ideal for outdoor use

Features:

• Operates off full cylinder pressure (no regulator) for maximum heat output & flame size
• Very high heat output: Up to 500mj/h (475,000 BTU) & max flame length 1,200mm
• For applications such as weed burning, bitumen heating, etc where "full-force" flame is desired
• NOT recommended where Flashback Arrestors are required by work site WHS (full bottle pressure exceeds the max LPG pressure rating for most flashback arrestors)
• Made in Europe, industrial quality & robust heavy-duty design
• Unique hose/handle swivel connection, eliminates hose torsion/twisting & improves operator comfort
• Air/LPG operation requires LPG gas only (no oxygen required)
• Use with 4/9/45kg LPG bottles with standard POL connection
• On/off/control needle valve
• Lever / trigger valve - Hold for full heating flame, Release for small pilot flame (not included on 'Handyflame' torch kit)
• Pilot flame adjustment (not included on 'Handyflame' torch kit)
• 5/8" UNF LH "welding industry standard" connections on handle inlet, hose & regulator outlet - for ease of repair & interchangeability

Applications:

• Metal and pre-weld heating (applications that do not require the higher temperatures of an oxy/fuel torch)
• Drying, thawing
• Heating bitumen/ashphalt, line marking, curing concrete
• Vegetation burn-off, weed burning
• Shrink-wrapping
• Roofing & water-proofing, etc

Specifications:

• Torch Length:
  • With 750mm Tube: 1000mm
• Tip Size: 65mm
• Heat / Engery Output: 500Mj/hr / 475,000 BTU
• Max Flame Length: 1200mm
• Gas Consumption: 9.9 kg/hr
• Connections / Threads:
  • POL Fitting
  • 5/8" UNF LH Male
  • 5/8" UNF LH Female
  • 5/8" UNF LH Male
  • M14x1RH Male
  • M14x1 RH Female
  • M20x1 RH Male
  • M20x1 RH Female
• Regulator Spec: Output 0-400 kpa 60mm diaphragm
• Hose Spec. 6mm I.D. max 2000 kpa working pressure
• Materials / Construction:
  • Handle Grip: Single piece moulded polymer
  • Handle Body: Brass
  • Handle Lever: 2mm pressed steel, nickel-plated
  • Tube and Tips: Nickel-plated steel
• Weight: 1.1kg

Warranty:

• 3 Month Standard Warranty
• 7 Year Warranty When Registered With Weldclass
