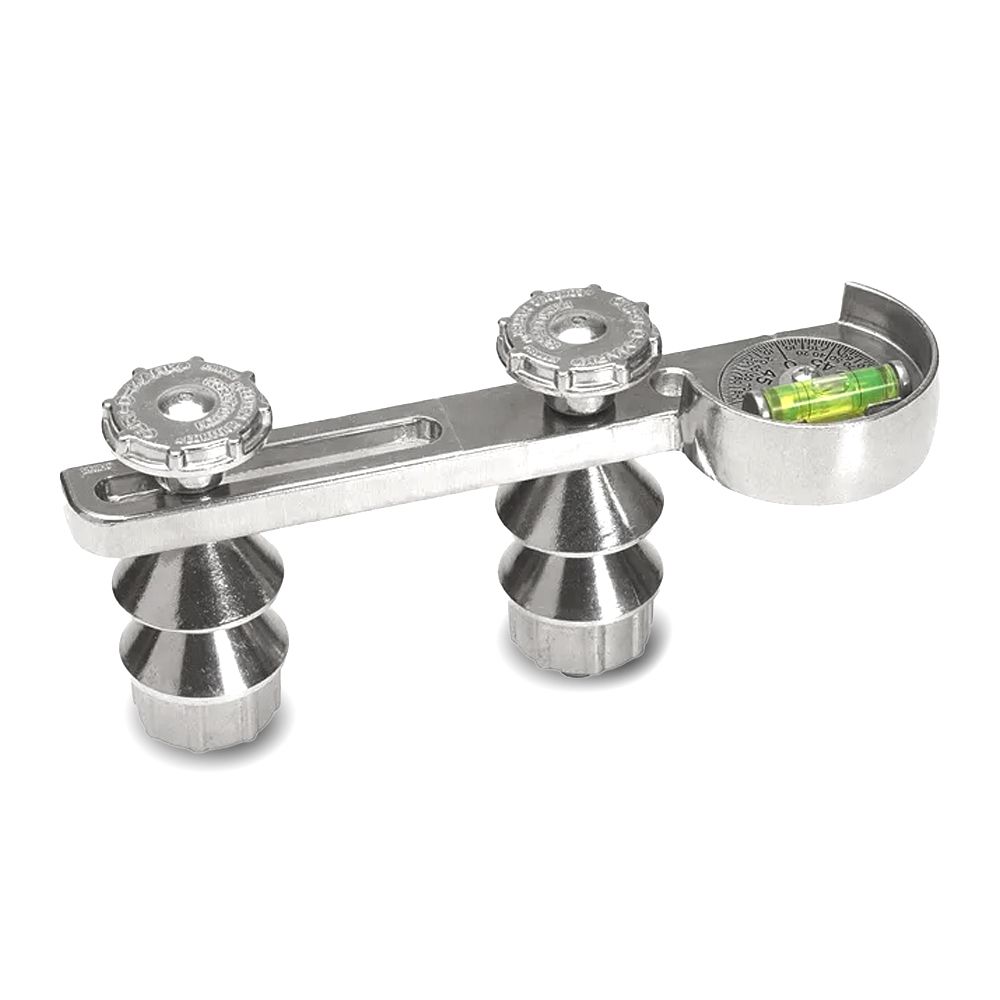

Curv-O-Mark KC-J1891 Dial Angle Flange Level Contour Curv-O-Mark

Curv-O-Mark KC-J1891 Dial Angle Flange Level Contour Curv-O-Mark

Versatile pipefitting tool for flange alignment, finding & setting angles.

Includes

• 2 x Flange Pins

Features:

• Versatile tool that can be used as a dial degree utility level or, with attachments, for two-holing flange alignment
• Saves time, Easy to use
• Comes with a 2 threaded, self-aligning flange pins (conical spacer nut and bolts) for fastening the Level to a pipe flange
• One of the flange pins is stationary, while the other slides up to 140mm (5-1/2 in) along a slot in the level to accommodate various flange bolt hole spacings from 50mm (2 in) to 140mm (5-1/2 in)
• Flange pins are designed to fit bolt hole size from 15-44mm ID
• Made of cast aluminum with a protective housing containing an adjustable DSL
• The body of the tool is 12mm (1/2 in) thick with a machined surface
• The level bubble is protected from weld spatter and breakage with a built-in housing

Specifications:

• Material: Cast Aluminium
• Weight: 0.62kg
