Wacker Neuson VP80Gc ST (5100084709) 455mm Petrol Vibratory Compactor Plate with Loncin G210FA engine

Wacker Neuson VP80Gc ST (5100084709) 455mm Petrol Vibratory Compactor Plate with Loncin G210FA engine

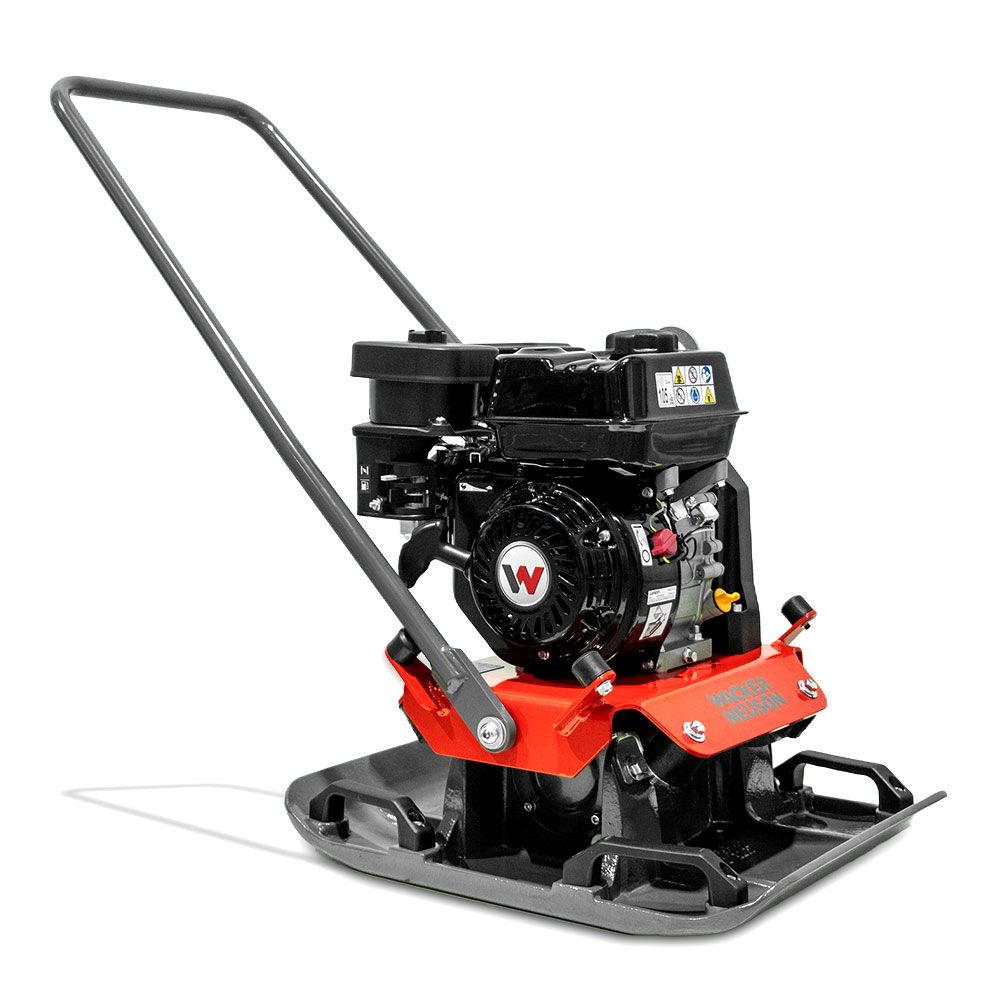

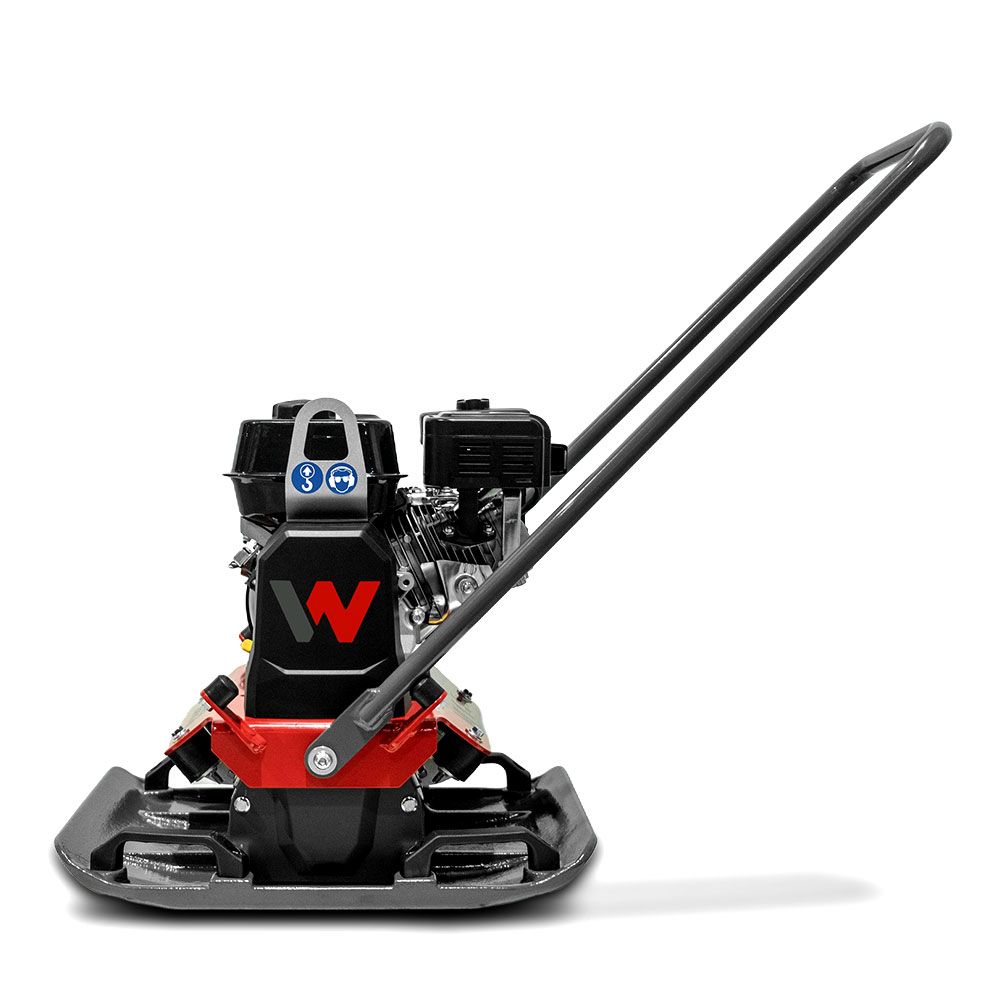

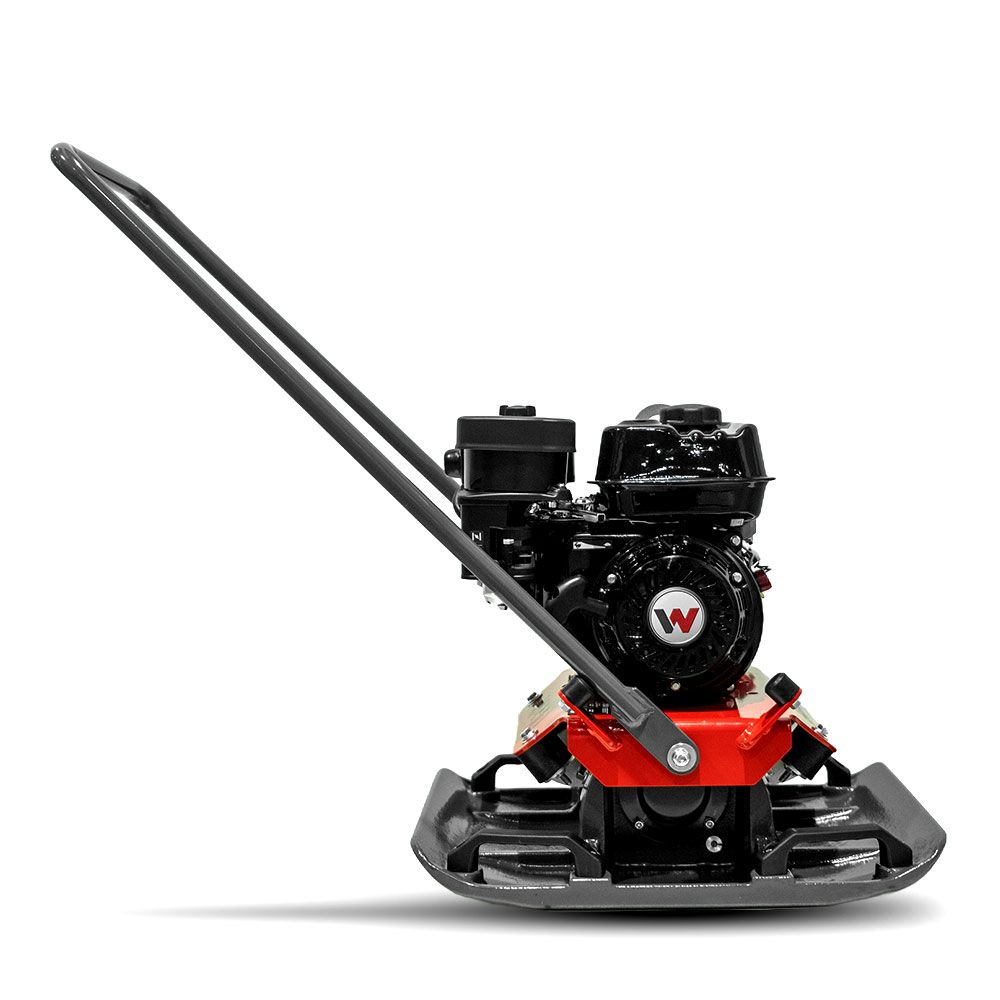

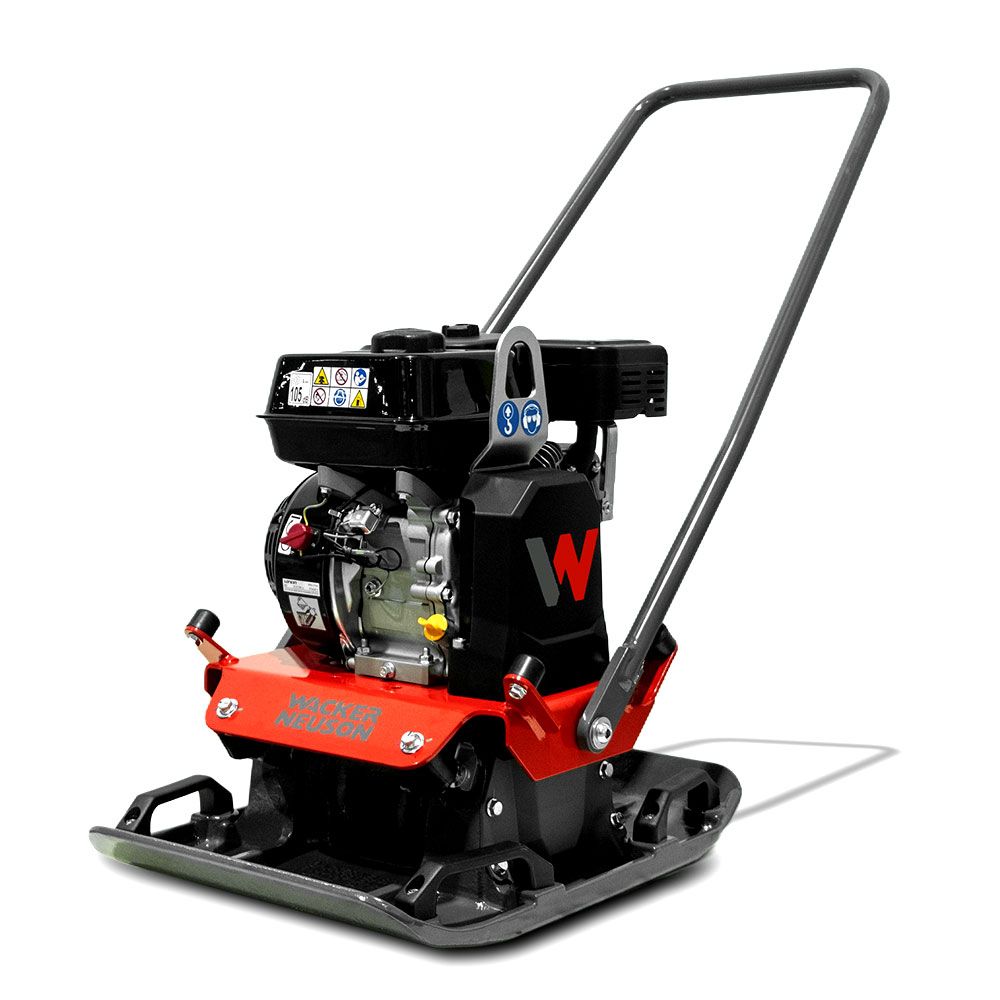

The Wacker Neuson VP80Gc ST is a robust petrol vibratory plate compactor designed for excellent compaction performance in confined areas. Built with a highly durable base plate and powered by a reliable Lincon G210FA engine, it delivers smooth operation, long service life, and outstanding resale value.

Features:

• High-quality nodular graphite cast iron (GJS700) base plate for exceptional durability and long service life
• Bevelled base plate edges reduce support marks and improve asphalt finish, especially when cornering
• Optimised plate edge design for efficient compaction along curbs and edges
• Excellent driving characteristics for smooth handling and consistent compaction results
• Large lifting eye and wide lifting handles for safe and easy transportation
• Ideal for confined areas such as pathways, trenches, landscaping, and patch repairs
• Proven Lincon G210FA petrol engine for reliable power and performance

Specifications:

• Operating Weight: 78kg
• Engine: Loncin G210FA
• Maximum Rated Power at Rated Speed: 4.4kW / 3600rpm
• Spark Plug: F7RTC
• Electrode Gap: 0.7mm - 0.8mm
• Operating Speed: 3000rpm
• Air Cleaner: Semi-dry
• Engine Lubrication: SAE 10W-30, API SE or SF
• Engine Oil Capcity: 600ml
• Exciter Oil Quantity: 0.18 L
• Fuel Type: Petrol
• Fuel Tank Capacity: 3.6L
• Valve Clearance (Cold):
  • Inlet: 0.15 ± 0.02
  • Outlet: 0.20 ± 0.02
• Base Plate Length: 590mm
• Base Plate Width: 450mm
• Surface Yield: 800 m²/h
• Advance Speed: 25–30 m/min
• Centrifugal Force: 20 kN
• Dimension (L x W x H): 5900mm x 4600mm x 8400mm
• Weight: 87kg

Warranty:

• 5 Years / 5,000 hours Warranty covered by Wacker Neuson
