Wacker Neuson DPU4045Yehzf (5100063120) 4.9kW Diesel Reversible Vibratory Compactor Plate

Wacker Neuson DPU4045Yehzf (5100063120) 4.9kW Diesel Reversible Vibratory Compactor Plate

Wacker Neuson being a company known for high-quality compaction equipment, contractors who are looking for versatility and excellent compaction results should look no further than Wackers range of heavy-duty hydrostatic reversible vibratory plate compactors.

These new-generation vibratory plates offer maximum efficiency to meet the most stringent professional demands. The optimized two-shaft exciter technology, the power (centrifugal force) of which has been increased by 10 to 12.5 %, ensures the greatest possible compaction performance on almost all soils. Thanks to faster advance travel, the surface capacity is greatly increased while the depth action remains the same. The new robust design also provides maximum machine stability. All told, this means greater productivity.

Additional Advantages

• Increased forward travel speed for greater surface capacity
• The same forward and reverse speed produces more consistent results, e.g. in plaster compaction
• Reinforced covers and fastening elements for increased protection and thus lower maintenance costs
• New signal tone generator notifies possible battery discharge

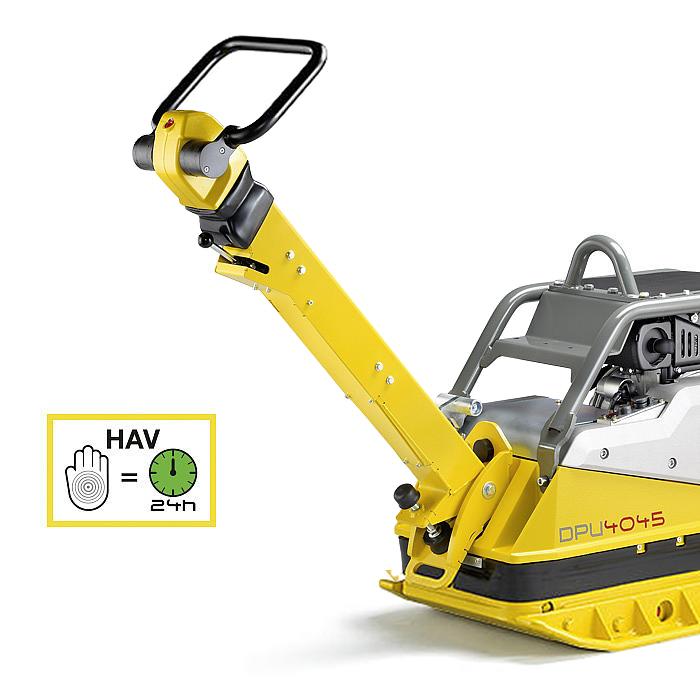

• Long operating times thanks to low hand-arm vibrations

 Specifications:

• Weight: 356kg
• Baseplate (W x L): 450mm x 900mm
• Height: 725mm
• Working Height of Handle (adjustable) 1030/1409 mm
• Working Width
• Without extension plates: 460mm
• With extension plates: 600mm
• Base Plate Thickness: 12mm
• Max Centrifugal Force: 40kN
• Vibration frequency: 69Hz
• Max advance travel: 24 m/min
• Max surface capacity (depending on soil and environmental factors) 864 m2/h
• Drive Engine: air-cooled single cylinder four-cycles diesel engine
• Type L70N
• Displacement 320cm3
• Max Power Output: 4.9kW (6.6hp) @ 3600rpm
• Rated Power Output: 4.3kW @ 3000rpm
• Fuel Consumption: 1.4L/h
• Tank Capacity: 3.3 L
• Power Train: From drive engine through centrifugal clutch and V-belit directly to the exciter.

Warranty:

• 5 Years Warranty Covered By Wacker Neuson Australia
