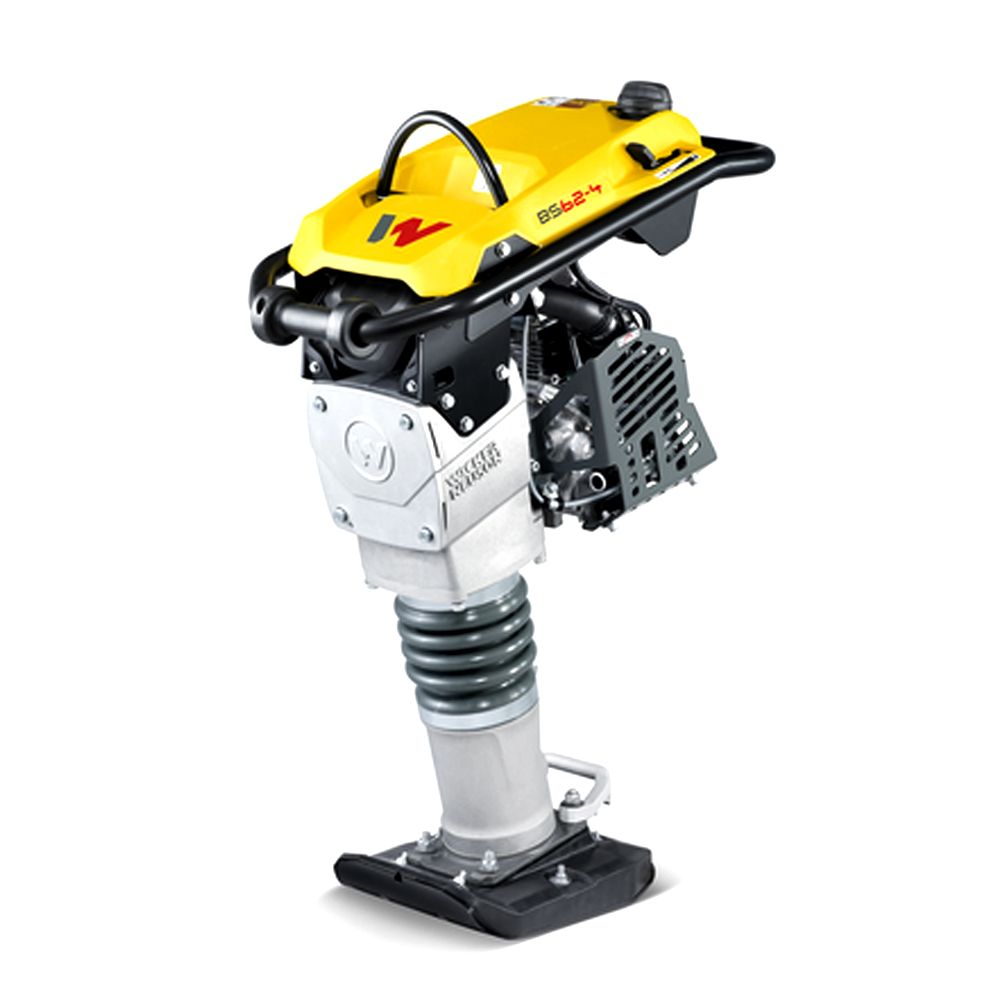

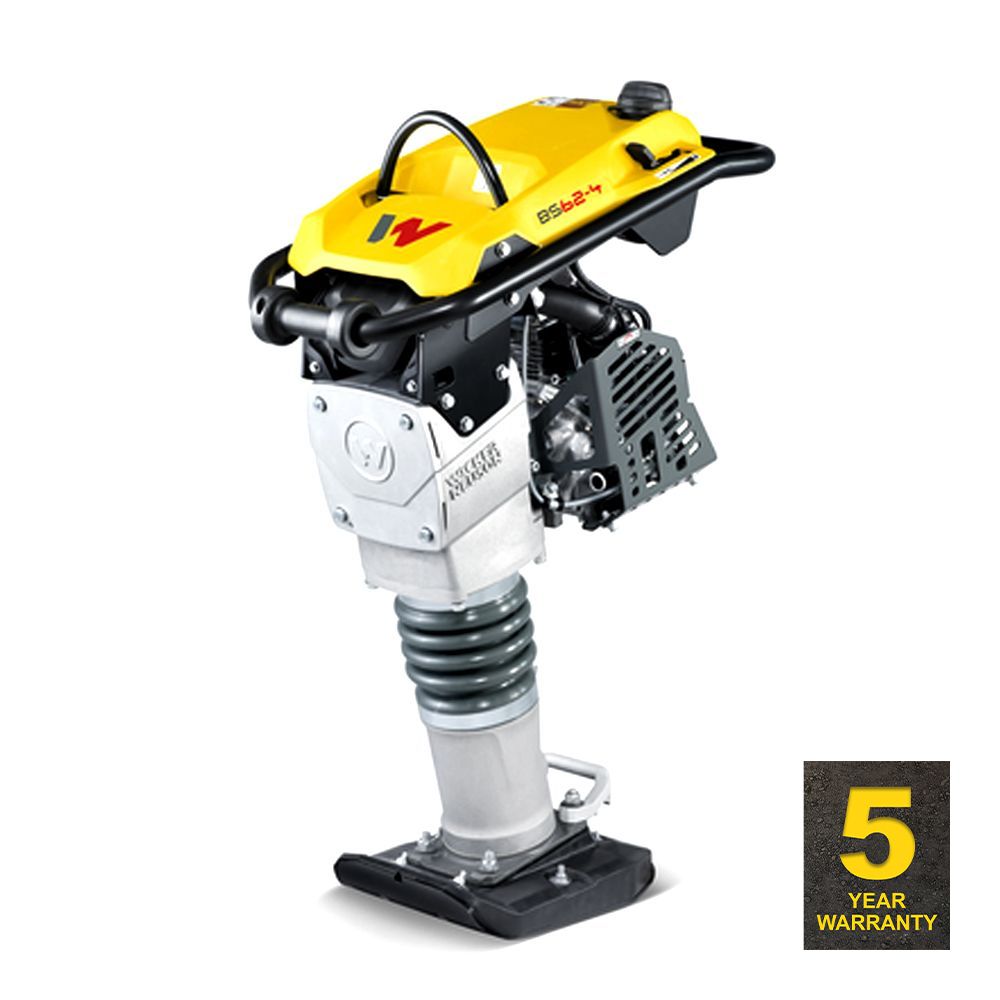

Wacker Neuson BS62-4A/28 (5100061966) 2.7kW 4 Stroke 280mm Petrol Rammer Honda Engine Vibrating Shoe

Wacker Neuson BS62-4A/28 (5100061966) 2.7kW 4 Stroke 280mm Petrol Rammer Honda Engine Vibrating Shoe

Features:

• Large stroke, high impact force
• Just one lever for starting, idling and stopping
• Efficient air filter
• Ergonomic guide handle
• Low oil warning indicator

Specifications:

• Operating Fluids: Metric
  • Oil Volume: 0,700L
  • Oil Specification: SAE 10W-40
  • Tank Capacity: 3,00L
• Engine: Metric
  • Fuel Management. Carburettor
  • Engine Operating Mode: Four-Stroke
  • Operating Engine Speed: 3.9501/min
  • Fuel consumption:
    • 1,00 L/Std0
    • 75 kg/h
  • CO2 (NRSC): 674,00 g/KWh
  • Standard (Power max.): SAE J1349
  • Standard (Effective power): SAE J1349
  • Nominal Engine speed: 3.600 1/min
  • Electrode distance: 0,60 - 0,70 mm
  • Oil filling max.: 0,30 l
  • Effective power: 2,7 kW, 2,3 kW
  • Cooling: air cooling
  • Exhaust-gas limit: US Phase 3, EU Stage V, China Stage 2
  • Oil specification: SAE 10W-40
  • Starter type: Recoil starter
  • Upper idling speed ex load: 1.850 1/min
  • Operating power: 2,7 kW
  • Engine type: Gasoline engine
  • Cylinder: 1
  • Engine Manufacturer: Honda
  • Standard (Operating power): ISO 3046-1
  • Cylinder capacity: 121 cm³
  • Spark plug(s): DENSO U16FSR-UB, NGK CR5HSB
  • Fuel Type: Petrol
  • Engine Designation: GXR120RT-KR-W1-SD
• Mechanical - Output Details: Metric
  • Forward Running: 15,000 m/min
  • Power of Impact: 17kN
  • Number of Blows: 689 1/min
• Electrical System: Metric

  • Operating Elements: Push button OFF
• Environmental Data: Metric
  • Operating Temperature Range: -10 - 40ºC
  • Sound Level LpA (Standard) EN 500-4
  • Sound Power LWA, guaranteed: 108,0 dB(A)
  • Storage Temperature Range: -30 - 50ºC
  • HAV summation (average value): 11.9m/s2
  • Uncertainty in measurement HAV: 1.0 m/s2
  • HAV summation (Standard): EN 500-4
  • Sound Level LpA: 91.0 dB(A)
  • Sound Power LWA (Standard): EN 500-4
  • Sound Power LWA, measured: 107.0 dB(A)
• Mechanical Details: Metric

  • Length Ramming Shoe: 340mm
  • Width Ramming Shoe: 280mm
  • Stroke at tamper: 67mm
  • Dimensions (L x W x H): 662mm x 347mm x 920mm
  • Weight: 64kg
