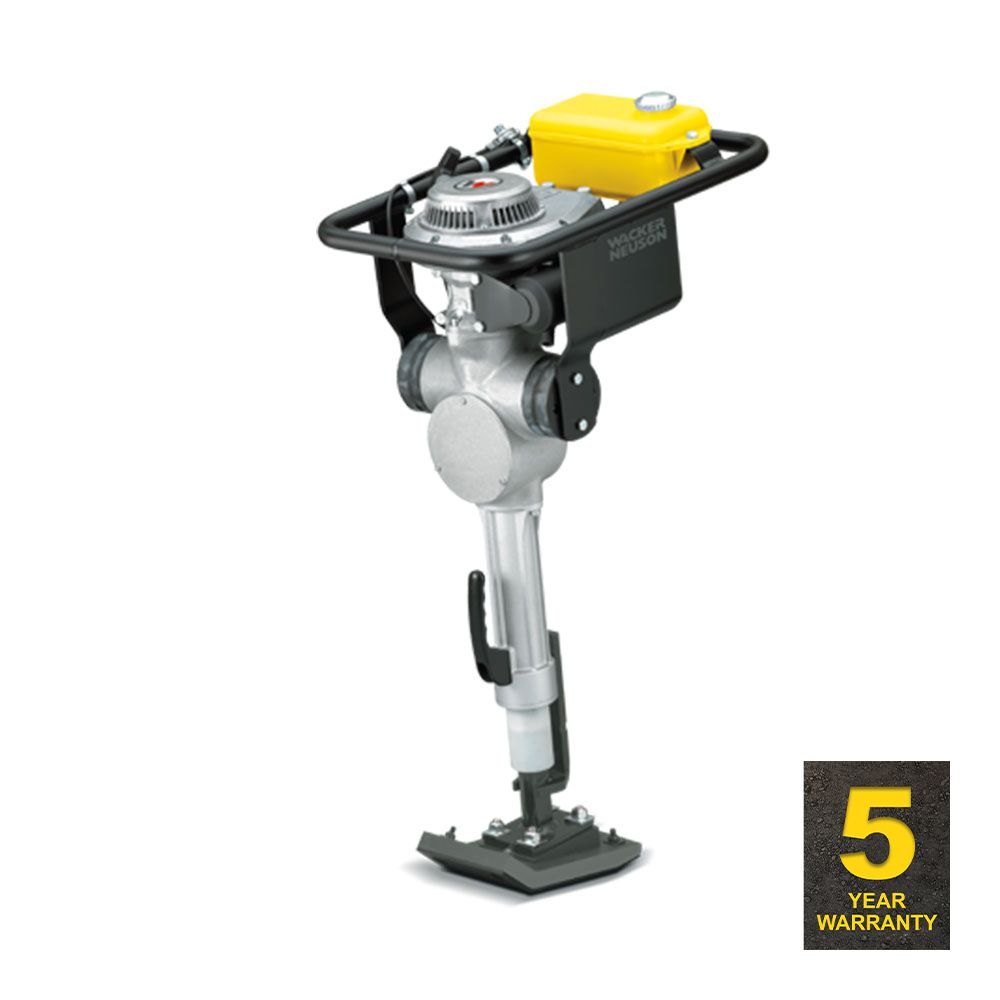

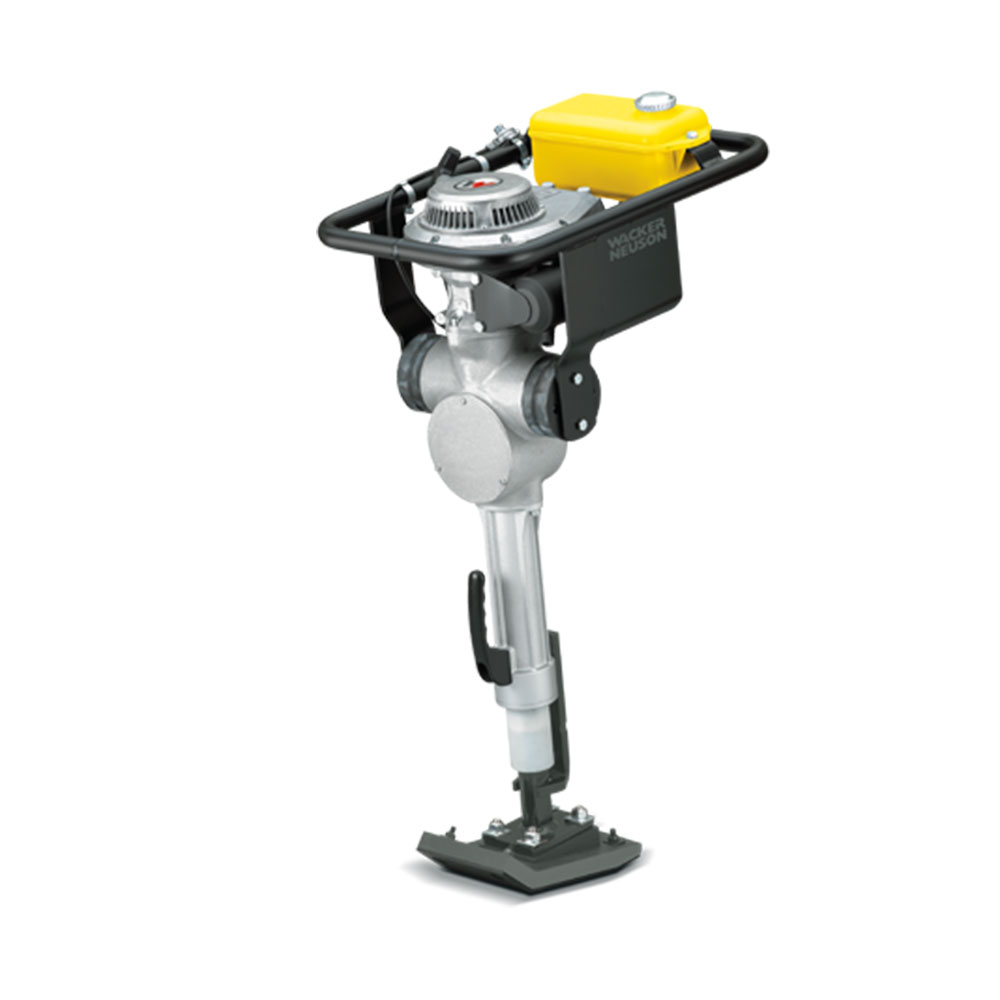

Wacker Neuson BS30-2 (5000005216) 1.7kW Petrol 2-Cycle Industrial Vibrator Rammer

Wacker Neuson BS30-2 (5000005216) 1.7kW Petrol 2-Cycle Industrial Vibrator Rammer

The small, but powerful, Wacker Neuson BS30 rammer is designed for special back-fill applications and equipped with an economical and energy-saving single drive.

Powered by Wacker Neuson’s own 2-stroke petrol engine flanged directly to the casing. The centrifugal clutch ensures easy starting. The ramming shoe is equipped with a steel bottom sheet that’s resistant to wear.

A sturdy, tried and tested ramming system that’s easy to use due to the vibration-damped guide handle.

Specifications:

• Shoe Size (W x L): 150mm x 280mm
• Stroke: 42mm
• Operating Weight: 32kg
• Percussion Rate: 830 blows/min
• Engine Type: Air cooled, 2-stroke, single cylinder Wacker Neuson WM80 petrol engine
• Displacement: 80cm3
• Operating Speed: 4400rpm
• Max. rated Power @ 4400rpm: 1.7kW (2.2hp)
• Fuel to Oil Ration: 50:1
• Fuel Tank Capacity: 2.2L
• Power Train: From engine via centrifugal clutch, gears, crank mechanism, connecting rod, guiding piston, double spring system, spring cylinder on to ramming shoe.

Warranty:

• 5 Years Warranty Covered By Wacker Neuson Australia
