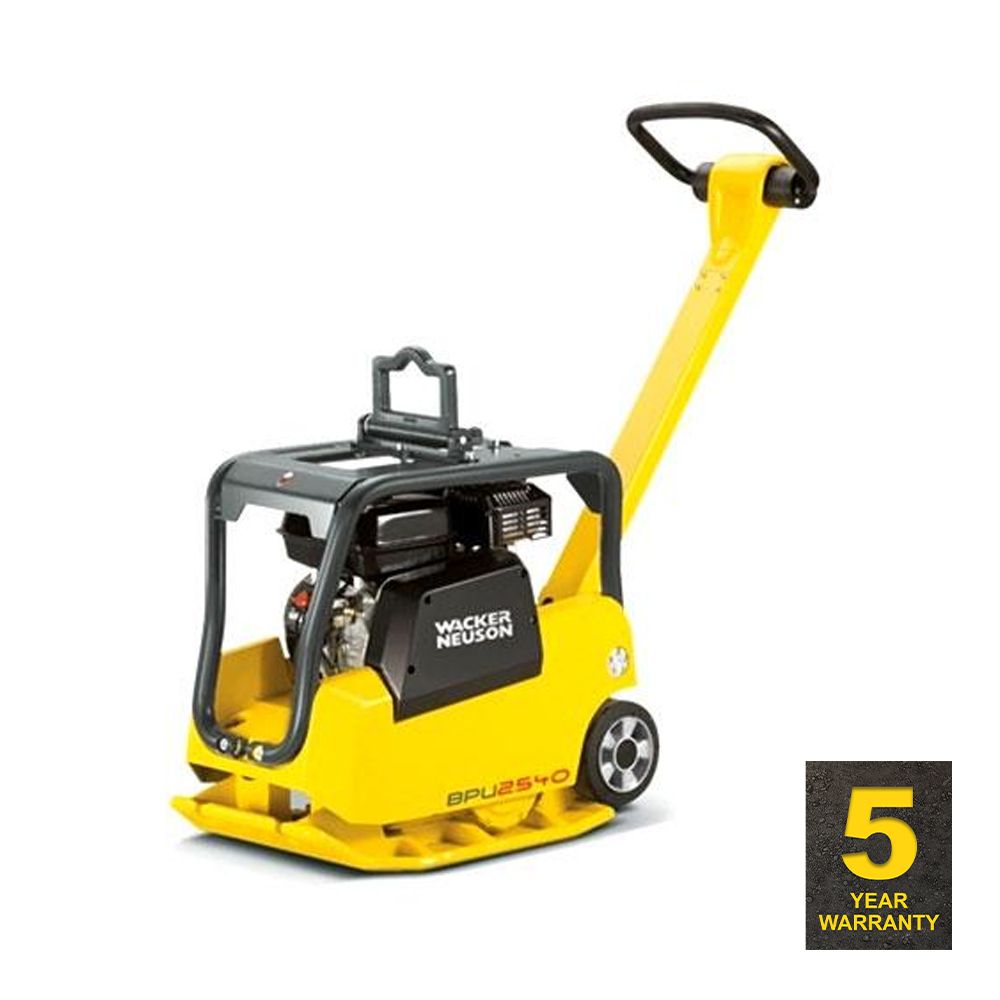

Wacker Neuson BPU2540A (5000008758) 4.0kW Petrol Reversible Vibratory Compactor Plate

Wacker Neuson BPU2540A (5000008758) 4.0kW Petrol Reversible Vibratory Compactor Plate

Wacker Neuson being a company known for high-quality compaction equipment, contractors who are looking for versatility and excellent compaction results should look no further than Wackers range of heavy-duty hydrostatic reversible vibratory plate compactors.

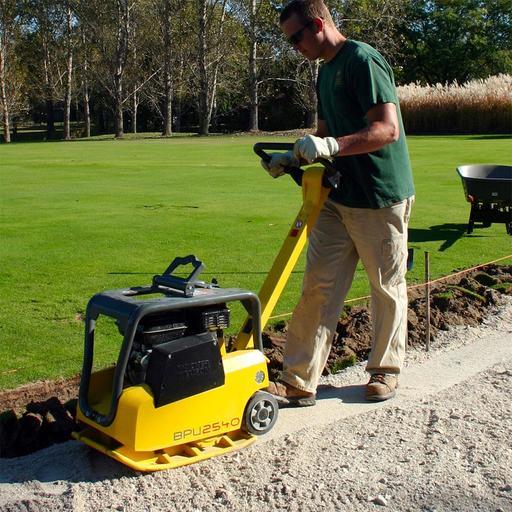

Versatile reversible plates ideal for compaction of interlocking paving stones, trenches, landscaping, semi- cohesive soils and maintenance. The BPU 2540A and 3750Ats are the only plates with a durable, integrated wheel set that provides for maximum built-in mobility. Single lever direction control provides for easy operation. Variable forward and reverse speeds of up to 26m/min.

Specifications:

• Weight: 145kg
• Operating Width: 400mm
• Machine Height: 647mm
• Operating Height: 800-1143mm
• Base Plate Thickness: 10mm
• Centrifugal Force: 25kN
• Vibration Frequency: 90Hz
• Max Forward/Reverse Travel: 21m/min
• Max Compacted Area 504m2/h
• Max Gradability: 30%
• Engine Type: Air-cooled, 4-cycle, single cylinder Honda petrol engine with recoil starter and automatic oil shut-off
• Model: GX 160
• Max Power Output @ Speed: 4.0kW (5.5hp) @ 3600rpm
• Power Rating Specification: DIN-IS03046
• Fuel Consumption: 0.8L/h
• Tank Capacity Fuel: 3.7L
• Power Train: From engine via centrifugal clutch and V-belt directly to exciter, which transmits centrifugal force onto base plate.

Warranty:

• 5 Years Warranty Covered By Wacker Neuson Australia
