Wacker Neuson ACBe + IEe58/34/1.5 51V Battery Backpack System & 0.7kW Internal Vibrator with 58mm Head & 1.5m Shaft

Includes:

• 1 x 58mm Head
• 1 x 1.5m Shaft

Features:

• Vibrator head with steady speed, powerful electric motor for constant compaction performance
• Vibrator head is tempered in the front third
• Power cable with strain relief clamp
• Short power cable directly connected to the backpack
• Independence from external power sources
• No emissions & quiet operation

Specifications:

• Voltage: 34V
• Power: 0.7kW
• Current: 14.8A
• Frequency: 200Hz
• Phase: 3~
• Engine type: Asynchronous motor
• Plug: SEE-Plug 3P 32A <50V 2H
• Runtime: up to 168 minutes
• Head diameter: 58mm
• Rubber cap: No
• Hose length: 1.5m
• Protection: IP67, III / Safetu Extra-low voltage
• Cable length: 1.5m
• Weight: 7.82kg

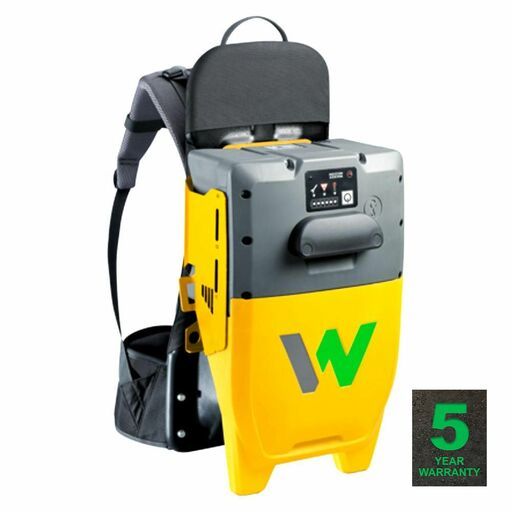

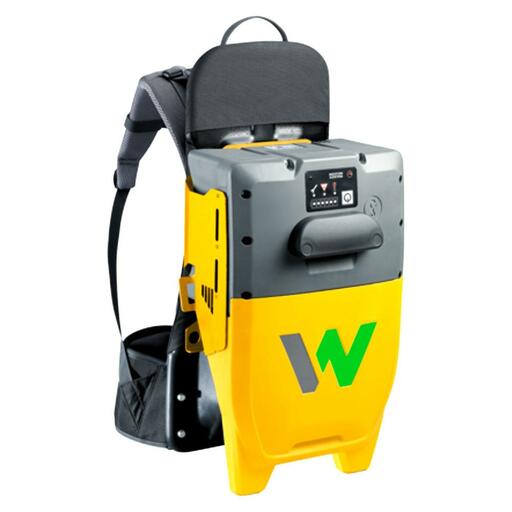

Backpack system with integrated frequency converter for wearing the battery (BOB) and for connecting the battery internal vibrator (IEe) for maximum freedom of movement on the construction site.

Features:

• The battery backpack makes long power cables unnecessary and therefore offers the operator the optimal freedom of movement, contributing to the level of safety on the construction site
• The inverter is integrated into the backpack. The operator saves time and effort this way, especially in large areas, since it is not necessary to move an external inverter on the construction site
• The backpack system was designed and developed by Wacker Neuson. It is very comfortable to wear with an ergonomic weight distribution

Specifications:

• Voltage: 51V
• Power: 0.82kW
• Current: 20A
• Output current: 16.7A
• Output voltage: 34V
• Output frequency: 200Hz
• Output power: 0.79kW
• Phase: 3~
• Dimensions (L x W x H): 396mm x 396mm x 322mm
• Weight: 9.6kg
