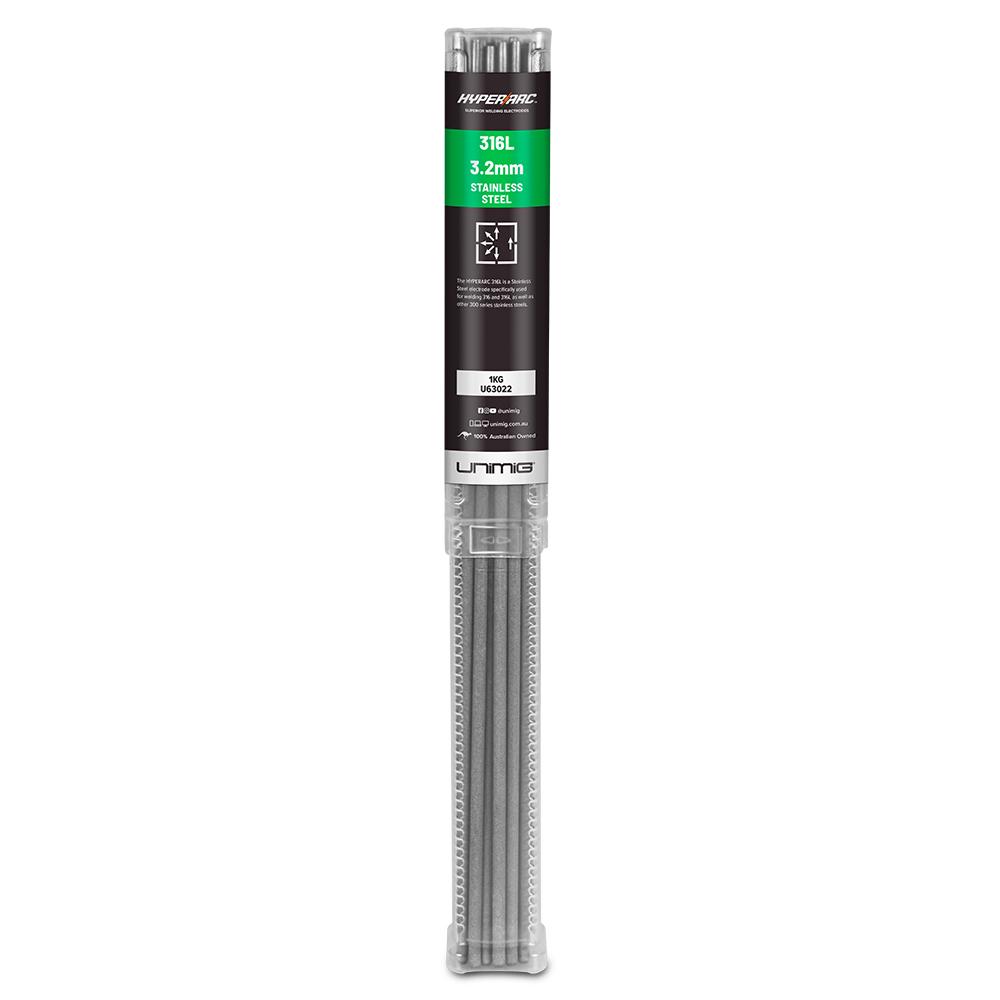

UNIMIG U63022 3.2mm 1kg HYPERARC 316L Stainless Steel Electrode Handy Pack

UNIMIG U63022 3.2mm 1kg HYPERARC 316L Stainless Steel Electrode Handy Pack

Features:

• Excellent arc stability
• High penetration
• Less spatter
• Concentrated arc

Applications:

• Stainless Steel fabricatio
• Welding 300 series stainless steels
• Suitable to weld 301, 302, 303, 304 and 304L

Specifications:

• Yield Stress: 502 MPa
• Tensile Strength: 645 MPa
• Elongation: 32%
• Impact Test: 63J @ -20°C
• Recommended Current: AC & DC+
• Current Range: 70-110A
• Classification:
  • AS/NZS 4854: ES316L-16
  • AWS/ASME SFA5.4: E316L-16
• Size: 3.2mm
• Length: 350mm
• Weight: 1kg
