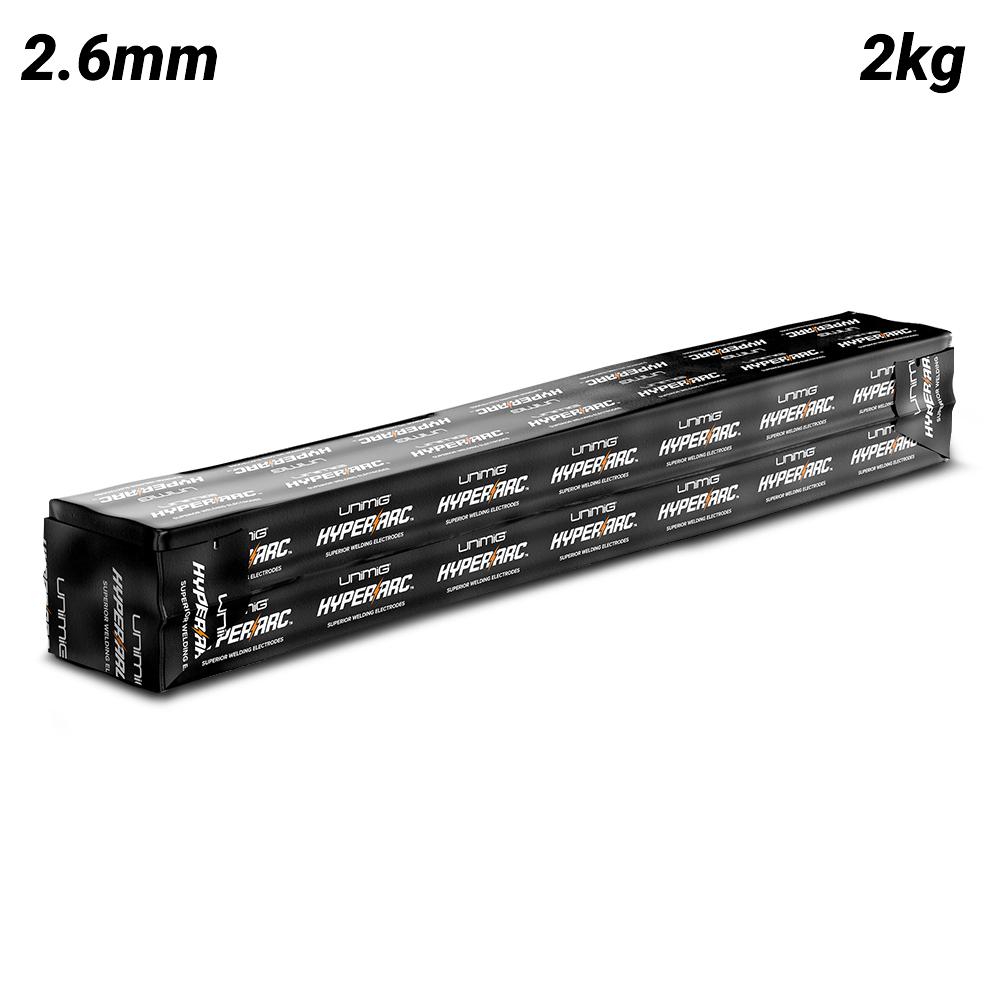

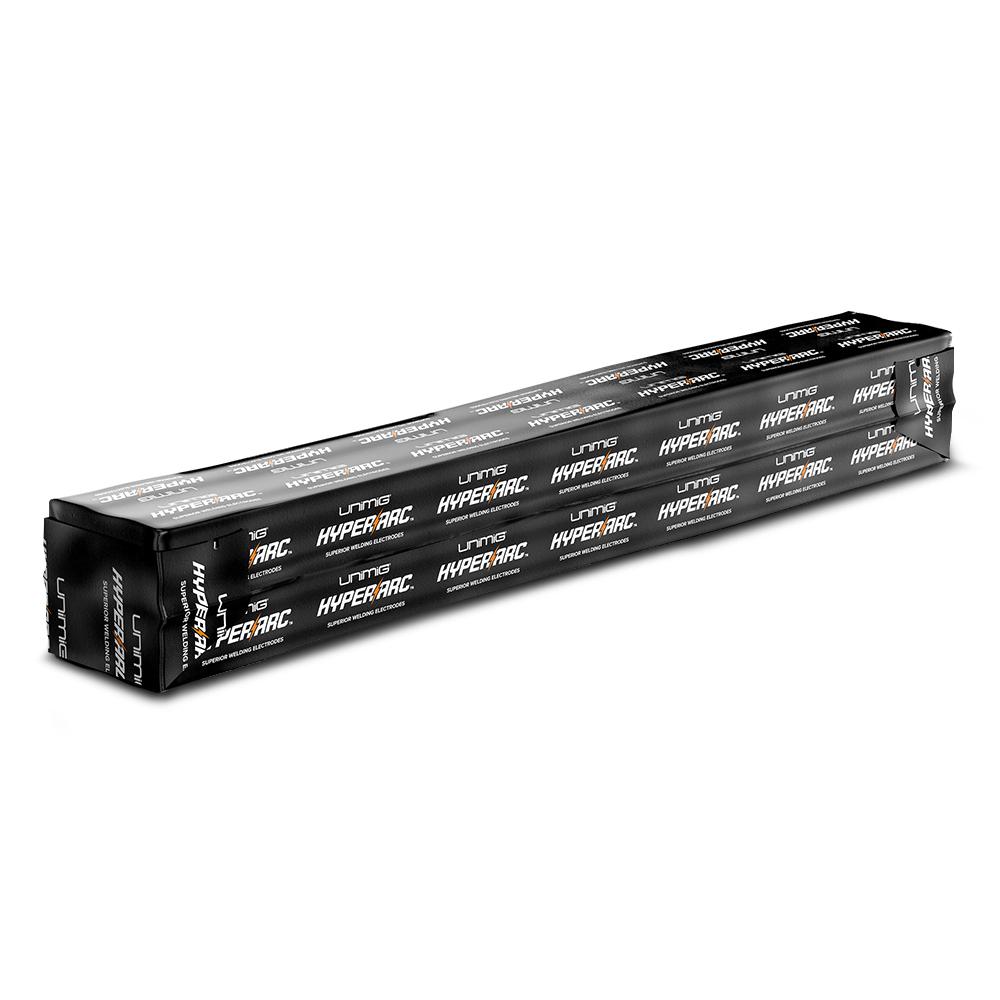

UNIMIG U63011 2.6mm 2kg HYPERARC 7018 Low Hydrogen Electrodes

UNIMIG U63011 2.6mm 2kg HYPERARC 7018 Low Hydrogen Electrodes

The HYPERARC 7018 is a Hydrogen controlled iron powder electrode. With its all positional capabilities (except vertical down) it is the ideal choice for high deposition welding.

Features:

• Excellent arc stability
• High penetration
• Less spatter
• Concentrated arc

Applications:

• Structural Steel Fabrication
• Pressure Vessel welding
• Repair work for Agriculture and mining machinery
• Ship building and repairs

Specifications:

• Yield Stress: 483 MPa
• Tensile Strength: 599 MPa
• Elongation: 28%
• Impact Test: 128J @ -40°C
• Recommended Current: AC & DC+
• Current Range: 50-90A
• Classification:
  • AS/NZS 4855: B E 4918 A U H10
  • AWS/ASME SFA5.1: E7018
• Size: 2.6mm
• Length: 300mm
• Weight: 2kg
