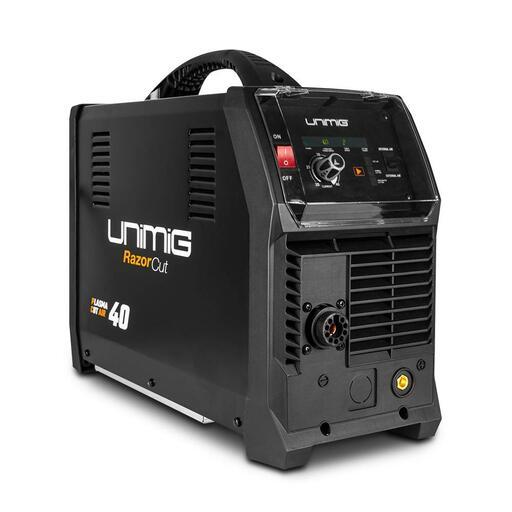

UNIMIG U14001K RAZOR CUT 40 Air Plasma Cutter

UNIMIG U14001K RAZOR CUT 40 Air Plasma Cutter

The RAZOR CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR CUT 40 AIR boasts some serious cutting power with 10mm clean-cut and 12mm severance on the built-in air compressor, and 16mm clean-cut and 20mm severance on an external compressor.

Includes:

• 1 x Razor Cut 40 Air Plasma Cutter
• 1 x 6m SC80 Plasma Torch
• 1 x 4m 300A Earth Clamp
• 1 x Air Regulator

Features:

• Comes with a built-in air compressor, giving you more flexibility with a plasma cutter than ever before. Connect an external air compressor for even greater cutting power.
• Perferated cutting mode cuts both solid material and perforated materials with ease
• Pilot arc start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces

Specifications:

• Input Voltage: 240V (Single Phase)
• Supply Plug: 15A
• Rated Power Input: 7.2kVA
• Rated Output: 96V
• No-Load Voltage: 210V
• Protection Class: IP21
• Insulation Class: H
• Dinse Connector: 10/25
• Plasma Cut Range: 20-30A
• Plasma Cut Duty Cycle (@ 40°C): 25% @ 40A, 60% @ 26A, 100% @ 20A
• Standard: AS/NZ60974-1
• Cutting Thickness: Mild Steel
  • Internal: 12mm
  • External: 16mm
  • Internal (Severence): 14mm
  • External (Severence): 18mm
• Cutting Thickness: Aluminium
  • Internal: 6mm
  • External: 8mm
  • Internal (Severence): 8mm
  • External (Severence): 10mm
• Cutting Thickness: Stainless Steel
  • Internal: 6mm
  • External: 8mm
  • Internal (Severence): 9mm
  • External (Severence): 10mm
• Air Flow Draw Off: 120L/min
• Air Flow Pressure: 75PSI (5.17Bar)
• Dimensions (L x W x H): 610mm x 215mm x 420mm
• Weight: 18kg
