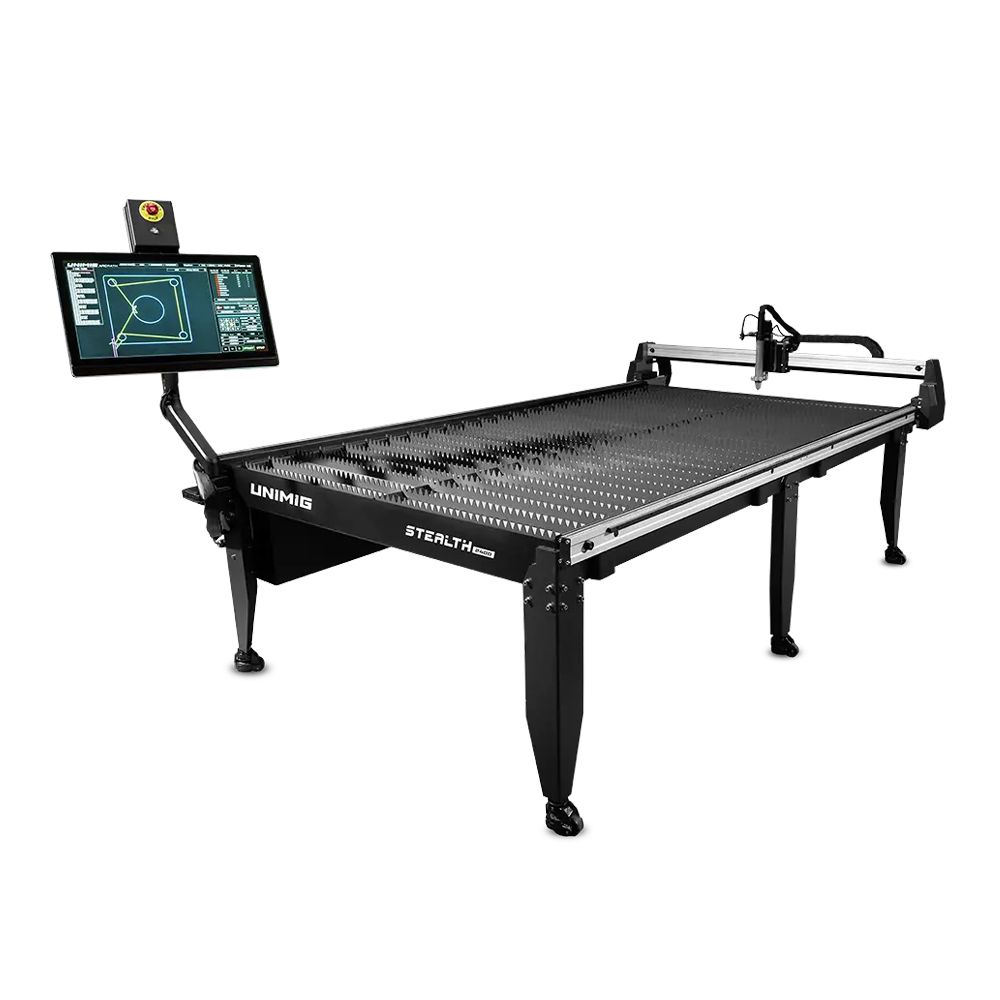

UNIMIG U11098 STEALTH 2400 CNC Plasma Table

UNIMIG U11098 STEALTH 2400 CNC Plasma Table

Includes:

• CNC Table
• Z Axis + Torch Mount
• Control Box
• Touchscreen PC
• PC Arm
• Automatic Height Controller
• Drag Chains
• Caster Feet
• Material Slats
• Lift Hooks

Features:

• The STEALTH 2400 CNC Table meets all your cutting needs on a compact 2.4x1.2m table

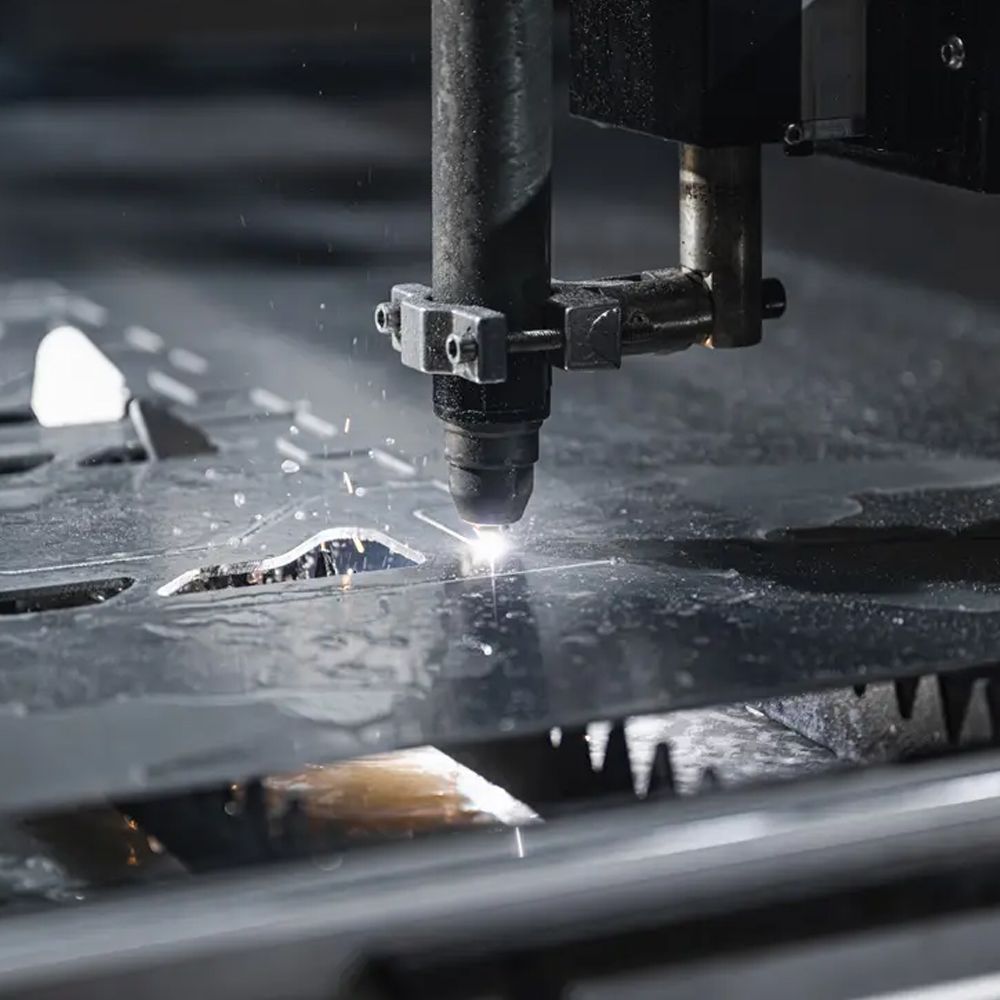

• Automatic Torch Height Control continuously maintains the optimal height for the best quality across the whole cut
• The touchscreen computer comes with our in-house, custom-designed UNIMIG Arc Path CNC Control software

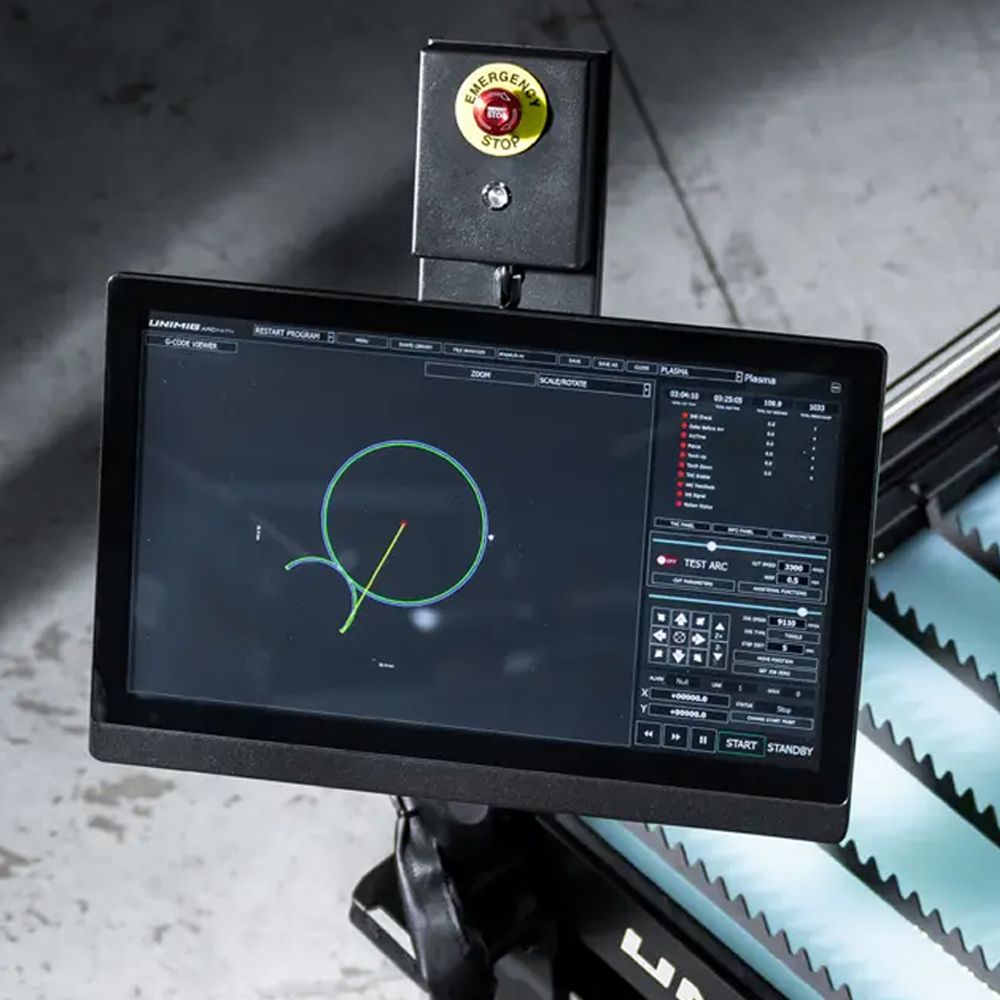

• UNIMIG Arc Path CNC Control Software: The 21-inch touchscreen computer comes mounted on a fully adjustable arm and pre-installed with our in-house, custom-designed UNIMIG Arc Path CNC Control software. Arc Path accepts G-Code Design files, or alternatively, you can plug in a USB or a shared network folder and load your own files. We’ve also included CAM nesting software powered by FLCAM that accepts DXF files and a post-processor script is available to allow seamless CAM output from Autodesk Fusion
• Automatic Torch Height Control: The Automatic Torch Height Control continuously monitors and adjusts the torch height in real time to maintain the optimal height while cutting over wavy or warped material. By maintaining the optimal height, you get a consistent cutting quality, minimal dross, increased consumable life and faster cutting speeds

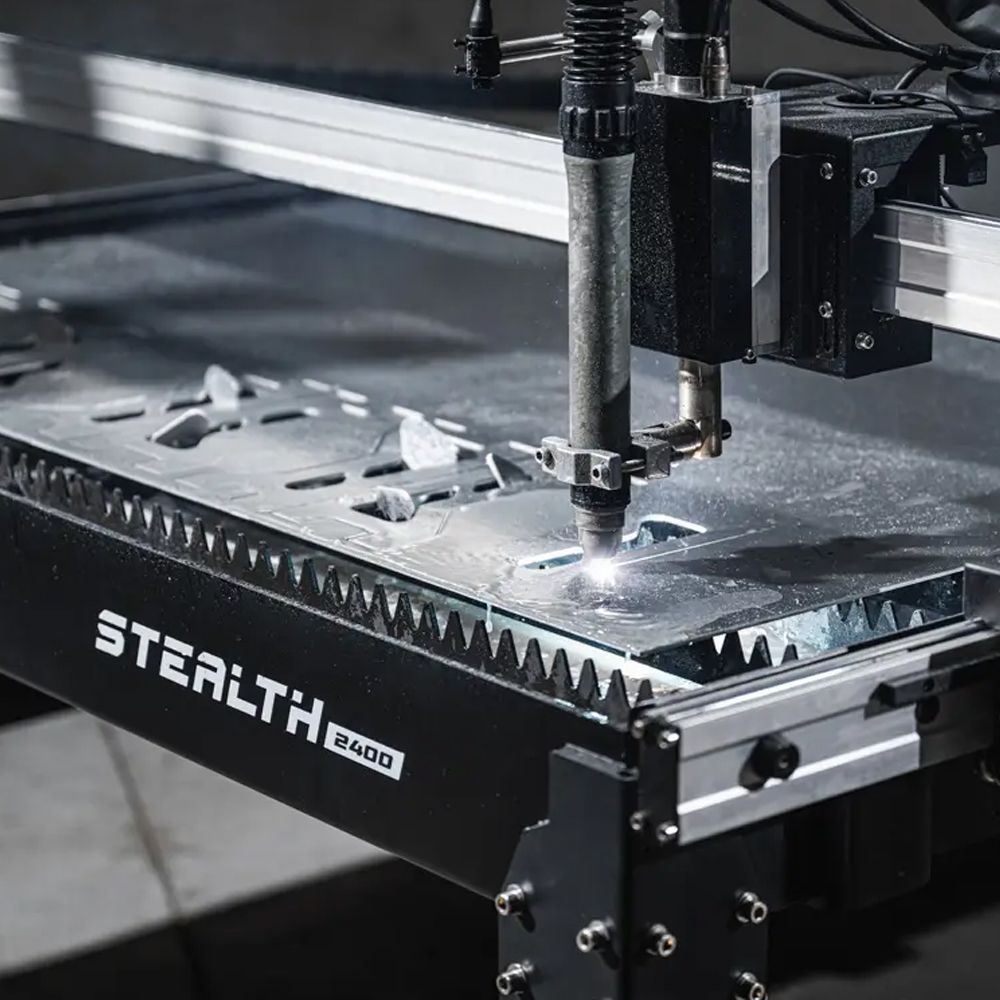

• Built-In Water Bed With Slat Slots: The built-in water bed on the STEALTH CNC table works to absorb fumes and sparks, giving you a cleaner workspace. With laser welded joints, the water bed is completely leak-free. It comes with two ball valve controlled drainage points with standard hose fittings for quick and easy draining. Additionally, the tables come with laser-cut mild steel slats, and the slat slots mean you can easily replace slats that become warped or damaged
• True Cut Size: A true 1.2×2.4m full-sheet cut size. The gantry will travel 1.23×2.44m on the Stealth 2400, so you can guarantee you’ll get the full size of the table to cut across
• Adjustable Sighting Laser: Each STEALTH CNC table is equipped with an adjustable offset sighting laser, ensuring precise alignment and eliminating the guesswork for pierce locations and plate alignment. No need for expensive add-on accessories, the STEALTH CNC table comes fully equipped with all necessary features right from the start, providing you with a clear, constant visual of where the cut will start every time
• Automatic Collision Detection & Limiter Switches On All Axes: With limiter switches on all axes and an automatic collision detection system, the STEALTH table uses sensors, software algorithms, and real-time data processing to detect and prevent potential collisions and stop it from exceeding its predefined range of motion
• Maximise Your Production: Let the STEALTH CNC table handle the heavy lifting so you can increase your productivity. The STEALTH 2400 CNC allows you to produce more parts and projects efficiently. Optimise your cuts and nest parts on full sheets to minimise loading time and reduce material waste

Specifications:

• Primary Input Voltage: 240V Single-Phase
• Supply Plug: 10A
• Maximum Cutting Dimensions: 1.23 x 2.44m
• Maximum Table Load: 285
• Water Bed Capacity: 350L
• Axis Type: 3 Axis (X/Y/Z)
• Height Control: Automatic & Manual
• Axis Limiter: Physical X/Y/Z Proximity Sensor Switches
• Fume & Spark Management: Built-In Water Bed
• Maximum Jog Speed (mm/m): 8000
• CNC Controller: Purpose Built Multi-Tool Controller
• Control PC Specifications:
  • Operating System: Windows 10
  • Screen Panel: 21” Touchscreen
  • Networking:
    • Ethernet
    • Wi-Fi
    • Bluetooth
  • Hardware:
    • Intel Core i3
    • 8GB RAM
    • 128GB SSD
  • Software:
    • UNIMIG Arc Path CNC Control Software
    • CAM/Nesting Software
• Dimensions (L x W x H): 280cm x 170cm x 110cm
• Weight: 340 kg

Note: Freight Charges Will Apply
