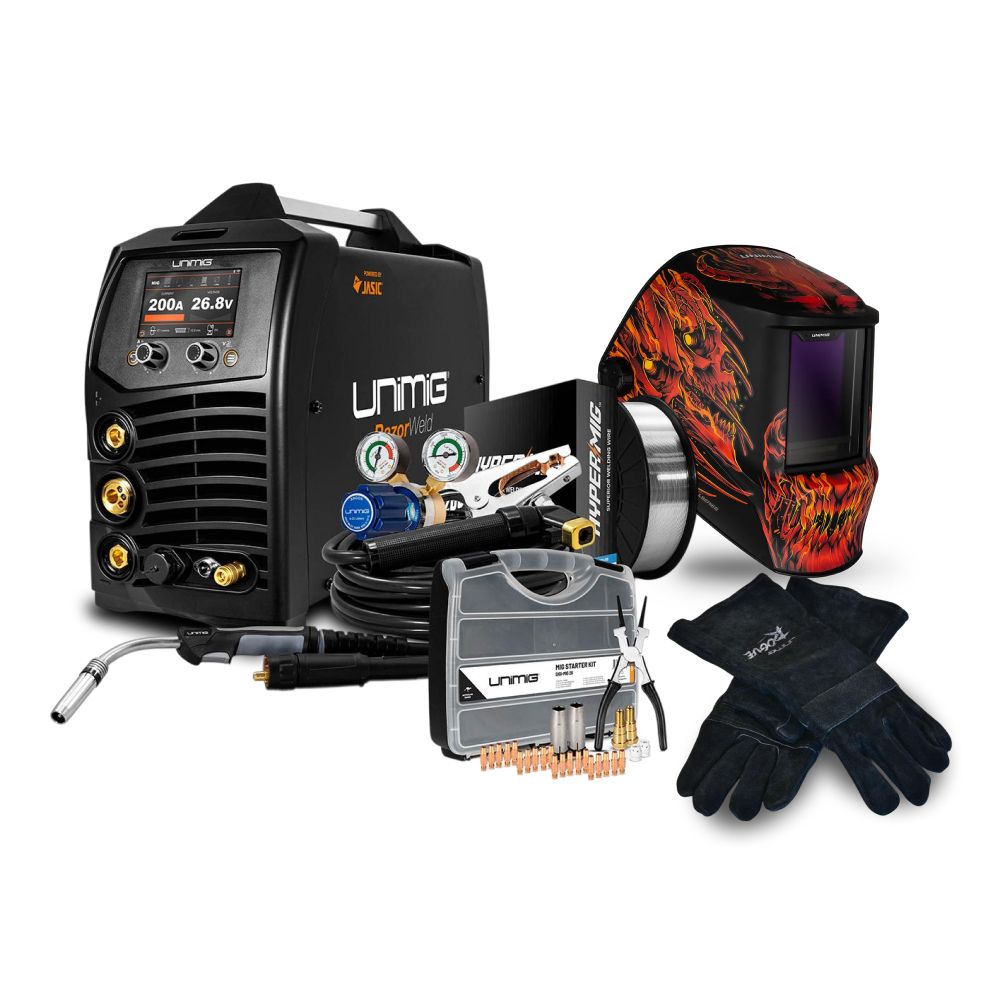

UNIMIG PK11115 Razor 200 Pulse MIG/TIG/STICK Welder Kit Combo Kit

UNIMIG RAZOR 200 PULSE MIG/TIG/STICK 15A Welder

Includes:

• 1 x Razor 200 Pulse MIG/TIG/STICK Welder
• 1 x 3m DM26 Digital MIG Torch Fitted with Carbon-Polyamide Liner
• 1 x 3m Twist Lock Electrode Holder
• 1 x 3m 200Amp Earth Clamp & Lead
• 1 x Twin Guage Argon Regulator
• 1 x 1.8m Gas Hose Complete with Fittings
• 1 x Operating Manual

Features:

• Single & double MIG Pulse welding reduces the heat and minimises spatter, without compromising penetration, so its perfect for thin and soft materials like aluminium.
• 5" LCD touch screen display means choosing your weld parameters or changing your settings mid weld has never been easier. The large touch screen display is clear, with an easy to navigate interface. You won’t even need a manual to work it out.
• Hot Starting a MIG weld has never been so smooth with the Hot Start function. Turn it on to give you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and making welding on thicker materials and aluminium easier.
• Finishing a weld has never been so easy with the Crater Fill feature. Turning the Crater Fill function on will ramp your welding current and voltage down at the end of a MIG or TIG weld, so you can fill it in at a lower power, eliminating craters and pinholes. End your welds as strong as they started.
• The high frequency DC TIG welding mode comes with a full set of adjustable parameters, like pre- and post-flow, up and down slopes, as well as all things pulse. Everything you need, right at your fingertips.
• You’ll be able to STICK weld anything, including cellulosic electrodes, plus with the addition of Anti Stick, you’ll never struggle to strike an arc again.
• 4 Geared Wire Drive rollers, you will get a more consistent and smoother wire feeding experience. The internal housing also features storage space for additional rollers, so they’re always in reach. It also comes with an internal spool light, for max visibility in any lighting.
• The Arc Force function helps to keep the arc stabilised throughout the weld, so it won’t cut out, and stops the electrode from sticking.
• Power Limit works to keep the amperage constant throughout the weld by preventing the voltage from exceeding the set value.
• The RAZOR 200 PULSE can be connected to a generator. We recommend one with an 11kVa.
• Increase or decrease your arc length while in the synergic and pulse MIG modes to suit your weld style.
• Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.
• The RAZOR 200 PULSE is rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical.

Suitable For:

• Mild Steel
• Stainless Steel
• Cast Iron
• Silicon Bronze
• Aluminium
• Copper

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15A
• leff(A): 14.9
• Rated Output: 40A/16V - 200A/24V
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator (kVA): 11.0
• Dinse Connector: 35/50
• Welding Current Range:
  • MIG: 40-200A
  • TIG: 5-200A
  • STICK(MMA): 20-180A
• Duty Cycle at 40°C
  • MIG: 15% at 200A, 60% at 101A, 100% at 78A
  • TIG: 20% at 200A, 60% at 116A, 100% at 90A
  • STICK(MMA): 15% at 180A, 60% at 91A, 100% at 70A
• Welding Thickness Range:
  • MIG: 1-10mm
  • TIG: 1-8mm
  • STICK(MMA): 2-12mm
• MIG Wire Size Range: 0.6 - 1.2mm
• MIG Wire Spool Size: 1kg - 5kg
• MIG Drive Roller Size: 30/22
• STICK(MMA) Electrode Range: 2.5-4.0mm
• Standard: AS/NZ60974-1
• Dimensions(L x W x H): 605mm x 230mm x 400mm
• Weight: 17kg

UNIMIG AM5356-1.2-2.0KG 5356 1.2mm 2kg Aluminium MIG Wire

UNIMIG 5356 Aluminium MIG Wire is one of the highest quality aluminium welding wires available due to its consistent feed ability which is accomplished through the use of advanced wire drawing technology and a proprietary triple shaving process. 5356 is sometimes referred to as “marine grade” because it is widely used in the marine industry and it’s very commonly found in general fabrication applications as well. The major element in 5356 wire is 5% magnesium. The wire has excellent weldability and corrosion resistance.

Features:

• Approvals: ABS, TUV, DB
• Consistent feed through advanced wire drawing technology
• Excellent weldability and corrosion resistance
• Widely used in the marine industry

Specifications:

• MIG Wire Diameter: 1.2mm
• MIG Wire Weight: 2kg/200mm

Features:

• 1/1/1/1 Classification - Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.
• Auto Shade Select - Take the guesswork out of your protection. The autoshade select technology instantly detects the arc and decides what shade you need to keep your eyes safe for every kind of welding.
• 102.5 x 102.5mm View Size - Unmatched visibility in every situation. The 102.5 x 102.5mm viewing area lets you see every weld with complete clarity
• 3.0 Light State - Get a clear view before and after the weld, as well as during. With a 3.0 light state, you'll be able to see your workpeice as well with the helmet on as with it off
• External Grind Button - Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you dont need to take the helmet off to check
• 5 Arc Sensors - Detect every arc instantly. The four optimally positioned arc sensors, coupled with an arc intensity sensor, trigger the Auto-Darkening Filter. Experience unparralleled eue protection right from the start of every weld, even when you're out of position
• Backup Battery - 2 x CR2450 backup batteries improve the performance and reliability of the auto-darkening filter.
• 4 Point Harness - Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimising neck strain.

Specifications:

• Filter dimentions: 114 x 133 x 9.5mm
• View Size: 102.5 x 102.5mm
• Arc Sensors : 4 Arc Sensors & 1 Arc Intensity Sensor
• Classification: 1/1/1/1
• Light State: 3
• Dark State: 5 - 13
• UV/IR Protection: DIN15
• Time from Light to Dark: 0.04ms
• Time from Dark to Light:  0.1 - 0.9s
• Sensitivity Delay: Adjustable (1-5 for low-high)
• Power Supply: Solar Cells & CR2450 Replacable Batterty
• Operating Temperature: -10ºC to 65c
• Storage Temperature: -20ºC to 85ºC
• Shade Control: Yes
• Grind Mode: Yes (External)
• Minimum TIG Amperage: 2A
• Standards:
  • AS/NZS 1337.1 B (High Impact)
  • AS/NZS 1338.1 (Auto-Darkening)

Warranty:

• 3 Year warranty Covered by Unimig

Please note: This product now comes in Black, your may recieve either blue or black gloves depending on stock availability.

The ROGUE™ Heavy Duty Welding Gloves are built for high heat and intensity MIG welding and plasma cutting. Made from heat and flame-resistant premium split cowhide and high-strength Kevlar stitching which adds durability and comfort when you need it most.

Features:

• Premium cowhide leather
• Reinforced palm
• High-strength Kevlar
• 400mm length

Specifications:

• Length: 400mm
• Gloves: Left & Right
