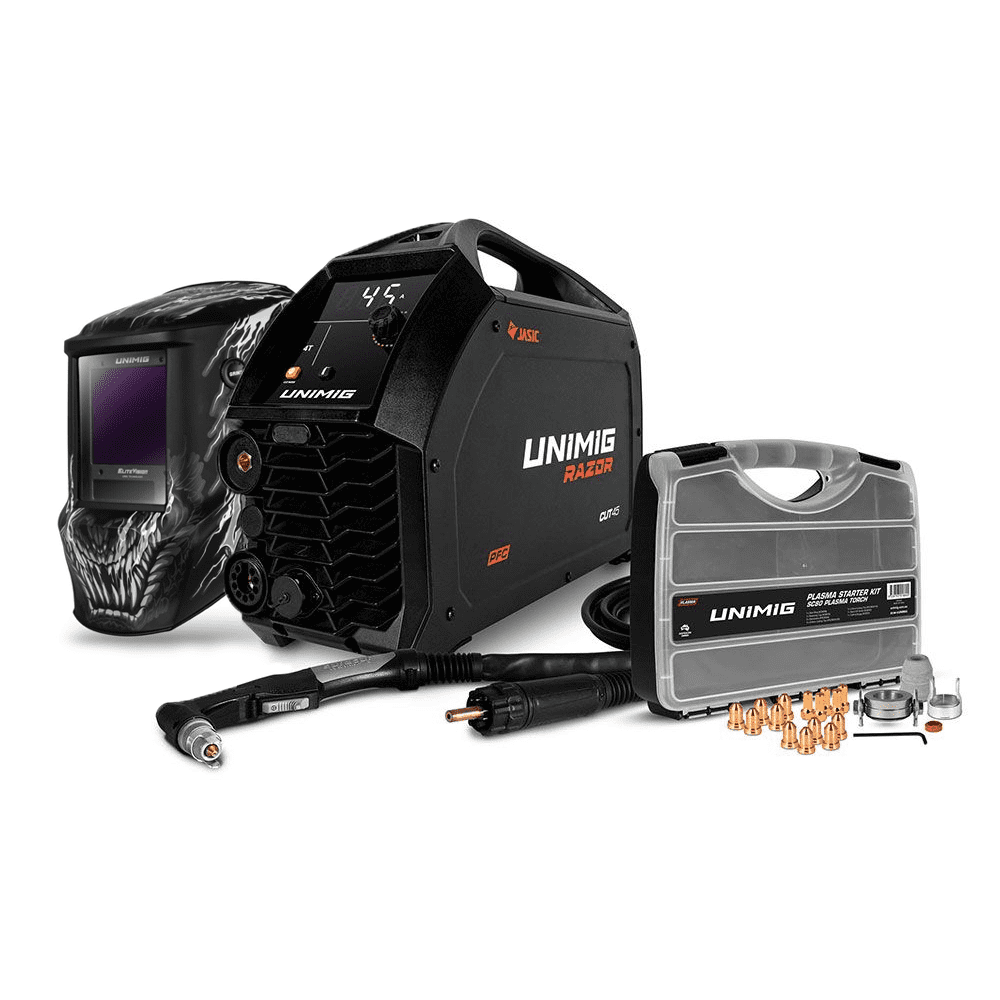

UNIMIG PK11105 Razor Cut 45 Welder Combo Kit

Features:

• 1/1/1/1 Classification - Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening filter (ADF) That's scored top marks across the board for crystal-clear view of your weld at every angle
• Memory States - Store up to three of your most frequentlu used shade settings with the memory state buttons and have your helmet ready to go in an instant.
• 100 x 83.4mm View Size - Superior visibility in every situation. the 100 x 83.4mm viewing area lets you see every weld with complete clarity.
• External Grind Button - Seamlessly switch to grind mode with the click of a button. When the helmet is in the grind mode a small LED will illuminate, so you don'd need to take the helmet off to check.
• 4 Arc Sensors - Detect every arc instantly. The four optimally positioned arc sensors trigger the lens, darkening it and keeping your eyes sheilded from the start, even when you're out of position
• Backup Battery - A CR2450 Back up battery improves the performance and reliability of the auto-darkening filter.
• 4 Point Harness - Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you and have weight spread more evenly, minimising neck strain.

Specifications:

• Filter dimentions: 114 x 166 x 9.5mm
• View Size: 100 x 83.4mm
• Arc Sensors : 4
• Classification: 1/1/1/1
• Light State: 4
• Dark State: 5 - 13
• UV/IR Protection: DIN15
• Time from Light to Dark: 0.04ms
• Time from Dark to Light:  0.1 - 0.9s
• Sensitivity Delay: Adjustable (1-5 for low-high)
• Power Supply: Solar Cells & CR2450 Replacable Batterty
• Operating Temperature: -10ºC to 65c
• Storage Temperature: -20ºC to 85ºC
• Shade Control: Yes
• Grind Mode: Yes (External)
• Minimum TIG Amperage: 3A
• Standards:
  • AS/NZS 1337.1 B (High Impact)
  • AS/NZS 1338.1 (Auto-Darkening)

Warranty:

• 3 Year warranty Covered by Unimig

Packaged in a sturdy carry case, consumable starter kits are now available to from UNIMIG. This kit is the perfect companion to be bundled alongside machines, which the kit containing all the essential consumables for an SC80 Plasma Torch.

Includes:

• 1 x Swirl Ring (SC8006)
• 1 x Retaining Cap (SC8030)
• 5 x Electrodes (PSC8004)
• 5 x 0.9mm Cutting Tips (PSC8020-09)
• 5 x 1.0mm Cutting Tips (PSC8020-10)
• 1 x Stand Off Guide (SC8040)
• 1 x Cutting Buggy (SC8051)

Suitable for:

• WG-SC80-60-CC1 Plasma Torch

The UNIMIG Razor Cut 45 Plasma Cutter is super light and portable at only 10kg, so it is ready to go anywhere you need it. It features a HD Backlit Interface which is bright and easy to read in any environment. Also has a smart fan which diminishes noise, saves power, helps reduce energy costs, & minimises the number of contaminants being pulled through the machine.

Includes:

• 6m SC80 Plasma Torch
• 4m 300 AMP Earth Clamp
• Air Regulator
• Operating Manual

Features:

• HD Backlit Interface: This next generation interface panel is bright & easy to read in any environment
• Power Factor Correction: PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, & PFC is also designed to be generator friendly
• CNC Connectivity: Easy access front panel port for & adjustable feedback ratio for CNC connectivity
• Perforated Cut Mode: Now you can cut perforated metal without having to restart the arc between gaps. Simply shift into perforated cutting mode & slice through perforated metal with ease
• Pilot Arc Start: Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces
• 2T/4T Trigger Modes: Designed for user preference & comfort, adjustable trigger modes allow you to either hold the trigger down throughout the cut, or use the trigger as a on/off switch by pulling to start & pulling to stop
• Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, & minimises the number of contaminants being pulled through the machine
• Lightweight & Portable: Weighing just 10kg, the RAZOR CUT 45 is ready to go anywhere you need it

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15A
• Rated Input Current: 23A
• No Load Voltage: 300V
• leff: 15A
• Air Flow Draw Off: 189 L/min
• Air Flow Pressure (Bar): 5.17 (75psi) (0.5 MPa)
• Current Range: 20-45A
• Machine Duty Cycle: 25% @ 45A, 60% @ 30A, 100% @ 20A
• Protection Class: IP23S
• Insulation Class: H
• Dinse Connector: 10/25
• Standard: AS/NZ60974-1
• Plasma Arc Start: Pilot Arc
• CNC Connection: Yes
• Thermal Overload Protection: Over Temperature Warning
• Plasma Cut Thickness Rating:
  • Mild Steel Clean Cut: 6mm
  • Aluminium Clean Cut: 5mm
  • Stainless Steel Cut: 5mm
• Dimensions (L x W x H): 546mm x 169mm x 341mm
• Weight: 10kg

Warranty:

• 3 Year Limited Warranty By UNIMIG
