UNIMIG PK11095 RAZOR CUT45 Plasma Cutter Combo Kit

The UNIMIG Razor Cut 45 Plasma Cutter is super light and portable at only 10kg, so it is ready to go anywhere you need it. It features a HD Backlit Interface which is bright and easy to read in any environment. Also has a smart fan which diminishes noise, saves power, helps reduce energy costs, & minimises the number of contaminants being pulled through the machine.

Includes:

• 6m SC80 Plasma Torch
• 4m 300 AMP Earth Clamp
• Air Regulator
• Operating Manual

Features:

• HD Backlit Interface: This next generation interface panel is bright & easy to read in any environment
• Power Factor Correction: PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, & PFC is also designed to be generator friendly
• CNC Connectivity: Easy access front panel port for & adjustable feedback ratio for CNC connectivity
• Perforated Cut Mode: Now you can cut perforated metal without having to restart the arc between gaps. Simply shift into perforated cutting mode & slice through perforated metal with ease
• Pilot Arc Start: Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces
• 2T/4T Trigger Modes: Designed for user preference & comfort, adjustable trigger modes allow you to either hold the trigger down throughout the cut, or use the trigger as a on/off switch by pulling to start & pulling to stop
• Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, & minimises the number of contaminants being pulled through the machine
• Lightweight & Portable: Weighing just 10kg, the RAZOR CUT 45 is ready to go anywhere you need it

Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15A
• Rated Input Current: 23A
• No Load Voltage: 300V
• leff: 15A
• Air Flow Draw Off: 189 L/min
• Air Flow Pressure (Bar): 5.17 (75psi) (0.5 MPa)
• Current Range: 20-45A
• Machine Duty Cycle: 25% @ 45A, 60% @ 30A, 100% @ 20A
• Protection Class: IP23S
• Insulation Class: H
• Dinse Connector: 10/25
• Standard: AS/NZ60974-1
• Plasma Arc Start: Pilot Arc
• CNC Connection: Yes
• Thermal Overload Protection: Over Temperature Warning
• Plasma Cut Thickness Rating:
  • Mild Steel Clean Cut: 6mm
  • Aluminium Clean Cut: 5mm
  • Stainless Steel Cut: 5mm
• Dimensions (L x W x H): 546mm x 169mm x 341mm
• Weight: 10kg

Warranty:

• 3 Year Limited Warranty By UNIMIG

Packaged in a sturdy carry case, consumable starter kits are now available to from UNIMIG. This kit is the perfect companion to be bundled alongside machines, which the kit containing all the essential consumables for an SC80 Plasma Torch.

Includes:

• 1 x Swirl Ring (SC8006)
• 1 x Retaining Cap (SC8030)
• 5 x Electrodes (PSC8004)
• 5 x 0.9mm Cutting Tips (PSC8020-09)
• 5 x 1.0mm Cutting Tips (PSC8020-10)
• 1 x Stand Off Guide (SC8040)
• 1 x Cutting Buggy (SC8051)

Suitable for:

• WG-SC80-60-CC1 Plasma Torch

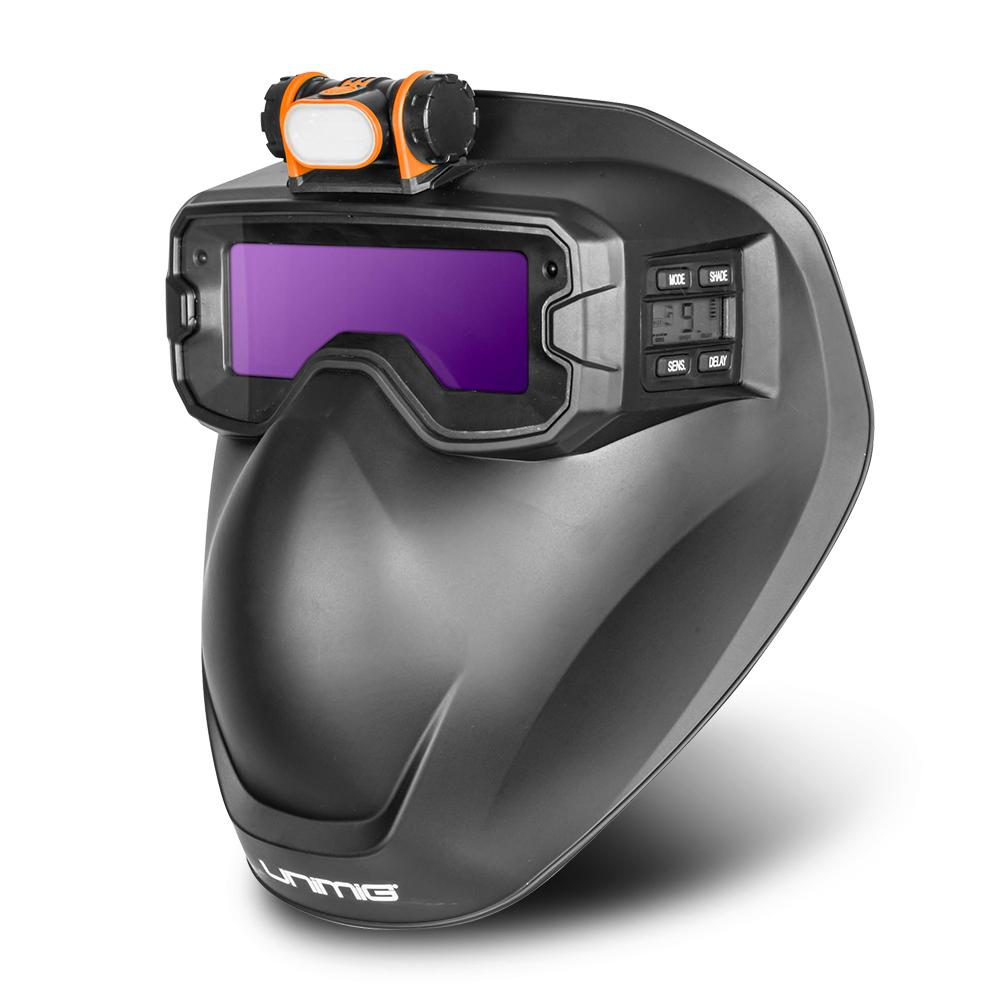

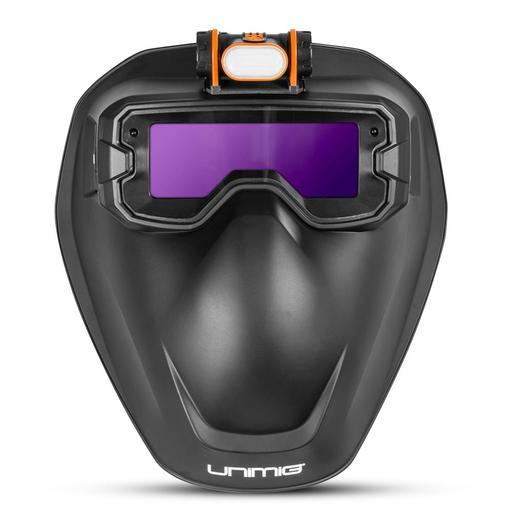

Allows welding in tight spaces where standard welding helmets are limited in space. The mask is also detachable from the goggles, allowing for even more versatility. 2 arc sensors constantly monitor the arc, allowing for consistent shade control so you can focus on your welds. ELITEVISIONTM Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding. Designed to be worn with an Elipse® Half-Mask P2 Respirator, providing a minimum 99.95% filtration against odours, dust, all types of fumes, oil and water mists and micro-organisms. In combination with the ROGUE Welding Hood, the Welding Goggles and Mask provide protection against UV/IR rays.

Features:

• Strong LED Headlight
• Digital screen
• Respirator ready (not included)
• Detachable guard
• Grind mode
• 2 Arc sensors
• True colour view
• 5-13 Shade control

Suitable for:

• MIG
• TIG
• STICK
• PLASMA
• GRIND

Specifications:

• Filter Dimensions: 171.5 x 77.5 mm
• View Size: 110x40mm
• Arc Sensors: 2
• Classification: 1/1/1/2
• Light State: 3
• Dark State: 5-9 / 9-13
• UV/IR Protection: DIN15
• Time from Light to Dark: 0.08ms
• Time from Dark to Light: 0.1-0.9s
• Sensitivity Delay: Adjustable (External)
• Power Supply: Solar Cells & CR2450 Replaceable Battery
• Operating Temperature: -10 ̊C to 65 ̊C
• Storage Temperature: -20 ̊C to 85 ̊C
• Shade Control: Yes (External)
• Grind Mode: Yes (External)
• TIG Amperage: 5A
• Standards: CE, ANSI , CSA, AS/NZS

Warranty:

• 2 Years Warranty Covered By UNIMIG

Please note: This product now comes in Black, your may recieve either blue or black gloves depending on stock availability.

The ROGUE™ Heavy Duty Welding Gloves are built for high heat and intensity MIG welding and plasma cutting. Made from heat and flame-resistant premium split cowhide and high-strength Kevlar stitching which adds durability and comfort when you need it most.

Features:

• Premium cowhide leather
• Reinforced palm
• High-strength Kevlar
• 400mm length

Specifications:

• Length: 400mm
• Gloves: Left & Right
