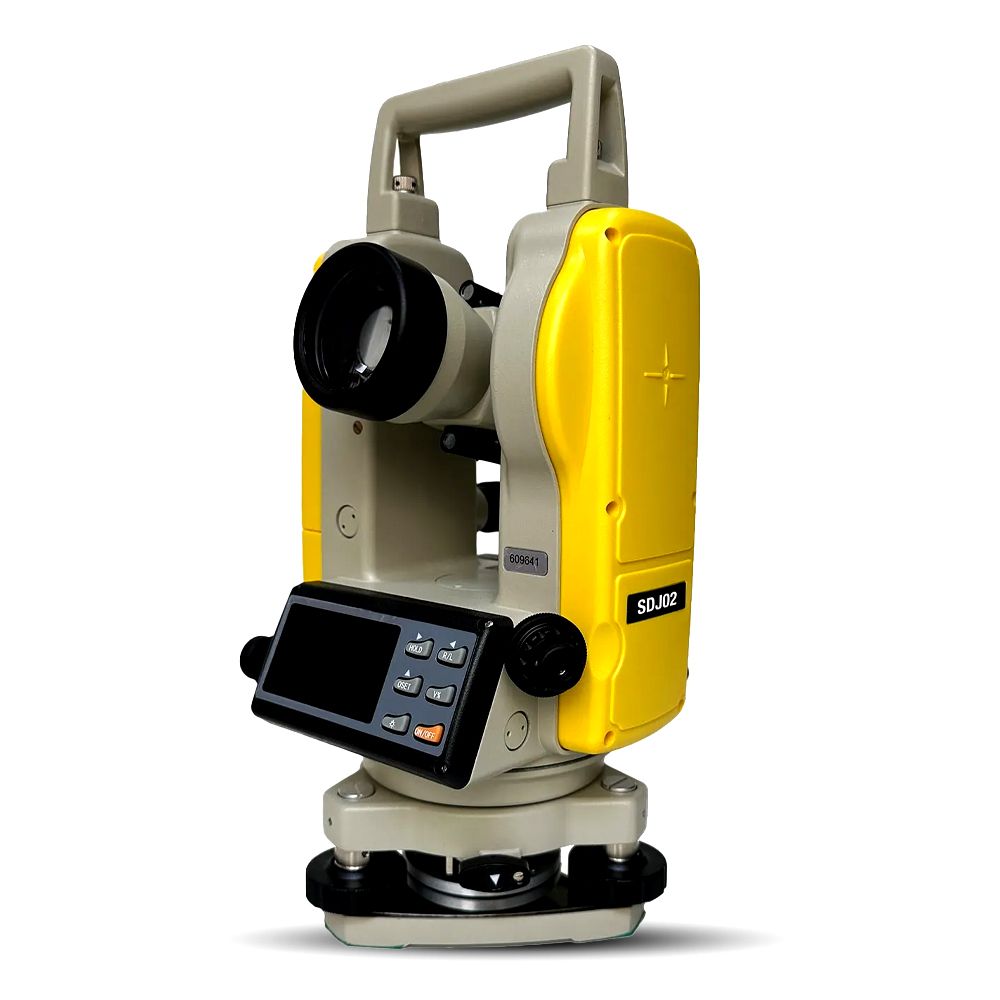

TUF Lasers TUF-SDJ02 (DTH2L) Digital Theodolite With Laser

TUF Lasers TUF-SDJ02 (DTH2L) Digital Theodolite With Laser

The Optical telescope has 30x magnification for easy sighting of the target.  The telescope also features focus and cross-hair focus to accommodate different users.  The TUF Lasers SDJ02 features a bright and sharp plummet laser dot for precise location over your datum.  The included Tribach has a quick-release mechanism from the theodolite has a bullseye vial for quick rough levelling.  The Theodolite itself is levelled using the highly accurate spirit vial located above one of the displays and the adjustment wheels on the Tribach.

Includes:

• Comes with rechargeable battery pack
• Alkaline battery pack

Features:

• Dual LCD Display and Menu pad
• Horizontal Angle Resolution switchable between 1″,5″ and 10″
• Zenith/Vertical Angle Resolution switchable between 1″,5″ and 10″
• 30x Magnification Telescope
• Laser Pointer through Telescope
• Laser Plummet/Plumb dot down class 3 dot
• Face Left/Face Right modes for error minimising
• Vertical can display in either Angle or Percentage slope
• Custom Horizontal Zero setting
• Repetition Mode for averaging
• Auto Power Off

Specifications:

• Telescope:
  • Length: 156mm
  • Image: Erect
  • Magnification: 30X
  • Aperture: 45mm
  • Field of View: 1 Degree 20 Minutes
  • Min Focus: 1200mm
  • Stadia Ratio: 100
  • Stadia Constant: 0
• Angle Measurement:
  • Measurement Method: Absolute Code
  • Angular Accuracy: 2″
  • Minimum Reading: 1″, 5″ and 10″
• Laser Plummet:
  • Laser: 635nm Class 2 red <1mW
  • Laser Dot Size: <0.5mm/1.5m
  • Laser Accuracy: +/-1.0mm/1.5m
• Laser Point:
  • Laser: 635nm Class 2 red <1mW
  • Visible Distance: up to 100m light dependant
  • Laser Dot Size: <5mm/100m
• Bubble Level:
  • Accuracy of plate bubble: 30″/2mm
  • Accuracy of the circular bubble (Tribach bullseye): 8″/2mm
• Operating Conditions:
  • Working: -10 degrees to +45 Degrees
  • Storage: -20 degrees to +55 Degrees
  • Water/Dust: IP55
