Tramex BSITK Building Survey Inspection Tech Kit

Tramex BSITK Building Survey Inspection Tech Kit

The Tramex Building Survey Inspection Tech Kit is a compact, versatile moisture testing solution for building inspections. It combines the Moisture Encounter MEX5 with a pin electrode to provide both non-destructive and pin-type moisture readings across materials including wood, drywall, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing.

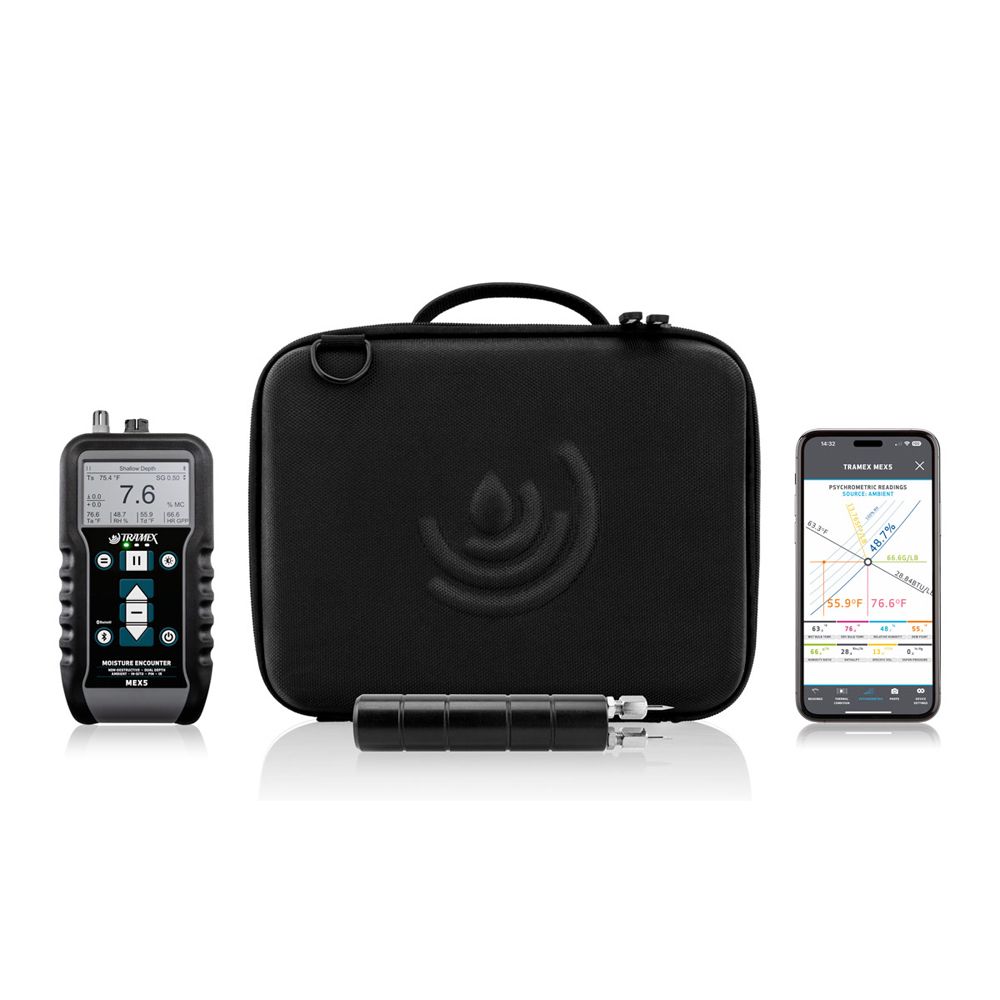

Includes:

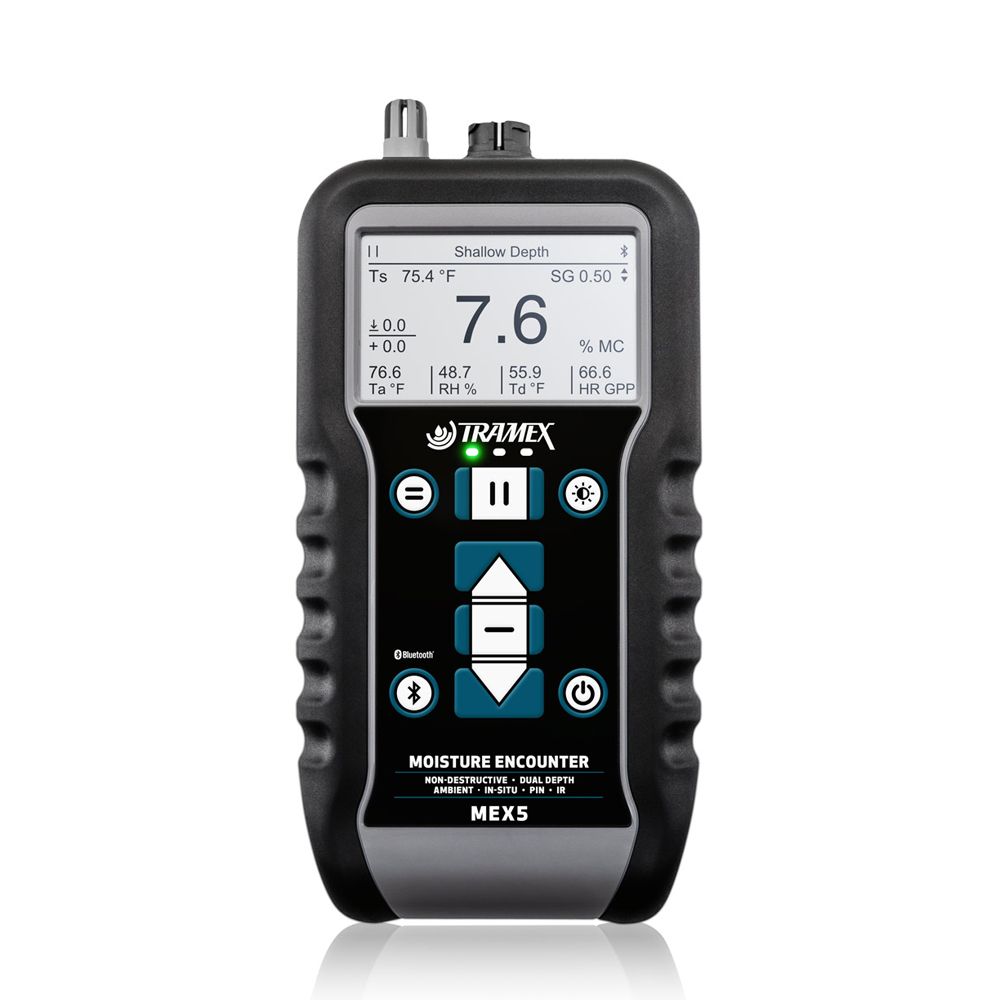

• 1 x Moisture Encounter MEX5

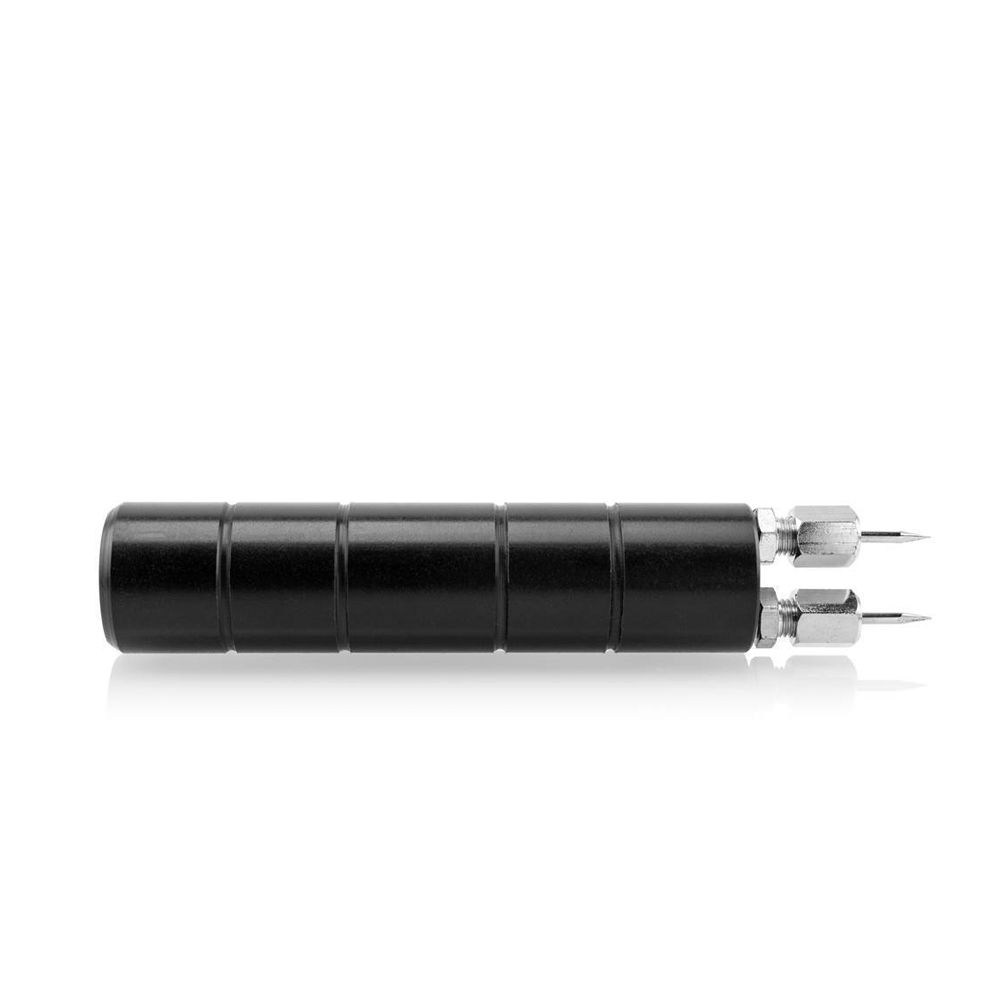

• 1 x Pin electrode
• 1 x Protective travel case

Features:

• Moisture testing for a wide range of building materials
• Non-destructive and pin-type moisture readings
• Dual-depth measurement: up to 30mm (1¼") deep and 9mm (⅜") shallow
• Built-in hygrometer for ambient conditions and psychrometric readings
• Infrared surface thermometer for temperature measurements
• Hand-held probe for wood, drywall and WME readings
• Bluetooth connectivity to the Tramex Meters App
• View, map and record moisture readings on mobile devices
• Create, save and share photos, reports and charts
• GeoTag test results and remotely view meter readings on a mobile device
• Supplied with a protective travel case

Comparative vs Quantitative Testing:

• Comparative Testing
  • Establish a known dry/reference area, then compare readings from other
    areas to identify moisture difference or anomalies
• Quantitative Testing
  • Provides a quantitative reading for concrete testing, reducing the need to
    simply compare one area of the slab against another

Applications:

• Water Damage Restoration
  • Identify elevated moisture in walls and buildings
  • Assess Concrete Slabs were required
    • ME5 / MEX5 for Comparative Testing
    • CME5 / CMEX5 for Quantitative Testing
• Building Surveyors & Inspectors
  • Non-invasive investigation of walls and other building materials
  • Concrete-specific testing where required
    • ME5 / MEX5 for Comparative Testing
    • CME5 / CMEX5 for Quantitative Testing
• Pest Control
  • Moisture investigation within walls and building materials as part of the
    inspection process
    • ME5 / MEX5 for Comparative Testing
• Mold Remediation
  • Locate areas of elevated moisture in building materials and support moisture
    investigation
    • ME5 / MEX5 for Comparative Testing
• Flooring Installers / Inspectors
  • Assess concrete moisture before installation and investigate moisture-related
    flooring issues
    • ME5 / MEX5 for Comparative Testing
    • CME5 / CMEX5 for Quantitative Testing
• Concrete Testing Professionals
  • Dedicated Concrete moisture assessment and, where required, RH testing
    • CME5 / CMEX5 for Quantitative Testing

Specifications:

• Power: 2 x AALR6 ALKALINE (included)
• Display: Digital 58mm x 35mm (2.3" x 1.4")
• Depth of Penetration:
  • Deep Depth: Up to 30mm (1¼")
  • Shallow Depth: Up to 9mm (⅜")
• Measurement Types: Non-destructive and pin-type
• Connectivity: Bluetooth
• App: Tramex Meters App
• Measuring Range of Moistuer Encounter MEX5:
  • NDT Moisture content for Wood:    0 → 30% MC
  • NDT Comparative for Building Materials:    0 → 100
  • Pin % MC  Wood:    6 → approx 50% MC
  • Pin % MC Drywall:    0 → 8.5% MC
  • Relative Humidity:    0 → 99%

    • (with optional Hygro-i2 ® probe):    Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F
• Dimensions (L x W x H): 180mm x 85mm x 40mm
• Weight: 0.29kg
