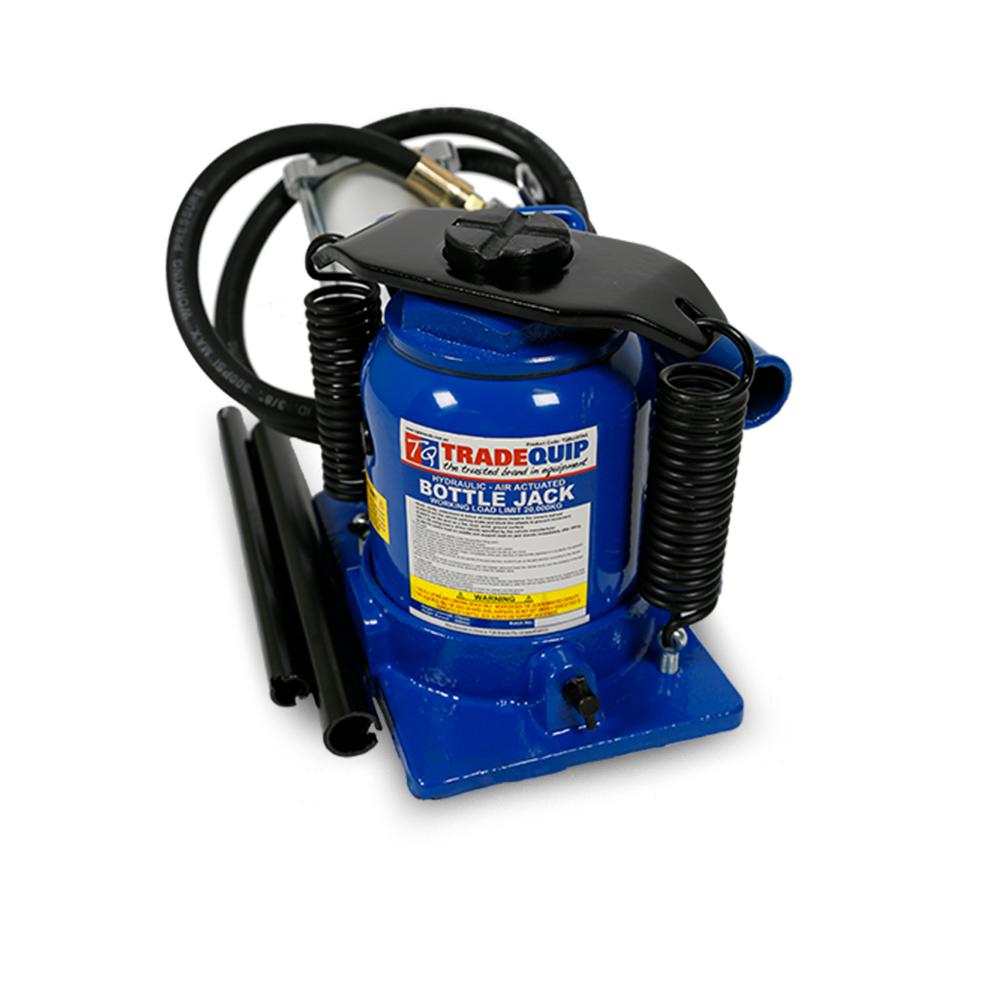

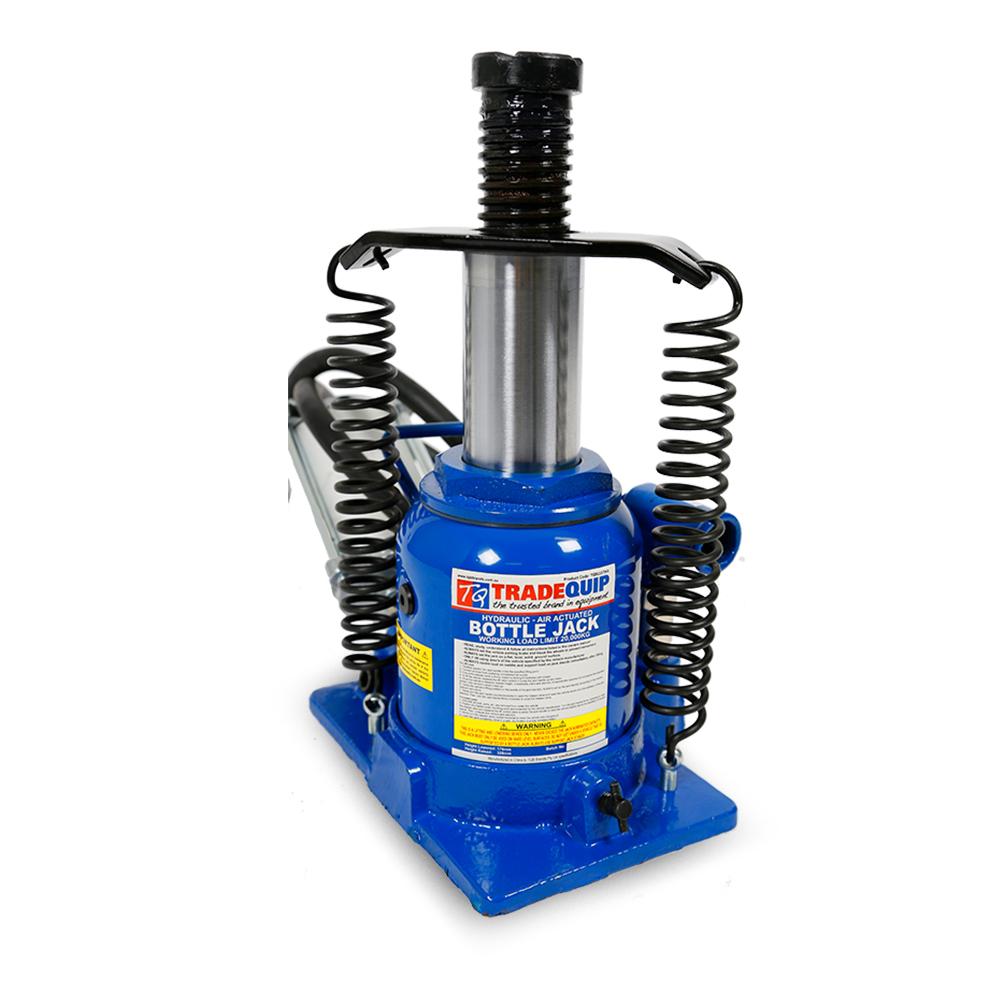

TradeQuip TQBJ20TAS 20000KG Bottle Jack

TradeQuip TQBJ20TAS 20000KG Bottle Jack

TradeQuip "Made for the Trade" Air/ Hydraulic "Low Profile" Bottle Jack is designed to provide enough lifting power for use with farm vehicles, heavy duty machinery, industrial construction equipment and more.

Includes:

• 1 x 2 piece pump handle

Suitable For:

• Automotive
  • Farm Vehicles
  • Trucks
  • Lawn Mowers
  • Heavy Equipment
  • Large loads

Features:

• Machined and polished cylinders with die-cut threads
• Fabricated from hard-cast steel with heat-treated critical stress areas
• Unique cross-type forged release valve assures positive load control
• Built-in bypass protection prevents damage from over pumping
• Compact yet powerful Air Turbo motor
• Versatile “quick connector provides ‘quick & easy air connection
• Convenient welded carry handle

Specifications:

• Safe Working Capacity: 20,000kg
• Minimum Height: 178mm
• Maximum Height: 328mm
• Hydraulic Stroke: 87mm
• Screw Extension Height: 63mm
• Operating Air Pressure: 110-125psi
• Air Fitting: 1/4"
• Dimensions (L x W x H): 390mm x 192mm x 195mm
• Weight: 13kg
