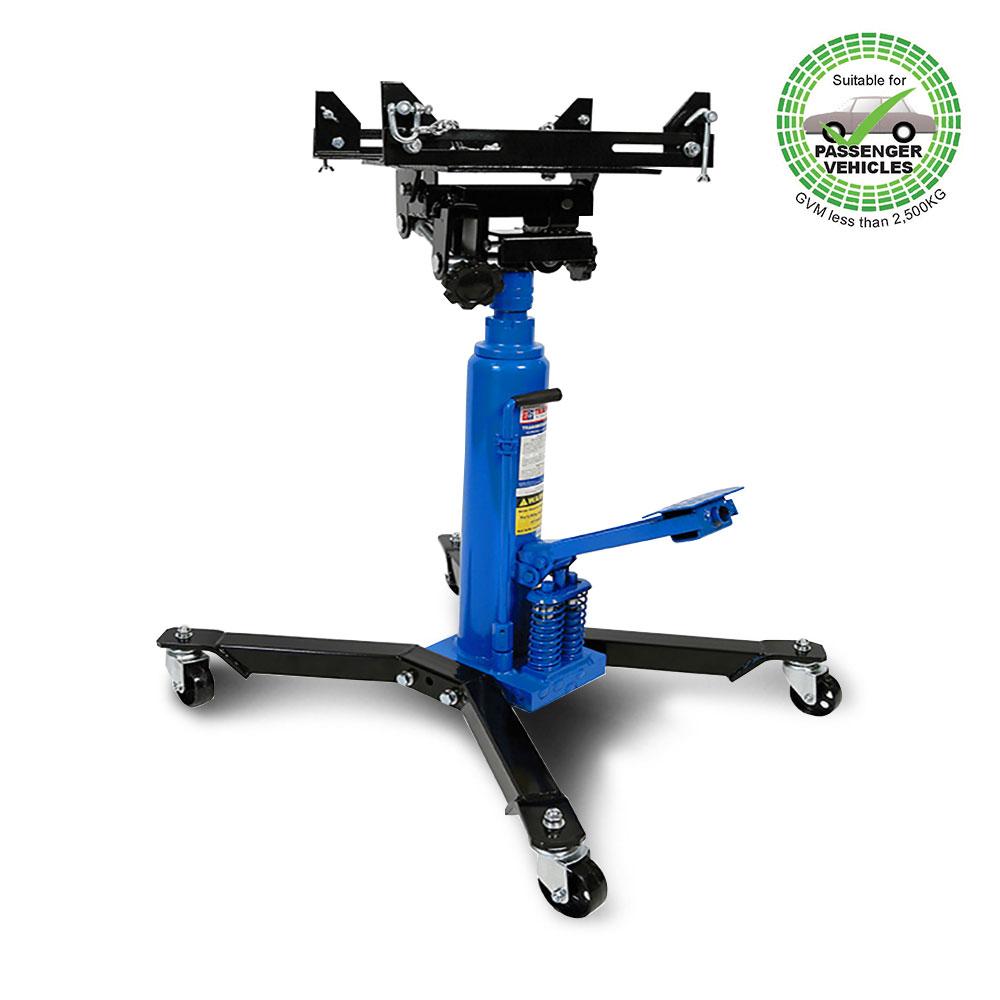

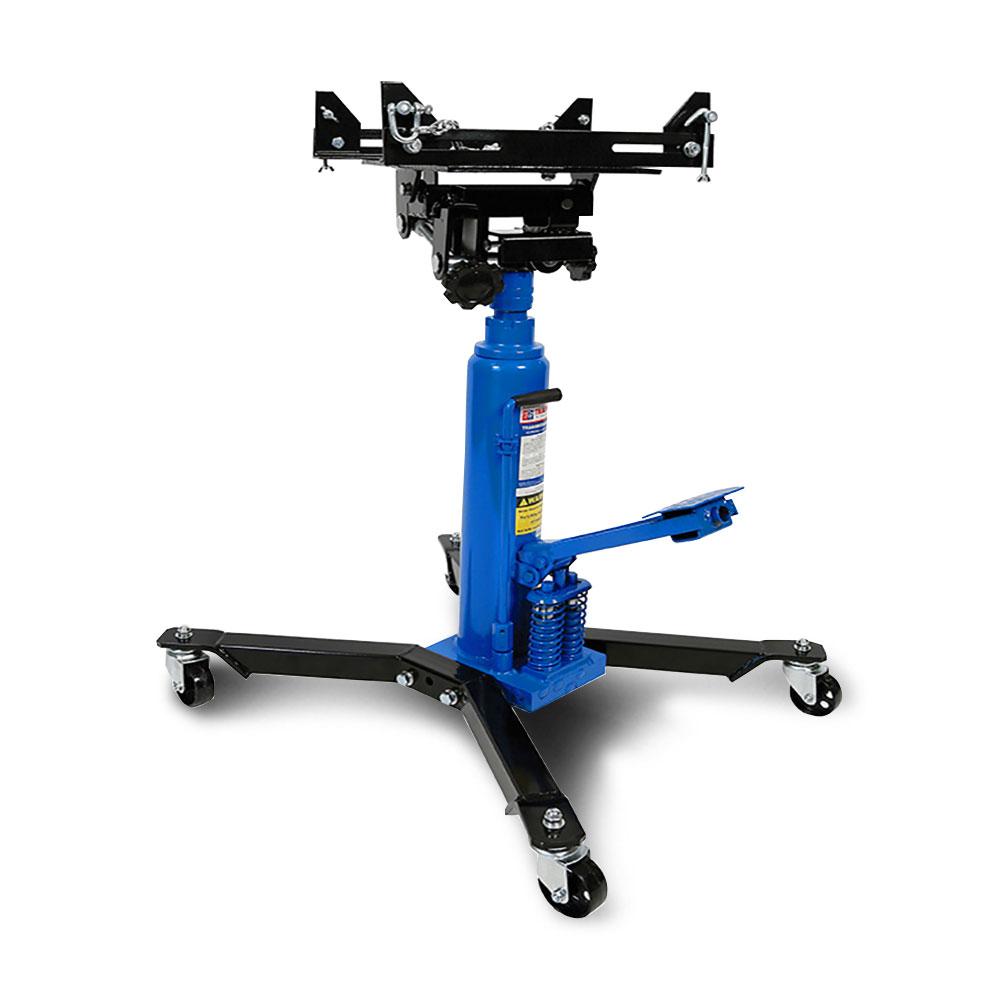

TradeQuip 2052 500kg Transmission Lifter

TradeQuip 2052 500kg Transmission Lifter

This 500kg capacity"Made for the Trade" TradeQuip hydraulic Telescopic Transmission Lifter has a 4 way tilt transmission lifting platform with adjustable load support arms to fit most passenger vehicle transmission pan flanges. The foot-operated quick lift pump frees up operator's hands when positioning for lift and the hand operated lower lever provides safety with its extra slow lower control.

Features

• Designed for lifting & lowering passenger car transmissions
• 2 Stage hydraulic ram

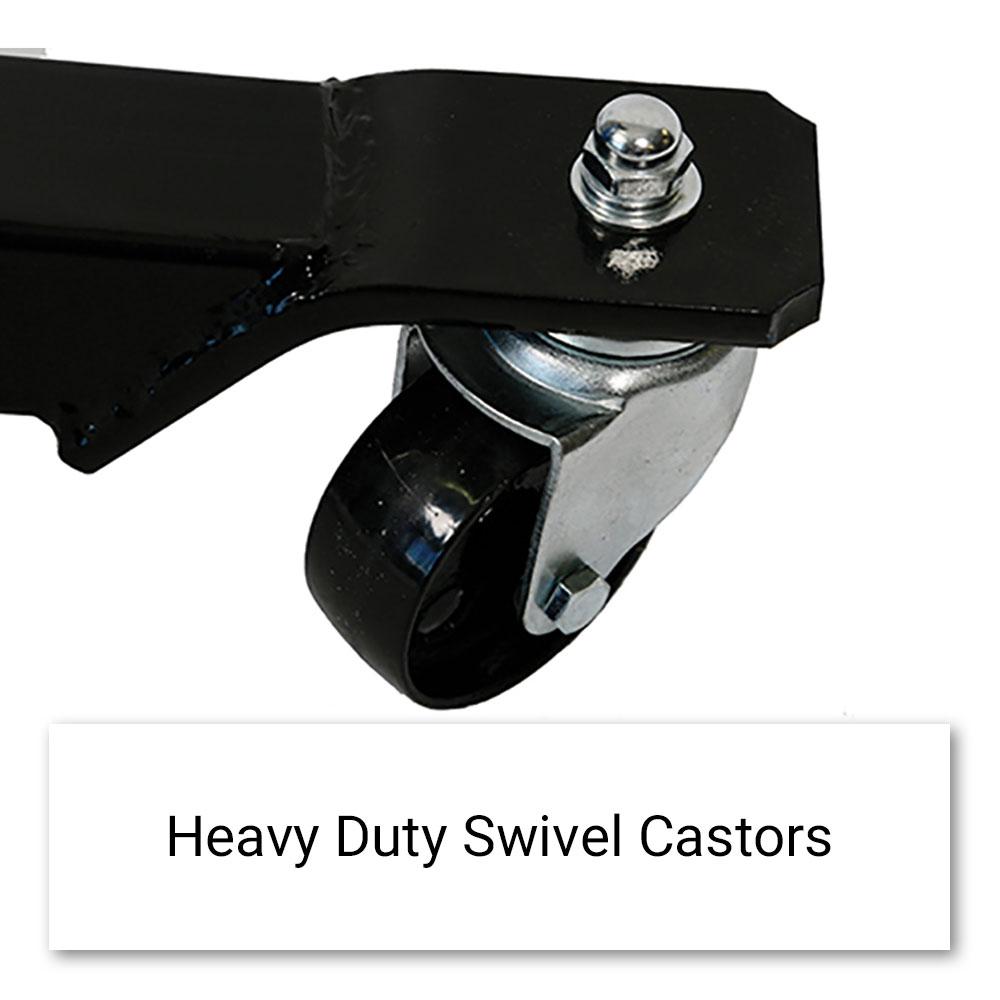

• Rugged steel wheels and full swivel ball bearing castors for easy movement
• Wide base for stability and balance
• Adjustable lifting platform for quick adjustment for most pan configurations

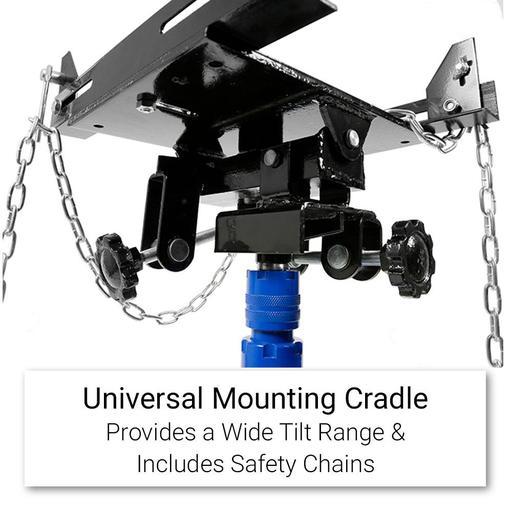

• 4way tilt lifting platform
• High polished chrome-plated rams provides smooth operation

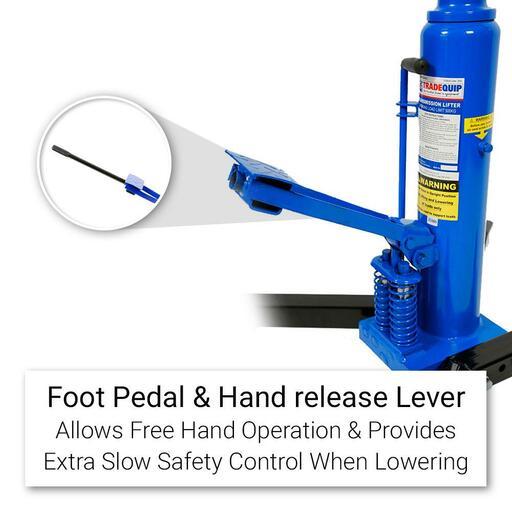

• Unique hand release lever provides extra slow control safety when lowering
• Foot operated fast action pump & release valve
• Safety designed lifting platform with corner brackets
• Includes safety chains

Intended use:

• Designed for the removal, installation and transportation (in the lowered position) of passenger vehicle transmissions that are raised by an in-ground or above-ground lift

Specifications

• Safe Working Capacity: 500kg

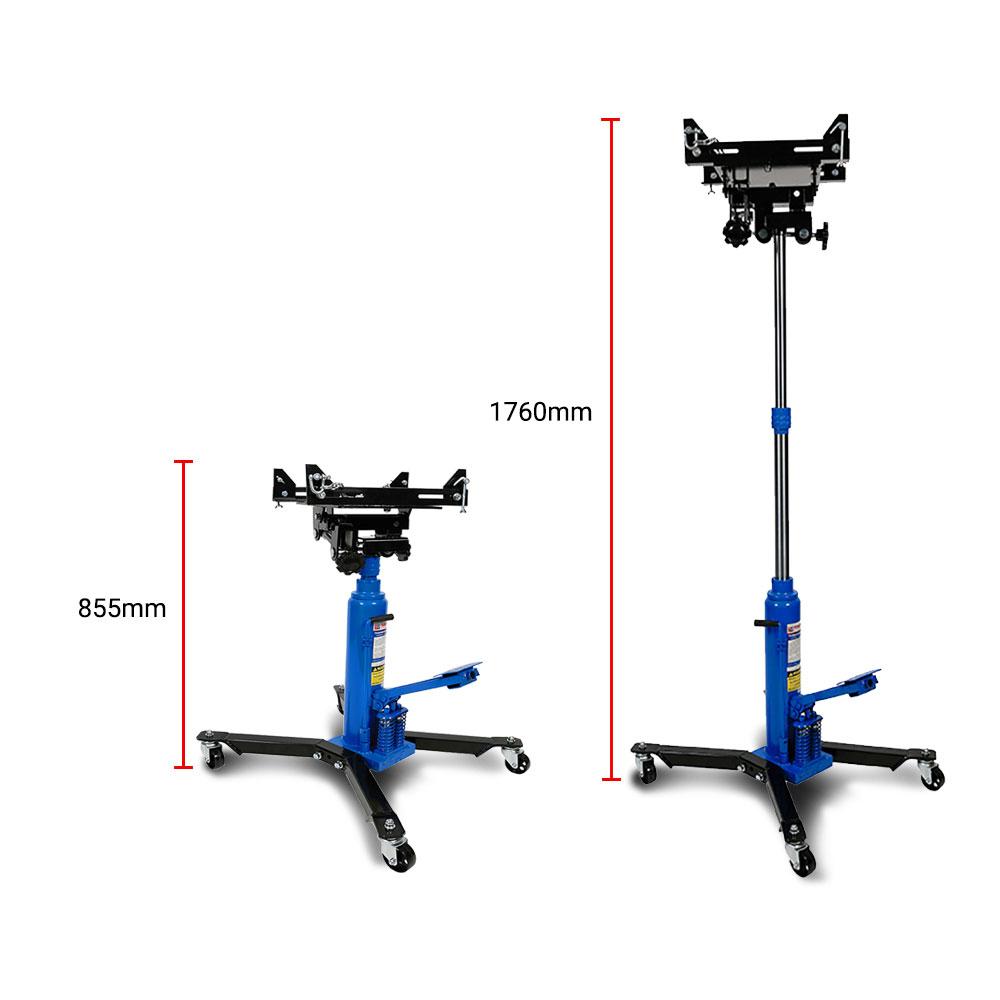

• Minimum Height: 855mm
• Maximum Height: 1760mm
• Lifting Platform: 360x276mm
• Forward Tilt: 23°
• Backward Tilt: 16°
• Lateral Tilt: 7°
• Base Dimensions: 690 x 780mm
• Dimensions (L x W x H): 550 x 270 x 780mm
• Weight: 68kg

NOTE: This Transmission Lifter must only be used on hard level surfaces and be free to roll during lifting and lowering.

WARNING: This Transmission Lifter is a lifting and lowering device only and is designed for removing and installing transmissions.
