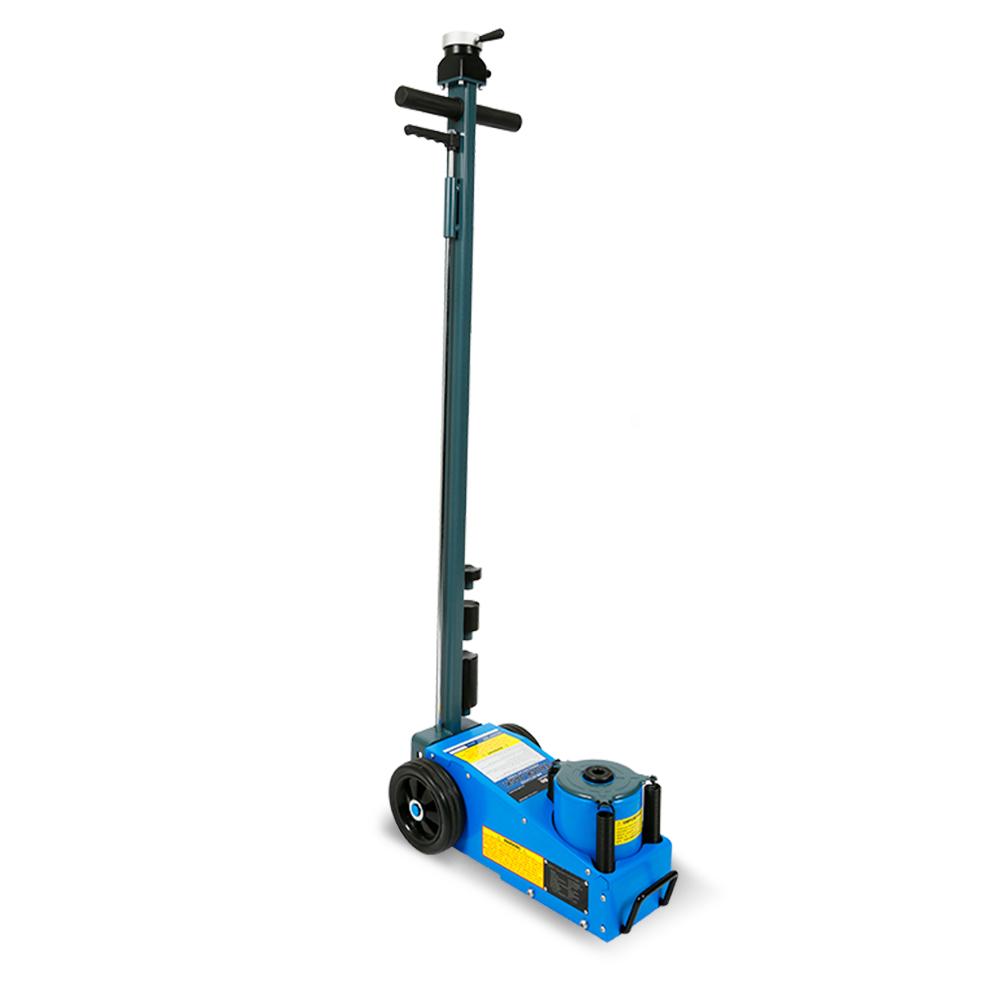

TQ Pro PROTRJA20T 20,000kg Single Stage Air Actuated Truck Jack

TQ Pro PROTRJA20T 20,000kg Single Stage Air Actuated Truck Jack

The Single Stage Air Actuated Truck Jack is designed for top industrial performance, reliability and for a wide variety of uses. These Commercial Grade Jacks are carefully constructed from the highest grades of quality steel. The super strong hydraulic pump utilises wear-resistant American Made XTP double sealing ring technology.

Use these quality truck jacks with a 145–175psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need. With several lifting options as well as included saddle adaptors…the wide range of Truck Jacks will suit most desired applications from agriculture to mining, earth-moving to passenger transport as well as aviation and military.

This Air Actuated Truck Jack is designed for heavy duty commercial use and features a long reach “T" handle and large rubber wheels for smooth manoeuvring around the workshop. Incorporates a built-in safety valve to prevent overloading and keep the operator safe. Additional safety feature includes a Self-Return lowering and lifting switch to ensure complete control during operation. With a minimum height of 215mm this jack is ideal for medium ground-clearance vehicles and a high lift maximum of 556mm (includes additional lifting saddles), this Air Actuated Truck Jack is a very versatile heavy-lifter suitable for most workshops.

Features:

• Seals made in America
• Double Sealing Function using XTP Industry Sealing
• Telescopic air actuation lift (air-hydraulic pump)
• Long T-handle lets you easily position your jack under vehicle
• Self-Returning Lowering and Lifting Switch
• Internal and External Cylinders hard chromed
• High manoeuvrability & deep reach under vehicles
• 3 extension adaptors / saddle plates
• Large rubber wheels
• All adaptors can be properly stored for transport on each side of the jack

Specifications:

• Safe Working Capacity: 20,000kg
• Maximum Height: 456mm
• Minimum Height: 215mm
• Hydraulic Lift: 141mm
• Adjustable Screw: 85mm
• Adaptors: 20, 50, 100mm
• Handle Length: 1335mm
• Operating Air Pressure: 145-175psi
• Chassis: 520(L) x 215(H) x 258(W)mm
• Nett Weight: 40kg
• Carton:  580mm x 290mm x 260mm
